Fein GRIT GIC / 79021200443 Spare Parts

Home Details Reviews Delivery

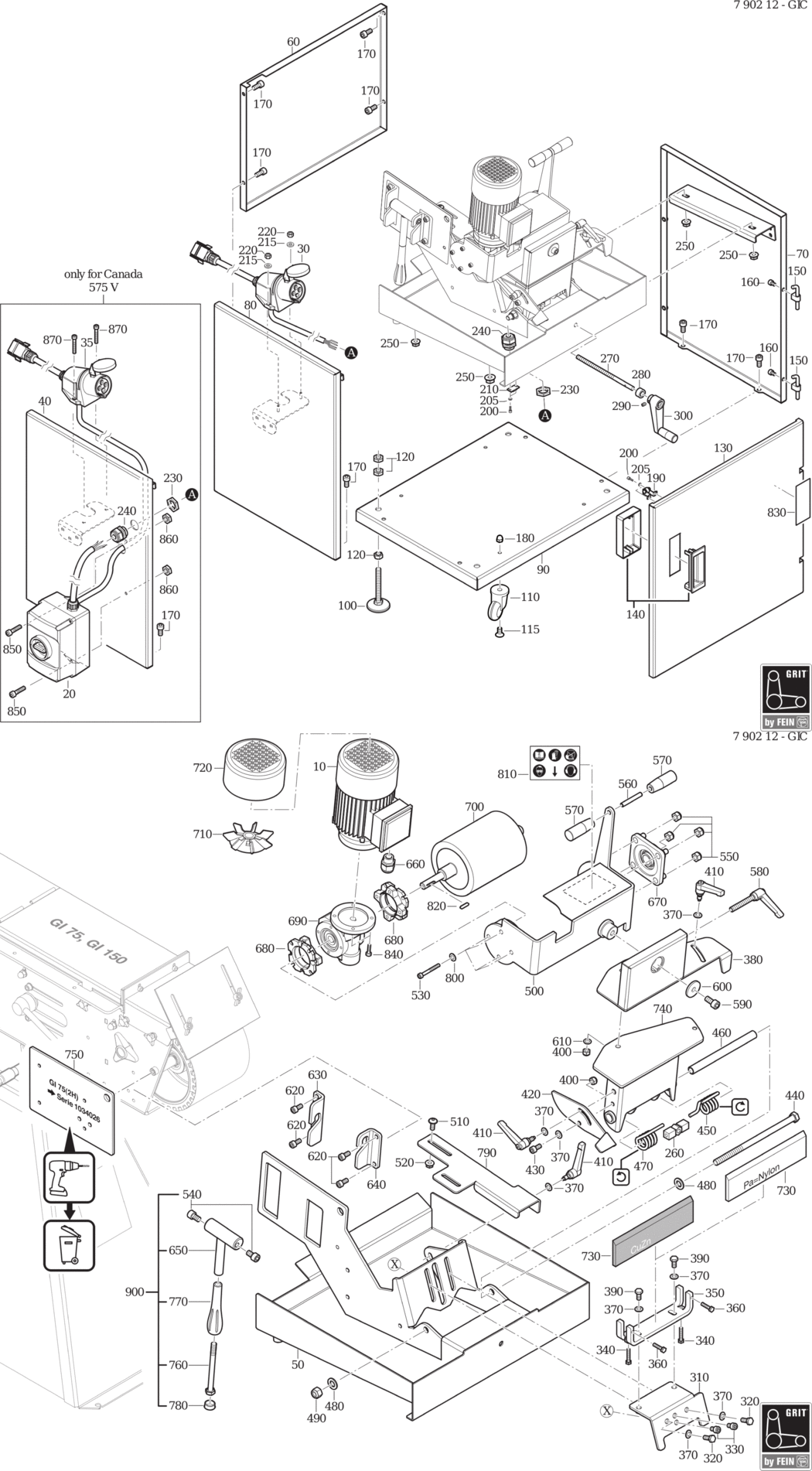

An exploded diagram and spare parts listing for the Fein GRIT GIC / 79021200443

	Ex VAT	Inc VAT
10 - MOTOR 0 18KW/1500 RPM FEI-39000001090.A0 39000001090	£344.61	£413.53
30 - CABLE FEI-39000006331.A1 39000006331	-
50 - HOUSING FEI-39000004502.A2 39000004502	-
60 - COVER HINTEN FEI-39000004511.A2 39000004511	-
70 - COVER RECHTS FEI-39000004527.A2 39000004527	-
80 - COVER LINKE FEI-39000004526.A0 39000004526	-
90 - PLATE BODEN FEI-39000004528.A0 39000004528	-
100 - ADJUSTABLE FOOT FEI-39000005415.A3 39000005415	-
110 - WHEEL FEI-39000006353.A0 39000006353	-
115 - FLAT HEADED SCREW FEI-39000000040.A37 39000000040	-
120 - NUT FEI-39000000715.A1 39000000715	-
130 - COVER GIC FEI-39000004530.A2 39000004530	-
140 - HANDLE FEI-39000004561.A2 39000004561	-
150 - CLAMP FEI-39000004576.A2 39000004576	-
160 - SCREW FEI-39000000191.A39 39000000191	-
170 - SCREW FEI-39000000595.A20 39000000595	-
180 - NUT FEI-39000000044.A56 39000000044	-
190 - CLAMP FEI-39000004559.A0 39000004559	-
200 - SCREW FEI-39000005672.A2 39000005672	-
205 - DISC D3 FEI-39000006340.A2 39000006340	£1.60	£1.92
210 - ROD FEI-39000004508.A0 39000004508	-
215 - DISC D5 FEI-39000000831.A1 39000000831	£1.60	£1.92
220 - NUT FEI-39000000046.A10 39000000046	£2.52	£3.02
230 - NUT FEI-39000001200.A6 39000001200	-
240 - SCREW CONNECTION M25 FEI-39000001197.A0 39000001197	-
250 - NUT FEI-39000000528.A6 39000000528	£2.55	£3.06
260 - SPRING FEI-39000004539.A0 39000004539	-
270 - THREAD SPINDLE FEI-39000001318.A2 39000001318	£54.25	£65.10
280 - SPACER FEI-39000004570.A0 39000004570	£19.91	£23.89
290 - SET SCREW FEI-39000000427.A27 39000000427	£1.60	£1.92
300 - CRANK FEI-39000000475.A22 39000000475	£83.01	£99.61
310 - GUIDE FEI-39000004549.A0 39000004549	-
320 - SCREW FEI-39000000623.A7 39000000623	-
330 - SCREW FEI-39000000164.A20 39000000164	-
340 - SCREW FEI-39000000633.A8 39000000633	-
350 - GUIDE FEI-39000004603.A2 39000004603	-
360 - SCREW FEI-39000000630.A3 39000000630	-
370 - DISC FEI-39000000090.A30 39000000090	£1.60	£1.92
380 - ADJUSTMENT UNIT FEI-39000004540.A2 39000004540	-
390 - SCREW FEI-39000000634.A0 39000000634	-
400 - NUT FEI-39000000061.A66 39000000061	£2.94	£3.53
410 - HANDLE M8X20 FEI-39000001532.A9 39000001532	£40.93	£49.12
420 - STOP FEI-39000004541.A0 39000004541	-
430 - SCREW FEI-39000000165.A0 39000000165	-
440 - SCREW FEI-39000006322.A0 39000006322	-
450 - SPRING FEI-39000004555.A1 39000004555	-
460 - SLEEVE FEI-39000004543.A2 39000004543	-
470 - SPRING FEI-39000004556.A1 39000004556	-
480 - DISC D12 FEI-39000000163.A1 39000000163	-
490 - NUT FEI-39000000063.A34 39000000063	-
500 - HOLDER FEI-39000004538.A1 39000004538	-
510 - BOLT M8X45 FEI-39000000153.A2 39000000153	£3.15	£3.78
520 - NUT FEI-39000000528.A7 39000000528	£2.55	£3.06
530 - SCREW FEI-39000000050.A6 39000000050	-
540 - SCREW FEI-39000000432.A19 39000000432	-
550 - NUT FEI-39000000062.A10 39000000062	-
560 - THREAD BOLT FEI-39000006330.A0 39000006330	-
570 - HANDLE FEI-39000004567.A1 39000004567	£12.02	£14.43
580 - HANDLE M10X60 FEI-39000001066.A3 39000001066	£40.00	£48.00
590 - SCREW FEI-39000000099.A17 39000000099	-
600 - DISC FEI-39000000168.A40 39000000168	£23.47	£28.16
610 - CUP SPRING 8 2X0 9 MM FEI-39000000089.A62 39000000089	-
620 - SCREW FEI-39000000165.A1 39000000165	-
630 - CLAMP FEI-39000004547.A0 39000004547	-
640 - CLAMP FEI-39000004548.A2 39000004548	-
650 - CONNECTING PIECE FEI-39000004546.A2 39000004546	-
660 - SCREW CONNECTION M16 FEI-39000000619.A7 39000000619	-
670 - BEARING D20 FEI-39000001061.A5 39000001061	-
680 - FLANGE FEI-39000000606.A11 39000000606	£71.92	£86.31
690 - GEARBOX 1/20 FEI-39000000477.A7 39000000477	-
700 - BRAKE WHEEL FEI-39000000554.A6 39000000554	£575.40	£690.48
710 - BLADE FEI-39000000622.A0 39000000622	-
720 - HOOD FEI-39000000621.A8 39000000621	-
730 - GUIDE RAIL BRASS FEI-39000000496.A1 39000000496	£77.29	£92.75
730 - SLIDING PIECE FEI-39000002575.A1 39000002575	-
740 - ADJUSTMENT UNIT FEI-39000004531.A1 39000004531	-
750 - DRILLING TEMPLATE FEI-39000004554.A1 39000004554	-
760 - SCREW FEI-39000006323.A2 39000006323	-
770 - HANDLE FEI-32119114005.A26 32119114005	-
780 - PLUG FEI-41115012001.A8 41115012001	-
790 - FITTING FEI-39000004545.A0 39000004545	-
800 - DISC FEI-39000000088.A3 39000000088	-
810 - SIGN FEI-39000006100.A3 39000006100	£3.17	£3.80
820 - FEATHER KEY FEI-39000000614.A7 39000000614	-
830 - SIGN FEI-39000006440.A4 39000006440	-
840 - SCREW FEI-39000000041.A1 39000000041	-
900 - FITTING FEI-39000004500.A0 39000004500	-
