Fein GRIT GX 75 2H / 79010200403 Spare Parts

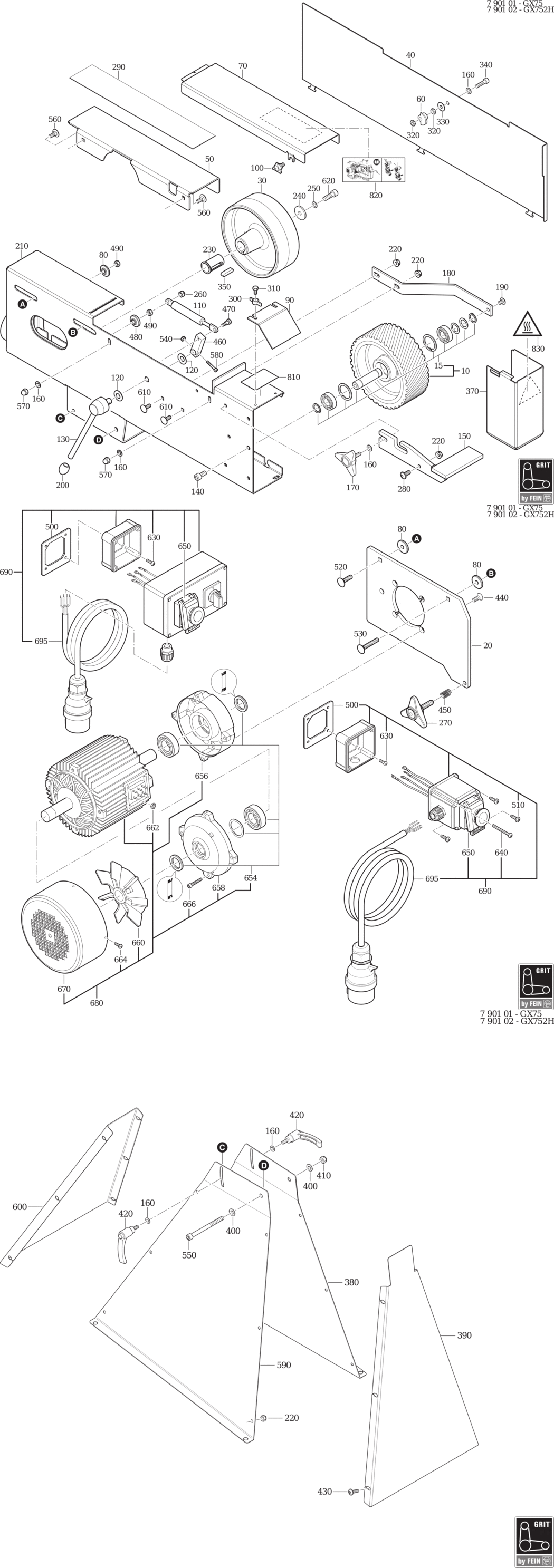

An exploded diagram and spare parts listing for the Fein GRIT GX 75 2H / 79010200403

	Ex VAT	Inc VAT
10 - CONTACT WHEEL FEI-39000001006.A10 39000001006	£384.33	£461.20
15 - SHAFT FEI-39000001459.A6 39000001459	£122.21	£146.65
20 - FLANGE FEI-39000000515.A5 39000000515	-
30 - DRIVE WHEEL FEI-39000001104.A1 39000001104	£284.94	£341.93
40 - COVER FEI-39000000516.A8 39000000516	-
50 - SANDING TABLE FEI-39000000517.A5 39000000517	-
60 - LOCKING BAR FEI-39000000087.A56 39000000087	-
70 - COVER FEI-39000000518.A7 39000000518	£104.71	£125.65
80 - BUSH FEI-39000000519.A6 39000000519	£16.88	£20.26
90 - EYE GUARD FEI-39000005129.A4 39000005129	£33.62	£40.35
100 - HANDLE M8 FEI-39000000085.A17 39000000085	£17.68	£21.22
110 - GAS COMPRESSION SPRING FEI-39000000484.A0 39000000484	£67.01	£80.41
130 - HANDLE FEI-39000000520.A3 39000000520	£118.13	£141.76
150 - WORKPIECE SUPPORT FEI-39000000521.A9 39000000521	£82.98	£99.58
160 - DISC FEI-39000000090.A4 39000000090	£1.60	£1.92
170 - HANDLE M8X30 FEI-39000000171.A26 39000000171	£20.96	£25.15
210 - HOUSING FEI-39000000523.A0 39000000523	-
220 - NUT FEI-39000000528.A0 39000000528	£2.55	£3.06
230 - BUSH FEI-39000000524.A1 39000000524	-
240 - DISC FEI-39000000525.A0 39000000525	-
250 - CIRCLIP FEI-39000000198.A15 39000000198	-
260 - NUT FEI-39000000061.A76 39000000061	£2.94	£3.53
270 - HANDLE FEI-39000000498.A18 39000000498	£44.80	£53.76
280 - SCREW FEI-39000000527.A24 39000000527	£2.66	£3.19
290 - GRAPHITE COATING 80X430 MM FEI-39000005043.A22 39000005043	£41.92	£50.30
300 - HANDLE FEI-39000005826.A51 39000005826	£8.38	£10.05
310 - SCREW FEI-39000000529.A59 39000000529	£2.39	£2.87
320 - NUT FEI-39000000047.A0 39000000047	-
330 - CUP SPRING 8 2X0 9 MM FEI-39000000089.A81 39000000089	-
340 - SCREW FEI-39000000111.A62 39000000111	-
370 - SPARK BOX FEI-39000004660.A9 39000004660	£126.92	£152.30
380 - PLATE FEI-39000000531.A0 39000000531	-
390 - PLATE FEI-39000000533.A0 39000000533	-
400 - DISC FEI-39000000199.A23 39000000199	-
410 - NUT FEI-39000000062.A4 39000000062	-
420 - HANDLE M8X20 FEI-39000000474.A7 39000000474	£41.06	£49.27
430 - SCREW FEI-39000000151.A1 39000000151	-
480 - BUSH FEI-39000000539.A13 39000000539	-
490 - NUT FEI-39000000045.A1 39000000045	-
540 - NUT FEI-39000000046.A11 39000000046	£2.52	£3.02
550 - SCREW FEI-39000000534.A6 39000000534	-
560 - BOLT M8X16 FEI-39000000054.A14 39000000054	-
570 - NUT FEI-39000000044.A72 39000000044	-
590 - PLATE FEI-39000000532.A6 39000000532	-
600 - PLATE FEI-39000000543.A6 39000000543	-
620 - SCREW FEI-39000001533.A6 39000001533	-
650 - FLAP SWITCH FEI-39000000479.A26 39000000479	£45.72	£54.86
654 - SERVICE KIT FEI-39000004494.A8 39000004494	£120.47	£144.56
656 - FLANGE B14 FEI-39000001563.A14 39000001563	£95.74	£114.89
658 - COVER 3 KW FEI-39000001699.A25 39000001699	£79.68	£95.62
660 - BLADE FEI-39000000491.A6 39000000491	£49.64	£59.57
662 - NUT FEI-39000000720.A59 39000000720	-
664 - FILLISTER HEAD SCREW FEI-43041040048.A44 43041040048	£1.60	£1.92
666 - SCREW M6X30 FEI-39000000444.A38 39000000444	-
670 - HOOD MA 90 FEI-39000000211.A5 39000000211	-
680 - MOTOR 1 5/2 0KW/1420/2850 RPM FEI-39000001093.A1 39000001093	£729.53	£875.44
690 - SWITCH FEI-39000000483.A3 39000000483	-
695 - CABLE WITH PLUG FEI-39000001701.A3 39000001701	-
820 - INSTRUCTION SIGN GX75 FEI-39000006101.A1 39000006101	-
830 - SIGN FEI-39000006105.A0 39000006105	-
