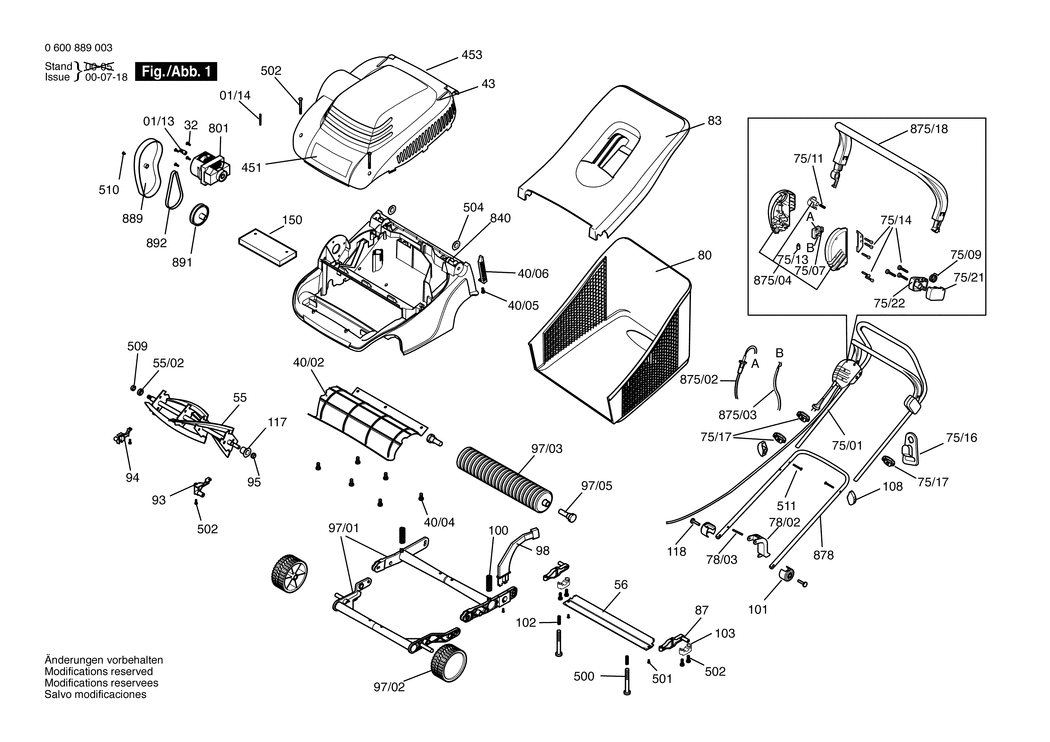

01/13 - PINION
BSD-F016L62280.A3
F016L62280
|
-
|
|
|
|
01/14 - COILED SPRING PIN
BSD-F016T44492.A22
F016T44492
|
£2.61
|
£3.13
|
|
|
32 - SELF-CUTTING SCREW
BSD-F016L37433.A264
F016L37433
|
£1.75
|
£2.10
|
|
|
40/02 - DEFLECTOR PLATE
BSD-F016L62281.A10
F016L62281
|
-
|
|
|
|
40/04 - SELF-CUTTING SCREW 3x8 MM
BSD-F016L66420.A17
F016L66420
|
£2.61
|
£3.13
|
|
|
40/05 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A112
F016T49429
|
£1.75
|
£2.10
|
|
|
40/06 - INSERT
BSD-F016102782.A1
F016102782
|
£4.75
|
£5.70
|
|
|
43 - MOTOR HOOD
BSD-F016L62269.A0
F016L62269
|
-
|
|
|
|
55 - CYLINDER
BSD-F016L62486.A1
F016L62486
|
-
|
|
|
|
55/02 - GROOVE BALL BEARING 6200-2Z DIN 625
BSD-1900905232.A148
1900905232
|
£21.68
|
£26.01
|
|
|
56 - LOWER BLADE
BSD-F016102772.A1
F016102772
|
-
|
|
|
|
75/01 - HANDLE
BSD-F016L62651.A4
F016L62651
|
£19.45
|
£23.34
|
|
|
75/07 - ON-OFF SWITCH
BSD-F016F05717.A136
F016F05717
|
£14.91
|
£17.89
|
|
|
75/09 - SPIRAL SPRING
BSD-F016T49633.A34
F016T49633
|
£2.16
|
£2.59
|
|
|
75/11 - COMPRESSION SPRING
BSD-F016T49226.A91
F016T49226
|
-
|
|
|
|
75/13 - CONDENSER
BSD-F016L36952.A24
F016L36952
|
£1.95
|
£2.34
|
|
|
75/14 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A109
F016T49429
|
£1.75
|
£2.10
|
|
|
75/16 - STRAIN-RELIEF CLAMP
BSD-F016L65387.A31
F016L65387
|
£9.49
|
£11.39
|
|
|
75/17 - CABLE CLIP
BSD-F016T56393.A8
F016T56393
|
-
|
|
|
|
75/21 - HOLDER
BSD-F016T49629.A27
F016T49629
|
-
|
|
|
|
75/22 - HOLDER
BSD-F016T49628.A4
F016T49628
|
-
|
|
|
|
78/02 - STOPPING PIECE
BSD-F016L62669.A4
F016L62669
|
£3.34
|
£4.01
|
|
|
78/03 - COILED SPRING PIN
BSD-F016L62760.A1
F016L62760
|
£1.75
|
£2.10
|
|
|
80 - COLLECTOR BOX BOTTOM
BSD-F016L62300.A2
F016L62300
|
£19.45
|
£23.34
|
|
|
83 - COLLECTOR BOX TOP
BSD-F016L62299.A10
F016L62299
|
£14.91
|
£17.89
|
|
|
85 - CABLE CLEAT
BSD-F016L11580.A13
F016L11580
|
£1.75
|
£2.10
|
|
|
87 - BLADE HOLDER
BSD-F016L62272.A10
F016L62272
|
£4.75
|
£5.70
|
|
|
93 - CONNECTING TERMINAL L/H
BSD-F016L62278.A4
F016L62278
|
£1.75
|
£2.10
|
|
|
94 - CONNECTING TERMINAL R/H
BSD-F016L62279.A8
F016L62279
|
£1.75
|
£2.10
|
|
|
95 - BUSHING
BSD-F016T40513.A4
F016T40513
|
£6.52
|
£7.83
|
|
|
97/01 - LINKAGE
BSD-F016102751.A4
F016102751
|
£33.45
|
£40.14
|
|
|
97/02 - WHEEL
BSD-F016L62270.A12
F016L62270
|
£3.34
|
£4.01
|
|
|
97/03 - ROLLER
BSD-F016L62282.A2
F016L62282
|
£8.49
|
£10.19
|
|
|
97/05 - STUB SHAFT
BSD-F016L63341.A15
F016L63341
|
£3.80
|
£4.56
|
|
|
98 - HANDLE
BSD-F016L62292.A8
F016L62292
|
£5.87
|
£7.04
|
|
|
100 - COMPRESSION SPRING
BSD-F016L62298.A6
F016L62298
|
-
|
|
|
|
101 - PIVOT
BSD-F016L62285.A23
F016L62285
|
-
|
|
|
|
102 - COMPRESSION SPRING
BSD-F016L62284.A2
F016L62284
|
-
|
|
|
|
103 - CLAMPING BLOCK
BSD-F016L62283.A20
F016L62283
|
£1.75
|
£2.10
|
|
|
108 - WING NUT
BSD-F016L66136.A124
F016L66136
|
£4.26
|
£5.11
|
|
|
117 - BEARING RING
BSD-F016L62488.A8
F016L62488
|
£1.75
|
£2.10
|
|
|
118 - PIVOT PIN
BSD-F016L64240.A20
F016L64240
|
-
|
|
|
|
150 - BALANCE WEIGHTS
BSD-F016L62596.A0
F016L62596
|
-
|
|
|
|
451 - STICKER
BSD-F016L62309.A2
F016L62309
|
£3.72
|
£4.47
|
|
|
453 - REFERENCE PLATE
BSD-F016L61033.A18
F016L61033
|
£2.52
|
£3.02
|
|
|
500 - BOLT
BSD-F016L62288.A4
F016L62288
|
£1.95
|
£2.34
|
|
|
501 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A422
F016L36542
|
£2.61
|
£3.13
|
|
|
502 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A130
F016T49429
|
£1.75
|
£2.10
|
|
|
504 - SET RING 12 MM T40
BSD-F016T49100.A16
F016T49100
|
£1.95
|
£2.34
|
|
|
509 - NUT
BSD-F016L62388.A10
F016L62388
|
£3.34
|
£4.01
|
|
|
510 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A129
F016T49429
|
£1.75
|
£2.10
|
|
|
511 - BOLT M6x50
BSD-F016L59277.A11
F016L59277
|
£3.80
|
£4.56
|
|
|
801 - MOTOR
BSD-F016103627.A2
F016103627
|
£88.07
|
£105.68
|
|
|
840 - CHASSIS
BSD-F016102380.A4
F016102380
|
£33.45
|
£40.14
|
|
|
875/02 - POWER SUPPLY CORD GB 22m 2 x 0.75mm without plug
BSD-F016104085.A36
F016104085
|
£31.64
|
£37.97
|
|
|
875/03 - CONNECTING CABLE
BSD-F016102355.A5
F016102355
|
£5.58
|
£6.70
|
|
|
875/04 - ASSEMBLY KIT
BSD-F016103136.A36
F016103136
|
-
|
|
|
|
875/18 - CONTROL BAR
BSD-F016102331.A2
F016102331
|
-
|
|
|
|
878 - HANDLE
BSD-F016102330.A6
F016102330
|
£14.72
|
£17.67
|
|
|
889 - BELT COVER
BSD-F016102356.A18
F016102356
|
£4.75
|
£5.70
|
|
|
891 - PULLEY
BSD-F016102357.A11
F016102357
|
£3.80
|
£4.56
|
|
|
892 - DRIVE BELT
BSD-F016102358.A18
F016102358
|
£7.78
|
£9.33
|
|
