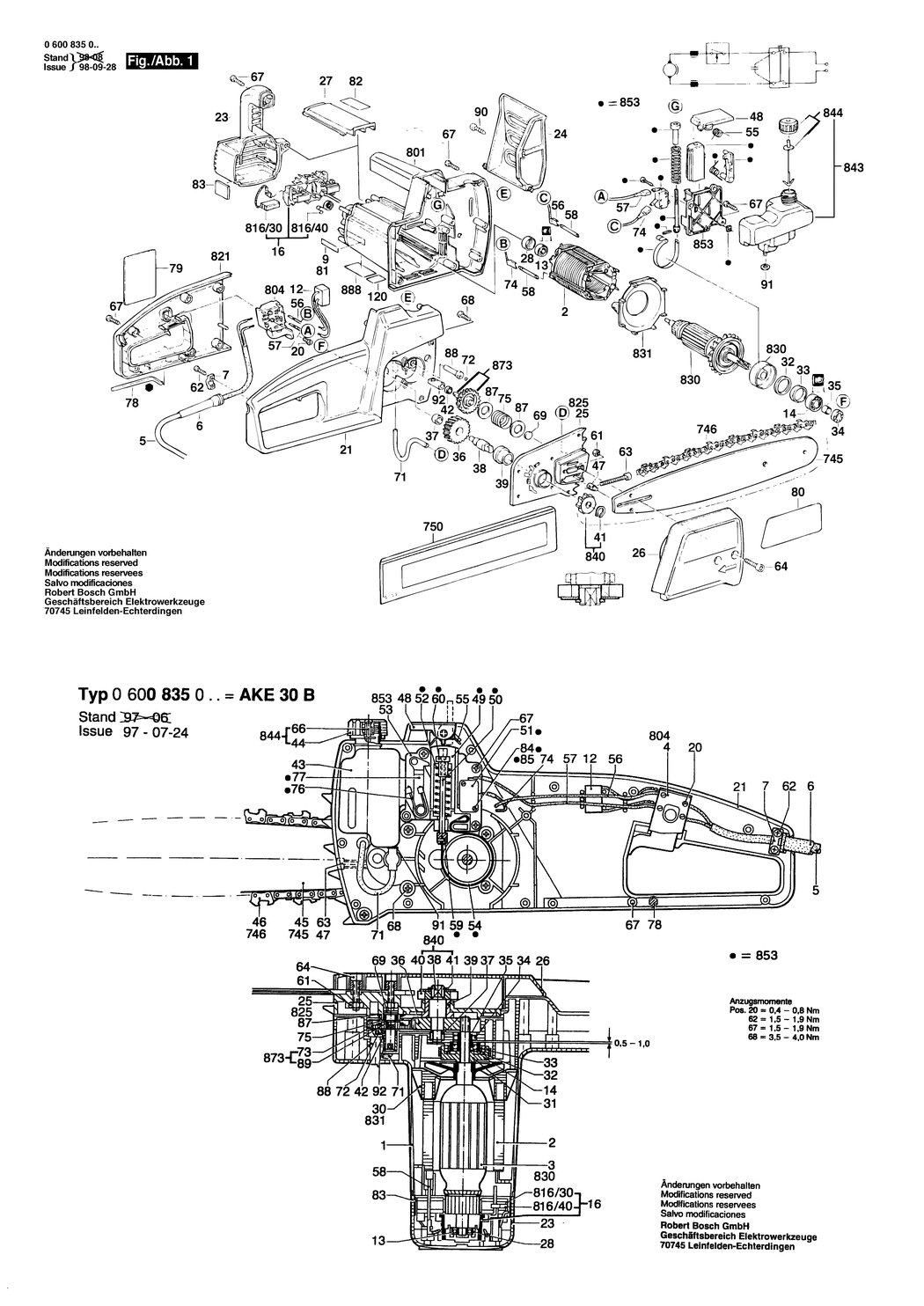

2 - FIELD 220-230V
BSD-1604220354.A63
1604220354
|
£33.74
|
£40.49
|
|
|
5 - POWER SUPPLY CORD EU 0.4m 2 x 1.0mm H07 RN-F
BSD-2604460183.A32
2604460183
|
£8.67
|
£10.41
|
|
|
6 - GROMMET dia9.6-dia10.2x70 MM
BSD-1600703025.A9
1600703025
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2566
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110483.A21
1601110483
|
£2.61
|
£3.13
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A28
1607328028
|
£5.30
|
£6.36
|
|
|
13 - GROOVE BALL BEARING
BSD-3600905135.A4
3600905135
|
£7.36
|
£8.83
|
|
|
14 - GROOVE BALL BEARING
BSD-3600905136.A29
3600905136
|
-
|
|
|
|
16 - BRUSH HOLDER
BSD-1604336016.A24
1604336016
|
-
|
|
|
|
20 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2550
2603410001
|
£1.75
|
£2.10
|
|
|
23 - SEALING CAP
BSD-3605500084.A4
3605500084
|
-
|
|
|
|
24 - PROTECTIVE SHIELD
BSD-3602311018.A15
3602311018
|
-
|
|
|
|
26 - PROTECTIVE COVER
BSD-3605500037.A11
3605500037
|
-
|
|
|
|
27 - COVER STRIP
BSD-3601012000.A4
3601012000
|
-
|
|
|
|
28 - INTERMEDIATE RING
BSD-1600502011.A476
1600502011
|
£2.61
|
£3.13
|
|
|
32 - CONICAL SPRING WASHER
BSD-3600190007.A12
3600190007
|
-
|
|
|
|
33 - INTERMEDIATE RING
BSD-1600206026.A105
1600206026
|
£1.75
|
£2.10
|
|
|
34 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A516
1600290016
|
£2.61
|
£3.13
|
|
|
35 - INTERMEDIATE RING
BSD-1600300090.A52
1600300090
|
£3.72
|
£4.47
|
|
|
36 - CYLINDRICAL GEAR Z=41
BSD-3606317021.A53
3606317021
|
-
|
|
|
|
37 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A56
1600910018
|
£5.30
|
£6.36
|
|
|
38 - DRIVE SHAFT
BSD-3603124011.A55
3603124011
|
-
|
|
|
|
39 - HEADED BUSH
BSD-3600323000.A43
3600323000
|
-
|
|
|
|
41 - SPRING RETAINING RING DIN 471-12x1-FSTM
BSD-2916650903.A65
2916650903
|
£1.75
|
£2.10
|
|
|
42 - ROTARY SHAFT LIP SEAL 8X12X3
BSD-3600283034.A37
3600283034
|
£5.58
|
£6.70
|
|
|
47 - STUD BOLT
BSD-3603121004.A43
3603121004
|
-
|
|
|
|
48 - SWIVELLING LEVER
BSD-3601990001.A1
3601990001
|
-
|
|
|
|
55 - COILED SPRING
BSD-3604651002.A43
3604651002
|
£1.32
|
£1.58
|
|
|
56 - CONNECTING CABLE L=420 MM
BSD-3604431018.A14
3604431018
|
-
|
|
|
|
57 - CONNECTING CABLE L=180 MM
BSD-3604431012.A13
3604431012
|
-
|
|
|
|
58 - BLADE TERMINAL
BSD-1604477005.A11
1604477005
|
£2.61
|
£3.13
|
|
|
61 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A27
2915011007
|
-
|
|
|
|
62 - LENS HEAD SCREW DIN 7981-ST3.9x16-C-H
BSD-3603414026.A2
3603414026
|
-
|
|
|
|
62 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A655
2910611019
|
£2.80
|
£3.36
|
|
|
63 - SOCKET HEAD CAP SCREW
BSD-3603410001.A14
3603410001
|
-
|
|
|
|
64 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x25-8.8
BSD-2910141203.A37
2910141203
|
£1.75
|
£2.10
|
|
|
67 - OVAL-HEAD SCREW 4x18 MM.TORX T20
BSD-2914201506.A67
2914201506
|
£1.75
|
£2.10
|
|
|
67 - TAPPING SCREW DIN 7971-B 3.9x19
BSD-2910211220.A221
2910211220
|
-
|
|
|
|
68 - THREAD-FORMING TAP. SCREW DIN 7500-CM 5x12-ST
BSD-2914411403.A13
2914411403
|
-
|
|
|
|
69 - COVER PLATE
BSD-3600000006.A3
3600000006
|
-
|
|
|
|
70 - SINTERED-METAL BUSHING J8G7x12r6x6DIN1850
BSD-1900301010.A7
1900301010
|
-
|
|
|
|
71 - HOSE
BSD-3600703001.A17
3600703001
|
-
|
|
|
|
72 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A518
1903230007
|
£1.75
|
£2.10
|
|
|
74 - CONNECTING CABLE L=260 MM
BSD-3604431013.A43
3604431013
|
-
|
|
|
|
75 - COMPRESSION SPRING
BSD-3604630000.A54
3604630000
|
-
|
|
|
|
78 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A706
1907950006
|
£4.26
|
£5.11
|
|
|
79 - REFERENCE PLATE
BSD-3601119080.A1
3601119080
|
-
|
|
|
|
80 - REFERENCE PLATE
BSD-3601110211.A2
3601110211
|
-
|
|
|
|
87 - PLAIN WASHER 0.5 MM
BSD-1600101023.A12
1600101023
|
£1.75
|
£2.10
|
|
|
88 - DETENT PIN
BSD-3603121003.A13
3603121003
|
-
|
|
|
|
90 - MICROENCAPSULATED SCREW DIN 84-AM4x12-8.8
BSD-2914552107.A38
2914552107
|
£1.75
|
£2.10
|
|
|
90 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A215
2910211006
|
£1.75
|
£2.10
|
|
|
91 - O-RING 4.0x1.0 MM
BSD-3600210015.A13
3600210015
|
£3.72
|
£4.47
|
|
|
92 - SINTERED-METAL BUSHING 14 MM
BSD-3600301007.A4
3600301007
|
£4.75
|
£5.70
|
|
|
745 - GUIDE RAIL
BSD-3602317008.A1
3602317008
|
-
|
|
|
|
746 - SAW CHAIN
BSD-3604730002.A13
3604730002
|
£27.23
|
£32.68
|
|
|
750 - PROTECTIVE COVER
BSD-3605500038.A43
3605500038
|
-
|
|
|
|
801 - MOTOR HOUSING
BSD-3605108137.A43
3605108137
|
-
|
|
|
|
804 - ON-OFF SWITCH
BSD-1607200107.A38
1607200107
|
-
|
|
|
|
816/30 - CARBON-BRUSH SET
BSD-1607014129.A92
1607014129
|
-
|
|
|
|
816/40 - SPIRAL SPRING
BSD-2604652008.A153
2604652008
|
-
|
|
|
|
821 - HOUSING SECTION
BSD-3605190163.A2
3605190163
|
£51.22
|
£61.47
|
|
|
825 - GEAR COVER
BSD-3605500082.A53
3605500082
|
£14.72
|
£17.67
|
|
|
830 - ARMATURE 220V
BSD-3604010037.A33
3604010037
|
-
|
|
|
|
831 - AIR-DEFLECTOR RING
BSD-3600591002.A66
3600591002
|
-
|
|
|
|
840 - SPROCKET WHEEL
BSD-3607031199.A54
3607031199
|
-
|
|
|
|
843 - OIL RESERVOIR
BSD-3607030320.A86
3607030320
|
-
|
|
|
|
844 - RESERVOIR CAP
BSD-3603317002.A2
3603317002
|
-
|
|
|
|
853 - BRAKING DEVICE
BSD-3607031182.A44
3607031182
|
-
|
|
|
|
873 - SPINDLE WITH GEAR Z=38
BSD-3606317031.A45
3606317031
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4264
160111A3H3
|
£2.61
|
£3.13
|
|
