Bosch PKE 30 B / 0603227403 / EU 230 Volt Spare Parts

Bosch PKE 30 B / 0603227403 / EU 230 Volt Spare Parts

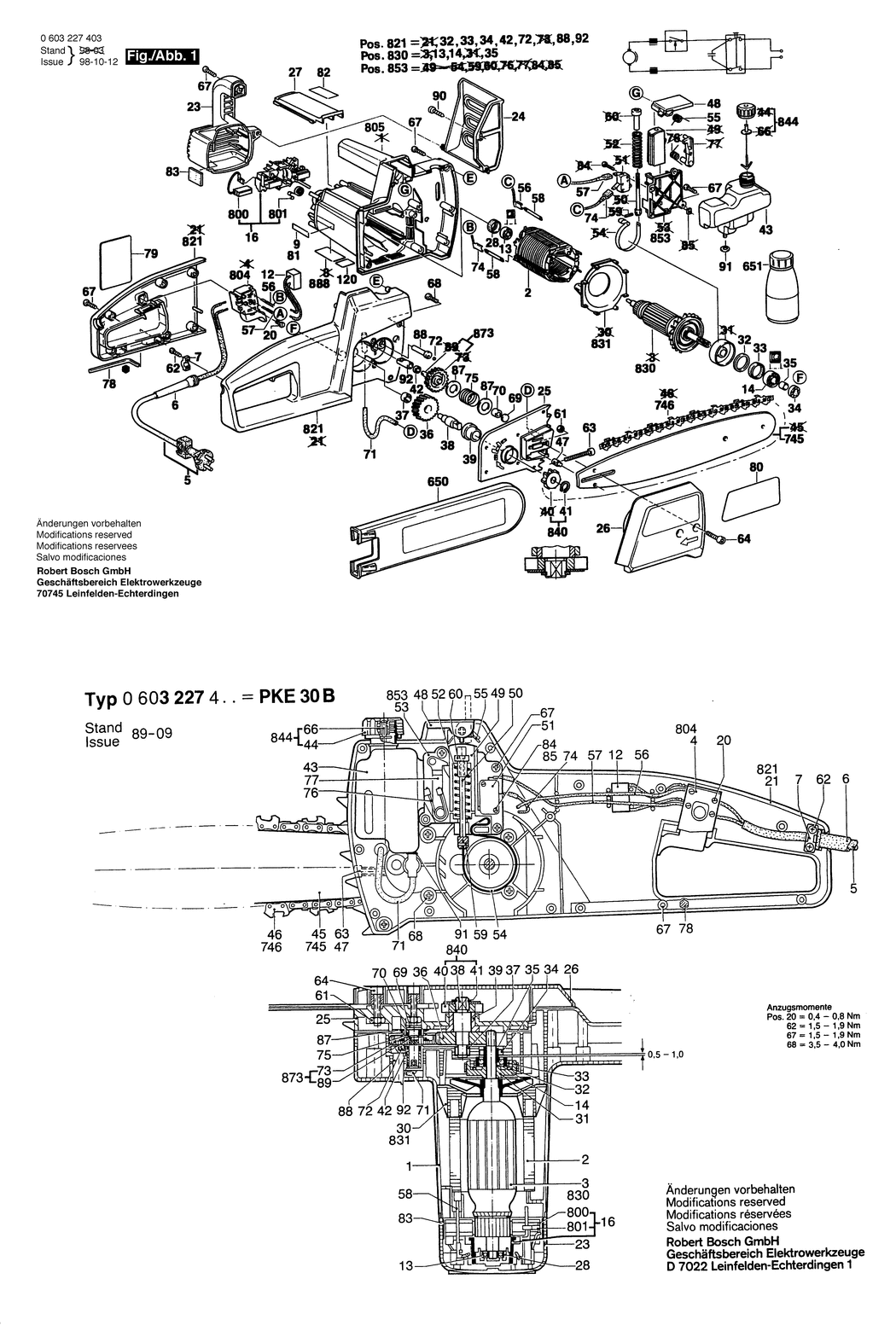

An exploded drawing and listing for the Bosch PKE 30 B / 0603227403 / EU 230 Volt
Ex VAT Inc VAT
2 - FIELD 220-230V BSD-1604220354.A24 1604220354 £33.74 £40.49
5 - POWER SUPPLY CORD EU 0.4m 2 x 1.0mm H07 RN-F BSD-2604460183.A9 2604460183 £8.67 £10.41
6 - GROMMET dia9.6-dia10.2x70 MM BSD-1600703025.A48 1600703025 -
7 - CABLE CLIP BSD-2601035001.A1472 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601110483.A161 1601110483 £2.61 £3.13
12 - SUPPRESSION FILTER BSD-1607328028.A471 1607328028 £5.30 £6.36
13 - BALL BEARING 7x19x6 BSD-2600905032.A1221 2600905032 £5.30 £6.36
14 - BALL BEARING 9x26x8 BSD-1900905025.A103 1900905025 £21.52 £25.83
16 - BRUSH HOLDER BSD-3604336001.A17 3604336001 -
20 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1281 2603410001 £1.75 £2.10
20 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1282 2603410001 £1.75 £2.10
23 - SEALING CAP BSD-3605500084.A54 3605500084 -
24 - PROTECTIVE SHIELD BSD-3602311018.A43 3602311018 -
25 - GEAR COVER BSD-3605500082.A2 3605500082 £14.72 £17.67
26 - PROTECTIVE COVER BSD-3605500037.A36 3605500037 -
27 - COVER STRIP BSD-3601012000.A24 3601012000 -
28 - INTERMEDIATE RING BSD-1600502011.A161 1600502011 £2.61 £3.13
32 - CONICAL SPRING WASHER BSD-3600190007.A40 3600190007 -
33 - INTERMEDIATE RING BSD-1600206026.A47 1600206026 £1.75 £2.10
34 - ROTARY SHAFT LIP SEAL BSD-1600290016.A58 1600290016 £2.61 £3.13
35 - INTERMEDIATE RING BSD-1600300090.A139 1600300090 £3.72 £4.47
36 - CYLINDRICAL GEAR Z=41 BSD-3606317021.A27 3606317021 -
37 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A567 1600910018 £5.30 £6.36
38 - DRIVE SHAFT BSD-3603124011.A39 3603124011 -
39 - HEADED BUSH BSD-3600323000.A22 3600323000 -
41 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A312 2916650003 £1.75 £2.10
42 - ROTARY SHAFT LIP SEAL BSD-1600283003.A80 1600283003 £4.26 £5.11
43 - OIL RESERVOIR BSD-3607030320.A19 3607030320 -
47 - STUD BOLT BSD-3603121004.A8 3603121004 -
48 - SWIVELLING LEVER BSD-3601990001.A34 3601990001 -
55 - COILED SPRING BSD-3604651002.A12 3604651002 £1.32 £1.58
56 - CONNECTING CABLE L=420 MM BSD-3604431018.A18 3604431018 -
57 - CONNECTING CABLE L=180 MM BSD-3604431012.A42 3604431012 -
58 - BLADE TERMINAL BSD-1604477005.A155 1604477005 £2.61 £3.13
61 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A674 2915011007 -
62 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A220 2910611019 £2.80 £3.36
63 - SOCKET HEAD CAP SCREW BSD-3603410001.A39 3603410001 -
64 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x25-8.8 BSD-2910141203.A85 2910141203 £1.75 £2.10
67 - TAPPING SCREW DIN 7971-B 3.9x19 BSD-2910211220.A133 2910211220 -
68 - THREAD-FORMING TAP. SCREW DIN 7500-CM 5x12-ST BSD-2914411403.A36 2914411403 -
69 - COVER PLATE BSD-3600000006.A50 3600000006 -
70 - SINTERED-METAL BUSHING J8G7x12r6x6DIN1850 BSD-1900301010.A24 1900301010 -
71 - HOSE BSD-3600703001.A44 3600703001 -
72 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A117 1903230007 £1.75 £2.10
74 - CONNECTING CABLE L=260 MM BSD-3604431013.A14 3604431013 -
75 - COMPRESSION SPRING BSD-3604630000.A10 3604630000 -
78 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A12 1907950006 £4.26 £5.11
79 - REFERENCE PLATE BSD-3601119077.A1 3601119077 -
87 - PLAIN WASHER 0.5 MM BSD-1600101023.A135 1600101023 £1.75 £2.10
88 - DETENT PIN BSD-3603121003.A48 3603121003 -
90 - MICROENCAPSULATED SCREW DIN 84-AM4x12-8.8 BSD-2914552107.A28 2914552107 £1.75 £2.10
90 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A450 2910211006 £1.75 £2.10
91 - OIL RESERVOIR BSD-3607030320.A22 3607030320 -
92 - SINTERED-METAL BUSHING 14 MM BSD-3600301007.A42 3600301007 £4.75 £5.70
120 - STICKER BSD-1601110265.A11 1601110265 -
650 - PROTECTIVE COVER BSD-3605500038.A19 3605500038 -
745 - GUIDE RAIL BSD-3602317008.A6 3602317008 -
746 - SAW CHAIN BSD-3604730002.A4 3604730002 £27.23 £32.68
800 - CARBON-BRUSH SET BSD-1607014129.A8 1607014129 £16.41 £19.69
801 - SPIRAL SPRING BSD-2604652008.A54 2604652008 -
804 - ON-OFF SWITCH BSD-1607000231.A41 1607000231 £18.96 £22.75
805 - MOTOR HOUSING BSD-3605108137.A12 3605108137 -
812 - SUPPRESSION FILTER BSD-1607328028.A472 1607328028 £5.30 £6.36
821 - HOUSING SECTION BSD-3605190163.A33 3605190163 £51.22 £61.47
830 - ARMATURE 220V BSD-3604010037.A18 3604010037 -
831 - AIR-DEFLECTOR RING BSD-3600591002.A17 3600591002 -
840 - SPROCKET WHEEL BSD-3607031199.A20 3607031199 -
844 - RESERVOIR CAP BSD-3603317002.A25 3603317002 -
853 - BRAKING DEVICE BSD-3607031182.A11 3607031182 -
873 - SPINDLE WITH GEAR Z=38 BSD-3606317031.A11 3606317031 -
888 - NAMEPLATE BSD-160111A3H3.A2648 160111A3H3 £2.61 £3.13
