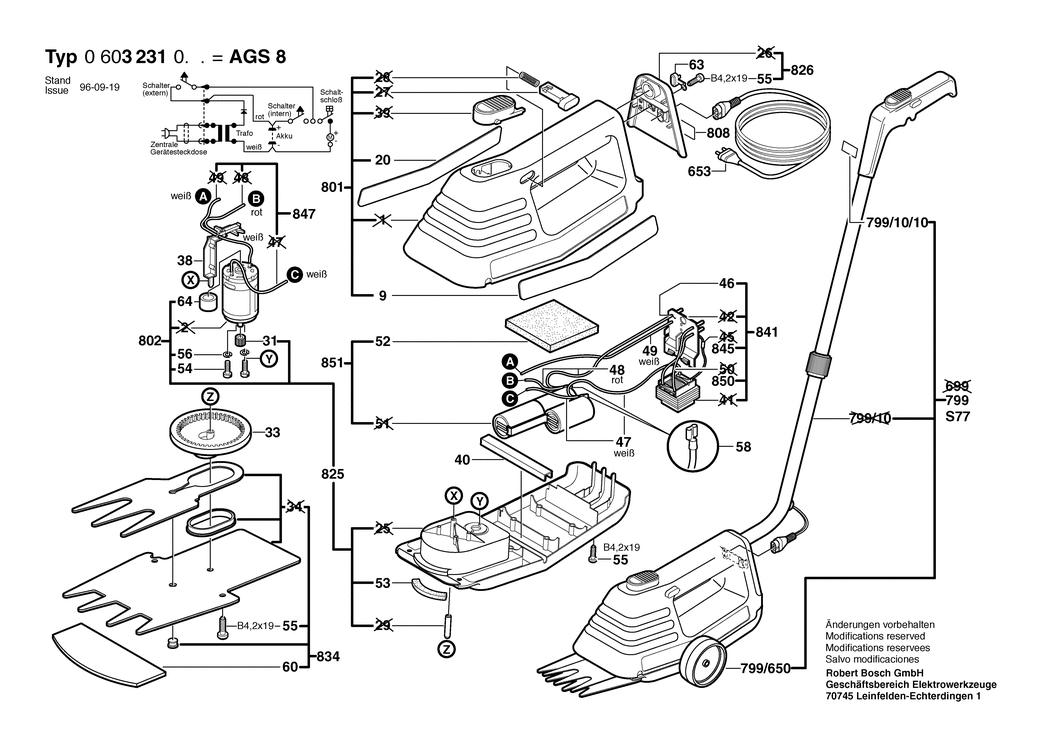

An exploded drawing and listing for the Bosch ---- / 0603231032 / CH 220 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605104927.A31 2605104927 -
2 - ARMATURE 220V BSD-2604010516.A0 2604010516 -
3 - POLE SHOE 220V BSD-1604220071.A6 1604220071 -
3/4/1 - SEALING CAP BSD-1605500066.A78 1605500066 -
5 - ON-OFF SWITCH BSD-1607200060.A51 1607200060 -
6 - SUPPRESSION CAPACITOR BSD-2607329099.A18 2607329099 -
7 - POWER SUPPLY CORD EU 0.46m 2 x 1.0mm H05 VV-F BSD-2604460255.A21 2604460255 £8.67 £10.41
8 - GROMMET dia6.4-dia7.5x75 MM BSD-1600703016.A54 1600703016 £1.75 £2.10
8 - GROMMET dia9.5 MM BSD-2600703006.A141 2600703006 -
9 - FASTENING CLAMP BSD-1601302014.A198 1601302014 £2.61 £3.13
10 - TAPPING SCREW DIN 7971-BZ3.9x6.5 BSD-2910211016.A54 2910211016 -
11 - TAPPING SCREW DIN 7971-BZ3.9x9.5 BSD-2910211017.A62 2910211017 -
12 - SINTERED-METAL BUSHING BSD-1600301900.A89 1600301900 -
13 - FELT WASHER BSD-1600205023.A114 1600205023 £1.32 £1.58
14 - O-RING 8.0x2.5 MM BSD-1610210014.A37 1610210014 -
15 - SPIRAL SPRING BSD-1604652004.A134 1604652004 £2.61 £3.13
16 - BRUSH PLATE BSD-1601034025.A53 1601034025 -
18 - BRUSH HOLDER BSD-1601323007.A68 1601323007 -
19 - TAPPING SCREW DIN 7972-BZ2.9x6.5 BSD-2910601004.A45 2910601004 -
20 - SPRING RETAINING RING DIN 471-8x0.8 FSt BSD-2916640005.A102 2916640005 £1.75 £2.10
21 - BALL BEARING 8x22x7 BSD-1900905029.A147 1900905029 £21.52 £25.83
22 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A412 2910211019 £1.75 £2.10
23 - FELT STRIP BSD-1601005003.A8 1601005003 -
24 - CYLINDRICAL GEAR Z=61 BSD-2606320020.A15 2606320020 -
26 - BEARING BOLT BSD-2603103009.A3 2603103009 -
28 - SHIM WASHER BSD-2600200003.A7 2600200003 -
29 - SPRING RETAINING RING 30x1.2MM. DIN 472 BSD-2916660012.A42 2916660012 £1.75 £2.10
30 - GROOVE BALL BEARING BSD-2600900003.A30 2600900003 -
31 - FELT DISC BSD-2600005003.A19 2600005003 -
32 - FELT DISC BSD-2600005001.A8 2600005001 -
33 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-5.8 BSD-2910011154.A20 2910011154 £1.75 £2.10
34 - SPRING LOCK WASHER DIN 128-A5-FST BSD-2916690004.A92 2916690004 £1.75 £2.10
35 - PLAIN WASHER 5-ST BSD-2916021011.A6 2916021011 -
38 - SPRING RETAINING RING DIN 471-40x1.75-FST BSD-2916650020.A6 2916650020 -
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A700 2910021125 £1.75 £2.10
42 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A772 2916690003 £1.75 £2.10
43 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A161 2916011010 £1.75 £2.10
44 - NAMEPLATE BSD-2601105051.A9 2601105051 -
45 - MANUFACTURER'S NAMEPLATE BSD-1601110013.A140 1601110013 -
46 - REFERENCE PLATE BSD-2601110026.A1 2601110026 -
53 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A284 2915011007 -
60 - PROTECTIVE CAP BSD-2605510017.A12 2605510017 -
61 - SHIM 0.2 MM BSD-2600101651.A2 2600101651 -
61 - SHIM 0.3 MM BSD-2600101654.A19 2600101654 £2.33 £2.80
85 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A225 2910211006 £1.75 £2.10
85 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A226 2910211006 £1.75 £2.10
86 - SOCKET HEAD CAP SCREW M3x10 MM BSD-2603410023.A123 2603410023 -
92 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A156 1602381001 -
130 - SHEARING BLADE BSD-2607001007.A6 2607001007 -
135 - PAN HEAD SCREW M 4x20 MM BSD-2603410016.A26 2603410016 -
136 - DISC SPRING BSD-2600550002.A8 2600550002 -
137 - GUIDE BUSHING BSD-2600328001.A3 2600328001 -
138 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A773 2916690003 £1.75 £2.10
139 - LOCKING WASHER BSD-2600113008.A2 2600113008 -
140 - GUIDE SLEEVE BSD-2600300013.A7 2600300013 -
141 - PLAIN WASHER A 4.3 DIN 125 ST BSD-2916021010.A31 2916021010 -
143 - SLIDING PIECE BSD-2602329017.A9 2602329017 -
150 - . BSD-0603997054.A2 0603997054 -
150/1 - SOCKET HEAD CAP SCREW DIN 84-AM3x20-8.8 BSD-2910021201.A15 2910021201 -
150/2 - SPRING LOCK WASHER M6 BSD-2916690005.A97 2916690005 -
150/3 - HEX SCREW DIN 933-M8x30-5.8 BSD-2911052246.A1 2911052246 -
150/4 - CLAMPING PIECE BSD-2608040016.A3 2608040016 -
150/5 - SUPPORT CLAMP BSD-2608030003.A8 2608030003 -
150/6 - WING NUT BSD-2603339000.A2 2603339000 -
150/7 - ROLLER BSD-2606625000.A3 2606625000 -
150/8 - WING SCREW BSD-1603480004.A15 1603480004 -
150/9 - FASTENING CLAMP BSD-1601302016.A1 1601302016 -
150/10 - STRAIGHT PIN BSD-2603101001.A8 2603101001 -
150/11 - SUPPORT CLAMP BSD-1608040097.A8 1608040097 -
150/12 - GUIDE TUBE BSD-1600793002.A2 1600793002 -
800 - REPAIR SET BSD-0603299002.A2 0603299002 -
801 - PARTS SET BSD-0603907203.A19 0603907203 -
817 - CARBON BRUSH BSD-1604321900.A51 1604321900 -
834 - SET OF KNIVES 80 MM BSD-1609200907.A8 1609200907 -
