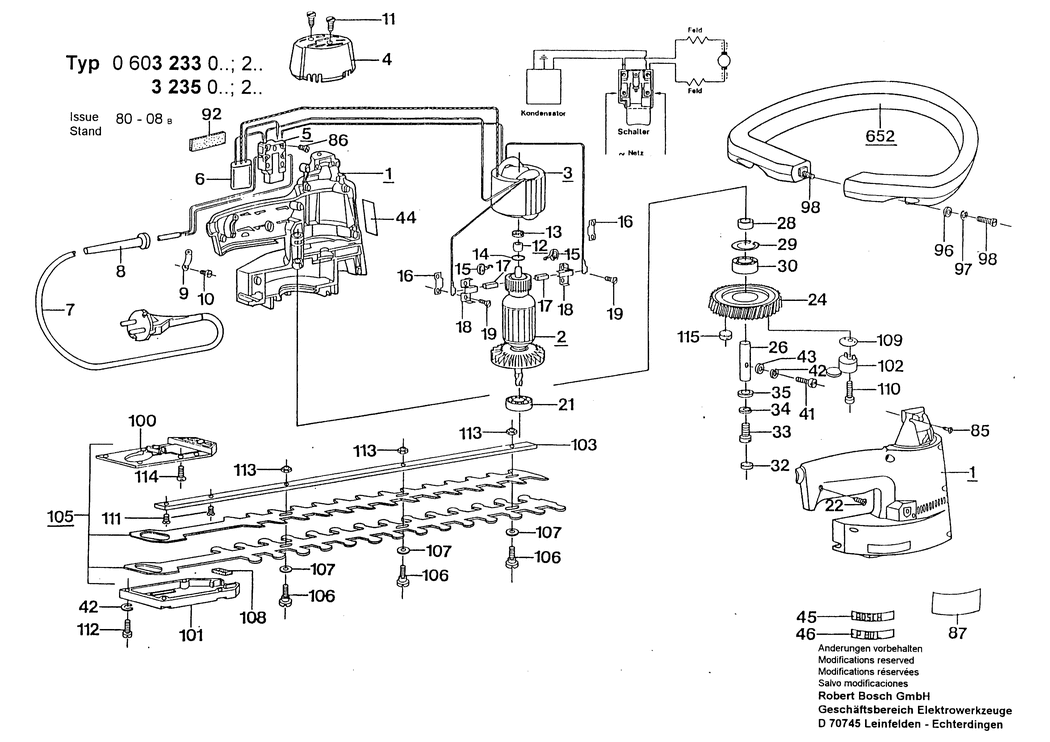

1 - HOUSING SECTION
BSD-2605104927.A2
2605104927
|
-
|
|
|
|
2 - ARMATURE 220V
BSD-2604010516.A14
2604010516
|
-
|
|
|
|
3 - POLE SHOE 220V
BSD-1604220071.A35
1604220071
|
-
|
|
|
|
4 - SEALING CAP
BSD-1605500066.A6
1605500066
|
-
|
|
|
|
5 - ON-OFF SWITCH
BSD-1607200060.A89
1607200060
|
-
|
|
|
|
6 - SUPPRESSION CAPACITOR
BSD-2607329099.A33
2607329099
|
-
|
|
|
|
7 - POWER SUPPLY CORD EU 0.46m 2 x 1.0mm H05 VV-F
BSD-2604460255.A103
2604460255
|
£8.67
|
£10.41
|
|
|
8 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A250
1600703016
|
£1.75
|
£2.10
|
|
|
8 - GROMMET dia9.5 MM
BSD-2600703006.A211
2600703006
|
-
|
|
|
|
9 - FASTENING CLAMP
BSD-1601302014.A1190
1601302014
|
£2.61
|
£3.13
|
|
|
10 - TAPPING SCREW DIN 7971-BZ3.9x6.5
BSD-2910211016.A10
2910211016
|
-
|
|
|
|
11 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A263
2910211017
|
-
|
|
|
|
12 - SINTERED-METAL BUSHING
BSD-1600301900.A298
1600301900
|
-
|
|
|
|
13 - FELT WASHER
BSD-1600205023.A7
1600205023
|
£1.32
|
£1.58
|
|
|
14 - O-RING 8.0x2.5 MM
BSD-1610210014.A293
1610210014
|
-
|
|
|
|
15 - SPIRAL SPRING
BSD-1604652004.A247
1604652004
|
£2.61
|
£3.13
|
|
|
16 - BRUSH PLATE
BSD-1601034025.A10
1601034025
|
-
|
|
|
|
17 - CARBON BRUSH
BSD-1604321900.A173
1604321900
|
-
|
|
|
|
18 - BRUSH HOLDER
BSD-1601323007.A0
1601323007
|
-
|
|
|
|
19 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A168
2910601004
|
-
|
|
|
|
21 - BALL BEARING 8x22x7
BSD-1900905029.A352
1900905029
|
£21.52
|
£25.83
|
|
|
22 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A271
2910611019
|
£2.80
|
£3.36
|
|
|
24 - CYLINDRICAL GEAR Z=61
BSD-2606320020.A3
2606320020
|
-
|
|
|
|
26 - BEARING BOLT
BSD-2603103009.A34
2603103009
|
-
|
|
|
|
28 - SHIM WASHER
BSD-2600200003.A32
2600200003
|
-
|
|
|
|
29 - SPRING RETAINING RING 30x1.2MM. DIN 472
BSD-2916660012.A125
2916660012
|
£1.75
|
£2.10
|
|
|
30 - GROOVE BALL BEARING
BSD-2600900003.A40
2600900003
|
-
|
|
|
|
32 - FELT DISC
BSD-2600005001.A41
2600005001
|
-
|
|
|
|
33 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A89
2910021154
|
£1.75
|
£2.10
|
|
|
34 - SPRING LOCK WASHER DIN 128-A5-FST
BSD-2916690004.A192
2916690004
|
£1.75
|
£2.10
|
|
|
35 - PLAIN WASHER 5-ST
BSD-2916021011.A38
2916021011
|
-
|
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A234
2910021125
|
£1.75
|
£2.10
|
|
|
42 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A330
2916690003
|
£1.75
|
£2.10
|
|
|
43 - PLAIN WASHER DIN 125-A4.3-ST
BSD-2916011010.A70
2916011010
|
£1.75
|
£2.10
|
|
|
44 - NAMEPLATE
BSD-2601105051.A44
2601105051
|
-
|
|
|
|
45 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A103
1601110013
|
-
|
|
|
|
46 - STICKER
BSD-2601110025.A3
2601110025
|
-
|
|
|
|
85 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1149
2603490017
|
£2.16
|
£2.59
|
|
|
86 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A635
2603410001
|
£1.75
|
£2.10
|
|
|
87 - STICKER
BSD-2601110022.A7
2601110022
|
-
|
|
|
|
92 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A410
1602381001
|
-
|
|
|
|
96 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A69
2916011014
|
£1.75
|
£2.10
|
|
|
97 - SPRING LOCK WASHER M6
BSD-2916690005.A19
2916690005
|
-
|
|
|
|
98 - SOCKET HEAD CAP SCREW DIN 84-AM3x20-8.8
BSD-2910021201.A43
2910021201
|
-
|
|
|
|
100 - FASTENING FLANGE
BSD-2605703002.A5
2605703002
|
-
|
|
|
|
101 - HOUSING COVER
BSD-2605500021.A4
2605500021
|
-
|
|
|
|
102 - ECCENTRIC DISC A6. 4DIN 125-ST
BSD-2602210001.A3
2602210001
|
-
|
|
|
|
103 - GUIDE 420 MM
BSD-2601038002.A2
2601038002
|
-
|
|
|
|
105 - SET OF KNIVES 420 MM
BSD-2607001008.A1
2607001008
|
-
|
|
|
|
106 - PAN HEAD SCREW
BSD-2603413004.A31
2603413004
|
-
|
|
|
|
107 - SHIM 1.0 MM
BSD-2600100647.A6
2600100647
|
£1.32
|
£1.58
|
|
|
108 - FELT STRIP
BSD-2601005002.A54
2601005002
|
-
|
|
|
|
109 - SHIM 0.1 MM
BSD-2600132002.A4
2600132002
|
-
|
|
|
|
109 - SHIM 0.5 MM
BSD-2600132003.A10
2600132003
|
-
|
|
|
|
109 - PLAIN WASHER 0.2 MM
BSD-2600132004.A4
2600132004
|
-
|
|
|
|
110 - HEX SOCKET HEAD CAP SCREW
BSD-2603414041.A19
2603414041
|
-
|
|
|
|
111 - COUNTERSUNK-HEAD SCREW M 5x10 DIN 963-5.8
BSD-2910771152.A3
2910771152
|
-
|
|
|
|
112 - PAN HEAD SCREW M4x22 MM
BSD-2603410018.A62
2603410018
|
£1.75
|
£2.10
|
|
|
113 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1347
2915011007
|
-
|
|
|
|
114 - COUNTERSUNK-HEAD SCREW DIN 63-AM 4x15-5.8
BSD-2910501125.A12
2910501125
|
-
|
|
|
|
115 - FELT DISC
BSD-2600005002.A7
2600005002
|
-
|
|
|
|
652 - STRAP-SHAPED HANDLE
BSD-2602025004.A16
2602025004
|
-
|
|
|
|
700 - DUST BAG
BSD-1605411023.A70
1605411023
|
-
|
|
|
|
800 - .
BSD-0603299003.A19
0603299003
|
-
|
|
|
