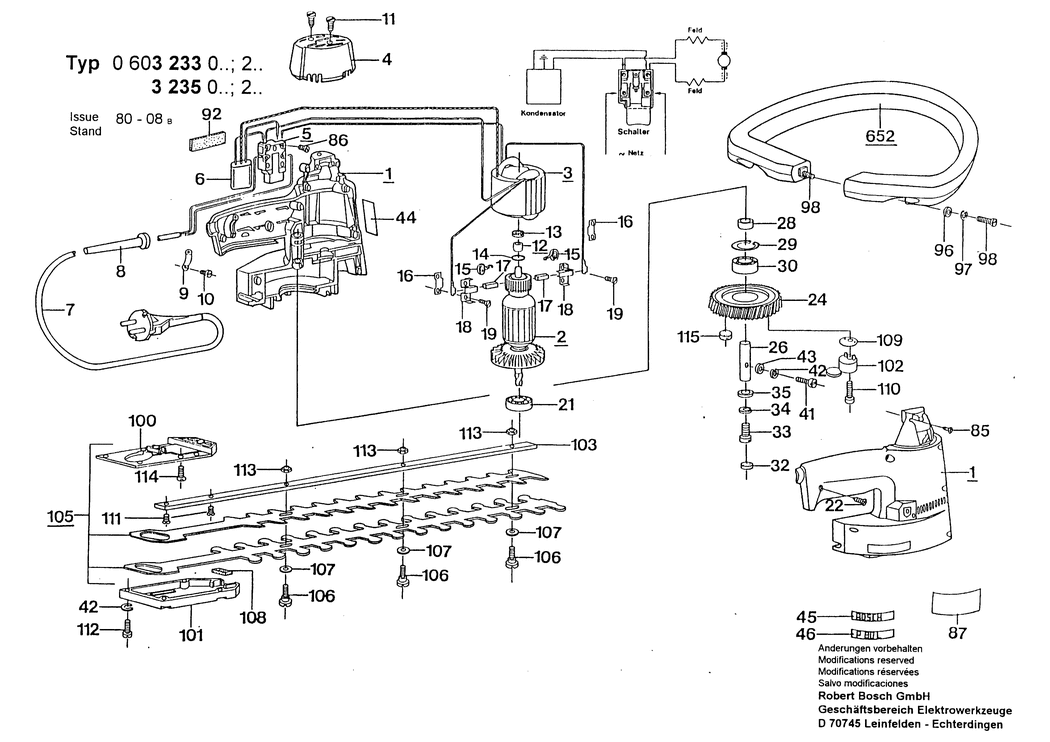

1 - HOUSING SECTION
BSD-2605104927.A34
2605104927
|
-
|
|
|
|
2 - ARMATURE 220V
BSD-2604010516.A13
2604010516
|
-
|
|
|
|
3 - POLE SHOE 220V
BSD-1604220071.A27
1604220071
|
-
|
|
|
|
3 - POLE SHOE 110-115V
BSD-2604220321.A8
2604220321
|
-
|
|
|
|
4 - SEALING CAP
BSD-1605500066.A136
1605500066
|
-
|
|
|
|
5 - ON-OFF SWITCH
BSD-1607200060.A73
1607200060
|
-
|
|
|
|
5 - ON-OFF SWITCH
BSD-1607200060.A74
1607200060
|
-
|
|
|
|
6 - SUPPRESSION CAPACITOR
BSD-2607329099.A30
2607329099
|
-
|
|
|
|
7 - POWER SUPPLY CORD
BSD-2604460042.A7
2604460042
|
-
|
|
|
|
8 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A169
1600703016
|
£1.75
|
£2.10
|
|
|
8 - GROMMET dia9.5 MM
BSD-2600703006.A73
2600703006
|
-
|
|
|
|
9 - FASTENING CLAMP
BSD-1601302014.A482
1601302014
|
£2.61
|
£3.13
|
|
|
10 - TAPPING SCREW DIN 7971-BZ3.9x6.5
BSD-2910211016.A42
2910211016
|
-
|
|
|
|
11 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A152
2910211017
|
-
|
|
|
|
12 - SINTERED-METAL BUSHING
BSD-1600301900.A236
1600301900
|
-
|
|
|
|
13 - FELT WASHER
BSD-1600205023.A229
1600205023
|
£1.32
|
£1.58
|
|
|
14 - O-RING 8.0x2.5 MM
BSD-1610210014.A175
1610210014
|
-
|
|
|
|
15 - SPIRAL SPRING
BSD-1604652004.A9
1604652004
|
£2.61
|
£3.13
|
|
|
16 - BRUSH PLATE
BSD-1601034025.A15
1601034025
|
-
|
|
|
|
17 - CARBON BRUSH
BSD-1604321900.A134
1604321900
|
-
|
|
|
|
18 - BRUSH HOLDER
BSD-1601323007.A28
1601323007
|
-
|
|
|
|
19 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A102
2910601004
|
-
|
|
|
|
21 - BALL BEARING 8x22x7
BSD-1900905029.A35
1900905029
|
£21.52
|
£25.83
|
|
|
22 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A479
2910611019
|
£2.80
|
£3.36
|
|
|
24 - CYLINDRICAL GEAR Z=61
BSD-2606320020.A12
2606320020
|
-
|
|
|
|
26 - BEARING BOLT
BSD-2603103009.A24
2603103009
|
-
|
|
|
|
28 - SHIM WASHER
BSD-2600200003.A2
2600200003
|
-
|
|
|
|
29 - SPRING RETAINING RING 30x1.2MM. DIN 472
BSD-2916660012.A77
2916660012
|
£1.75
|
£2.10
|
|
|
30 - GROOVE BALL BEARING
BSD-2600900003.A8
2600900003
|
-
|
|
|
|
32 - FELT DISC
BSD-2600005001.A37
2600005001
|
-
|
|
|
|
33 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A288
2910021154
|
£1.75
|
£2.10
|
|
|
34 - SPRING LOCK WASHER DIN 128-A5-FST
BSD-2916690004.A17
2916690004
|
£1.75
|
£2.10
|
|
|
35 - PLAIN WASHER 5-ST
BSD-2916021011.A28
2916021011
|
-
|
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A613
2910021125
|
£1.75
|
£2.10
|
|
|
42 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1217
2916690003
|
£1.75
|
£2.10
|
|
|
43 - PLAIN WASHER DIN 125-A4.3-ST
BSD-2916011010.A368
2916011010
|
£1.75
|
£2.10
|
|
|
44 - NAMEPLATE
BSD-2601105051.A32
2601105051
|
-
|
|
|
|
45 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A238
1601110013
|
-
|
|
|
|
46 - REFERENCE PLATE
BSD-2601110042.A4
2601110042
|
-
|
|
|
|
85 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A811
2603490017
|
£2.16
|
£2.59
|
|
|
86 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1595
2603410001
|
£1.75
|
£2.10
|
|
|
87 - STICKER
BSD-2601110022.A24
2601110022
|
-
|
|
|
|
92 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A20
1602381001
|
-
|
|
|
|
96 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A533
2916011014
|
£1.75
|
£2.10
|
|
|
97 - SPRING LOCK WASHER M6
BSD-2916690005.A193
2916690005
|
-
|
|
|
|
98 - SOCKET HEAD CAP SCREW DIN 84-AM3x20-8.8
BSD-2910021201.A1
2910021201
|
-
|
|
|
|
100 - FASTENING FLANGE
BSD-2605703002.A0
2605703002
|
-
|
|
|
|
101 - HOUSING COVER
BSD-2605500021.A14
2605500021
|
-
|
|
|
|
102 - ECCENTRIC DISC A6. 4DIN 125-ST
BSD-2602210001.A13
2602210001
|
-
|
|
|
|
103 - GUIDE 650MM
BSD-2601038015.A0
2601038015
|
-
|
|
|
|
105 - SET OF KNIVES 650 MM
BSD-2607001033.A2
2607001033
|
-
|
|
|
|
106 - PAN HEAD SCREW
BSD-2603413004.A25
2603413004
|
-
|
|
|
|
107 - SHIM 1.0 MM
BSD-2600100647.A48
2600100647
|
£1.32
|
£1.58
|
|
|
108 - FELT STRIP
BSD-2601005002.A47
2601005002
|
-
|
|
|
|
109 - SHIM 0.1 MM
BSD-2600132002.A12
2600132002
|
-
|
|
|
|
109 - SHIM 0.5 MM
BSD-2600132003.A2
2600132003
|
-
|
|
|
|
109 - PLAIN WASHER 0.2 MM
BSD-2600132004.A12
2600132004
|
-
|
|
|
|
110 - HEX SOCKET HEAD CAP SCREW
BSD-2603414041.A2
2603414041
|
-
|
|
|
|
111 - COUNTERSUNK-HEAD SCREW M 5x10 DIN 963-5.8
BSD-2910771152.A21
2910771152
|
-
|
|
|
|
112 - PAN HEAD SCREW M4x22 MM
BSD-2603410018.A53
2603410018
|
£1.75
|
£2.10
|
|
|
113 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A469
2915011007
|
-
|
|
|
|
114 - COUNTERSUNK-HEAD SCREW DIN 63-AM 4x15-5.8
BSD-2910501125.A43
2910501125
|
-
|
|
|
|
115 - FELT DISC
BSD-2600005002.A12
2600005002
|
-
|
|
|
|
652 - STRAP-SHAPED HANDLE
BSD-2602025004.A0
2602025004
|
-
|
|
|
|
700 - DUST BAG
BSD-1605411023.A1
1605411023
|
-
|
|
|
|
800 - .
BSD-0603299003.A12
0603299003
|
-
|
|
|
