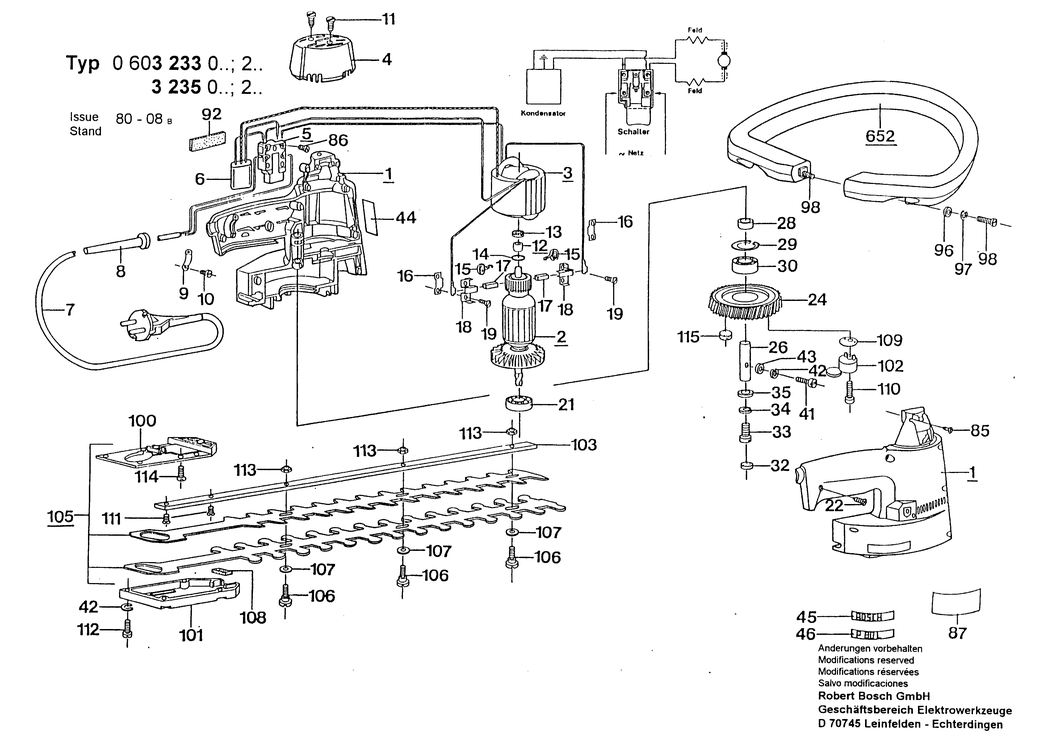

1 - HOUSING SECTION
BSD-2605104927.A35
2605104927
|
-
|
|
|
|
2 - ARMATURE WITH FAN 240V
BSD-2604010517.A3
2604010517
|
-
|
|
|
|
3 - POLE SHOE 110-115V
BSD-2604220321.A7
2604220321
|
-
|
|
|
|
3 - POLE SHOE 240V
BSD-2604220386.A0
2604220386
|
-
|
|
|
|
4 - SEALING CAP
BSD-1605500066.A135
1605500066
|
-
|
|
|
|
5 - ON-OFF SWITCH
BSD-1607200060.A75
1607200060
|
-
|
|
|
|
5 - ON-OFF SWITCH
BSD-1607200060.A76
1607200060
|
-
|
|
|
|
7 - POWER SUPPLY CORD
BSD-2604420029.A6
2604420029
|
-
|
|
|
|
8 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A168
1600703016
|
£1.75
|
£2.10
|
|
|
8 - GROMMET dia9.5 MM
BSD-2600703006.A74
2600703006
|
-
|
|
|
|
8 - GROMMET dia8.2 MM
BSD-2600703008.A31
2600703008
|
£1.75
|
£2.10
|
|
|
9 - FASTENING CLAMP
BSD-1601302014.A483
1601302014
|
£2.61
|
£3.13
|
|
|
10 - TAPPING SCREW DIN 7971-BZ3.9x6.5
BSD-2910211016.A41
2910211016
|
-
|
|
|
|
11 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A153
2910211017
|
-
|
|
|
|
12 - SINTERED-METAL BUSHING
BSD-1600301900.A237
1600301900
|
-
|
|
|
|
13 - FELT WASHER
BSD-1600205023.A228
1600205023
|
£1.32
|
£1.58
|
|
|
14 - O-RING 8.0x2.5 MM
BSD-1610210014.A174
1610210014
|
-
|
|
|
|
15 - SPIRAL SPRING
BSD-1604652004.A8
1604652004
|
£2.61
|
£3.13
|
|
|
16 - BRUSH PLATE
BSD-1601034025.A16
1601034025
|
-
|
|
|
|
17 - CARBON BRUSH
BSD-1604321900.A135
1604321900
|
-
|
|
|
|
18 - BRUSH HOLDER
BSD-1601323007.A27
1601323007
|
-
|
|
|
|
19 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A103
2910601004
|
-
|
|
|
|
21 - BALL BEARING 8x22x7
BSD-1900905029.A36
1900905029
|
£21.52
|
£25.83
|
|
|
22 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A478
2910611019
|
£2.80
|
£3.36
|
|
|
24 - CYLINDRICAL GEAR Z=61
BSD-2606320020.A11
2606320020
|
-
|
|
|
|
26 - BEARING BOLT
BSD-2603103009.A23
2603103009
|
-
|
|
|
|
28 - SHIM WASHER
BSD-2600200003.A1
2600200003
|
-
|
|
|
|
29 - SPRING RETAINING RING 30x1.2MM. DIN 472
BSD-2916660012.A76
2916660012
|
£1.75
|
£2.10
|
|
|
30 - GROOVE BALL BEARING
BSD-2600900003.A7
2600900003
|
-
|
|
|
|
32 - FELT DISC
BSD-2600005001.A36
2600005001
|
-
|
|
|
|
33 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A287
2910021154
|
£1.75
|
£2.10
|
|
|
34 - SPRING LOCK WASHER DIN 128-A5-FST
BSD-2916690004.A16
2916690004
|
£1.75
|
£2.10
|
|
|
35 - PLAIN WASHER 5-ST
BSD-2916021011.A29
2916021011
|
-
|
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A614
2910021125
|
£1.75
|
£2.10
|
|
|
42 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1218
2916690003
|
£1.75
|
£2.10
|
|
|
43 - PLAIN WASHER DIN 125-A4.3-ST
BSD-2916011010.A369
2916011010
|
£1.75
|
£2.10
|
|
|
44 - NAMEPLATE
BSD-2601105051.A33
2601105051
|
-
|
|
|
|
45 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A237
1601110013
|
-
|
|
|
|
46 - REFERENCE PLATE
BSD-2601110042.A5
2601110042
|
-
|
|
|
|
85 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A812
2603490017
|
£2.16
|
£2.59
|
|
|
86 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1596
2603410001
|
£1.75
|
£2.10
|
|
|
87 - STICKER
BSD-2601110022.A23
2601110022
|
-
|
|
|
|
92 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A21
1602381001
|
-
|
|
|
|
96 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A532
2916011014
|
£1.75
|
£2.10
|
|
|
97 - SPRING LOCK WASHER M6
BSD-2916690005.A194
2916690005
|
-
|
|
|
|
98 - SOCKET HEAD CAP SCREW DIN 84-AM3x20-8.8
BSD-2910021201.A2
2910021201
|
-
|
|
|
|
100 - FASTENING FLANGE
BSD-2605703002.A2
2605703002
|
-
|
|
|
|
101 - HOUSING COVER
BSD-2605500021.A12
2605500021
|
-
|
|
|
|
102 - ECCENTRIC DISC A6. 4DIN 125-ST
BSD-2602210001.A14
2602210001
|
-
|
|
|
|
103 - GUIDE 650MM
BSD-2601038015.A1
2601038015
|
-
|
|
|
|
105 - SET OF KNIVES 650 MM
BSD-2607001033.A1
2607001033
|
-
|
|
|
|
106 - PAN HEAD SCREW
BSD-2603413004.A26
2603413004
|
-
|
|
|
|
107 - SHIM 1.0 MM
BSD-2600100647.A49
2600100647
|
£1.32
|
£1.58
|
|
|
108 - FELT STRIP
BSD-2601005002.A46
2601005002
|
-
|
|
|
|
109 - SHIM 0.1 MM
BSD-2600132002.A14
2600132002
|
-
|
|
|
|
109 - SHIM 0.5 MM
BSD-2600132003.A0
2600132003
|
-
|
|
|
|
109 - PLAIN WASHER 0.2 MM
BSD-2600132004.A14
2600132004
|
-
|
|
|
|
110 - HEX SOCKET HEAD CAP SCREW
BSD-2603414041.A0
2603414041
|
-
|
|
|
|
111 - COUNTERSUNK-HEAD SCREW M 5x10 DIN 963-5.8
BSD-2910771152.A19
2910771152
|
-
|
|
|
|
112 - PAN HEAD SCREW M4x22 MM
BSD-2603410018.A51
2603410018
|
£1.75
|
£2.10
|
|
|
113 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A472
2915011007
|
-
|
|
|
|
114 - COUNTERSUNK-HEAD SCREW DIN 63-AM 4x15-5.8
BSD-2910501125.A42
2910501125
|
-
|
|
|
|
115 - FELT DISC
BSD-2600005002.A13
2600005002
|
-
|
|
|
|
652 - STRAP-SHAPED HANDLE
BSD-2602025004.A2
2602025004
|
-
|
|
|
|
700 - DUST BAG
BSD-1605411023.A2
1605411023
|
-
|
|
|
|
800 - .
BSD-0603299003.A13
0603299003
|
-
|
|
|
