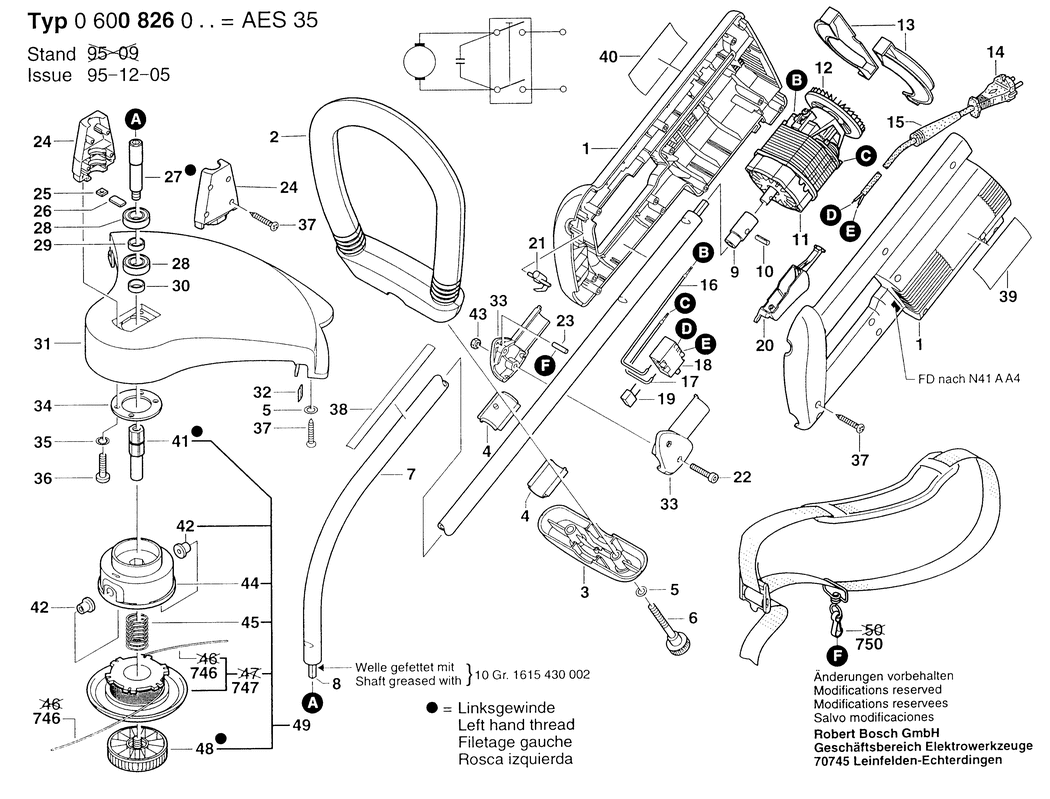

1 - MOTOR HOUSING
BSD-1609203425.A2
1609203425
|
-
|
|
|
|
2 - AUXILIARY HANDLE
BSD-1609203426.A0
1609203426
|
-
|
|
|
|
3 - FASTENING PART
BSD-1609203427.A2
1609203427
|
-
|
|
|
|
4 - DAMPING BUSHING
BSD-1609203428.A0
1609203428
|
-
|
|
|
|
5 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A153
2916011011
|
£1.75
|
£2.10
|
|
|
6 - KNURLED THUMBSCREW
BSD-1609203429.A2
1609203429
|
£7.78
|
£9.33
|
|
|
7 - PIPE
BSD-1609203430.A0
1609203430
|
£33.45
|
£40.14
|
|
|
8 - FLEXIBLE SHAFT
BSD-1609203431.A2
1609203431
|
-
|
|
|
|
9 - ADAPTER
BSD-1609203432.A0
1609203432
|
-
|
|
|
|
10 - SLOTTED SPRING PIN 14 DIN 1481
BSD-2917761099.A1
2917761099
|
£1.32
|
£1.58
|
|
|
11 - ALTERNATING-CURRENT MOTOR
BSD-1609203433.A2
1609203433
|
-
|
|
|
|
12 - FAN
BSD-1609203434.A0
1609203434
|
£5.87
|
£7.04
|
|
|
13 - AIR-DEFLECTOR RING
BSD-1609203435.A2
1609203435
|
£4.75
|
£5.70
|
|
|
14 - POWER SUPPLY CORD GB 240V 10.2m 2 x 1.0mm H05 VV-F
BSD-1604460184.A5
1604460184
|
£33.73
|
£40.48
|
|
|
15 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A777
2600703017
|
£2.61
|
£3.13
|
|
|
16 - CONNECTING CABLE
BSD-1609203436.A1
1609203436
|
-
|
|
|
|
17 - CONNECTING CABLE
BSD-1609203437.A1
1609203437
|
-
|
|
|
|
18 - ON-OFF SWITCH
BSD-1609203438.A1
1609203438
|
-
|
|
|
|
19 - SUPPRESSION FILTER
BSD-1609203439.A1
1609203439
|
-
|
|
|
|
20 - KEY SWITCH
BSD-1609203440.A1
1609203440
|
-
|
|
|
|
21 - STOP
BSD-1609203441.A1
1609203441
|
-
|
|
|
|
22 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-5.8
BSD-2910011132.A0
2910011132
|
£1.32
|
£1.58
|
|
|
23 - STRAIGHT PIN DIN 7-2.5h8x20-ST
BSD-2917501061.A1
2917501061
|
-
|
|
|
|
24 - HOUSING SECTION
BSD-1609203442.A1
1609203442
|
-
|
|
|
|
25 - SQUARE NUT DIN 562-M5-04
BSD-2915121005.A6
2915121005
|
£1.75
|
£2.10
|
|
|
26 - CLAMPING PIECE
BSD-1609203443.A1
1609203443
|
-
|
|
|
|
27 - PIVOT SHAFT
BSD-1609203444.A1
1609203444
|
£14.75
|
£17.70
|
|
|
28 - GROOVE BALL BEARING 12x28x8
BSD-1900905161.A36
1900905161
|
£21.68
|
£26.01
|
|
|
29 - SPACER BUSHING dia9 MM
BSD-1609203445.A1
1609203445
|
-
|
|
|
|
30 - SPACER BUSHING dia7 MM
BSD-1609203446.A1
1609203446
|
£1.32
|
£1.58
|
|
|
31 - PROTECTIVE COVER
BSD-1609203447.A1
1609203447
|
-
|
|
|
|
32 - CUTTER PLATE 38x10x1 MM
BSD-1609201464.A5
1609201464
|
-
|
|
|
|
33 - BELT WEB GUIDE
BSD-1609203448.A1
1609203448
|
-
|
|
|
|
34 - RETAINING WASHER
BSD-1609203449.A1
1609203449
|
-
|
|
|
|
35 - TOOTHED LOCK WASHER DIN 6797-J5.3-FST
BSD-2916049086.A2
2916049086
|
-
|
|
|
|
36 - OVAL-HEAD SCREW DIN 7985-M5x12-8.8-H
BSD-2910951154.A2
2910951154
|
-
|
|
|
|
37 - TAPPING SCREW
BSD-1609203450.A2
1609203450
|
-
|
|
|
|
38 - REFERENCE PLATE
BSD-1601118498.A2
1601118498
|
-
|
|
|
|
39 - NAMEPLATE
BSD-1601118502.A0
1601118502
|
-
|
|
|
|
40 - MANUFACTURER'S NAMEPLATE
BSD-1601118500.A1
1601118500
|
-
|
|
|
|
41 - MOUNTING PIN
BSD-1609203451.A0
1609203451
|
-
|
|
|
|
42 - GUIDE SLEEVE
BSD-1609203452.A2
1609203452
|
£1.95
|
£2.34
|
|
|
43 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A618
2915011005
|
£1.75
|
£2.10
|
|
|
44 - FAN
BSD-1609203453.A0
1609203453
|
-
|
|
|
|
45 - COMPRESSION SPRING
BSD-1609203454.A2
1609203454
|
-
|
|
|
|
48 - SCREW CAP
BSD-1609203537.A1
1609203537
|
-
|
|
|
|
49 - CUTTING LINE CARTRIDGE
BSD-1609203456.A0
1609203456
|
-
|
|
|
|
746 - CUTTING LINE CARTRIDGE dia2 MM. 8M
BSD-2609200275.A0
2609200275
|
-
|
|
|
|
747 - CUTTING LINE CARTRIDGE dia2 MM
BSD-2609200274.A2
2609200274
|
-
|
|
|
|
750 - SHOULDER STRAP
BSD-2605439016.A1
2605439016
|
-
|
|
|
