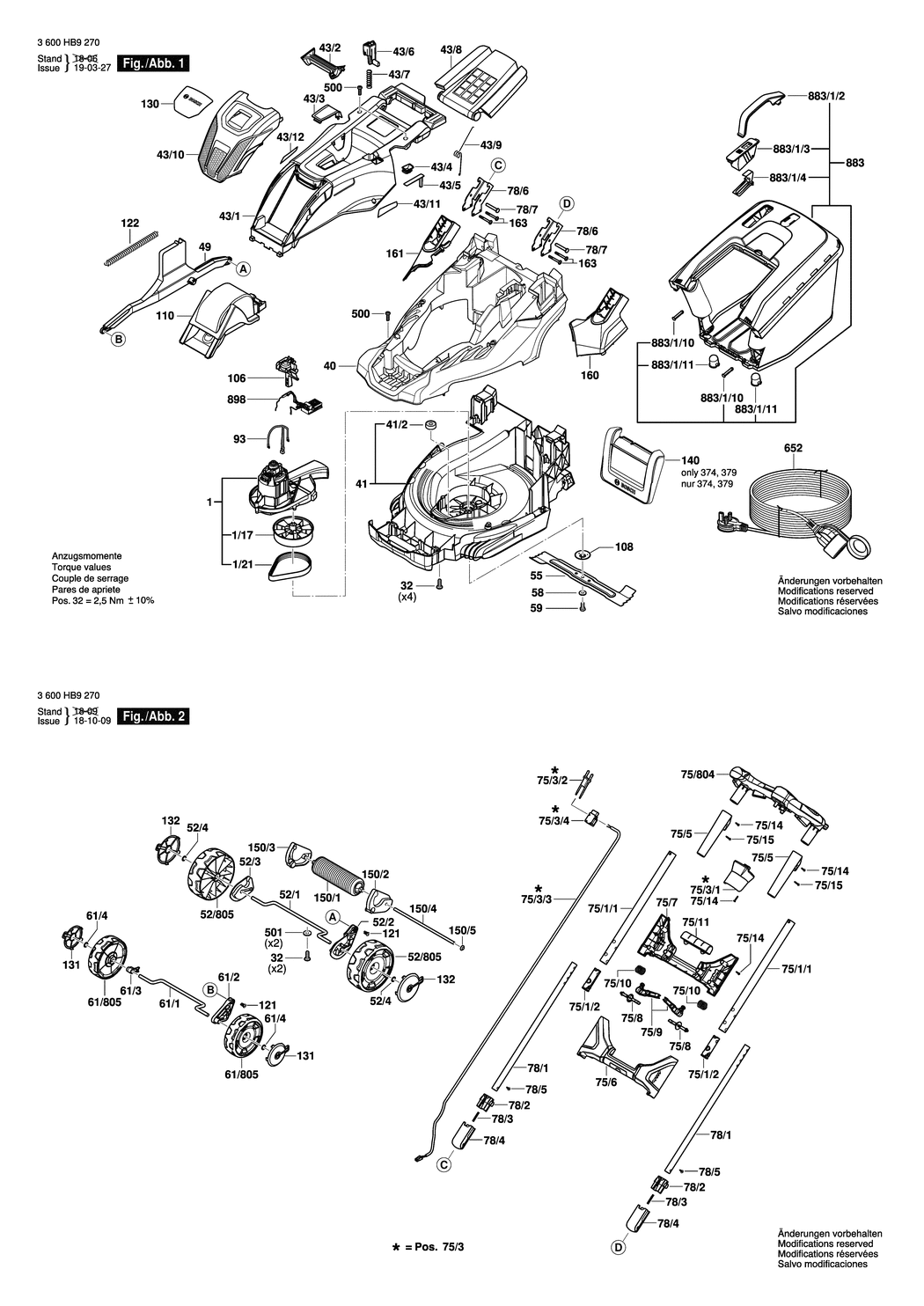

An exploded drawing and listing for the Bosch AdvancedRotak 650 / 3600HB9273 / --- 230 Volt
Ex VAT Inc VAT
1 - MOTOR BSD-F016L90455.A5 F016L90455 £156.22 £187.46
1/17 - DRIVE SHAFT BSD-F016L65108.A72 F016L65108 £13.12 £15.75
1/21 - DRIVE BELT BSD-F016L65109.A29 F016L65109 £16.41 £19.69
32 - SELF-CUTTING SCREW BSD-F016L37433.A180 F016L37433 £1.75 £2.10
40 - MOWER DECK 42/46 BSD-F016L90982.A23 F016L90982 -
41 - HOUSING 42 cm BSD-F016L90443.A8 F016L90443 £57.05 £68.46
41/2 - BEARING 6003 BSD-F016L64387.A100 F016L64387 £5.30 £6.36
43/1 - MOTOR HOOD BSD-F016L90017.A30 F016L90017 £18.96 £22.75
43/2 - CARRYING HANDLE BSD-F016L90018.A37 F016L90018 £1.75 £2.10
43/3 - COVER BSD-F016L90081.A20 F016L90081 £1.75 £2.10
43/4 - TRANSPARENT COVER BSD-F016L90432.A60 F016L90432 £1.75 £2.10
43/5 - INDICATOR BSD-F016L90433.A7 F016L90433 £3.72 £4.47
43/6 - BUTTON BSD-1600A022AC.A6 1600A022AC £3.75 £4.50
43/7 - BUTTON SPRING BSD-F016L91168.A33 F016L91168 £1.75 £2.10
43/8 - GUARD FLAP BSD-F016L90022.A48 F016L90022 £7.36 £8.83
43/9 - SPRING BSD-F016L90868.A25 F016L90868 £2.83 £3.40
43/10 - GRILLE BSD-F016L90400.A36 F016L90400 £8.67 £10.41
43/11 - STICKER logo l BSD-F016L90076.A15 F016L90076 £2.61 £3.13
43/12 - STICKER logo r BSD-F016L90077.A39 F016L90077 £2.61 £3.13
49 - LINKAGE PART BSD-F016L90028.A37 F016L90028 £10.10 £12.12
52/1 - AXLE BSD-F016L90007.A8 F016L90007 £5.30 £6.36
52/2 - LINK PIECE BSD-F016L90033.A4 F016L90033 £1.75 £2.10
52/3 - LINK PIECE BSD-F016L90037.A4 F016L90037 £1.75 £2.10
52/4 - RATCHET CAP BSD-F016L68095.A193 F016L68095 £1.75 £2.10
52/805 - WHEEL BSD-F016105108.A29 F016105108 £9.47 £11.36
55 - CUTTER BLADE 42 cm BSD-F016L69572.A7 F016L69572 £21.52 £25.83
58 - LOCKING WASHER 1/2 BSD-F016L18181.A34 F016L18181 £2.16 £2.59
59 - HEX SCREW BSD-F04N004003.A50 F04N004003 £1.75 £2.10
61/1 - AXLE 42/46 BSD-F016L90006.A33 F016L90006 £5.30 £6.36
61/2 - LINK PIECE BSD-F016L90032.A63 F016L90032 £1.75 £2.10
61/3 - SPACER BSD-F016L90036.A63 F016L90036 £1.75 £2.10
61/4 - RATCHET CAP BSD-F016L68095.A192 F016L68095 £1.75 £2.10
61/805 - WHEEL BSD-F016105369.A29 F016105369 -
75/1/1 - HANDLE BSD-F016L90012.A31 F016L90012 £16.41 £19.69
75/1/2 - BUSHING BSD-F016L90064.A24 F016L90064 £1.75 £2.10
75/3 - WIRING UNIT BSD-F016L90703.A13 F016L90703 £27.23 £32.68
75/3/1 - SWITCH HOUSING BSD-F016L67217.A53 F016L67217 £5.58 £6.70
75/3/2 - TERMINAL BLOCK BSD-F016L90781.A27 F016L90781 £13.12 £15.75
75/3/3 - CONNECTION CABLE BSD-F016L90709.A10 F016L90709 -
75/3/4 - ON-OFF SWITCH BSD-F016L67490.A7 F016L67490 -
75/5 - SLEEVE BSD-F016L90070.A13 F016L90070 £2.16 £2.59
75/6 - HANDLE BSD-F016L90066.A26 F016L90066 £5.30 £6.36
75/7 - HANDLE BSD-F016L90067.A13 F016L90067 £5.58 £6.70
75/8 - LOCKING PIN BSD-F016L90068.A26 F016L90068 £1.75 £2.10
75/9 - LEVER BSD-F016L90543.A29 F016L90543 £1.75 £2.10
75/10 - COMPRESSION SPRING BSD-F016L90074.A27 F016L90074 £1.75 £2.10
75/11 - BUTTON BSD-F016L91039.A21 F016L91039 -
75/14 - SCREW M5x8 Csk Hd. BSD-F016L36542.A155 F016L36542 £2.61 £3.13
75/15 - TORX HEAD SCREW BSD-F016L68124.A135 F016L68124 £1.75 £2.10
75/804 - SWITCH ASSEMBLY BSD-F016105448.A13 F016105448 £27.23 £32.68
78/1 - BOTTOM HANDLE BSD-F016L90013.A7 F016L90013 £12.04 £14.45
78/2 - RELEASE MECHANISM BSD-F016L90063.A15 F016L90063 £1.75 £2.10
78/3 - COMPRESSION SPRING BSD-F016L90841.A37 F016L90841 £1.75 £2.10
78/4 - RELEASE MECHANISM BSD-F016L90062.A28 F016L90062 £2.61 £3.13
78/5 - SCREW M5x8 Csk Hd. BSD-F016L36542.A156 F016L36542 £2.61 £3.13
78/6 - BRACKET BSD-F016L90082.A31 F016L90082 £5.58 £6.70
78/7 - PIVOT PIN BSD-F016L90014.A36 F016L90014 £1.75 £2.10
93 - THERMAL PROTECTOR BSD-F016L90717.A27 F016L90717 £7.36 £8.83
106 - WIRE GUIDE BSD-F016L90419.A7 F016L90419 £4.26 £5.11
108 - BEARING COVER BSD-F016L67627.A166 F016L67627 £2.71 £3.25
110 - BAFFLE BSD-F016L90089.A37 F016L90089 £7.36 £8.83
121 - CLIP BSD-F016L91066.A4 F016L91066 £1.75 £2.10
122 - SPRING BSD-F016L90072.A11 F016L90072 £2.80 £3.36
130 - FRONT COVER P2 BSD-F016L90876.A9 F016L90876 £6.52 £7.83
131 - COVER BSD-F016L91046.A33 F016L91046 -
132 - COVER BSD-F016L91047.A4 F016L91047 -
150/1 - ROLLER BSD-F016L90413.A13 F016L90413 £5.58 £6.70
150/2 - ROLLER CARRIER BSD-F016L90414.A3 F016L90414 £2.16 £2.59
150/3 - ROLLER CARRIER BSD-F016L90415.A26 F016L90415 £2.16 £2.59
150/4 - SPINDLE BSD-F016L90025.A11 F016L90025 £2.16 £2.59
150/5 - SECURING CAP dia8 MM BSD-F016T48990.A7 F016T48990 £1.75 £2.10
160 - COVER BSD-F016L90060.A27 F016L90060 £2.61 £3.13
161 - COVER BSD-F016L90061.A14 F016L90061 £2.61 £3.13
163 - TORX OVAL-HEAD SCREW M6x50 BSD-1613490011.A48 1613490011 £2.16 £2.59
500 - TORX HEAD SCREW BSD-F016L68124.A137 F016L68124 £1.75 £2.10
501 - PLAIN WASHER BSD-8716107299.A28 8716107299 -
652 - POWER SUPPLY CORD GB 10 Meter BSD-F016L90697.A11 F016L90697 £45.35 £54.42
883 - COLLECTION BOX BSD-F016105378.A12 F016105378 £59.53 £71.44
883/1/2 - HANDLE BSD-F016L90040.A80 F016L90040 £2.19 £2.63
883/1/3 - COVER BSD-F016L90557.A46 F016L90557 £2.16 £2.59
883/1/4 - PIVOT PLATE BSD-F016L91038.A0 F016L91038 -
883/1/10 - PIN BSD-F016L91107.A33 F016L91107 -
883/1/11 - SOCKET INSERT BSD-F016L91108.A4 F016L91108 -
898 - SPEED GOVERNOR BSD-F016105113.A5 F016105113 -
