Bosch ART 25 GSA / 0600828003 / EU 230 Volt Spare Parts

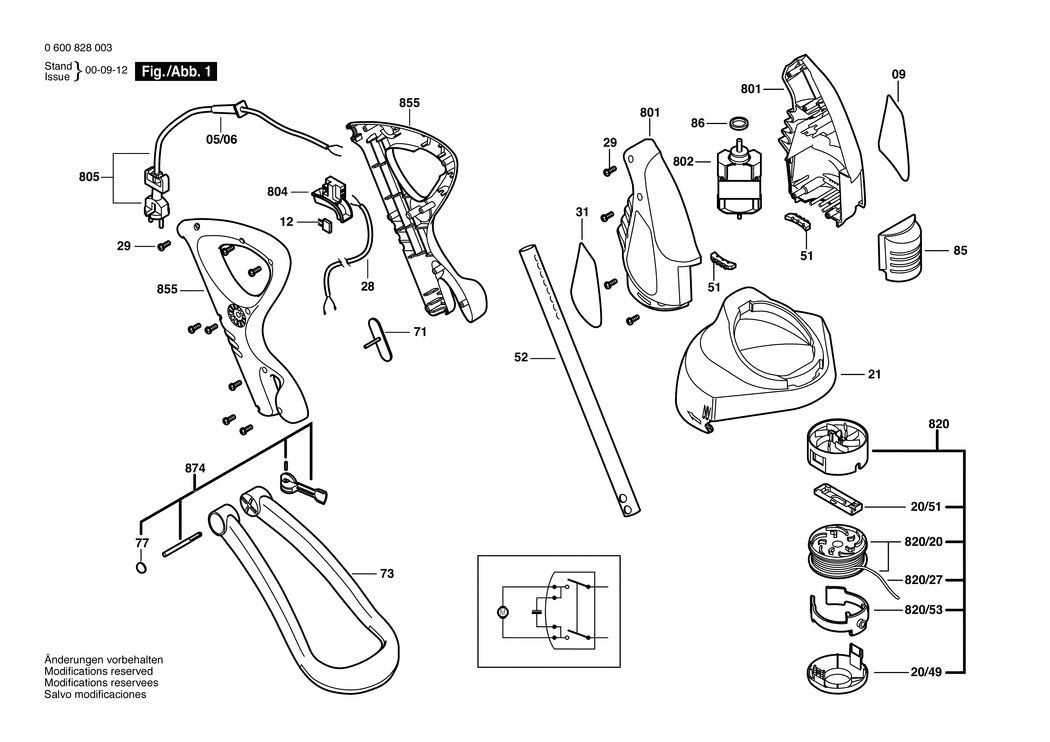

An exploded drawing and listing for the Bosch ART 25 GSA / 0600828003 / EU 230 Volt

	Ex VAT	Inc VAT
05/06 - GROMMET BSD-F016T44500.A34 F016T44500	£1.75	£2.10
09 - MANUFACTURER'S NAMEPLATE BSD-F016L63116.A5 F016L63116	-
12 - CONDENSER BSD-F016L36952.A19 F016L36952	£1.95	£2.34
20/49 - SEALING CAP BSD-F016L63113.A0 F016L63113	£5.87	£7.04
20/51 - SLIDER BSD-F016L63109.A14 F016L63109	-
21 - PROTECTIVE COVER BSD-F016102779.A14 F016102779	-
28 - CONNECTING CABLE BSD-F016L63100.A2 F016L63100	-
29 - SELF-CUTTING SCREW 4x19 MM BSD-F016L62029.A23 F016L62029	£1.75	£2.10
31 - STICKER BSD-F016L63118.A0 F016L63118	-
51 - RUBBER PLUG BSD-F016L63105.A28 F016L63105	-
52 - GUIDE TUBE BSD-F016L63101.A0 F016L63101	-
71 - FILLER PIECE BSD-F016L62572.A11 F016L62572	£1.32	£1.58
73 - AUXILIARY HANDLE BSD-F016102842.A28 F016102842	-
77 - SPRING RETAINING RING BSD-F016L63568.A20 F016L63568	£1.75	£2.10
85 - PROTECTION COVER BSD-F016L63114.A14 F016L63114	£2.52	£3.02
86 - RUBBER RING BSD-F016L63106.A0 F016L63106	£1.32	£1.58
801 - MOTOR HOUSING BSD-F016102763.A4 F016102763	£7.78	£9.33
802 - MOTOR BSD-F016L63104.A0 F016L63104	£33.74	£40.49
804 - SWITCH BSD-F016102352.A6 F016102352	£6.61	£7.93
805 - POWER SUPPLY CORD EU BSD-F016104086.A10 F016104086	£16.74	£20.09
820 - CUTTING LINE CARTRIDGE BSD-F016103132.A2 F016103132	-
820/20 - CUTTING LINE CARTRIDGE BSD-F016103131.A13 F016103131	-
820/27 - NYLON LINE BSD-F016102777.A12 F016102777	£10.82	£12.99
820/53 - GUIDE RING BSD-F016102778.A8 F016102778	-
855 - SWITCH HOUSING BSD-F016102784.A11 F016102784	-
874 - AUXILIARY HANDLE BSD-F016102842.A2 F016102842	-

Attribute Name	Value
Brand	Bosch
