Bosch ART 300 COMBITRIM / 3600H78D05 / EU 230 Volt Spare Parts

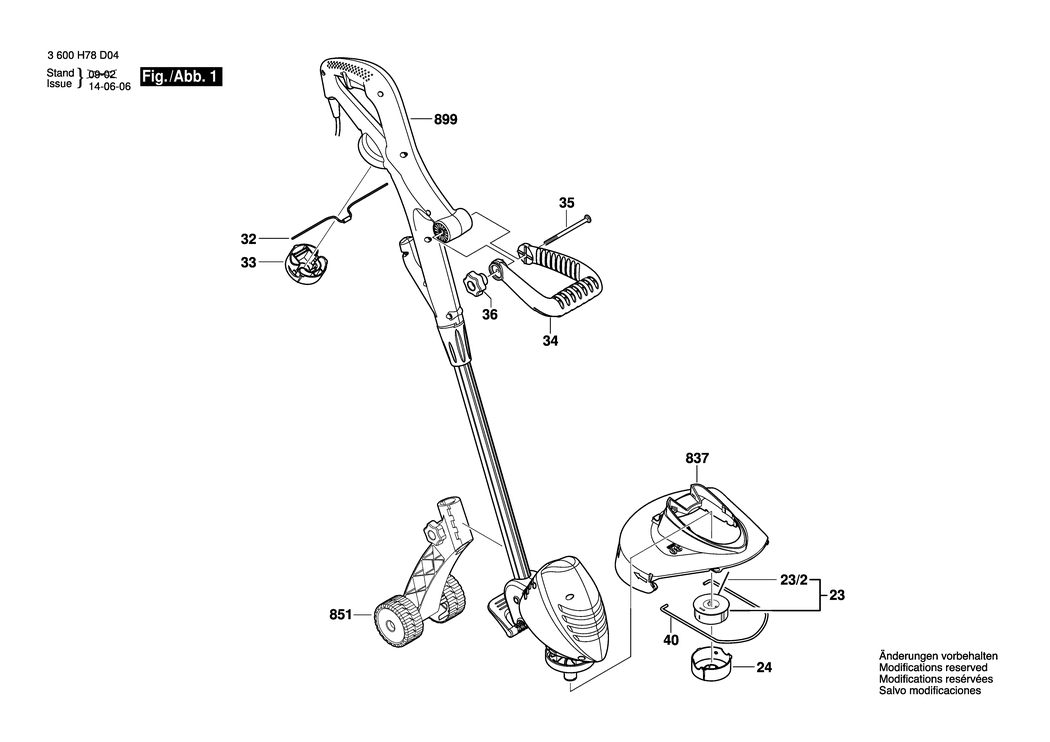

An exploded drawing and listing for the Bosch ART 300 COMBITRIM / 3600H78D05 / EU 230 Volt

	Ex VAT	Inc VAT
23 - CUTTING LINE CARTRIDGE BSD-F016L71599.A5 F016L71599	£10.10	£12.12
23/2 - PLASTIC CABLE 8 m BSD-F016L71566.A44 F016L71566	-
24 - SPOOL COVER BSD-1619X08157.A18 1619X08157	£4.37	£5.24
32 - PLASTIC CABLE 300 MM BSD-F016L71137.A4 F016L71137	£1.32	£1.58
33 - CUTTING LINE CARTRIDGE BSD-F016L71115.A13 F016L71115	£7.36	£8.83
34 - SET OF HANDLES BSD-F016L71116.A28 F016L71116	£8.67	£10.41
35 - BOLT BSD-F016L71117.A26 F016L71117	-
36 - WING NUT BSD-F016L71118.A28 F016L71118	£2.80	£3.36
40 - PROTECTIVE SHIELD BSD-F016L71146.A17 F016L71146	£6.52	£7.83
851 - WHEEL BSD-F016L71147.A8 F016L71147	-
899 - LAWN EDGE TRIMMER EU BSD-0600878D04.A0 0600878D04	-
