Hitachi / Hikoki NT50GS Gas Finish Nailer Spare Parts

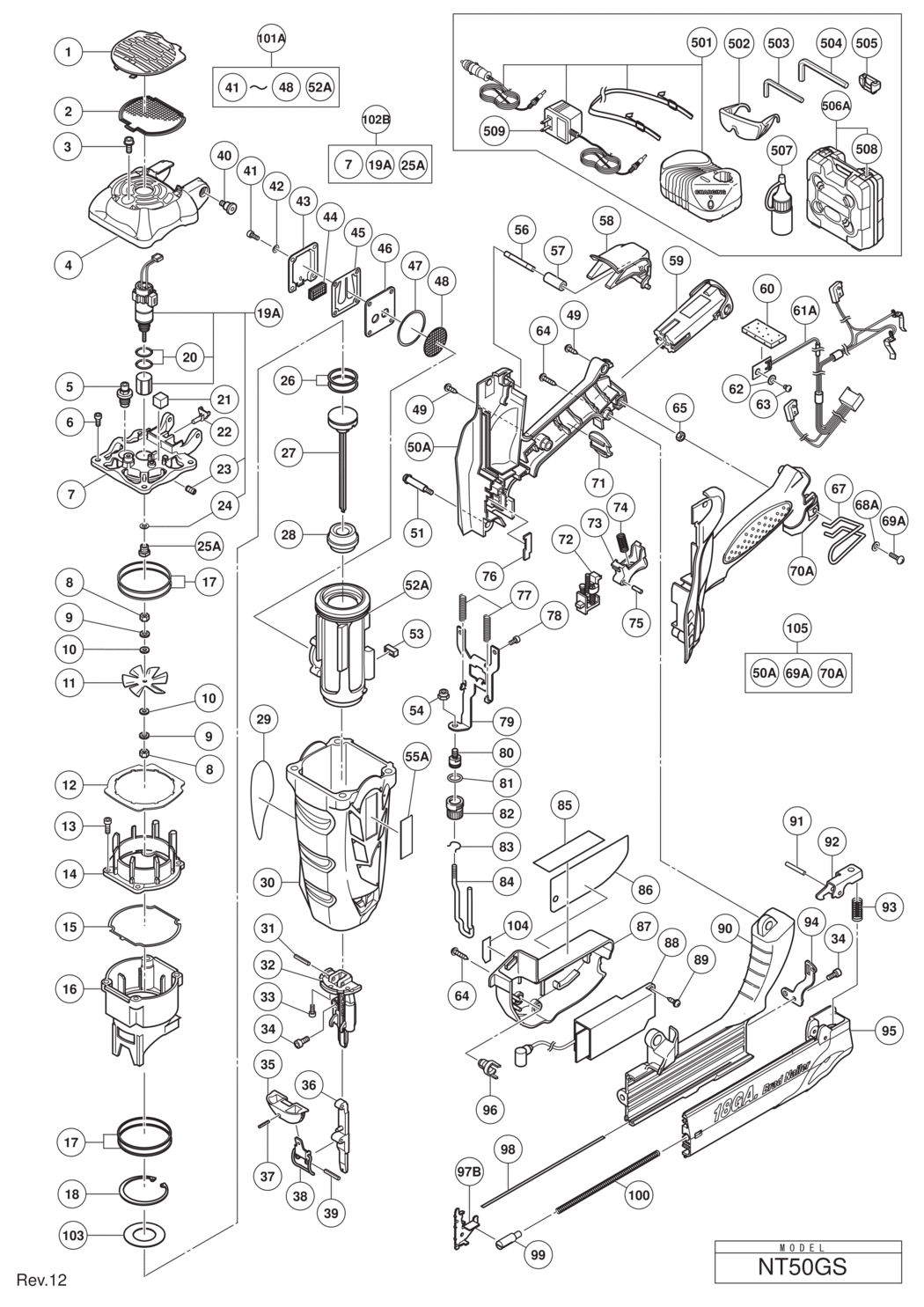

An exploded diagram and spare parts listing for the Hitachi / Hikoki NT50GS Gas Finish Nailer

	Ex VAT	Inc VAT
1 - FILTER COVER HIT-886664.A3 886664	£1.67	£2.00
2 - FILTER MESH HIT-886344.A0 886344	£14.48	£17.38
3 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X10 HIT-886347.A3 886347	£1.67	£2.00
4 - TOP COVER HIT-886335.A4 886335	£4.61	£5.53
5 - SPARK PLUG (A) HIT-885333.A2 885333	£4.33	£5.20
6 - NYLOCK HEX. SOCKET HD. BOLT M4X12 HIT-880630.A2 880630	£1.67	£2.00
7 - CYLINDER HEAD HIT-886661.A6 886661	£25.60	£30.72
8 - NUT M3 (10 PCS.) HIT-949553.A0 949553	£1.67	£2.00
9 - SPRING WASHER M3 (10 PCS.) HIT-949451.A2 949451	£1.67	£2.00
10 - WASHER M3 (10 PCS.) HIT-949422.A7 949422	£1.67	£2.00
11 - FAN HIT-886309.A6 886309	£4.88	£5.85
12 - RUBBER PLATE HIT-886568.A2 886568	£1.67	£2.00
13 - HEX. SOCKET HD. BOLT M4X16 (10 PCS.) HIT-949754.A17 949754	£2.98	£3.57
14 - CHAMBER HEAD HIT-886295.A5 886295	£11.83	£14.20
15 - GASKET HIT-886296.A1 886296	£1.67	£2.00
16 - CHAMBER HIT-886297.A6 886297	£15.78	£18.93
17 - PISTON RING (B) HIT-886312.A0 886312	£3.23	£3.88
18 - RETAINING RING FOR D40 HOLE HIT-886298.A1 886298	£1.67	£2.00
19A - MOTOR ASS'Y INCLUD.20 HIT-887446.A5 887446	£111.00	£133.20
20 - O-RING (S-12) HIT-875638.A15 875638	£1.67	£2.00
21 - PACKING HIT-886315.A7 886315	£1.67	£2.00
22 - ADAPTER HIT-886313.A10 886313	£3.51	£4.21
23 - HEX. SOCKET SET SCREW M4X5 HIT-886314.A1 886314	£1.67	£2.00
24 - SHAFT RUBBER WASHER HIT-886567.A5 886567	£1.67	£2.00
25A - SHAFT COVER HIT-887890.A1 887890	£3.83	£4.60
26 - PISTON RING (A) HIT-886848.A2 886848	-
27 - PISTON HIT-886839.A2 886839	-
28 - PISTON BUMPER HIT-886851.A2 886851	-
29 - NAME PLATE HIT-888752.A0 888752	-
30 - HOUSING HIT-886855.A1 886855	-
31 - PIN HIT-886310.A1 886310	£1.67	£2.00
32 - BLADE GUIDE HIT-886840.A0 886840	-
33 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-886311.A11 886311	£1.67	£2.00
34 - NYLOCK HEX. SOCKET HD. BOLT M4X10 HIT-880413.A0 880413	£1.67	£2.00
35 - LOCK LEVER COVER HIT-886570.A3 886570	£2.91	£3.49
36 - GUIDE PLATE HIT-886841.A2 886841	£17.43	£20.92
37 - ROLL PIN D3X10 (10 PCS.) HIT-949776.A8 949776	£2.98	£3.57
38 - LOCK LEVER HIT-886843.A2 886843	-
39 - ROLL PIN D3X16 (10 PCS.) HIT-949496.A3 949496	£2.98	£3.57
40 - HEX. SHOULDER BOLT M5 HIT-886566.A2 886566	£1.67	£2.00
41 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8 HIT-886307.A8 886307	£1.67	£2.00
42 - CONICAL SPRING H8 HIT-886319.A0 886319	£1.67	£2.00
43 - BUFFER COVER HIT-886287.A2 886287	£6.45	£7.74
44 - MUFFLER HIT-886288.A5 886288	£2.91	£3.49
45 - REED VALVE HIT-886290.A6 886290	£4.31	£5.17
46 - BUFFER PLATE HIT-886293.A1 886293	£2.91	£3.49
47 - O-RING HIT-886294.A6 886294	£1.67	£2.00
48 - MESH HIT-886292.A6 886292	£4.40	£5.28
49 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A125 305812	£1.67	£2.00
50A - HANDLE (B) HIT-886317.A0 886317	-
51 - HEX. SHOULDER BOLT M4X32 HIT-886565.A1 886565	£1.67	£2.00
52A - CYLINDER HIT-887356.A2 887356	-
53 - CHAMBER STOP RUBBER HIT-886285.A3 886285	£1.67	£2.00
54 - NYLON NUT M5 HIT-877371.A15 877371	£1.67	£2.00
55A - BRAND PLATE HIT-886342.A10 886342	£1.67	£2.00
*55A - BRAND PLATE FOR USA HIT-886342M.A2 886342M	-
56 - CELL PIN HIT-886332.A1 886332	£1.67	£2.00
57 - PIPE RUBBER HIT-886333.A6 886333	£1.67	£2.00
58 - ACTUATOR HIT-886326.A6 886326	£3.21	£3.85
*59 - BATTERY EBM 315 (EUROPE AUS NZL) HIT-326299.A0 326299	£29.03	£34.84
*59 - BATTERY EBM 315 (USA CAN) HIT-326263.A3 326263	-
60 - SUPPORT (B) HIT-886316.A7 886316	£1.67	£2.00
61A - INTERNAL WIRE (A) HIT-887635.A6 887635	£76.75	£92.10
62 - WASHER M4 (10 PCS.) HIT-949423.A51 949423	£1.67	£2.00
63 - SEAL LOCK SCREW M4X10 HIT-324082.A7 324082	£1.67	£2.00
64 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A18 302086	£1.67	£2.00
65 - LOCK NUT M4 (BLACK) HIT-886330.A1 886330	£1.67	£2.00
67 - HOOK HIT-886345.A2 886345	£4.86	£5.83
68A - WASHER HIT-887036.A6 887036	£1.67	£2.00
69A - TRUSS HD. SCREW M4X25 (BLACK) HIT-887034.A6 887034	£1.67	£2.00
70A - HANDLE (A) HIT-886323.A2 886323	-
71 - TERMINAL SUPPORT HIT-326316.A9 326316	£1.67	£2.00
72 - TRIGGER STOPPER HIT-886552.A2 886552	£4.84	£5.81
73 - TRIGGER HIT-886327.A1 886327	£1.67	£2.00
74 - TRIGGER SPRING HIT-886328.A6 886328	£1.67	£2.00
75 - PIN D3X20 (10 PCS.) HIT-949890.A13 949890	£2.78	£3.34
76 - CORD COVER PLATE HIT-886324.A1 886324	£1.67	£2.00
77 - CHAMBER SPRING HIT-886301.A7 886301	£1.67	£2.00
78 - SEAL LOCK HEX. SOCKET HD. BOLT M4X10 HIT-886308.A6 886308	£1.67	£2.00
79 - PUSHING LEVER ARM HIT-886856.A2 886856	-
80 - PUSHING LEVER PIECE HIT-887035.A1 887035	£4.10	£4.92
81 - O-RING (S-8) HIT-992912.A7 992912	£1.67	£2.00
82 - ADJUSTER HIT-886338.A4 886338	£3.12	£3.74
83 - RATCHET SPRING HIT-886331.A14 886331	£1.67	£2.00
84 - PUSHING LEVER(A) HIT-886852.A2 886852	-
85 - CAUTION LABEL HIT-000000.A4507 000000	-
86 - WARNING LABEL HIT-888774.A2 888774	-
87 - CONTROLLER COVER HIT-886844.A2 886844	-
88 - CONTROLLER HIT-886320.A2 886320	£64.50	£77.40
89 - TAPPING SCREW (W/FLANGE) D4X12 (BLACK) HIT-325083.A9 325083	£1.67	£2.00
90 - MAGAZINE HIT-886845.A0 886845	-
91 - ROLL PIN D3X20 (10 PCS.) HIT-949685.A10 949685	£1.67	£2.00
92 - STOP LEVER HIT-885894.A2 885894	£1.67	£2.00
93 - SPRING HIT-885895.A5 885895	£1.67	£2.00
94 - PLATE HIT-886842.A2 886842	-
95 - MAGAZINE COVER HIT-886849.A3 886849	£17.55	£21.06
96 - PRISM HIT-886322.A6 886322	£1.67	£2.00
97B - NAIL FEEDER HIT-887995.A4 887995	£3.66	£4.39
98 - NAIL PLATE HIT-885898.A6 885898	£1.67	£2.00
99 - FEEDER PIECE HIT-885899.A0 885899	£1.67	£2.00
100 - FEED SPRING HIT-885900.A7 885900	£1.67	£2.00
101A - CYLINDER ASS'Y (A) INCLUD.41-48 HIT-887387.A2 887387	-
102B - CYLINDER HEAD ASS'Y INCLUD.7 HIT-887891.A0 887891	-
103 - CYLINDER PLATE HIT-887032.A2 887032	£1.67	£2.00
104 - CAUTION LABEL HIT-887415.A1 887415	-
105 - HANDLE ASS'Y INCLUD.50A HIT-331424.A2 331424	£22.18	£26.62
501 - CHARGER (MODEL UC 3SML) HIT-000000.A4510 000000	-
502 - PROTECTIVE GLASSES HIT-875769.A43 875769	-
503 - HEX. BAR WRENCH 3MM HIT-943277.A31 943277	£1.67	£2.00
504 - HEX. BAR WRENCH 4MM HIT-944458.A13 944458	£1.67	£2.00
*505 - NOSE CAP (A) HIT-886846.A4 886846	£1.67	£2.00
*505 - NOSE CAP (A) FOR USA HIT-886846.A5 886846	£1.67	£2.00
506A - CASE INCLUD.508 HIT-886857.A0 886857	£29.91	£35.89
507 - LUBRICANT OILER (B) FOR EUROPE HIT-886036.A2 886036	-
508 - LATCH HIT-887996.A0 887996	£1.67	£2.00
509 - AC-ADAPTER (USA) HIT-370169.A2 370169	-
