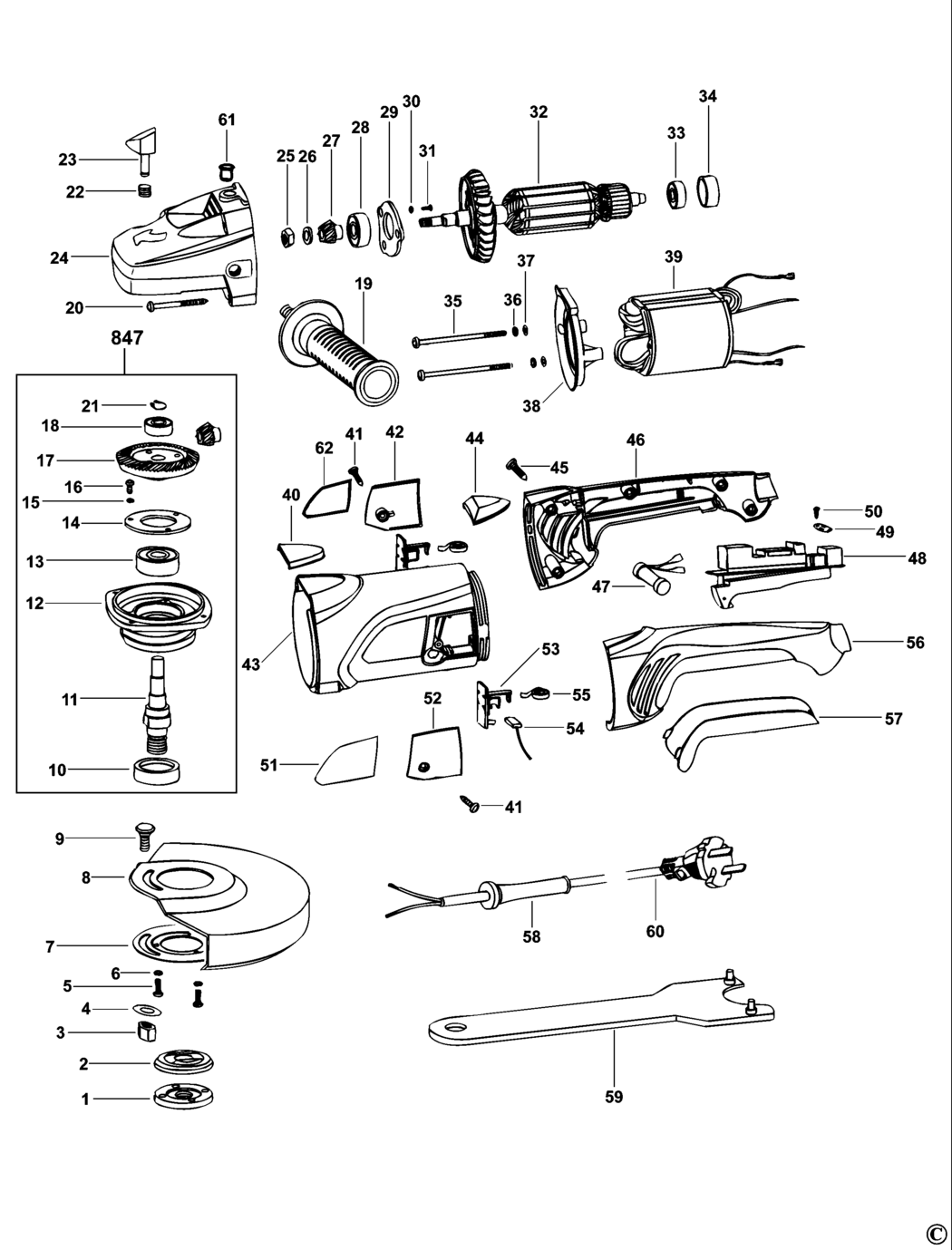

1 - OUTER FLANGE
BDE-569320-00.A3
569320-00
|
£1.82
|
£2.19
|
|
|
2 - INNER FLANGE
BDE-569321-00.A8
569321-00
|
£1.82
|
£2.19
|
|
|
3 - NUT
BDE-569322-00.A3
569322-00
|
£1.50
|
£1.80
|
|
|
4 - WASHER
BDE-569323-00.A8
569323-00
|
£1.50
|
£1.80
|
|
|
5 - SCREW
BDE-569324-00.A3
569324-00
|
£1.50
|
£1.80
|
|
|
6 - WASHER SPRING
BDE-569325-00.A8
569325-00
|
£1.50
|
£1.80
|
|
|
7 - FLANGE
BDE-569326-00.A3
569326-00
|
£1.50
|
£1.80
|
|
|
8 - GUARD
BDE-569327-00.A4
569327-00
|
£16.03
|
£19.24
|
|
|
9 - BOLT
BDE-569328-00.A2
569328-00
|
£1.50
|
£1.80
|
|
|
10 - NO LONGER AVAILABLE - REF ITEM 847
BDE-000000-06.A20
000000-06
|
-
|
|
|
|
11 - NO LONGER AVAILABLE - REF ITEM 847
BDE-000000-06.A21
000000-06
|
-
|
|
|
|
12 - NO LONGER AVAILABLE - REF ITEM 847
BDE-000000-06.A22
000000-06
|
-
|
|
|
|
13 - NO LONGER AVAILABLE - REF ITEM 847
BDE-000000-06.A23
000000-06
|
-
|
|
|
|
14 - NO LONGER AVAILABLE - REF ITEM 847
BDE-000000-06.A24
000000-06
|
-
|
|
|
|
15 - NO LONGER AVAILABLE - REF ITEM 847
BDE-000000-06.A25
000000-06
|
-
|
|
|
|
16 - NO LONGER AVAILABLE - REF ITEM 847
BDE-000000-06.A26
000000-06
|
-
|
|
|
|
17 - NO LONGER AVAILABLE - REF ITEM 847
BDE-000000-06.A27
000000-06
|
-
|
|
|
|
18 - BEARING
BDE-569337-00.A15
569337-00
|
£3.80
|
£4.56
|
|
|
19 - HANDLE
BDE-569338-00.A1
569338-00
|
£3.30
|
£3.96
|
|
|
20 - SCREW
BDE-569339-00.A10
569339-00
|
£1.50
|
£1.80
|
|
|
21 - NO LONGER AVAILABLE - REF ITEM 847
BDE-000000-06.A29
000000-06
|
-
|
|
|
|
22 - SPRING
BDE-569341-00.A2
569341-00
|
£1.50
|
£1.80
|
|
|
23 - SPINDLE LOCK
BDE-569342-00.A9
569342-00
|
£1.50
|
£1.80
|
|
|
24 - GEARCASE SA
BDE-1003728-00.A4
1003728-00
|
£34.00
|
£40.80
|
|
|
25 - NUT
BDE-569344-00.A5
569344-00
|
£1.50
|
£1.80
|
|
|
26 - WASHER SPRING
BDE-569345-00.A6
569345-00
|
£1.50
|
£1.80
|
|
|
27 - NO LONGER AVAILABLE - REF ITEM 847
BDE-000000-06.A30
000000-06
|
-
|
|
|
|
28 - BEARING
BDE-569347-00.A8
569347-00
|
£4.69
|
£5.63
|
|
|
29 - BEARING PLATE
BDE-569348-00.A1
569348-00
|
-
|
|
|
|
30 - WASHER SPRING
BDE-569349-00.A3
569349-00
|
-
|
|
|
|
31 - SCREW
BDE-569350-00.A1
569350-00
|
-
|
|
|
|
32 - ARMATURE
BDE-569351-00.A5
569351-00
|
£38.80
|
£46.56
|
|
|
33 - BEARING
BDE-569337-00.A13
569337-00
|
£3.80
|
£4.56
|
|
|
34 - BEARING HOLDER
BDE-569353-00.A6
569353-00
|
£1.50
|
£1.80
|
|
|
35 - SCREW
BDE-569354-00.A5
569354-00
|
£1.50
|
£1.80
|
|
|
36 - WASHER SPRING
BDE-569355-00.A2
569355-00
|
£1.42
|
£1.70
|
|
|
37 - WASHER
BDE-569356-00.A5
569356-00
|
£1.50
|
£1.80
|
|
|
38 - BAFFLE
BDE-569357-00.A6
569357-00
|
£1.82
|
£2.19
|
|
|
39 - FIELD
BDE-569358-00.A5
569358-00
|
£38.80
|
£46.56
|
|
|
40 - PAD
BDE-569359-00.A4
569359-00
|
£1.50
|
£1.80
|
|
|
41 - SCREW
BDE-569360-00.A7
569360-00
|
£1.50
|
£1.80
|
|
|
42 - BRUSH CAP
BDE-569361-00.A4
569361-00
|
£1.50
|
£1.80
|
|
|
43 - HOUSING MOTOR
BDE-1003729-00.A1
1003729-00
|
£30.08
|
£36.10
|
|
|
44 - PAD
BDE-569363-00.A7
569363-00
|
£1.50
|
£1.80
|
|
|
45 - SCREW
BDE-569364-00.A4
569364-00
|
£1.50
|
£1.80
|
|
|
46 - HANDLE RH
BDE-569365-00.A5
569365-00
|
£5.88
|
£7.06
|
|
|
47 - RESISTOR
BDE-569366-00.A2
569366-00
|
£5.88
|
£7.06
|
|
|
48 - SWITCH
BDE-569367-00.A5
569367-00
|
£55.30
|
£66.36
|
|
|
49 - CABLE CLAMP
BDE-569368-00.A2
569368-00
|
£1.50
|
£1.80
|
|
|
50 - SCREW
BDE-569369-00.A9
569369-00
|
£1.50
|
£1.80
|
|
|
51 - BRAND LABEL
BDE-569370-00.A2
569370-00
|
£1.50
|
£1.80
|
|
|
52 - BRUSH CAP
BDE-569371-00.A7
569371-00
|
£1.50
|
£1.80
|
|
|
53 - BRUSH HOLDER
BDE-569372-00.A4
569372-00
|
£1.50
|
£1.80
|
|
|
54 - BRUSH GB
BDE-569373-00.A5
569373-00
|
£4.69
|
£5.63
|
|
|
55 - BRUSH SPRING
BDE-569374-00.A2
569374-00
|
£1.50
|
£1.80
|
|
|
56 - HANDLE LH
BDE-569375-00.A7
569375-00
|
£5.88
|
£7.06
|
|
|
57 - HANDLE COVER
BDE-569376-00.A0
569376-00
|
£3.80
|
£4.56
|
|
|
58 - CORD PROTECTOR
BDE-569377-00.A11
569377-00
|
£1.50
|
£1.80
|
|
|
59 - WRENCH
BDE-569378-00.A0
569378-00
|
£4.69
|
£5.63
|
|
|
60 - CORDSET GB
BDE-569379-00.A4
569379-00
|
£24.39
|
£29.27
|
|
|
61 - CAP
BDE-569283-00.A9
569283-00
|
£1.50
|
£1.80
|
|
|
62 - RATING PLATE
BDE-596074-00.A0
596074-00
|
£1.42
|
£1.70
|
|
|
847 - SPINDLE & GEAR SA
BDE-1004450-01.A6
1004450-01
|
£38.80
|
£46.56
|
|
