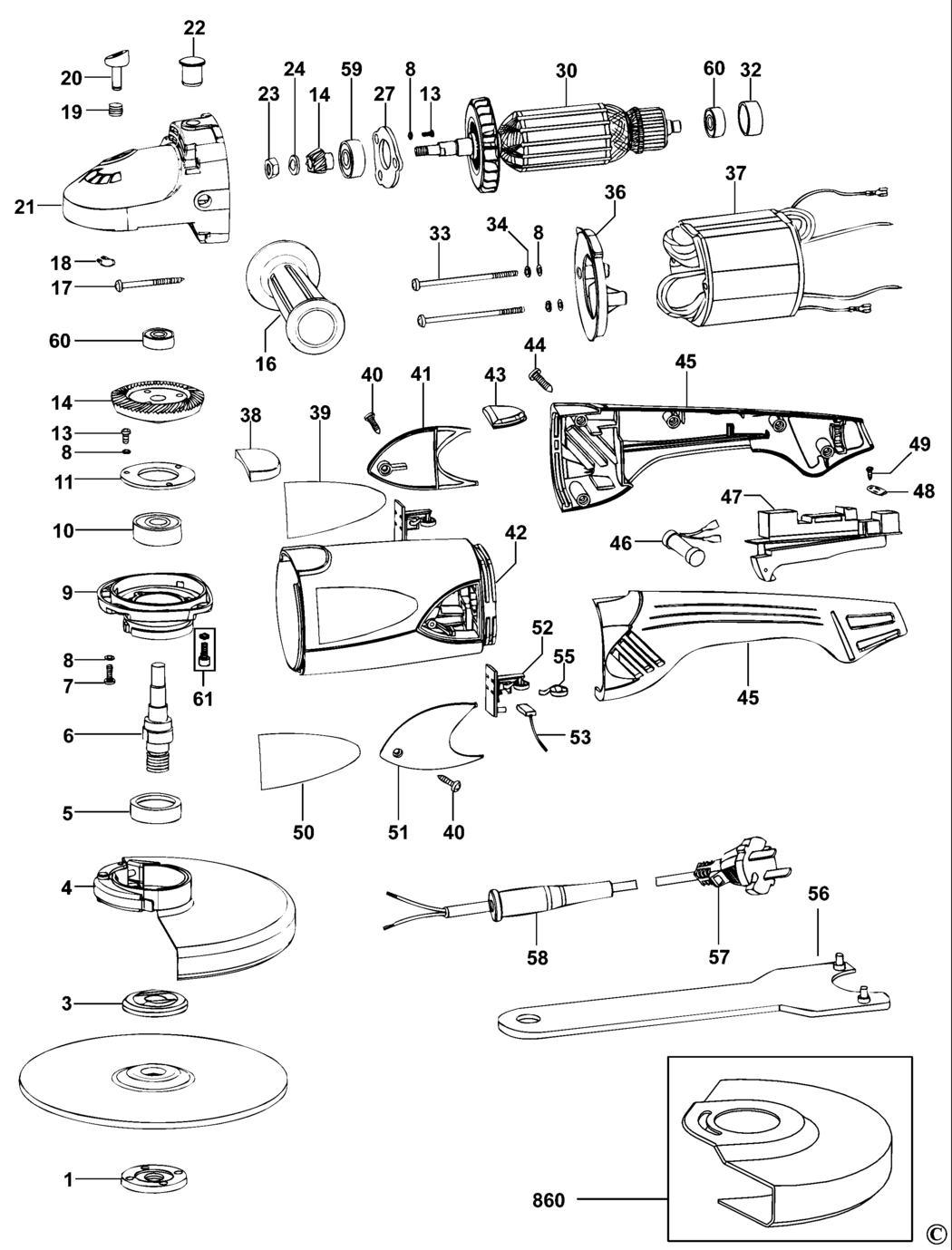

1 - OUTER FLANGE
BDE-597870-00.A1
597870-00
|
-
|
|
|
|
3 - INNER FLANGE
BDE-597871-00.A0
597871-00
|
£1.42
|
£1.70
|
|
|
4 - GUARD 9"
BDE-597872-00.A1
597872-00
|
-
|
|
|
|
5 - SEAL
BDE-597873-00.A0
597873-00
|
£1.42
|
£1.70
|
|
|
6 - SPINDLE
BDE-597874-00.A1
597874-00
|
£3.70
|
£4.44
|
|
|
7 - SCREW
BDE-597875-00.A0
597875-00
|
-
|
|
|
|
8 - WASHER SPRING
BDE-597876-00.A1
597876-00
|
£1.42
|
£1.70
|
|
|
9 - GEARCASE COVER
BDE-597877-00.A0
597877-00
|
£5.72
|
£6.87
|
|
|
10 - BEARING
BDE-597878-00.A1
597878-00
|
£17.03
|
£20.44
|
|
|
11 - RETAINER
BDE-597879-00.A0
597879-00
|
£1.42
|
£1.70
|
|
|
13 - SCREW
BDE-597880-00.A1
597880-00
|
£1.42
|
£1.70
|
|
|
14 - GEAR & PINION
BDE-597881-00.A0
597881-00
|
-
|
|
|
|
16 - SIDE HANDLE
BDE-597882-00.A1
597882-00
|
-
|
|
|
|
17 - SCREW
BDE-597883-00.A0
597883-00
|
-
|
|
|
|
18 - CIRCLIP
BDE-597884-00.A1
597884-00
|
£1.42
|
£1.70
|
|
|
19 - SPRING
BDE-597885-00.A0
597885-00
|
£1.42
|
£1.70
|
|
|
20 - PIN
BDE-597886-00.A1
597886-00
|
£1.42
|
£1.70
|
|
|
21 - NO LONGER AVAILABLE
BDE-000000-00.A129273
000000-00
|
-
|
|
|
|
22 - COVER
BDE-597888-00.A0
597888-00
|
£1.42
|
£1.70
|
|
|
23 - NUT
BDE-597889-00.A1
597889-00
|
£1.42
|
£1.70
|
|
|
24 - WASHER SPRING
BDE-597890-00.A0
597890-00
|
£1.42
|
£1.70
|
|
|
27 - RETAINER
BDE-597891-00.A1
597891-00
|
-
|
|
|
|
30 - ARMATURE SA Inc item 10
BDE-597892-00.A0
597892-00
|
£59.41
|
£71.29
|
|
|
32 - SLEEVE
BDE-597893-00.A1
597893-00
|
£1.42
|
£1.70
|
|
|
33 - SCREW
BDE-597894-00.A0
597894-00
|
£1.42
|
£1.70
|
|
|
34 - WASHER
BDE-597895-00.A1
597895-00
|
£1.42
|
£1.70
|
|
|
36 - BAFFLE FAN
BDE-597896-00.A0
597896-00
|
£1.78
|
£2.13
|
|
|
37 - FIELD SA
BDE-597897-00.A1
597897-00
|
£43.02
|
£51.63
|
|
|
38 - BUNG
BDE-597898-00.A0
597898-00
|
£1.42
|
£1.70
|
|
|
39 - BRAND LABEL
BDE-597899-00.A1
597899-00
|
£1.42
|
£1.70
|
|
|
40 - SCREW
BDE-597900-00.A0
597900-00
|
£1.42
|
£1.70
|
|
|
41 - COVER RH
BDE-597901-00.A1
597901-00
|
-
|
|
|
|
42 - FIELDCASE
BDE-597902-00.A0
597902-00
|
£19.40
|
£23.28
|
|
|
43 - BUNG
BDE-597903-00.A1
597903-00
|
£1.42
|
£1.70
|
|
|
44 - SCREW
BDE-597904-00.A0
597904-00
|
£1.42
|
£1.70
|
|
|
45 - HANDLE SA
BDE-597905-00.A1
597905-00
|
£11.87
|
£14.24
|
|
|
46 - RESISTOR
BDE-597906-00.A0
597906-00
|
-
|
|
|
|
47 - SWITCH
BDE-597907-00.A1
597907-00
|
£45.88
|
£55.06
|
|
|
48 - CORD CLAMP
BDE-597908-00.A0
597908-00
|
£1.42
|
£1.70
|
|
|
49 - SCREW
BDE-597909-00.A1
597909-00
|
£1.42
|
£1.70
|
|
|
50 - LABEL
BDE-597910-00.A0
597910-00
|
£1.42
|
£1.70
|
|
|
51 - COVER LH
BDE-597911-00.A1
597911-00
|
-
|
|
|
|
52 - BRUSH HOLDER SA
BDE-597912-00.A0
597912-00
|
£3.22
|
£3.86
|
|
|
53 - BRUSH
BDE-597913-00.A1
597913-00
|
-
|
|
|
|
55 - BRUSH SPRING
BDE-597914-00.A0
597914-00
|
£1.42
|
£1.70
|
|
|
56 - SPANNER
BDE-597916-00.A0
597916-00
|
-
|
|
|
|
57 - CORDSET GB
BDE-597919-00.A1
597919-00
|
-
|
|
|
|
58 - CORD PROTECTOR
BDE-597915-00.A1
597915-00
|
£1.42
|
£1.70
|
|
|
59 - BEARING
BDE-569347-00.A3
569347-00
|
£4.69
|
£5.63
|
|
|
60 - BEARING
BDE-569337-00.A2
569337-00
|
£3.80
|
£4.56
|
|
|
61 - SCREW.SPECIAL
BDE-1004505-00
1004505-00
|
£1.42
|
£1.70
|
|
|
860 - GUARD CUT OFF
BDE-1004484-02.A1
1004484-02
|
£34.00
|
£40.80
|
|
