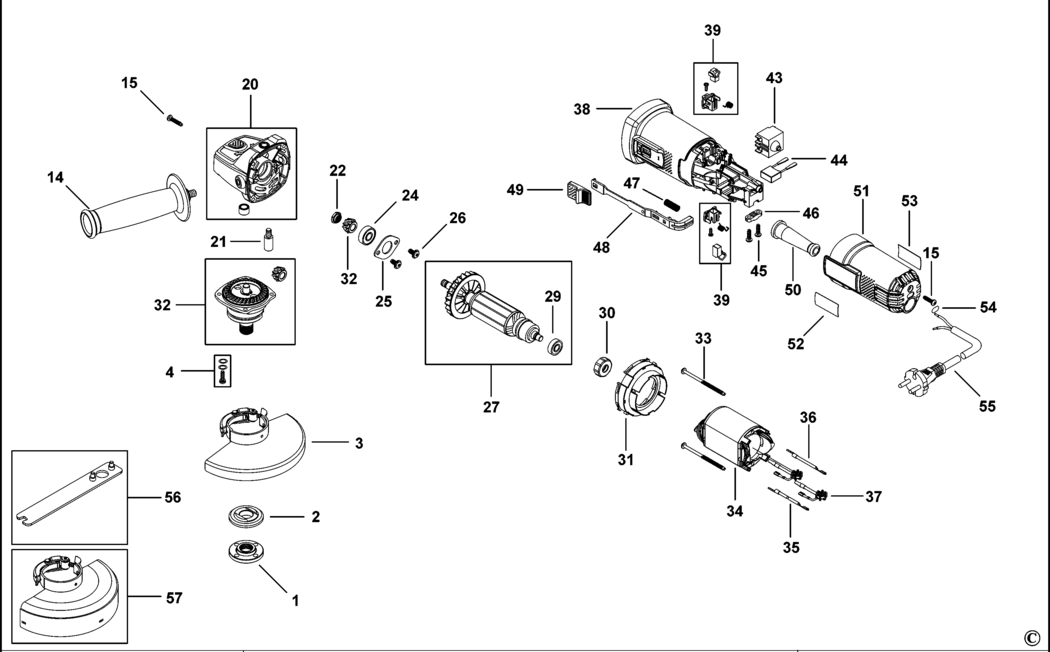

1 - OUTER FLANGE
BDE-569198-00.A22
569198-00
|
£1.50
|
£1.80
|
|
|
2 - INNER FLANGE
BDE-569200-00.A21
569200-00
|
£1.82
|
£2.19
|
|
|
3 - GUARD
BDE-1004519-00
1004519-00
|
£11.87
|
£14.24
|
|
|
4 - SCREW
BDE-1004525-06.A3
1004525-06
|
£1.50
|
£1.80
|
|
|
14 - SIDE HANDLE
BDE-1004525-17.A5
1004525-17
|
£4.69
|
£5.63
|
|
|
15 - SCREW
BDE-569209-00.A4
569209-00
|
£1.50
|
£1.80
|
|
|
20 - GEARBOX SA
BDE-1004519-04.A0
1004519-04
|
£18.91
|
£22.69
|
|
|
21 - SCREW
BDE-1004525-23.A3
1004525-23
|
£1.50
|
£1.80
|
|
|
22 - NUT
BDE-569175-00.A40
569175-00
|
£1.50
|
£1.80
|
|
|
24 - BEARING
BDE-569167-00.A7
569167-00
|
£4.69
|
£5.63
|
|
|
25 - COVERPLATE
BDE-569168-00.A27
569168-00
|
£1.50
|
£1.80
|
|
|
26 - SCREW
BDE-569170-00.A7
569170-00
|
£1.50
|
£1.80
|
|
|
27 - ARMATURE SA
BDE-1004525-26.A7
1004525-26
|
£47.08
|
£56.49
|
|
|
29 - BEARING
BDE-1004525-27.A2
1004525-27
|
£4.69
|
£5.63
|
|
|
30 - BEARING HOLDER
BDE-1004525-28.A21
1004525-28
|
£1.50
|
£1.80
|
|
|
31 - BAFFLE FAN
BDE-1004525-29.A2
1004525-29
|
£1.50
|
£1.80
|
|
|
32 - SPINDLE & GEAR SA
BDE-1004519-10.A1
1004519-10
|
£37.35
|
£44.82
|
|
|
33 - SCREW
BDE-1004525-32.A4
1004525-32
|
£1.50
|
£1.80
|
|
|
34 - FIELD
BDE-1004525-33.A6
1004525-33
|
£30.08
|
£36.10
|
|
|
35 - LEADWIRE
BDE-1004525-34.A3
1004525-34
|
£1.50
|
£1.80
|
|
|
36 - LEADWIRE
BDE-1004525-35.A7
1004525-35
|
£1.50
|
£1.80
|
|
|
37 - CHOKE
BDE-1004525-36.A3
1004525-36
|
£5.88
|
£7.06
|
|
|
38 - HOUSING
BDE-1004519-16.A0
1004519-16
|
£14.57
|
£17.48
|
|
|
39 - BRUSH HOLDER PAIR
BDE-1004519-17.A1
1004519-17
|
£12.17
|
£14.60
|
|
|
43 - SWITCH
BDE-1004525-42.A4
1004525-42
|
£10.85
|
£13.02
|
|
|
44 - CAPACITOR
BDE-1004525-43.A2
1004525-43
|
£5.88
|
£7.06
|
|
|
45 - SCREW
BDE-596430-00.A2
596430-00
|
£1.50
|
£1.80
|
|
|
46 - CABLE CLAMP
BDE-569195-00.A4
569195-00
|
£1.50
|
£1.80
|
|
|
47 - SPRING
BDE-1004525-45.A12
1004525-45
|
£1.50
|
£1.80
|
|
|
48 - LINKAGE SA
BDE-1004525-46.A8
1004525-46
|
£1.50
|
£1.80
|
|
|
49 - ACTUATOR
BDE-1004519-21.A1
1004519-21
|
£1.50
|
£1.80
|
|
|
50 - CORD PROTECTOR
BDE-1004525-48.A2
1004525-48
|
£1.50
|
£1.80
|
|
|
51 - COVER
BDE-1004525-49.A6
1004525-49
|
£7.85
|
£9.42
|
|
|
52 - BRAND LABEL
BDE-1004519-24.A1
1004519-24
|
£1.42
|
£1.70
|
|
|
53 - RATING PLATE GB
BDE-1004519-27
1004519-27
|
£1.42
|
£1.70
|
|
|
54 - LABEL
BDE-1004519-30.A0
1004519-30
|
£1.50
|
£1.80
|
|
|
55 - CORDSET GB
BDE-1004519-33.A1
1004519-33
|
£29.32
|
£35.18
|
|
|
56 - SPANNER
BDE-569197-00.A3
569197-00
|
£1.82
|
£2.19
|
|
|
57 - GUARD CUT OFF
BDE-1004484-06.A0
1004484-06
|
£17.03
|
£20.44
|
|
