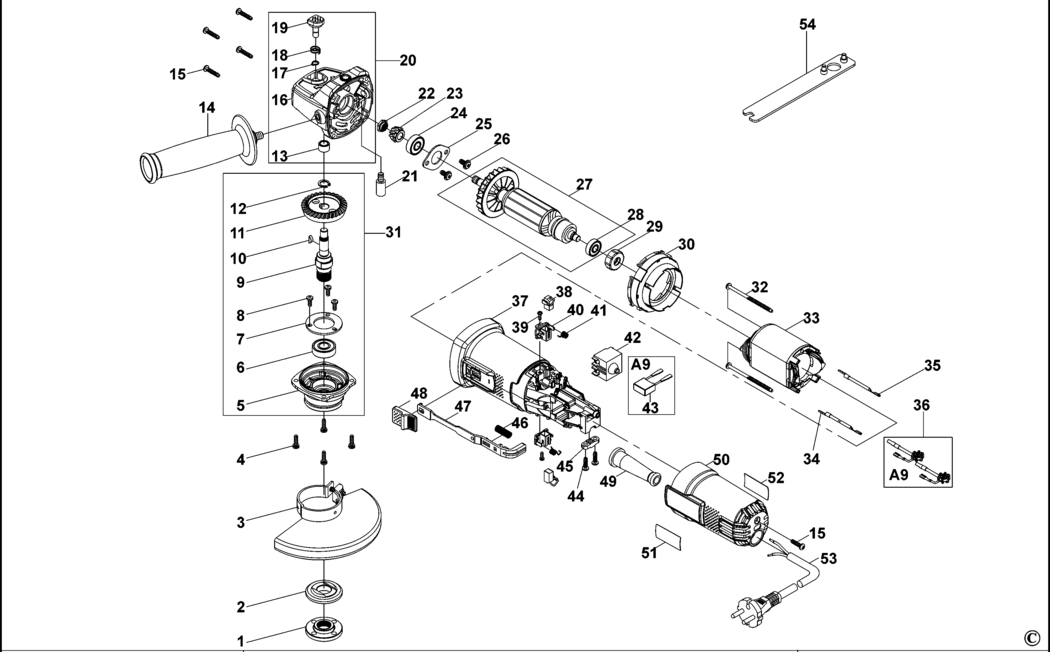

An exploded drawing and spare parts listing for the Black & Decker KTG15 Type 1 Angle Grinder
Ex VAT Inc VAT
1 - OUTER FLANGE BDE-1004525-00.A1 1004525-00 -
2 - INNER FLANGE BDE-1004525-02.A1 1004525-02 -
3 - GUARD BDE-1004525-04.A1 1004525-04 £9.41 £11.29
4 - SCREW BDE-1004525-06.A2 1004525-06 £1.50 £1.80
5 - GEARCASE COVER BDE-1004525-07.A0 1004525-07 £12.17 £14.60
6 - BEARING BDE-1004525-08.A2 1004525-08 £5.88 £7.06
7 - COVERPLATE BDE-1004525-09.A7 1004525-09 £1.50 £1.80
8 - SCREW BDE-1004525-10.A2 1004525-10 £1.42 £1.70
9 - SPINDLE BDE-1004525-11.A2 1004525-11 £7.01 £8.41
10 - WOODRUFF KEY BDE-1004525-13.A7 1004525-13 £1.50 £1.80
11 - GEAR BDE-1004525-14.A0 1004525-14 £14.57 £17.48
12 - CIRCLIP BDE-1004525-15.A7 1004525-15 £1.42 £1.70
13 - BEARING SINTER BDE-1004525-16.A1 1004525-16 £1.50 £1.80
14 - SIDE HANDLE BDE-1004525-17.A4 1004525-17 £4.69 £5.63
15 - SCREW BDE-1004525-18.A0 1004525-18 £1.50 £1.80
16 - GEARCASE BDE-1004525-19.A2 1004525-19 £19.40 £23.28
17 - CIRCLIP BDE-1004525-20.A0 1004525-20 £1.50 £1.80
18 - SPRING BDE-5140040-64.A4 5140040-64 £1.50 £1.80
19 - LOCK BUTTON BDE-1004525-21.A0 1004525-21 -
20 - GEARCASE SA BDE-1004525-22.A1 1004525-22 £18.91 £22.69
21 - SCREW BDE-1004525-23.A0 1004525-23 £1.50 £1.80
22 - NUT BDE-569175-00.A42 569175-00 £1.50 £1.80
23 - PINION GEAR BDE-1004525-24.A8 1004525-24 £7.01 £8.41
24 - BEARING BDE-1004525-25.A0 1004525-25 £4.69 £5.63
25 - COVERPLATE BDE-596407-00.A5 596407-00 £1.50 £1.80
26 - SCREW BDE-596408-00.A11 596408-00 £1.50 £1.80
27 - ARMATURE SA BDE-1004525-26.A5 1004525-26 £47.08 £56.49
28 - BEARING BDE-1004525-27.A4 1004525-27 £4.69 £5.63
29 - BEARING HOLDER BDE-1004525-28.A19 1004525-28 £1.50 £1.80
30 - BAFFLE FAN BDE-1004525-29.A4 1004525-29 £1.50 £1.80
31 - SPINDLE SA BDE-1004525-30.A1 1004525-30 £37.35 £44.82
32 - SCREW BDE-1004525-32.A1 1004525-32 £1.50 £1.80
33 - FIELD BDE-1004525-33.A8 1004525-33 £30.08 £36.10
34 - LEADWIRE BDE-1004525-34.A1 1004525-34 £1.50 £1.80
35 - LEADWIRE BDE-1004525-35.A9 1004525-35 £1.50 £1.80
36 - CHOKE BDE-1004525-36.A1 1004525-36 £5.88 £7.06
37 - HOUSING BDE-1004525-37.A0 1004525-37 £14.19 £17.03
38 - BRUSH PAIR BDE-1004525-38.A1 1004525-38 £7.18 £8.62
39 - SCREW BDE-1004525-39.A6 1004525-39 £1.50 £1.80
40 - BRUSH HOLDER BDE-1004525-40.A1 1004525-40 £2.78 £3.34
41 - BRUSH SPRING BDE-1004525-41.A6 1004525-41 £1.50 £1.80
42 - SWITCH BDE-1004525-42.A3 1004525-42 £10.85 £13.02
43 - CAPACITOR BDE-1004525-43.A3 1004525-43 £5.88 £7.06
44 - SCREW BDE-1004525-44.A3 1004525-44 £1.50 £1.80
45 - CORDCLAMP BDE-596432-00.A5 596432-00 £1.50 £1.80
46 - SPRING BDE-1004525-45.A11 1004525-45 £1.50 £1.80
47 - LINKAGE SA BDE-1004525-46.A9 1004525-46 £1.50 £1.80
48 - ACTUATOR BDE-1004525-47.A1 1004525-47 £1.42 £1.70
49 - CORD PROTECTOR BDE-1004525-48.A0 1004525-48 £1.50 £1.80
50 - COVER BDE-1004525-49.A8 1004525-49 £7.85 £9.42
51 - BRAND LABEL BDE-1004525-50.A0 1004525-50 £1.42 £1.70
54 - WRENCH PIN BDE-1004525-57.A3 1004525-57 £2.71 £3.25
