Fein MSf 666C-S (50/60Hz 230V) / 72206900220 Spare Parts

Fein MSf 666C-S ⡐/60Hz 230V) / 72206900220 Spare Parts
Home Details Reviews Delivery

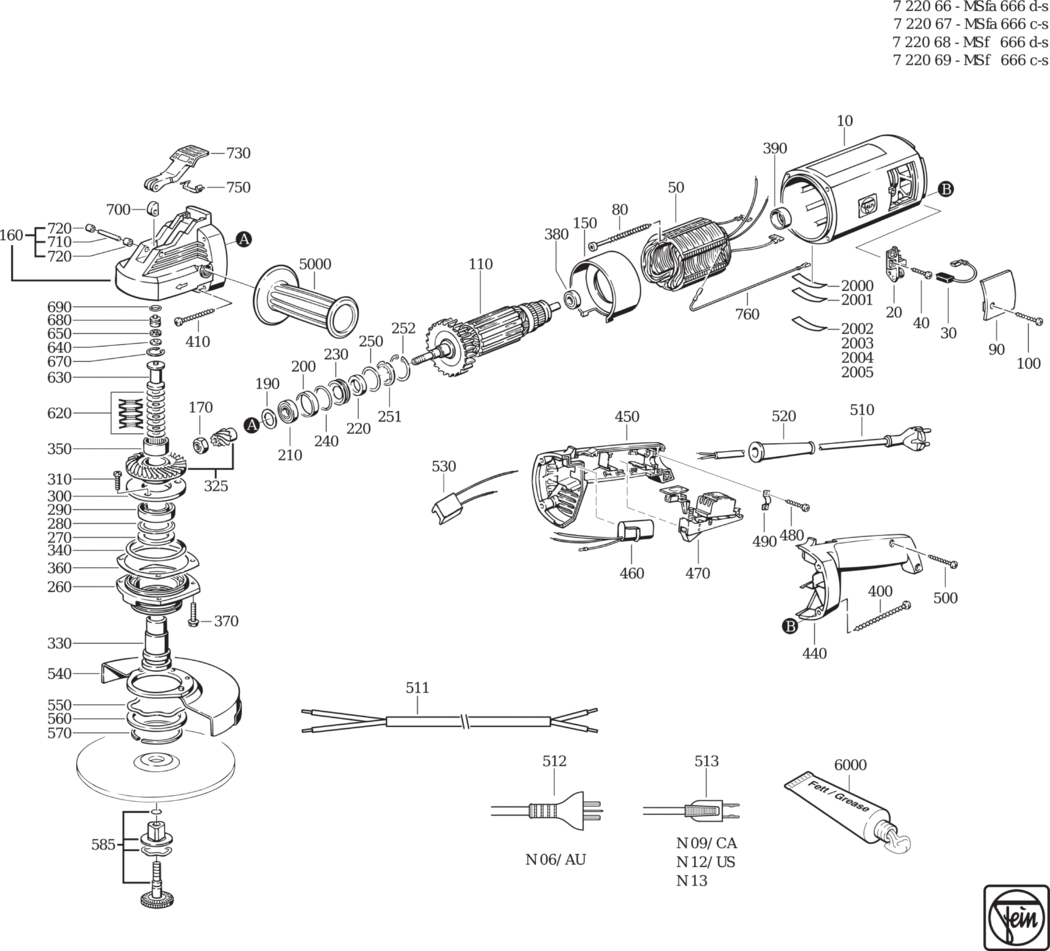

An exploded diagram and spare parts listing for the Fein MSf 666C-S (50/60Hz 230V) / 72206900220
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31903151010.A5 31903151010 -
20 - BRUSH HOLDER FEI-30712076012.A4 30712076012 -
30 - CARBON BRUSH (SOLD SINGLY) FEI-30711096007.A3 30711096007 £15.12 £18.14
40 - SHEET METAL SCREW FEI-43046001002.A6 43046001002 -
50 - STATOR FEI-51253001228.A2 51253001228 -
80 - SHEET METAL SCREW FEI-43046013008.A7 43046013008 -
90 - COVER FEI-32427066000.A21 32427066000 £5.27 £6.32
100 - SHEET METAL SCREW FEI-43046020001.A4 43046020001 -
110 - ARMATURE FEI-53253002223.A2 53253002223 -
150 - AIR GUIDE RING FEI-31428031002.A7 31428031002 £11.59 £13.91
160 - GEARBOX HOUSING FEI-31206097041.A1 31206097041 -
170 - HEX NUT FEI-42004039001.A15 42004039001 -
190 - DISC FEI-32408270008.A8 32408270008 -
200 - BUSH FEI-30507169007.A38 30507169007 £2.74 £3.29
210 - GROOVED BALL BEARING FEI-41701213096.A63 41701213096 £20.90 £25.08
220 - FELT RING FEI-30601099005.A7 30601099005 -
230 - RING FEI-32602077004.A1 32602077004 -
240 - SEALING RING FEI-40612060001.A14 40612060001 £2.60 £3.12
250 - DISC FEI-32624046028.A21 32624046028 £1.60 £1.92
250 - DISC FEI-32624046056.A7 32624046056 -
251 - DISC FEI-32411077001.A2 32411077001 -
252 - CIRCLIP FEI-42616018008.A11 42616018008 £1.60 £1.92
260 - BEARING PLATE FEI-32419104003.A6 32419104003 £41.72 £50.06
270 - FELT RING FEI-30601105004.A7 30601105004 £1.60 £1.92
280 - DISC FEI-32411080005.A20 32411080005 £1.60 £1.92
290 - GROOVED BALL BEARING FEI-41701025023.A2 41701025023 -
300 - PLATE FEI-32416092004.A6 32416092004 -
310 - FILLISTER HEAD SCREW FEI-43064002043.A27 43064002043 £1.60 £1.92
325 - BEVEL GEAR Z=16/61 FEI-33809195010.A6 33809195010 -
330 - SHAFT FEI-33406231009.A6 33406231009 -
340 - SEALING RING FEI-40612126005.A10 40612126005 -
350 - NEEDLE SLEEVE FEI-41705027008.A7 41705027008 -
360 - DISC FEI-32624100020.A6 32624100020 -
370 - HEXAGON SOCKET SCREW FEI-43064015054.A4 43064015054 £1.75 £2.10
380 - GROOVED BALL BEARING FEI-41701207033.A81 41701207033 £10.15 £12.18
390 - BUSH FEI-30507168003.A3 30507168003 £2.74 £3.29
400 - SHEET METAL SCREW FEI-43046017007.A12 43046017007 -
410 - SHEET METAL SCREW FEI-43046018005.A1 43046018005 -
440 - HANDLE HALF SHELL FEI-31204186000.A0 31204186000 -
450 - HANDLE HALF SHELL FEI-31204185000.A17 31204185000 -
460 - CAPACITOR FEI-30722134011.A21 30722134011 £16.88 £20.26
470 - SWITCH FEI-30701117009.A0 30701117009 £47.92 £57.50
480 - SHEET METAL SCREW FEI-43046016003.A0 43046016003 -
490 - CABLE CLAMPING PIECE FEI-32431021007.A230 32431021007 £1.60 £1.92
500 - SHEET METAL SCREW FEI-43046021000.A20 43046021000 -
510 - CABLE WITH PLUG FEI-30707200019.A19 30707200019 £19.62 £23.54
520 - CABLE GROMMET FEI-31413094007.A96 31413094007 £3.04 £3.65
540 - WHEEL GUARD FEI-31810216018.A3 31810216018 £54.54 £65.45
550 - DISC FEI-42446013008.A11 42446013008 £4.97 £5.96
560 - DISC FEI-32408336009.A12 32408336009 £6.96 £8.35
570 - CIRCLIP FEI-42615127003.A2 42615127003 -
585 - CLAMPING UNIT FEI-63802161020.A5 63802161020 -
620 - CUP SPRING FEI-30905058005.A7 30905058005 -
630 - PRESSURE PIECE FEI-30220043006.A6 30220043006 -
640 - DISC FEI-41719037000.A6 41719037000 -
650 - NEEDLE CAGE FEI-41715046001.A1 41715046001 -
670 - CIRCLIP FEI-42616066001.A20 42616066001 -
680 - BOLT FEI-30217285004.A7 30217285004 -
690 - SEALING RING FEI-40612125002.A13 40612125002 -
700 - ECCENTRIC RING FEI-32636036004.A40 32636036004 £4.08 £4.89
710 - BOLT FEI-30216138007.A17 30216138007 £1.60 £1.92
720 - BUSH FEI-30507193003.A8 30507193003 -
730 - LEVER FEI-32805125008.A3 32805125008 -
750 - LOCKING SPRING FEI-30907055006.A22 30907055006 £4.55 £5.46
760 - CONNECTING CABLE FEI-30719381013.A0 30719381013 £1.60 £1.92
2000 - INFORMATION SIGN FEI-32217393002.A11 32217393002 -
2001 - INFORMATION SIGN FEI-32217387002.A7 32217387002 -
5000 - SIDE HANDLE FEI-32119032002.A44 32119032002 £12.89 £15.47
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A73 32160003135 -
