Fein MSf 666C-S (50/60Hz 240V) / 72206900242 Spare Parts

Fein MSf 666C-S ⡐/60Hz 240V) / 72206900242 Spare Parts

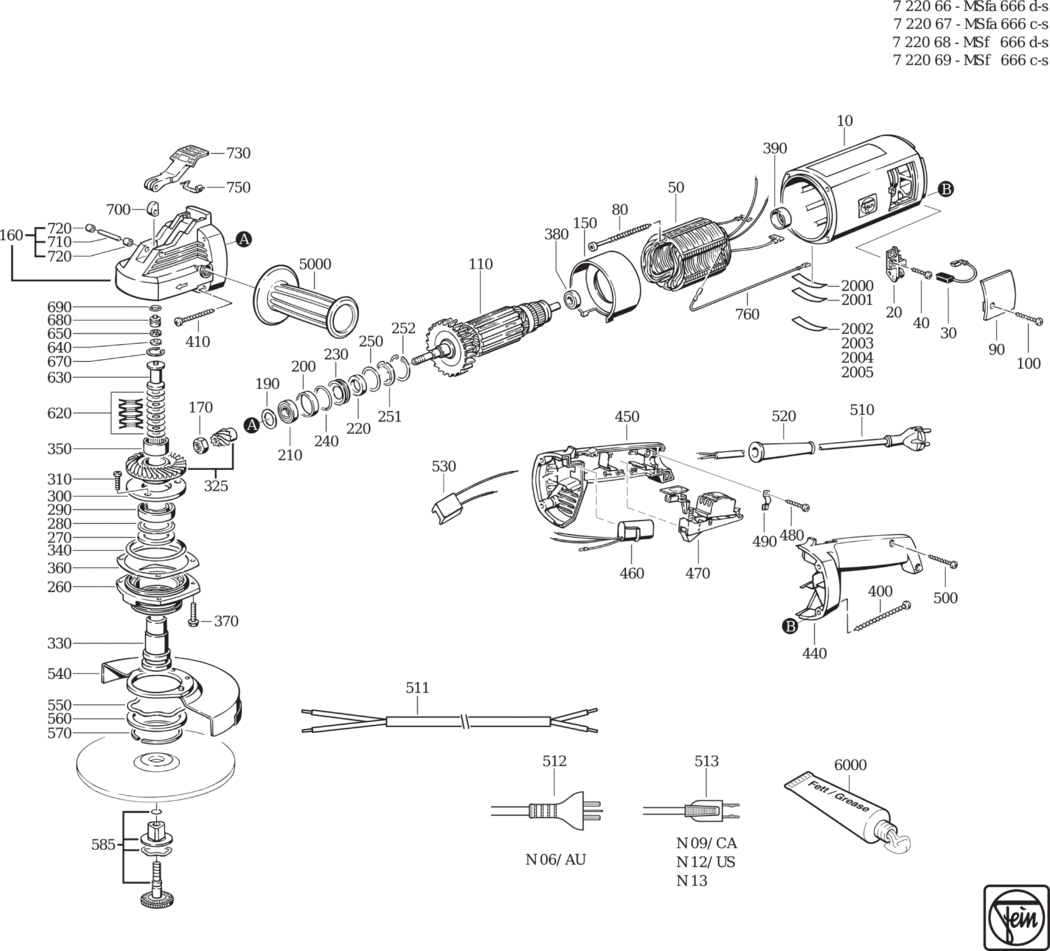

An exploded diagram and spare parts listing for the Fein MSf 666C-S (50/60Hz 240V) / 72206900242

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903151010.A7 31903151010	-
20 - BRUSH HOLDER FEI-30712076012.A6 30712076012	-
30 - CARBON BRUSH (SOLD SINGLY) FEI-30711096007.A4 30711096007	£15.12	£18.14
40 - SHEET METAL SCREW FEI-43046001002.A8 43046001002	-
50 - STATOR FEI-51253001240.A0 51253001240	-
80 - SHEET METAL SCREW FEI-43046013008.A5 43046013008	-
90 - COVER FEI-32427066000.A20 32427066000	£5.27	£6.32
100 - SHEET METAL SCREW FEI-43046020001.A2 43046020001	-
110 - ARMATURE FEI-53253002245.A0 53253002245	-
150 - AIR GUIDE RING FEI-31428031002.A9 31428031002	£11.59	£13.91
160 - GEARBOX HOUSING FEI-31206097041.A3 31206097041	-
170 - HEX NUT FEI-42004039001.A17 42004039001	-
190 - DISC FEI-32408270008.A7 32408270008	-
200 - BUSH FEI-30507169007.A36 30507169007	£2.74	£3.29
210 - GROOVED BALL BEARING FEI-41701213096.A47 41701213096	£20.90	£25.08
220 - FELT RING FEI-30601099005.A12 30601099005	-
230 - RING FEI-32602077004.A6 32602077004	-
240 - SEALING RING FEI-40612060001.A11 40612060001	£2.60	£3.12
250 - DISC FEI-32624046056.A12 32624046056	-
250 - DISC FEI-32624046028.A29 32624046028	£1.60	£1.92
251 - DISC FEI-32411077001.A8 32411077001	-
252 - CIRCLIP FEI-42616018008.A14 42616018008	£1.60	£1.92
260 - BEARING PLATE FEI-32419104003.A12 32419104003	£41.72	£50.06
270 - FELT RING FEI-30601105004.A1 30601105004	£1.60	£1.92
280 - DISC FEI-32411080005.A14 32411080005	£1.60	£1.92
290 - GROOVED BALL BEARING FEI-41701025023.A9 41701025023	-
300 - PLATE FEI-32416092004.A3 32416092004	-
310 - FILLISTER HEAD SCREW FEI-43064002043.A1 43064002043	£1.60	£1.92
325 - BEVEL GEAR Z=16/61 FEI-33809195010.A3 33809195010	-
330 - SHAFT FEI-33406231009.A3 33406231009	-
340 - SEALING RING FEI-40612126005.A8 40612126005	-
350 - NEEDLE SLEEVE FEI-41705027008.A13 41705027008	-
360 - DISC FEI-32624100020.A10 32624100020	-
370 - HEXAGON SOCKET SCREW FEI-43064015054.A8 43064015054	£1.75	£2.10
380 - GROOVED BALL BEARING FEI-41701207033.A49 41701207033	£10.15	£12.18
390 - BUSH FEI-30507168003.A16 30507168003	£2.74	£3.29
400 - SHEET METAL SCREW FEI-43046017007.A5 43046017007	-
410 - SHEET METAL SCREW FEI-43046018005.A8 43046018005	-
440 - HANDLE HALF SHELL FEI-31204186000.A2 31204186000	-
450 - HANDLE HALF SHELL FEI-31204185000.A15 31204185000	-
460 - CAPACITOR FEI-30722134011.A11 30722134011	£16.88	£20.26
470 - SWITCH FEI-30701117009.A2 30701117009	£47.92	£57.50
480 - SHEET METAL SCREW FEI-43046016003.A12 43046016003	-
490 - CABLE CLAMPING PIECE FEI-32431021007.A150 32431021007	£1.60	£1.92
500 - SHEET METAL SCREW FEI-43046021000.A11 43046021000	-
510 - CABLE WITH PLUG FEI-30707200019.A21 30707200019	£19.62	£23.54
520 - CABLE GROMMET FEI-31413094007.A126 31413094007	£3.04	£3.65
540 - WHEEL GUARD FEI-31810216018.A1 31810216018	£54.54	£65.45
550 - DISC FEI-42446013008.A9 42446013008	£4.97	£5.96
560 - DISC FEI-32408336009.A9 32408336009	£6.96	£8.35
570 - CIRCLIP FEI-42615127003.A4 42615127003	-
585 - CLAMPING UNIT FEI-63802161020.A4 63802161020	-
620 - CUP SPRING FEI-30905058005.A9 30905058005	-
630 - PRESSURE PIECE FEI-30220043006.A0 30220043006	-
640 - DISC FEI-41719037000.A0 41719037000	-
650 - NEEDLE CAGE FEI-41715046001.A8 41715046001	-
670 - CIRCLIP FEI-42616066001.A14 42616066001	-
680 - BOLT FEI-30217285004.A0 30217285004	-
690 - SEALING RING FEI-40612125002.A20 40612125002	-
700 - ECCENTRIC RING FEI-32636036004.A31 32636036004	£4.08	£4.89
710 - BOLT FEI-30216138007.A19 30216138007	£1.60	£1.92
720 - BUSH FEI-30507193003.A4 30507193003	-
730 - LEVER FEI-32805125008.A4 32805125008	-
750 - LOCKING SPRING FEI-30907055006.A14 30907055006	£4.55	£5.46
760 - CONNECTING CABLE FEI-30719381013.A4 30719381013	£1.60	£1.92
2000 - INFORMATION SIGN FEI-32217393002.A9 32217393002	-
2001 - INFORMATION SIGN FEI-32217387002.A9 32217387002	-
5000 - SIDE HANDLE FEI-32119032002.A57 32119032002	£12.89	£15.47
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A90 32160003135	-
