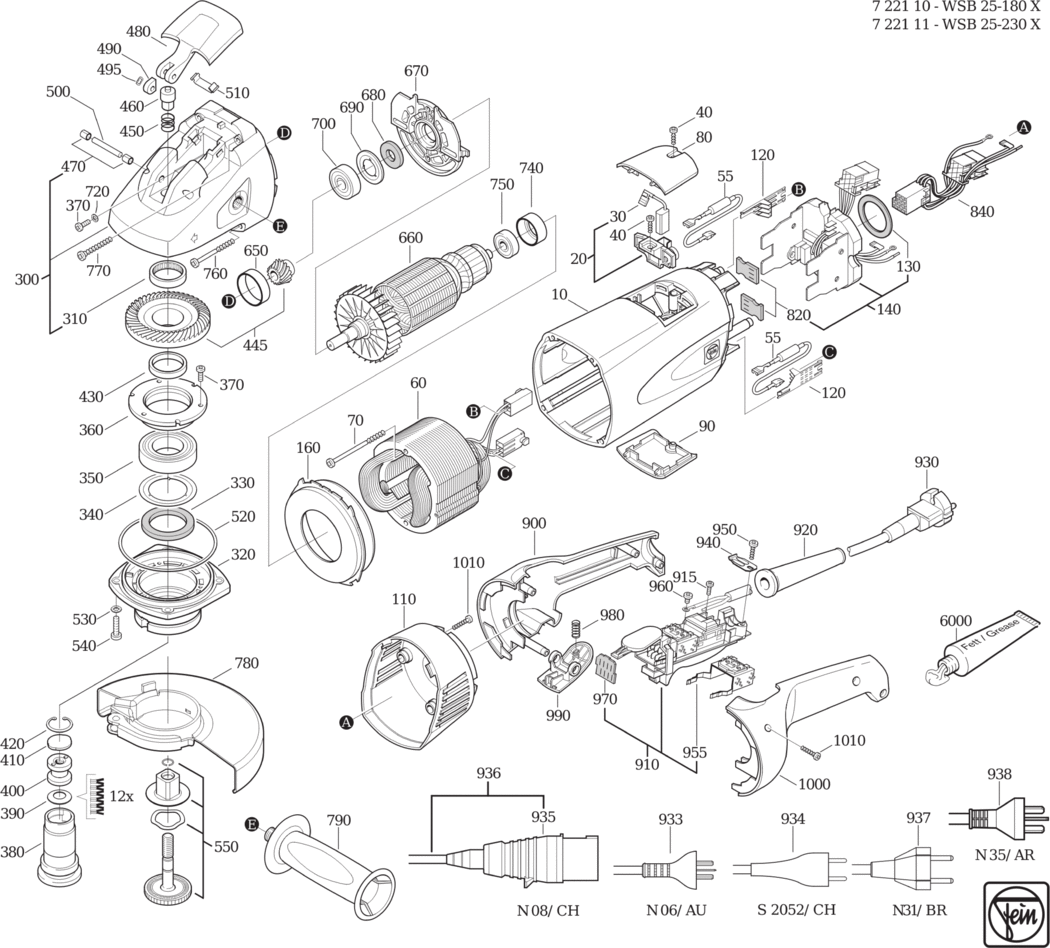

An exploded diagram and spare parts listing for the Fein WSB 25-180 X (50Hz 230V) / 72211029238
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31903210002.A10 31903210002 £46.45 £55.74
20 - BRUSH HOLDER 220-230V 50/60HZ FEI-30712090019.A20 30712090019 £23.51 £28.21
30 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711137006.A5 30711137006 £14.48 £17.37
40 - SCREW FEI-43070027000.A30 43070027000 -
55 - CHOKE FEI-30764128009.A4 30764128009 -
60 - STATOR FEI-51275004234.A2 51275004234 -
70 - SCREW FEI-43072001009.A6 43072001009 -
80 - COVER FEI-32427113009.A3 32427113009 £6.24 £7.49
90 - COVER FEI-32427115001.A8 32427115001 £7.15 £8.58
110 - HOUSING FEI-31207242002.A4 31207242002 £18.58 £22.29
120 - BASE PLATE FEI-31428132004.A7 31428132004 £1.60 £1.92
140 - ELECTRONICS FEI-30762610990.A2 30762610990 -
160 - AIR GUIDE RING FEI-31428133008.A3 31428133008 £6.37 £7.64
300 - GEARBOX HOUSING FEI-31206115035.A1 31206115035 £108.97 £130.76
310 - NEEDLE SLEEVE FEI-41705036003.A8 41705036003 £9.94 £11.93
320 - BEARING PLATE FEI-32419135000.A1 32419135000 -
330 - FELT RING FEI-30601105004.A22 30601105004 £1.60 £1.92
340 - DISC FEI-32411080005.A7 32411080005 £1.60 £1.92
350 - GROOVED BALL BEARING FEI-41701025023.A18 41701025023 -
360 - PLATE FEI-32416102002.A7 32416102002 £9.73 £11.68
370 - FILLISTER HEAD SCREW FEI-43064002043.A81 43064002043 £1.60 £1.92
380 - SHAFT FEI-33406286006.A7 33406286006 £37.98 £45.58
390 - CUP SPRING PACKAGE FEI-30905073015.A8 30905073015 £15.72 £18.87
400 - PRESSURE PIECE FEI-30220059006.A7 30220059006 £11.40 £13.68
410 - DISC FEI-32414112005.A3 32414112005 £1.60 £1.92
420 - CIRCLIP FEI-42616066001.A6 42616066001 -
430 - RING FEI-32601270000.A1 32601270000 £4.62 £5.54
445 - BEVEL GEAR Z=15/52 FEI-33809231013.A0 33809231013 -
450 - SPIRAL SPRING FEI-30901342003.A7 30901342003 £1.60 £1.92
460 - BOLT FEI-30217336008.A3 30217336008 £8.93 £10.72
470 - BUSH FEI-30507200002.A3 30507200002 £2.55 £3.06
480 - LEVER FEI-32805172007.A3 32805172007 £27.68 £33.21
490 - ECCENTRIC RING FEI-32636040002.A2 32636040002 £4.76 £5.71
495 - DISC FEI-42446021000.A9 42446021000 £1.60 £1.92
500 - BOLT FEI-30216138007.A6 30216138007 £1.60 £1.92
510 - LOCKING SPRING FEI-30907055006.A6 30907055006 £4.55 £5.46
520 - DISC FEI-32624118022.A26 32624118022 £2.66 £3.19
530 - CIRCLIP M5 FEI-42443004057.A88 42443004057 £1.60 £1.92
540 - FILLISTER HEAD SCREW FEI-43064009054.A15 43064009054 -
550 - CLAMPING UNIT FEI-63802183025.A9 63802183025 £60.72 £72.86
650 - BUSH FEI-30507169007.A21 30507169007 £2.74 £3.29
660 - ARMATURE FEI-53275001231.A7 53275001231 £198.92 £238.71
670 - PLATE FEI-32416103006.A2 32416103006 £9.82 £11.78
680 - FELT RING FEI-30601050002.A9 30601050002 £1.60 £1.92
690 - DISC FEI-32411083001.A20 32411083001 £1.60 £1.92
700 - GROOVED BALL BEARING FEI-41701213096.A14 41701213096 £20.90 £25.08
720 - CIRCLIP M4 FEI-42443003043.A261 42443003043 £1.60 £1.92
740 - BUSH FEI-30507168003.A19 30507168003 £2.74 £3.29
750 - GROOVED BALL BEARING FEI-41701207033.A7 41701207033 £10.15 £12.18
760 - SCREW FEI-43070029002.A5 43070029002 -
770 - SCREW FEI-43070030004.A15 43070030004 -
780 - SAFETY HOOD FEI-31810245020.A1 31810245020 £48.24 £57.89
790 - SIDE HANDLE FEI-32119032002.A18 32119032002 £12.89 £15.47
840 - CONNECTING CABLE FEI-30719594019.A8 30719594019 £22.88 £27.45
900 - HANDLE HALF SHELL FEI-31204167000.A21 31204167000 £13.42 £16.11
910 - SWITCH FEI-30701232025.A0 30701232025 £83.68 £100.42
915 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A94 43041001994 £1.60 £1.92
920 - CABLE GROMMET FEI-31413094007.A13 31413094007 £3.04 £3.65
930 - CABLE WITH PLUG FEI-30707387012.A4 30707387012 £18.18 £21.81
940 - CABLE CLAMPING PIECE FEI-32431042008.A92 32431042008 £1.60 £1.92
950 - SCREW FEI-43070035002.A126 43070035002 £1.60 £1.92
955 - CONNECTING PIECE FEI-30717203014.A26 30717203014 £22.25 £26.70
960 - FILLISTER HEAD SCREW FEI-43041016042.A43 43041016042 -
970 - SEAL FEI-31415090001.A2 31415090001 £1.60 £1.92
980 - SPIRAL SPRING FEI-30901343007.A2 30901343007 -
990 - SWITCH PUSHBUTTON FEI-32816057007.A17 32816057007 £3.17 £3.80
1000 - HANDLE HALF SHELL FEI-31204168008.A4 31204168008 £13.42 £16.11
1010 - SCREW FEI-43070031003.A5 43070031003 £1.60 £1.92
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A384 32160003014 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A138 34130054061 -
