Fein WSG 20-180 (50Hz 230V) / 72210700236 Spare Parts

Fein WSG 20-180 ⡐Hz 230V) / 72210700236 Spare Parts

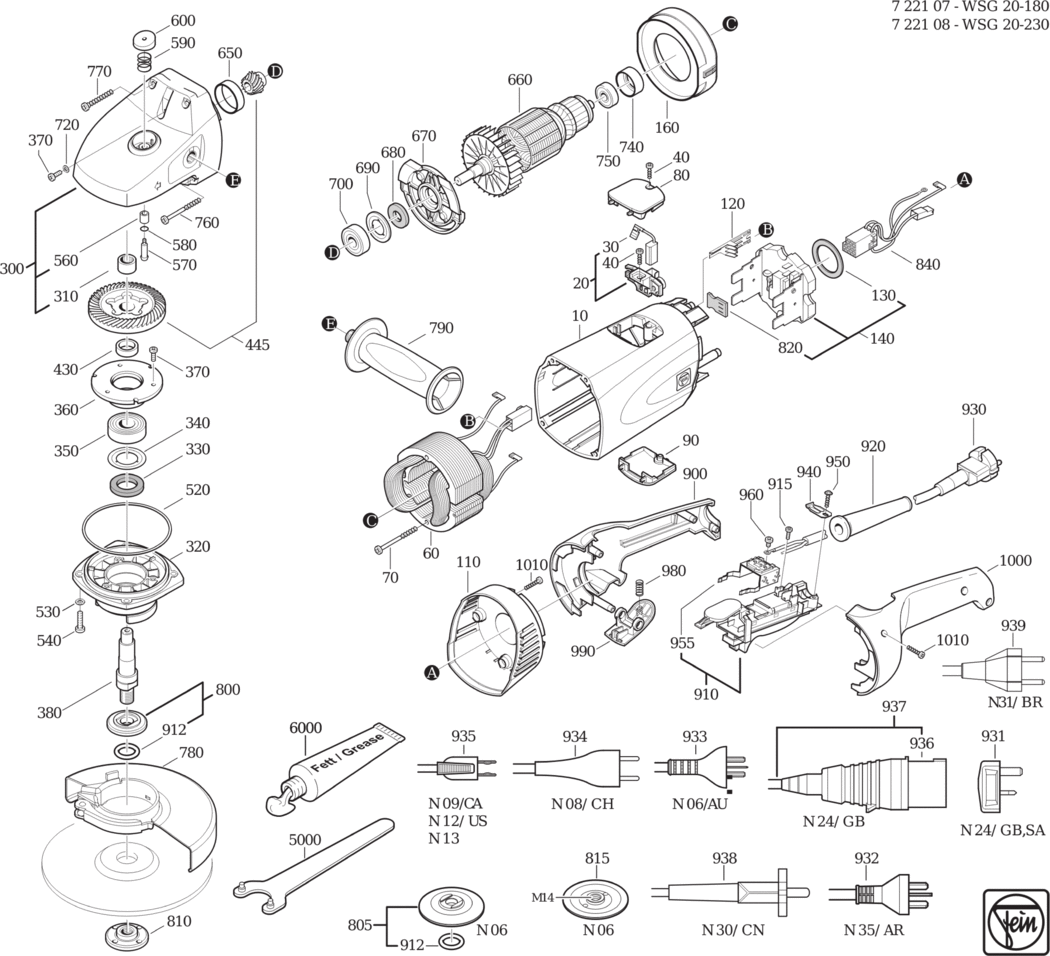

An exploded diagram and spare parts listing for the Fein WSG 20-180 (50Hz 230V) / 72210700236

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903214006.A14 31903214006	£37.81	£45.37
20 - BRUSH HOLDER 220-230V 50/60HZ FEI-30712090019.A23 30712090019	£23.51	£28.21
30 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711137006.A22 30711137006	£14.48	£17.37
40 - SCREW FEI-43070027000.A4 43070027000	-
60 - STATOR FEI-51275003236.A4 51275003236	£130.20	£156.24
70 - SCREW FEI-43072011008.A3 43072011008	-
80 - COVER FEI-32427117008.A18 32427117008	£4.37	£5.24
90 - COVER FEI-32427118006.A4 32427118006	£4.37	£5.24
110 - HOUSING FEI-31207251008.A4 31207251008	£16.16	£19.39
120 - BASE PLATE FEI-31428144005.A18 31428144005	£1.60	£1.92
140 - ELECTRONICS FEI-30762613990.A4 30762613990	£97.38	£116.85
160 - AIR GUIDE RING FEI-31428141000.A4 31428141000	£5.95	£7.14
300 - GEARBOX HOUSING FEI-31206114031.A1 31206114031	£103.46	£124.15
310 - NEEDLE BEARING FEI-41706030007.A25 41706030007	£29.44	£35.33
320 - BEARING PLATE FEI-32419137000.A8 32419137000	-
330 - FELT RING FEI-30601110005.A3 30601110005	£1.60	£1.92
340 - DISC FEI-32411084009.A13 32411084009	£1.60	£1.92
350 - GROOVED BALL BEARING FEI-41701224024.A49 41701224024	£12.19	£14.63
360 - PLATE FEI-32416105008.A16 32416105008	£7.32	£8.79
370 - FILLISTER HEAD SCREW FEI-43064002043.A6 43064002043	£1.60	£1.92
380 - SHAFT FEI-33406289002.A3 33406289002	£41.29	£49.55
430 - RING FEI-32601273006.A3 32601273006	£4.18	£5.01
445 - BEVEL GEAR Z=15/52 FEI-33809232016.A2 33809232016	£73.87	£88.64
520 - DISC FEI-32624118022.A4 32624118022	£2.66	£3.19
530 - CIRCLIP M5 FEI-42443004057.A419 42443004057	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064009054.A25 43064009054	-
560 - BUSH FEI-30507230009.A3 30507230009	£4.05	£4.86
570 - BOLT FEI-30217335005.A195 30217335005	£7.39	£8.87
580 - SEALING RING FEI-40612137008.A159 40612137008	£1.60	£1.92
590 - SPIRAL SPRING FEI-30901354004.A14 30901354004	£2.38	£2.86
600 - PUSHBUTTON FEI-32805180004.A4 32805180004	£2.78	£3.34
650 - BUSH FEI-30507169007.A28 30507169007	£2.74	£3.29
660 - ARMATURE 50/60H220/230V FEI-53275002234.A1 53275002234	£162.14	£194.57
670 - PLATE FEI-32416106001.A1 32416106001	£9.82	£11.78
680 - FELT RING FEI-30601050002.A36 30601050002	£1.60	£1.92
690 - DISC FEI-32411083001.A5 32411083001	£1.60	£1.92
700 - GROOVED BALL BEARING FEI-41701213096.A38 41701213096	£20.90	£25.08
720 - CIRCLIP M4 FEI-42443003043.A15 42443003043	£1.60	£1.92
740 - BUSH FEI-30507168003.A14 30507168003	£2.74	£3.29
750 - GROOVED BALL BEARING FEI-41701207033.A62 41701207033	£10.15	£12.18
760 - SCREW FEI-43070029002.A22 43070029002	-
770 - SCREW FEI-43070030004.A4 43070030004	-
780 - SAFETY HOOD FEI-31810245020.A13 31810245020	£48.24	£57.89
790 - SIDE HANDLE FEI-32119032002.A68 32119032002	£12.89	£15.47
800 - INNER FLANGE FEI-63801182010.A74 63801182010	£14.88	£17.86
810 - THREADED FLANGE FEI-63802052000.A72 63802052000	£14.88	£17.86
840 - CONNECTING CABLE FEI-30719613012.A3 30719613012	£14.33	£17.20
900 - HANDLE HALF SHELL FEI-31204167000.A5 31204167000	£13.42	£16.11
910 - SWITCH FEI-30701278010.A2 30701278010	£72.98	£87.57
912 - SEALING RING FEI-40612000007.A171 40612000007	£1.60	£1.92
915 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A60 43041001994	£1.60	£1.92
920 - CABLE GROMMET FEI-31413094007.A139 31413094007	£3.04	£3.65
930 - CABLE WITH PLUG FEI-30707387012.A16 30707387012	£18.18	£21.81
940 - CABLE CLAMPING PIECE FEI-32431042008.A8 32431042008	£1.60	£1.92
950 - SCREW FEI-43070035002.A53 43070035002	£1.60	£1.92
955 - CONNECTING PIECE FEI-30717203014.A3 30717203014	£22.25	£26.70
960 - FILLISTER HEAD SCREW FEI-43041016042.A74 43041016042	-
980 - SPIRAL SPRING FEI-30901343007.A25 30901343007	-
990 - SWITCH PUSHBUTTON FEI-32816057007.A3 32816057007	£3.17	£3.80
1000 - HANDLE HALF SHELL FEI-31204168008.A22 31204168008	£13.42	£16.11
1010 - SCREW FEI-43070031003.A94 43070031003	£1.60	£1.92
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A197 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A91 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A501 34130054061	-
