Fein WSB 14-125 T (50/60Hz 220/230V) / 72214700230 Spare Parts

Fein WSB 14-125 T ⡐/60Hz 220/230V) / 72214700230 Spare Parts

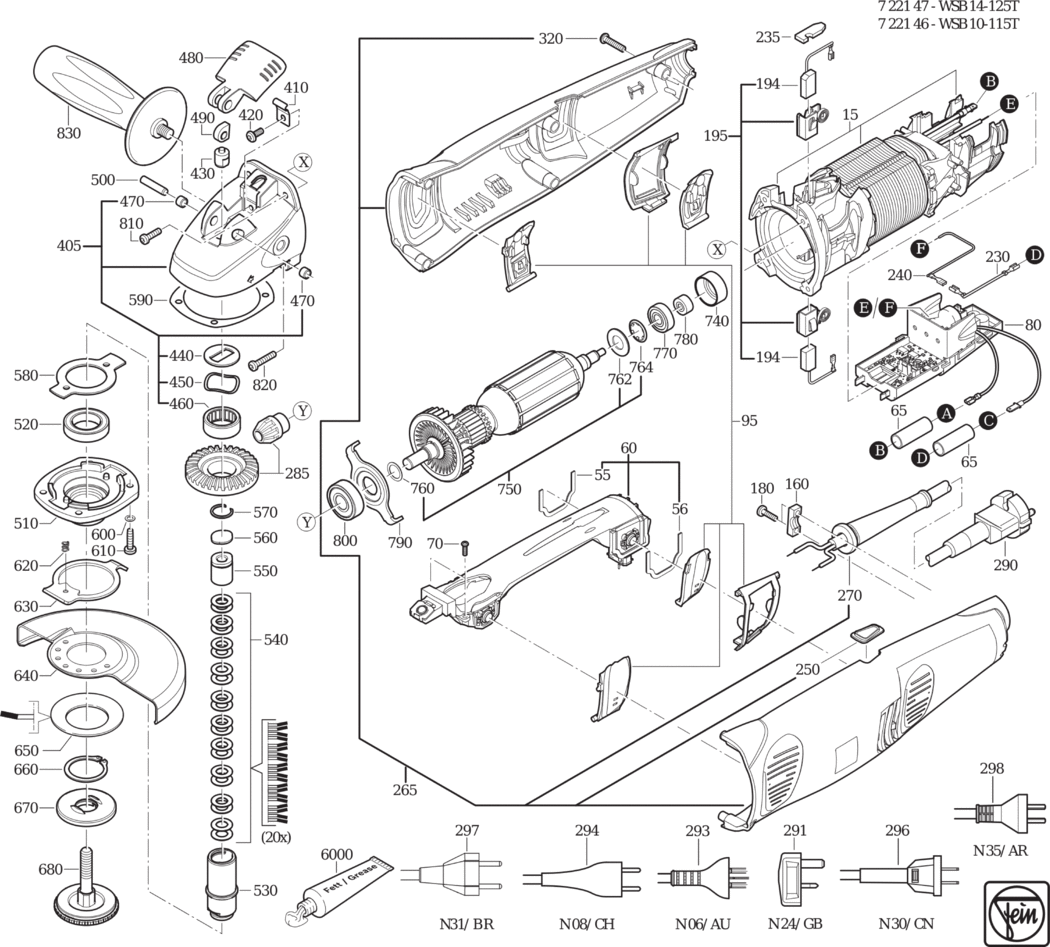

An exploded diagram and spare parts listing for the Fein WSB 14-125 T (50/60Hz 220/230V) / 72214700230

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52276022230.A1 52276022230	-
55 - SEAL FEI-31415096000.A34 31415096000	£1.60	£1.92
56 - SEAL FEI-31415097000.A4 31415097000	£1.60	£1.92
60 - SWITCH MODULE LS5 FEI-30701256990.A2 30701256990	£110.79	£132.95
65 - INSULATING HOSE FEI-31413234000.A7 31413234000	£4.05	£4.86
70 - SCREW FEI-43070044007.A20 43070044007	£1.60	£1.92
80 - ELECTRONICS 220-230V 50/60HZ FEI-30762427990.A1 30762427990	£137.43	£164.92
95 - SWITCH PUSHBUTTON SET FEI-32816061020.A19 32816061020	£10.64	£12.77
160 - CABLE CLAMPING PIECE FEI-32431026009.A115 32431026009	£1.60	£1.92
180 - SCREW FEI-43070006008.A138 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A31 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A22 30712093110	£30.80	£36.96
230 - CONNECTING CABLE FEI-30719698010.A0 30719698010	£7.59	£9.11
235 - COVER FEI-31420125000.A3 31420125000	£1.60	£1.92
240 - CONNECTING CABLE FEI-30719697010.A1 30719697010	£8.20	£9.84
250 - COVER FEI-32427128000.A7 32427128000	£1.60	£1.92
265 - MOTOR HOUSING FEI-31912065030.A4 31912065030	£52.49	£62.99
270 - CABLE GROMMET FEI-31413282000.A96 31413282000	£2.55	£3.06
285 - BEVEL GEAR Z=11/41 FEI-33809227010.A12 33809227010	£39.72	£47.66
290 - CABLE WITH PLUG FEI-30707544010.A5 30707544010	-
320 - SCREW FEI-43074008000.A128 43074008000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206130030.A3 31206130030	£94.98	£113.97
410 - LOCKING SPRING FEI-30907066008.A5 30907066008	£1.60	£1.92
420 - FILLISTER HEAD SCREW FEI-43064023045.A17 43064023045	£1.60	£1.92
430 - BOLT FEI-30217344000.A4 30217344000	£6.28	£7.53
440 - DISC FEI-32414114007.A6 32414114007	£1.60	£1.92
450 - SPRING WASHER FEI-42446022003.A0 42446022003	£1.60	£1.92
460 - NEEDLE SLEEVE FEI-41705032004.A5 41705032004	£8.75	£10.50
470 - BUSH FEI-30507220000.A57 30507220000	£2.60	£3.12
480 - LEVER FEI-32805199000.A3 32805199000	£22.79	£27.35
490 - ECCENTRIC RING FEI-32636036004.A13 32636036004	£4.08	£4.89
500 - BOLT FEI-30216144007.A24 30216144007	£1.60	£1.92
510 - BEARING PLATE FEI-32419126008.A11 32419126008	£34.57	£41.48
520 - GROOVED BALL BEARING FEI-41701108222.A29 41701108222	£19.74	£23.69
530 - SHAFT FEI-33406298007.A5 33406298007	£33.23	£39.88
540 - CUP SPRING PACKAGE FEI-30905067021.A4 30905067021	£10.36	£12.43
550 - PRESSURE PIECE FEI-30220061007.A0 30220061007	£9.25	£11.10
560 - DISC FEI-32414113009.A9 32414113009	£2.60	£3.12
570 - CIRCLIP FEI-42615148009.A8 42615148009	£1.60	£1.92
580 - PLATE FEI-32416109007.A6 32416109007	£2.34	£2.81
590 - DISC FEI-32624120028.A23 32624120028	-
600 - CIRCLIP M4 FEI-42443003043.A291 42443003043	£1.60	£1.92
610 - FILLISTER HEAD SCREW FEI-43064024043.A172 43064024043	-
620 - SPIRAL SPRING FEI-30901340001.A12 30901340001	£1.60	£1.92
630 - LEVER FEI-32805231000.A7 32805231000	£4.45	£5.34
640 - SAFETY HOOD FEI-31810257000.A1 31810257000	£21.07	£25.28
650 - CUP SPRING FEI-30905070000.A28 30905070000	£1.60	£1.92
660 - CIRCLIP FEI-42616073005.A8 42616073005	£1.60	£1.92
670 - FLANGE FEI-63801176011.A11 63801176011	£13.88	£16.65
680 - CLAMPING UNIT FEI-63802178023.A9 63802178023	£49.09	£58.91
740 - BEARING BUSH FEI-30507236000.A45 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53276003230.A10 53276003230	£110.32	£132.38
760 - CIRCLIP FEI-42615081002.A104 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A35 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A53 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A201 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A34 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A41 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A91 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A2 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A5 43074009000	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A10 32119124010	£17.68	£21.22
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A289 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A69 34130054061	-
