Fein WSG 11-125 (50Hz 110V) / 72217724110 Spare Parts

Fein WSG 11-125 ⡐Hz 110V) / 72217724110 Spare Parts

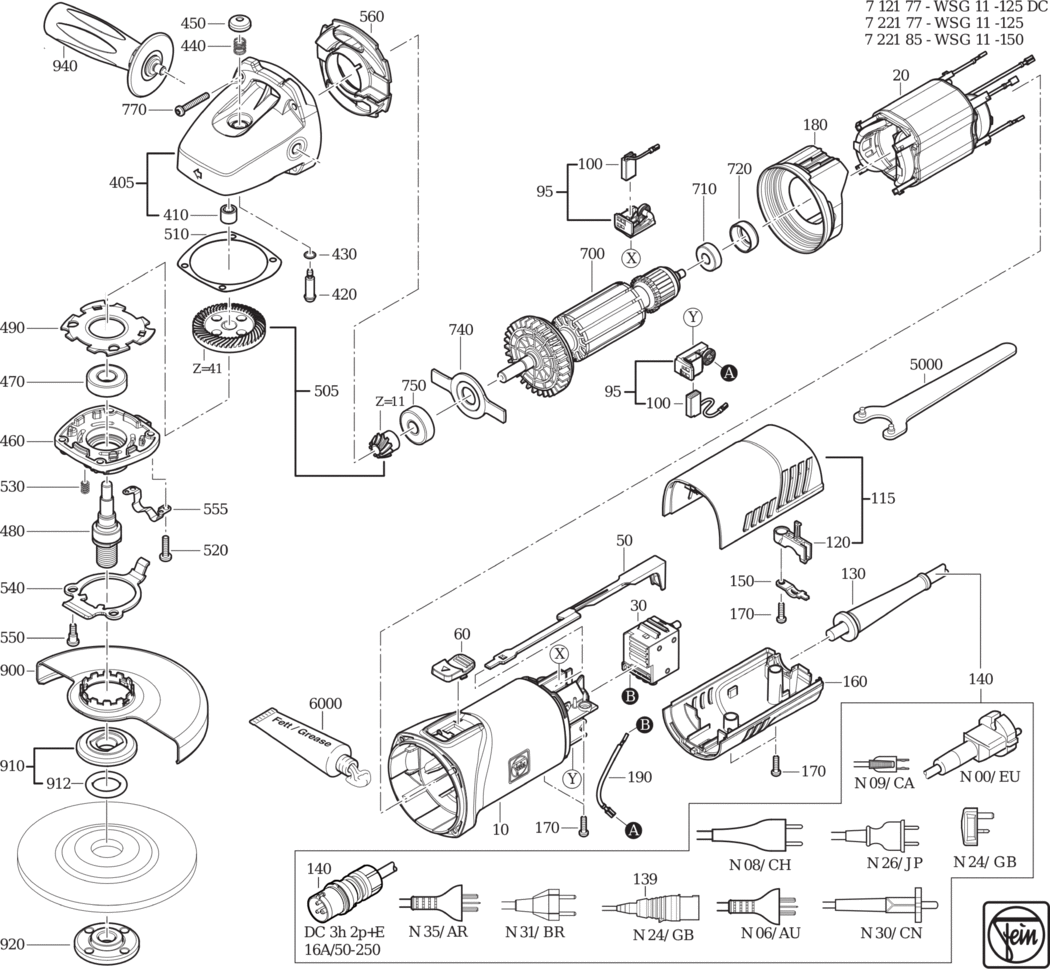

An exploded diagram and spare parts listing for the Fein WSG 11-125 (50Hz 110V) / 72217724110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901175000.A58 31901175000	£36.82	£44.19
20 - STATOR 50HZ110V FEI-51279005110.A5 51279005110	£53.18	£63.81
30 - SWITCH FEI-30701300000.A5 30701300000	£19.80	£23.76
50 - CONTROL ROD FEI-32816080000.A36 32816080000	£2.55	£3.06
60 - SLIDE SWITCH FEI-32805306000.A78 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 100-120V 50/60HZ FEI-30712096040.A18 30712096040	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 110-120V 50/60HZ FEI-30711160000.A38 30711160000	£8.15	£9.78
115 - COVER OT FEI-32427154010.A22 32427154010	£15.42	£18.51
120 - CABLE CLAMPING PIECE FEI-32431047000.A34 32431047000	-
130 - PROTECTIVE HOSE FEI-31413237000.A46 31413237000	£2.74	£3.29
139 - PLUG CEE 16A/110V FEI-30728288004.A41 30728288004	£14.25	£17.10
140 - CABLE WITH PLUG FEI-30707546010.A15 30707546010	-
150 - CABLE CLAMPING PIECE FEI-32431043002.A121 32431043002	£1.60	£1.92
160 - COVER UT FEI-32427152000.A28 32427152000	£6.62	£7.95
170 - SCREW FEI-43072000000.A6 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A101 31428179000	£7.46	£8.95
190 - CHOKE FEI-30764169000.A12 30764169000	£7.06	£8.47
405 - GEARBOX HOUSING FEI-31206146030.A22 31206146030	-
410 - NEEDLE SLEEVE FEI-41705006006.A4 41705006006	£7.31	£8.77
420 - BOLT FEI-30217335005.A8 30217335005	£7.39	£8.87
430 - SEALING RING FEI-40612137008.A78 40612137008	£1.60	£1.92
440 - SPIRAL SPRING FEI-30901357005.A106 30901357005	£2.38	£2.86
450 - PUSHBUTTON FEI-32805200008.A84 32805200008	£2.58	£3.09
460 - BEARING PLATE FEI-32419151000.A13 32419151000	£28.48	£34.17
470 - GROOVED BALL BEARING FEI-41701010054.A202 41701010054	£8.25	£9.90
480 - SHAFT FEI-33406299001.A5 33406299001	£26.04	£31.25
490 - PLATE FEI-32416115000.A56 32416115000	-
505 - BEVEL GEAR Z=11/41 FEI-33809238020.A49 33809238020	£40.91	£49.09
510 - WASHER 0.1 FEI-32624122020.A76 32624122020	£1.60	£1.92
520 - FILLISTER HEAD SCREW FEI-43064024043.A114 43064024043	-
530 - SPIRAL SPRING FEI-30901340001.A35 30901340001	£1.60	£1.92
540 - LEVER FEI-32805312000.A16 32805312000	£4.78	£5.73
550 - SCREW FEI-33024073000.A0 33024073000	-
555 - CLAMP FEI-30907074000.A33 30907074000	£2.34	£2.81
560 - AIR GUIDE RING FEI-31428180000.A40 31428180000	£4.28	£5.14
700 - ARMATURE 50HZ110V FEI-53279002110.A1 53279002110	£84.55	£101.46
710 - GROOVED BALL BEARING FEI-41701001260.A73 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A73 30507236000	£3.19	£3.83
740 - PLATE FEI-32416117000.A125 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A175 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A58 43074012000	£1.60	£1.92
900 - SAFETY HOOD Ã˜125 FEI-31810288010.A15 31810288010	£20.80	£24.96
910 - INNER FLANGE FEI-63801182010.A154 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A149 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A148 63802052000	£14.88	£17.86
940 - HANDLE FEI-32119107016.A65 32119107016	£10.15	£12.18
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A99 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A465 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A230 34130054061	-
