Fein WSG 12-70 E (50Hz 110V) / 72209024117 Spare Parts

Fein WSG 12-70 E ⡐Hz 110V) / 72209024117 Spare Parts

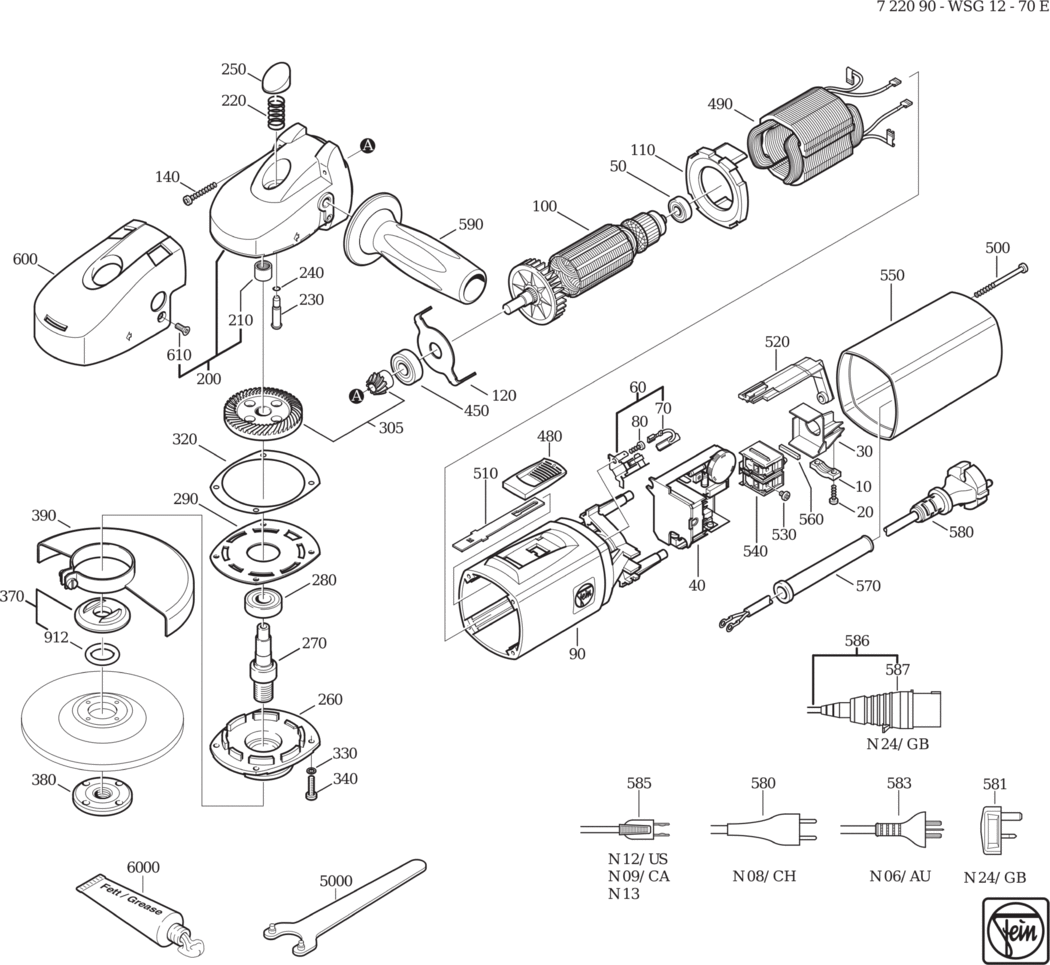

An exploded diagram and spare parts listing for the Fein WSG 12-70 E (50Hz 110V) / 72209024117

	Ex VAT	Inc VAT
10 - CABLE CLAMPING PIECE FEI-32431021007.A217 32431021007	£1.60	£1.92
20 - SCREW FEI-43070001006.A33 43070001006	£1.60	£1.92
30 - CABLE CLAMPING PIECE FEI-32431040006.A9 32431040006	£2.78	£3.33
40 - SPEED SETTING SWITCH FEI-30762215993.A2 30762215993	-
50 - GROOVED BALL BEARING FEI-41701001172.A173 41701001172	£9.63	£11.56
60 - BRUSH HOLDER FEI-30712088029.A3 30712088029	£17.88	£21.45
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711136002.A8 30711136002	£13.10	£15.72
80 - SCREW FEI-43070018009.A108 43070018009	£1.60	£1.92
90 - MOTOR HOUSING FEI-31901114014.A16 31901114014	£46.03	£55.24
100 - ARMATURE FEI-53273001117.A5 53273001117	-
110 - AIR GUIDE RING FEI-31428118007.A58 31428118007	£3.52	£4.22
120 - PLATE FEI-32416098005.A30 32416098005	£1.60	£1.92
140 - SCREW FEI-43070007002.A120 43070007002	£1.60	£1.92
200 - GEARBOX HOUSING FEI-31206110015.A1 31206110015	£78.98	£94.78
210 - NEEDLE SLEEVE FEI-41705019001.A128 41705019001	£9.49	£11.39
220 - SPIRAL SPRING FEI-30901032003.A23 30901032003	£3.23	£3.88
230 - BOLT FEI-30217327003.A3 30217327003	£17.44	£20.93
240 - SEALING RING FEI-40612137008.A239 40612137008	£1.60	£1.92
250 - PUSHBUTTON FEI-32805185002.A0 32805185002	£2.69	£3.23
260 - BEARING PLATE FEI-32419115006.A8 32419115006	£44.60	£53.52
270 - SHAFT FEI-33406284009.A61 33406284009	£33.58	£40.29
280 - GROOVED BALL BEARING FEI-41701010054.A105 41701010054	£8.25	£9.90
290 - PLATE FEI-32416101009.A10 32416101009	£3.11	£3.73
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A59 33809229012	£57.88	£69.46
320 - DISC FEI-32624117009.A54 32624117009	£1.60	£1.92
330 - CIRCLIP M4 FEI-42443003043.A112 42443003043	£1.60	£1.92
340 - FILLISTER HEAD SCREW FEI-43041023046.A5 43041023046	£1.60	£1.92
370 - INNER FLANGE FEI-63801182010.A48 63801182010	£14.88	£17.86
380 - THREADED FLANGE FEI-63802052000.A48 63802052000	£14.88	£17.86
390 - SAFETY HOOD FEI-31810258010.A7 31810258010	£33.45	£40.14
450 - GROOVED BALL BEARING FEI-41701007266.A149 41701007266	£10.67	£12.80
480 - SLIDE SWITCH FEI-32805156008.A42 32805156008	£2.76	£3.31
490 - STATOR FEI-51273001115.A5 51273001115	£109.11	£130.93
500 - SCREW FEI-43070017001.A10 43070017001	£1.60	£1.92
510 - CONTROL ROD FEI-32816055000.A25 32816055000	£3.29	£3.95
520 - CONTROL ROD FEI-32816052004.A49 32816052004	£2.73	£3.28
530 - FILLISTER HEAD SCREW FEI-43041039999.A17 43041039999	£1.60	£1.92
540 - SWITCH FEI-30701285000.A98 30701285000	£17.50	£21.00
550 - COVER FEI-31201101008.A17 31201101008	£17.71	£21.25
560 - PRESSURE PIECE FEI-31415082004.A45 31415082004	£1.60	£1.92
570 - CABLE GROMMET FEI-31413007007.A107 31413007007	£1.60	£1.92
586 - CABLE WITH PLUG FEI-30707385015.A1 30707385015	-
587 - PLUG CEE 16A/110V FEI-30728288004.A87 30728288004	£14.25	£17.10
590 - HANDLE FEI-32119107016.A37 32119107016	£10.15	£12.18
600 - HOOD FEI-31428125001.A14 31428125001	£10.52	£12.63
610 - COUNTERSUNK SCREW FEI-43064020049.A17 43064020049	£1.60	£1.92
912 - SEALING RING FEI-40612000007.A242 40612000007	£1.60	£1.92
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A223 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A198 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A730 34130054061	-

Attribute Name	Value
Brand	Fein
