Fein WSG 13-70 E (50/60Hz 230V) / 72211700235 Spare Parts

Fein WSG 13-70 E ⡐/60Hz 230V) / 72211700235 Spare Parts

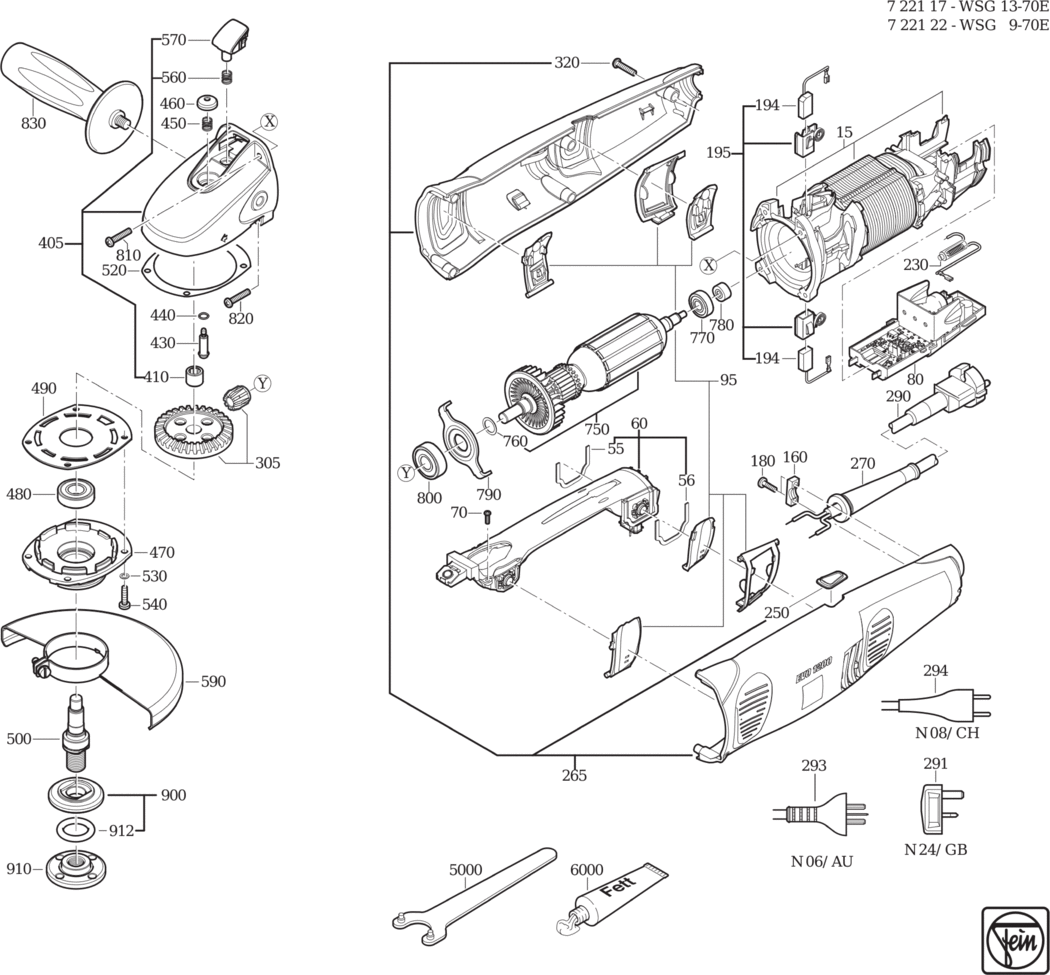

An exploded diagram and spare parts listing for the Fein WSG 13-70 E (50/60Hz 230V) / 72211700235

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52276008234.A5 52276008234	-
55 - SEAL FEI-31415096000.A12 31415096000	£1.60	£1.92
56 - SEAL FEI-31415097000.A26 31415097000	£1.60	£1.92
60 - SWITCH MODULE LS5V FEI-30701255990.A4 30701255990	£136.54	£163.85
70 - SCREW FEI-43070044007.A4 43070044007	£1.60	£1.92
80 - SPEED SETTING SWITCH FEI-30762265998.A1 30762265998	-
95 - SWITCH PUSHBUTTON SET FEI-32816061020.A31 32816061020	£10.64	£12.77
160 - CABLE CLAMPING PIECE FEI-32431026009.A7 32431026009	£1.60	£1.92
180 - SCREW FEI-43070006008.A32 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A13 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A42 30712093110	£30.80	£36.96
230 - CHOKE FEI-30764134009.A9 30764134009	£10.95	£13.14
250 - COVER FEI-32427124006.A6 32427124006	-
265 - MOTOR HOUSING FEI-31912065020.A2 31912065020	-
270 - CABLE GROMMET FEI-31413282000.A155 31413282000	£2.55	£3.06
290 - CABLE WITH PLUG FEI-30707403017.A4 30707403017	-
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A66 33809229012	£57.88	£69.46
320 - SCREW FEI-43070045001.A18 43070045001	-
405 - GEARBOX HOUSING FEI-31206132060.A1 31206132060	-
410 - NEEDLE SLEEVE FEI-41705019001.A122 41705019001	£9.49	£11.39
430 - BOLT FEI-30217345004.A6 30217345004	-
440 - SEALING RING FEI-40612137008.A227 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A12 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A25 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419115006.A12 32419115006	£44.60	£53.52
480 - GROOVED BALL BEARING FEI-41701010054.A122 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A22 32416101009	£3.11	£3.73
500 - SHAFT FEI-33406284009.A66 33406284009	£33.58	£40.29
520 - DISC FEI-32624117009.A65 32624117009	£1.60	£1.92
530 - CIRCLIP M4 FEI-42443003043.A119 42443003043	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A41 43064024043	-
560 - SPIRAL SPRING FEI-30901366000.A10 30901366000	-
570 - PUSHBUTTON FEI-32805202019.A0 32805202019	£12.99	£15.59
590 - SAFETY HOOD FEI-31810258010.A2 31810258010	£33.45	£40.14
750 - ARMATURE FEI-53276001236.A10 53276001236	-
760 - CIRCLIP FEI-42615081002.A17 42615081002	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A317 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A81 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A58 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A135 41701007266	£10.67	£12.80
810 - SCREW FEI-43070043009.A17 43070043009	£1.60	£1.92
820 - SCREW FEI-43070031003.A143 43070031003	£1.60	£1.92
830 - HANDLE FEI-32119107016.A27 32119107016	£10.15	£12.18
900 - INNER FLANGE FEI-63801182010.A42 63801182010	£14.88	£17.86
910 - THREADED FLANGE FEI-63802052000.A44 63802052000	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A251 40612000007	£1.60	£1.92
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A231 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A189 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A723 34130054061	-
