Fein WSS 14-125 (50/60Hz 220/230V) / 72214024230 Spare Parts

Fein WSS 14-125 ⡐/60Hz 220/230V) / 72214024230 Spare Parts

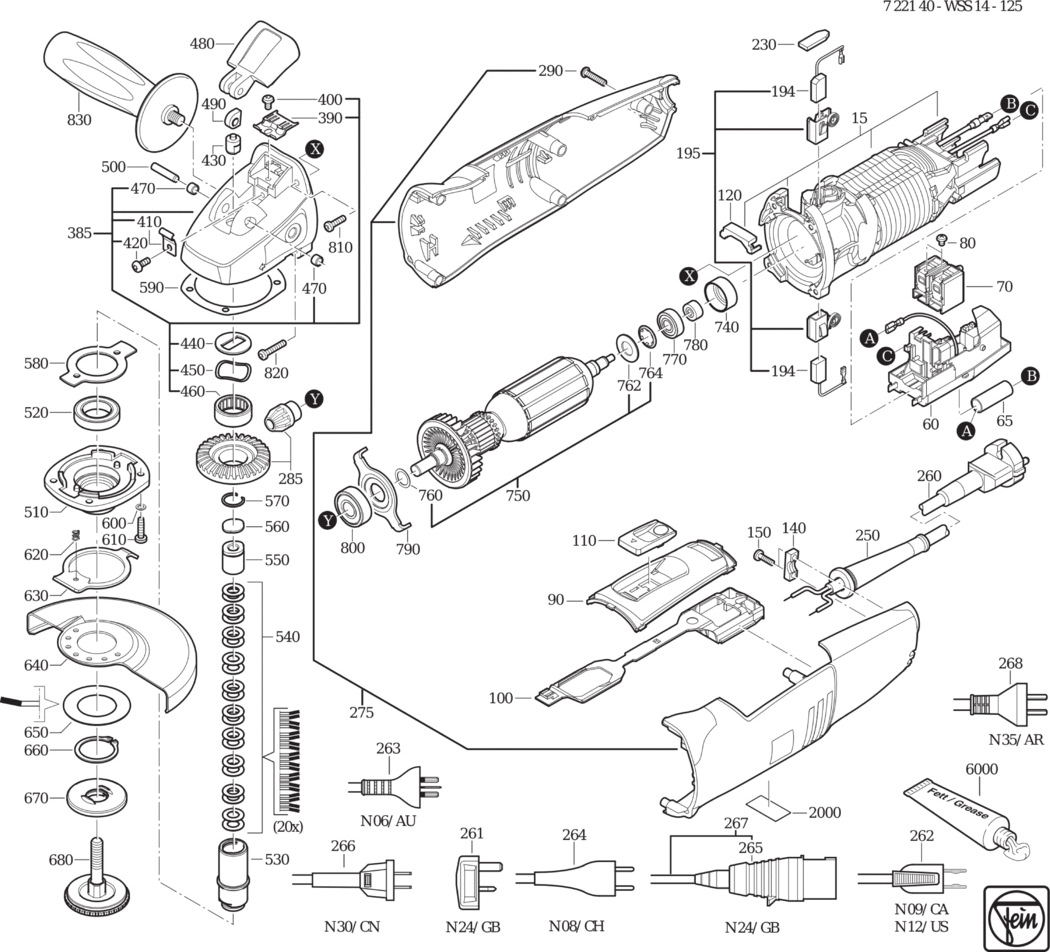

An exploded diagram and spare parts listing for the Fein WSS 14-125 (50/60Hz 220/230V) / 72214024230

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52276032230.A16 52276032230	£89.51	£107.41
60 - ELECTRONICS FEI-30762375990.A3 30762375990	£88.95	£106.74
65 - INSULATING HOSE FEI-31413232000.A33 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A11 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A74 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427135000.A8 32427135000	£4.88	£5.86
100 - CONTROL ROD FEI-32816069000.A1 32816069000	-
110 - SLIDE SWITCH FEI-32805223000.A20 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A24 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A80 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A115 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A54 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A8 30712093110	£30.80	£36.96
230 - COVER FEI-31420124000.A29 31420124000	£1.60	£1.92
250 - CABLE GROMMET FEI-31413282000.A12 31413282000	£2.55	£3.06
261 - CABLE WITH PLUG N24 50HZ230V FEI-30707495010.A2 30707495010	-
275 - MOTOR HOUSING FEI-31912083010.A23 31912083010	£35.94	£43.13
285 - BEVEL GEAR Z=11/41 FEI-33809227010.A14 33809227010	£39.72	£47.66
290 - SCREW FEI-43074008000.A89 43074008000	£1.60	£1.92
385 - GEARBOX HOUSING FEI-31206140020.A2 31206140020	£94.77	£113.72
390 - RETAINING SPRING FEI-30907068000.A1 30907068000	£7.97	£9.56
400 - FLAT HEADED SCREW FEI-43064026040.A6 43064026040	£1.60	£1.92
410 - LOCKING SPRING FEI-30907066008.A10 30907066008	£1.60	£1.92
420 - FILLISTER HEAD SCREW FEI-43064023045.A34 43064023045	£1.60	£1.92
430 - BOLT FEI-30217344000.A7 30217344000	£6.28	£7.53
440 - DISC FEI-32414114007.A13 32414114007	£1.60	£1.92
450 - SPRING WASHER FEI-42446022003.A7 42446022003	£1.60	£1.92
460 - NEEDLE SLEEVE FEI-41705032004.A9 41705032004	£8.75	£10.50
470 - BUSH FEI-30507220000.A33 30507220000	£2.60	£3.12
480 - LEVER FEI-32805225000.A1 32805225000	£28.24	£33.89
490 - ECCENTRIC RING FEI-32636036004.A17 32636036004	£4.08	£4.89
500 - BOLT FEI-30216144007.A11 30216144007	£1.60	£1.92
510 - BEARING PLATE FEI-32419126008.A5 32419126008	£34.57	£41.48
520 - GROOVED BALL BEARING FEI-41701108222.A24 41701108222	£19.74	£23.69
530 - SHAFT FEI-33406298007.A9 33406298007	£33.23	£39.88
540 - CUP SPRING PACKAGE FEI-30905067021.A10 30905067021	£10.36	£12.43
550 - PRESSURE PIECE FEI-30220061007.A6 30220061007	£9.25	£11.10
560 - DISC FEI-32414113009.A2 32414113009	£2.60	£3.12
570 - CIRCLIP FEI-42615148009.A7 42615148009	£1.60	£1.92
580 - PLATE FEI-32416109007.A13 32416109007	£2.34	£2.81
590 - DISC FEI-32624120028.A17 32624120028	-
600 - CIRCLIP M4 FEI-42443003043.A174 42443003043	£1.60	£1.92
610 - FILLISTER HEAD SCREW FEI-43064024043.A124 43064024043	-
620 - SPIRAL SPRING FEI-30901340001.A39 30901340001	£1.60	£1.92
630 - LEVER FEI-32805231000.A1 32805231000	£4.45	£5.34
640 - SAFETY HOOD FEI-31810257000.A14 31810257000	£21.07	£25.28
650 - CUP SPRING FEI-30905070000.A38 30905070000	£1.60	£1.92
660 - CIRCLIP FEI-42616073005.A21 42616073005	£1.60	£1.92
670 - FLANGE FEI-63801176011.A7 63801176011	£13.88	£16.65
680 - CLAMPING UNIT FEI-63802178023.A12 63802178023	£49.09	£58.91
740 - BEARING BUSH FEI-30507236000.A80 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53276003230.A4 53276003230	£110.32	£132.38
760 - CIRCLIP FEI-42615081002.A75 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A54 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A30 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A23 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A18 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A2 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A20 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A22 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A34 43074009000	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A42 32119124010	£17.68	£21.22
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A527 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A310 34130054061	-
