Fein MSho 852-1 (200Hz 135V) / 78244100170 Spare Parts

Fein MSho 852-1 𨈀Hz 135V) / 78244100170 Spare Parts
Home Details Reviews Delivery

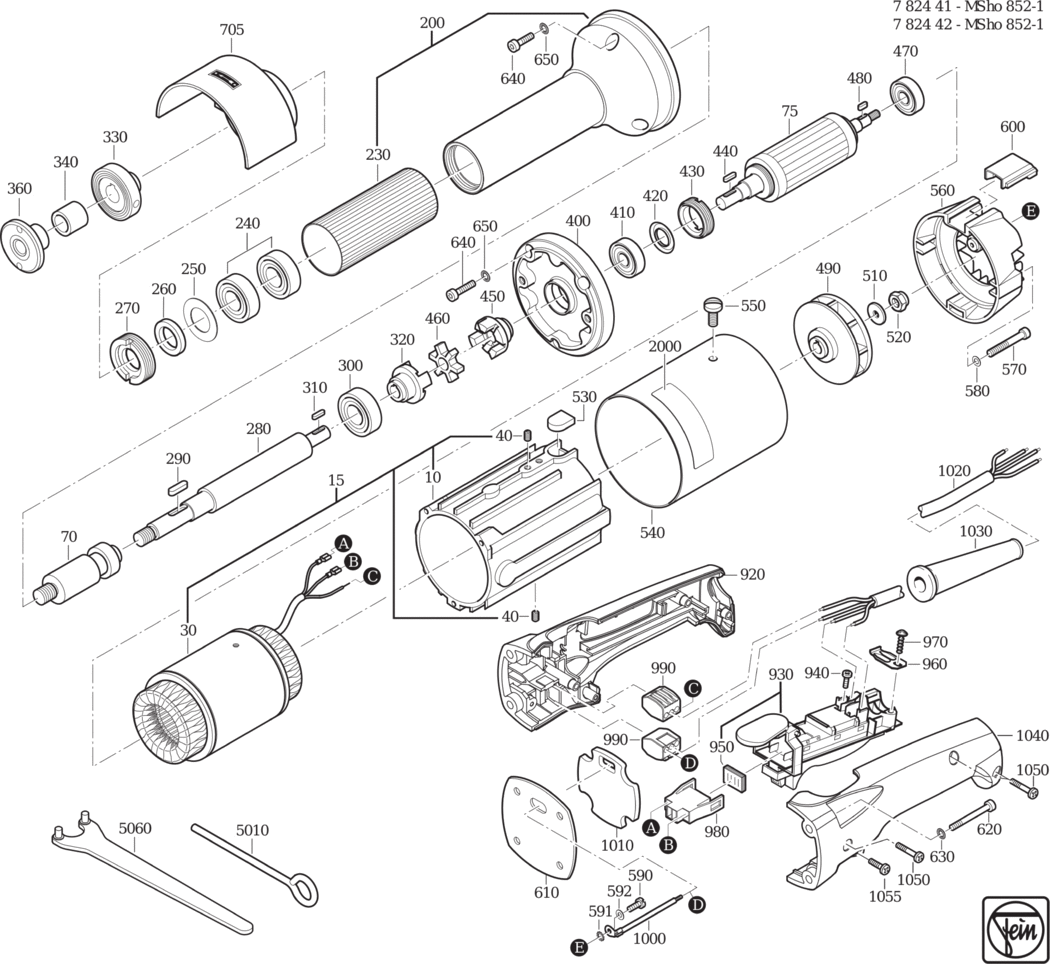

An exploded diagram and spare parts listing for the Fein MSho 852-1 (200Hz 135V) / 78244100170
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31903098002.A18 31903098002 £182.78 £219.33
15 - MOTOR HOUSING WITH STAT FEI-52810006160.A9 52810006160 £562.24 £674.69
30 - STATOR FEI-51810006160.A4 51810006160 £433.66 £520.39
40 - SET SCREW M5X10 FEI-43011005051.A4 43011005051 -
75 - ROTOR FEI-33502039016.A6 33502039016 £222.96 £267.55
200 - COLLAR BEARING FEI-31510038007.A2 31510038007 £345.19 £414.23
230 - PROTECTIVE HOSE FEI-31413118003.A0 31413118003 £4.65 £5.58
240 - GROOVED BALL BEARING FEI-41717002002.A7 41717002002 £85.76 £102.91
250 - DISC FEI-32411053004.A8 32411053004 £7.11 £8.53
260 - FELT RING FEI-30601056003.A6 30601056003 £1.60 £1.92
270 - SEALING RING FEI-32613034007.A10 32613034007 £35.06 £42.07
280 - SHAFT FEI-33406095007.A2 33406095007 £86.84 £104.21
290 - FEATHER KEY FEI-40223027008.A9 40223027008 £1.60 £1.92
300 - GROOVED BALL BEARING FEI-41701212092.A1 41701212092 £20.05 £24.06
310 - FEATHER KEY FEI-40223021002.A5 40223021002 £1.60 £1.92
320 - CLUTCH PART FEI-30102072001.A42 30102072001 £57.78 £69.34
330 - INNER FLANGE FEI-63801096001.A6 63801096001 £55.86 £67.03
340 - SLEEVE FEI-30501174004.A3 30501174004 £18.16 £21.79
360 - THREADED FLANGE FEI-63802105000.A3 63802105000 £36.76 £44.11
400 - INTERMEDIATE GEAR BOX FEI-31506164002.A8 31506164002 £117.74 £141.29
410 - GROOVED BALL BEARING FEI-41701010026.A2 41701010026 £8.93 £10.72
420 - SEALING RING FEI-42639003008.A20 42639003008 £5.02 £6.03
430 - THREAD RING FEI-32618035002.A6 32618035002 £40.93 £49.12
440 - FEATHER KEY FEI-40221005008.A16 40221005008 £1.60 £1.92
450 - CLUTCH PART FEI-30102072001.A41 30102072001 £57.78 £69.34
460 - CLUTCH PART FEI-30102071008.A9 30102071008 £12.11 £14.53
470 - GROOVED BALL BEARING FEI-41701007038.A3 41701007038 £10.17 £12.20
480 - FEATHER KEY FEI-40221003006.A31 40221003006 £1.60 £1.92
490 - FAN WHEEL FEI-31001085002.A3 31001085002 £147.12 £176.54
510 - DISC FEI-42402003067.A12 42402003067 £1.60 £1.92
520 - NUT FEI-42019008060.A1 42019008060 £1.60 £1.92
530 - SEAL FEI-30605014003.A7 30605014003 £5.40 £6.48
540 - SLEEVE FEI-30502059004.A2 30502059004 £84.98 £101.98
550 - FLAT HEADED SCREW M5X8 FEI-43003048058.A13 43003048058 £1.60 £1.92
560 - HOUSING FEI-31207047000.A14 31207047000 £50.70 £60.84
570 - CYLINDER HEAD SCREW FEI-43033016055.A18 43033016055 £1.60 £1.92
580 - CIRCLIP M5 FEI-42443004057.A147 42443004057 £1.60 £1.92
590 - FLAT HEADED SCREW FEI-43003032042.A14 43003032042 -
591 - LOCK WASHER FEI-42439013046.A84 42439013046 £1.60 £1.92
592 - DISC FEI-42404005048.A65 42404005048 £1.60 £1.92
600 - COVER FEI-32427036003.A16 32427036003 £4.38 £5.26
610 - INSULATION BOARD FEI-31408056000.A68 31408056000 £7.32 £8.79
620 - CYLINDER HEAD SCREW FEI-43033016055.A17 43033016055 £1.60 £1.92
630 - CIRCLIP M5 FEI-42443004057.A149 42443004057 £1.60 £1.92
640 - CYLINDER HEAD SCREW M5X20 FEI-43033012056.A54 43033012056 £1.60 £1.92
650 - CIRCLIP M5 FEI-42443004057.A148 42443004057 £1.60 £1.92
705 - SAFETY HOOD FEI-31810107017.A2 31810107017 £127.82 £153.38
920 - HANDLE HALF SHELL FEI-31204179010.A37 31204179010 £33.48 £40.17
930 - SWITCH FEI-30701316010.A53 30701316010 £83.94 £100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A95 43041035047 £1.60 £1.92
950 - SEAL FEI-31324121000.A53 31324121000 £9.47 £11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A88 32431042008 £1.60 £1.92
970 - SCREW FEI-43070035002.A67 43070035002 £1.60 £1.92
980 - HOUSING FEI-31324123000.A52 31324123000 £7.50 £9.00
990 - TERMINAL FEI-31412063000.A76 31412063000 £3.93 £4.72
1000 - CONNECTING CABLE FEI-30719640010.A47 30719640010 £2.66 £3.19
1010 - PLATE FEI-30605042008.A80 30605042008 £5.45 £6.54
1020 - CABLE FEI-30706338010.A6 30706338010 -
1030 - CABLE GROMMET FEI-31413094007.A71 31413094007 £3.04 £3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A70 31204180000 £22.83 £27.40
1050 - SCREW FEI-43070031003.A79 43070031003 £1.60 £1.92
1055 - SCREW FEI-43070038007.A81 43070038007 £1.60 £1.92
5010 - PIN FEI-62913005004.A4 62913005004 £10.36 £12.43
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A95 62910022002 £7.22 £8.67
9020 - SAFETY INSTRUCTION FEI-34130054061.A355 34130054061 -
