Fein MShyo 840-1b (200Hz 125V) / 78231500154 Spare Parts

Fein MShyo 840-1b 𨈀Hz 125V) / 78231500154 Spare Parts
Home Details Reviews Delivery

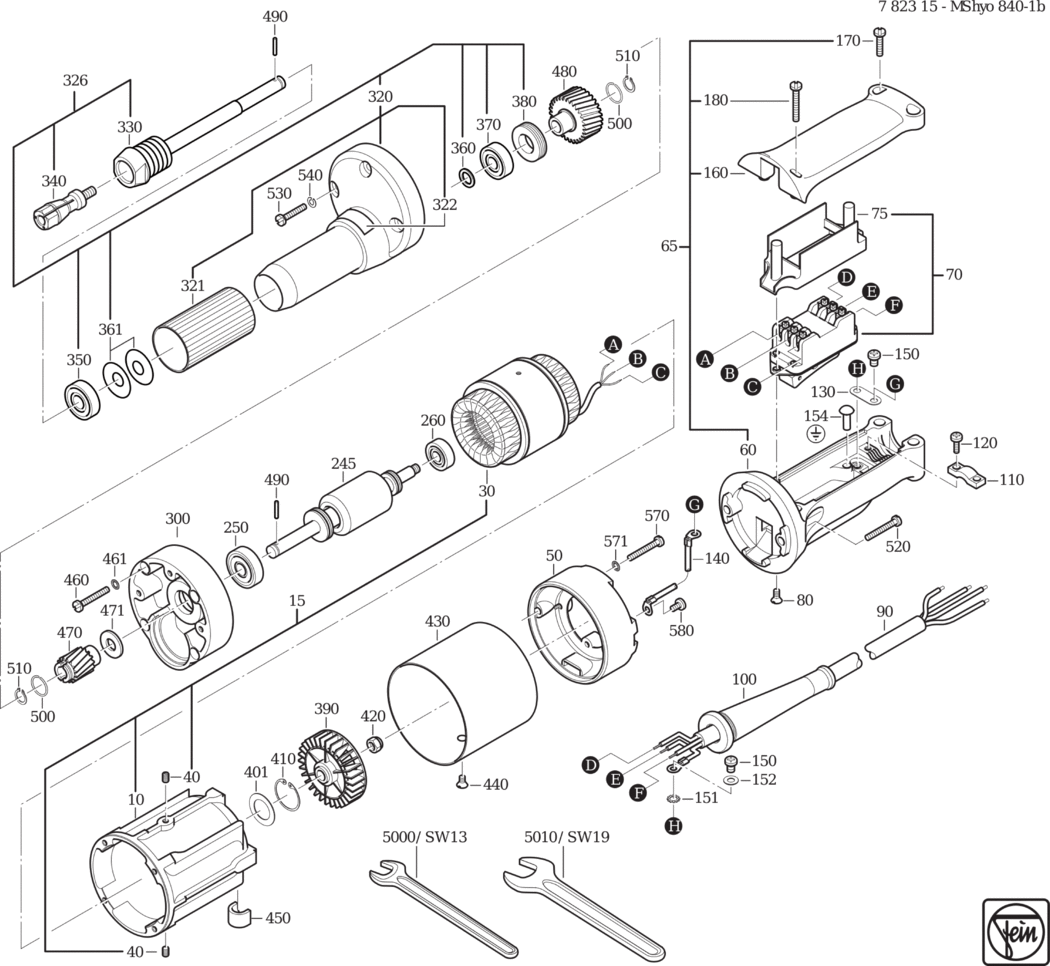

An exploded diagram and spare parts listing for the Fein MShyo 840-1b (200Hz 125V) / 78231500154
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31903073007.A16 31903073007 £131.27 £157.52
15 - MOTOR HOUSING 200H125V SET FEI-52803003151.A2 52803003151 -
30 - STATOR 200HZ125V FEI-51803002151.A2 51803002151 -
40 - SET SCREW M4X8 FEI-43011002049.A26 43011002049 £1.60 £1.92
50 - HOUSING FEI-31207032008.A14 31207032008 £76.15 £91.38
60 - HANDLE HALF SHELL FEI-31204054001.A6 31204054001 £37.72 £45.26
65 - HANDLE FEI-31204054010.A20 31204054010 £46.32 £55.58
70 - SWITCH FEI-30701043017.A6 30701043017 £61.38 £73.65
75 - CAP FEI-31428066001.A6 31428066001 £9.47 £11.37
80 - COUNTERSUNK SCREW FEI-43060003046.A3 43060003046 -
90 - CABLE FEI-30706227011.A18 30706227011 £67.97 £81.56
100 - CABLE GROMMET FEI-31413090003.A42 31413090003 £3.40 £4.08
110 - CABLE CLAMPING PIECE FEI-32431021007.A76 32431021007 £1.60 £1.92
120 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A107 43041001994 £1.60 £1.92
130 - LUG FEI-32802042002.A11 32802042002 £1.60 £1.92
140 - CONNECTING CABLE FEI-30719023015.A22 30719023015 £7.08 £8.50
150 - FILLISTER HEAD SCREW FEI-43041016042.A21 43041016042 -
151 - LOCK WASHER FEI-42439013046.A129 42439013046 £1.60 £1.92
152 - DISC FEI-42404005048.A21 42404005048 £1.60 £1.92
154 - RIVET FEI-32215029003.A11 32215029003 £1.60 £1.92
160 - HANDLE HALF SHELL FEI-31204053003.A14 31204053003 -
170 - FLAT HEADED SCREW FEI-43003040049.A11 43003040049 £1.60 £1.92
180 - FLAT HEADED SCREW FEI-43003042041.A46 43003042041 £1.60 £1.92
245 - ROTOR FEI-33508027017.A16 33508027017 £260.16 £312.19
250 - GROOVED BALL BEARING FEI-41701004246.A8 41701004246 £7.72 £9.27
260 - GROOVED BALL BEARING FEI-41701001260.A113 41701001260 £7.11 £8.53
300 - INTERMEDIATE GEAR BOX FEI-31506338006.A11 31506338006 £125.78 £150.94
320 - COLLAR BEARING FEI-31510091016.A9 31510091016 £392.11 £470.53
321 - PROTECTIVE HOSE FEI-31413086005.A2 31413086005 £3.74 £4.49
322 - INFORMATION SIGN FEI-32215026007.A25 32215026007 £1.60 £1.92
326 - COLLAR BEARING FEI-31510091022.A7 31510091022 -
330 - SHAFT FEI-33406204007.A8 33406204007 £211.70 £254.04
340 - COLLETS FEI-63207059006.A23 63207059006 £40.45 £48.54
350 - GROOVED BALL BEARING FEI-41701006097.A8 41701006097 £18.34 £22.01
360 - DISC FEI-32408232004.A3 32408232004 £3.11 £3.73
361 - CUP SPRING FEI-30905034008.A0 30905034008 £1.60 £1.92
370 - GROOVED BALL BEARING FEI-41701004090.A3 41701004090 £18.30 £21.96
380 - NUT FEI-42011023008.A8 42011023008 £31.35 £37.62
390 - FAN WHEEL FEI-31004032003.A12 31004032003 £16.65 £19.98
401 - DISC FEI-32624034022.A12 32624034022 £1.60 £1.92
401 - DISC FEI-32624034038.A29 32624034038 £1.60 £1.92
410 - CIRCLIP FEI-42616033009.A17 42616033009 £1.60 £1.92
420 - NUT FEI-42019008060.A25 42019008060 £1.60 £1.92
430 - SLEEVE FEI-30502053003.A11 30502053003 £74.06 £88.87
440 - COUNTERSUNK SCREW FEI-43060002042.A19 43060002042 £1.60 £1.92
450 - SEAL FEI-30605023004.A18 30605023004 £3.33 £4.00
460 - CYLINDER HEAD SCREW FEI-43002041047.A2 43002041047 £1.60 £1.92
461 - CIRCLIP M4 FEI-42443003043.A304 42443003043 £1.60 £1.92
470 - GEAR-WHEEL FEI-33663007009.A5 33663007009 £145.74 £174.89
471 - DISC FEI-32408247006.A5 32408247006 £14.80 £17.76
480 - GEAR-WHEEL FEI-33663094009.A9 33663094009 -
490 - PIN FEI-40253005009.A8 40253005009 £1.60 £1.92
500 - CIRCLIP FEI-42615075002.A0 42615075002 £1.60 £1.92
510 - CIRCLIP FEI-42616037008.A14 42616037008 £1.60 £1.92
520 - FLAT HEADED SCREW FEI-43003042041.A47 43003042041 £1.60 £1.92
530 - FLAT HEADED SCREW FEI-43003040049.A10 43003040049 £1.60 £1.92
540 - SPRING WASHER FEI-42445001044.A25 42445001044 £1.60 £1.92
570 - CYLINDER HEAD SCREW FEI-43002041047.A3 43002041047 £1.60 £1.92
571 - CIRCLIP M4 FEI-42443003043.A305 42443003043 £1.60 £1.92
580 - FLAT HEADED SCREW FEI-43003029048.A106 43003029048 -
5000 - JAW SPANNER SW13 FEI-62901007007.A12 62901007007 £11.61 £13.93
5010 - JAW SPANNER SW19 FEI-62901009009.A13 62901009009 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A187 34130054061 -
