Fein MShyo 840-1b (200Hz 265V) / 78231599203 Spare Parts

Fein MShyo 840-1b 𨈀Hz 265V) / 78231599203 Spare Parts

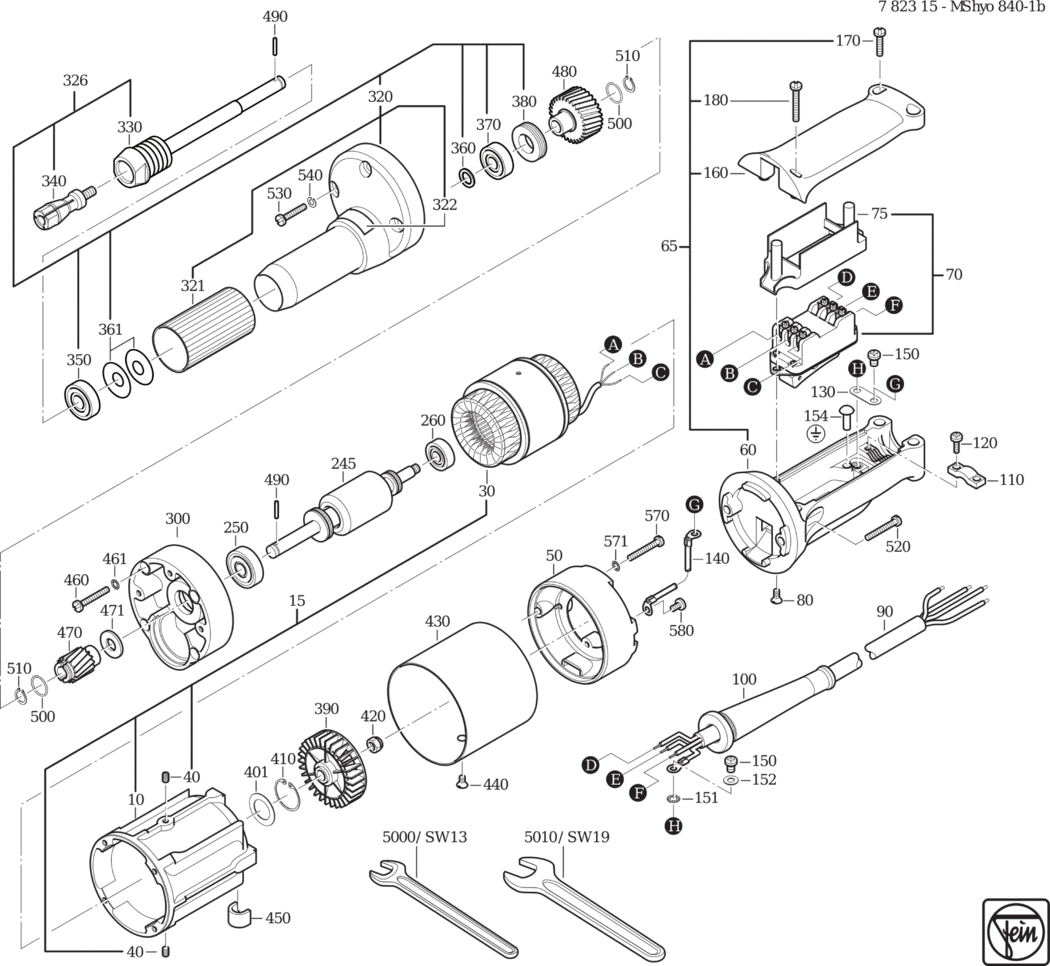

An exploded diagram and spare parts listing for the Fein MShyo 840-1b (200Hz 265V) / 78231599203

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903073007.A25 31903073007	£131.27	£157.52
15 - MOTOR HOUSING SET FEI-52803003065.A3 52803003065	-
30 - STATOR FEI-51803002065.A2 51803002065	-
40 - SET SCREW M4X8 FEI-43011002049.A15 43011002049	£1.60	£1.92
50 - HOUSING FEI-31207032008.A7 31207032008	£76.15	£91.38
60 - HANDLE HALF SHELL FEI-31204054001.A12 31204054001	£37.72	£45.26
65 - HANDLE FEI-31204054010.A14 31204054010	£46.32	£55.58
70 - SWITCH FEI-30701043017.A11 30701043017	£61.38	£73.65
75 - CAP FEI-31428066001.A3 31428066001	£9.47	£11.37
80 - COUNTERSUNK SCREW FEI-43060003046.A7 43060003046	-
90 - CABLE FEI-30706227011.A11 30706227011	£67.97	£81.56
100 - CABLE GROMMET FEI-31413090003.A63 31413090003	£3.40	£4.08
110 - CABLE CLAMPING PIECE FEI-32431021007.A18 32431021007	£1.60	£1.92
120 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A67 43041001994	£1.60	£1.92
130 - LUG FEI-32802042002.A20 32802042002	£1.60	£1.92
140 - CONNECTING CABLE FEI-30719023015.A12 30719023015	£7.08	£8.50
150 - FILLISTER HEAD SCREW FEI-43041016042.A32 43041016042	-
151 - LOCK WASHER FEI-42439013046.A132 42439013046	£1.60	£1.92
152 - DISC FEI-42404005048.A18 42404005048	£1.60	£1.92
154 - RIVET FEI-32215029003.A15 32215029003	£1.60	£1.92
160 - HANDLE HALF SHELL FEI-31204053003.A18 31204053003	-
170 - FLAT HEADED SCREW FEI-43003040049.A5 43003040049	£1.60	£1.92
180 - FLAT HEADED SCREW FEI-43003042041.A52 43003042041	£1.60	£1.92
245 - ROTOR FEI-33508027017.A12 33508027017	£260.16	£312.19
250 - GROOVED BALL BEARING FEI-41701004246.A11 41701004246	£7.72	£9.27
260 - GROOVED BALL BEARING FEI-41701001260.A116 41701001260	£7.11	£8.53
300 - INTERMEDIATE GEAR BOX FEI-31506338006.A14 31506338006	£125.78	£150.94
320 - COLLAR BEARING FEI-31510091016.A8 31510091016	£392.11	£470.53
322 - INFORMATION SIGN FEI-32215026007.A20 32215026007	£1.60	£1.92
326 - COLLAR BEARING FEI-31510091022.A8 31510091022	-
330 - SHAFT FEI-33406204007.A5 33406204007	£211.70	£254.04
340 - COLLETS FEI-63207059006.A22 63207059006	£40.45	£48.54
350 - GROOVED BALL BEARING FEI-41701006097.A7 41701006097	£18.34	£22.01
360 - DISC FEI-32408232004.A6 32408232004	£3.11	£3.73
361 - CUP SPRING FEI-30905034008.A3 30905034008	£1.60	£1.92
370 - GROOVED BALL BEARING FEI-41701004090.A2 41701004090	£18.30	£21.96
380 - NUT FEI-42011023008.A5 42011023008	£31.35	£37.62
390 - FAN WHEEL FEI-31004032003.A9 31004032003	£16.65	£19.98
401 - DISC FEI-32624034038.A32 32624034038	£1.60	£1.92
401 - DISC FEI-32624034022.A9 32624034022	£1.60	£1.92
410 - CIRCLIP FEI-42616033009.A22 42616033009	£1.60	£1.92
420 - NUT FEI-42019008060.A28 42019008060	£1.60	£1.92
430 - SLEEVE FEI-30502053003.A8 30502053003	£74.06	£88.87
440 - COUNTERSUNK SCREW FEI-43060002042.A16 43060002042	£1.60	£1.92
450 - SEAL FEI-30605023004.A17 30605023004	£3.33	£4.00
460 - CYLINDER HEAD SCREW FEI-43002041047.A12 43002041047	£1.60	£1.92
461 - CIRCLIP M4 FEI-42443003043.A312 42443003043	£1.60	£1.92
470 - GEAR-WHEEL FEI-33663007009.A8 33663007009	£145.74	£174.89
471 - DISC FEI-32408247006.A1 32408247006	£14.80	£17.76
480 - GEAR-WHEEL FEI-33663094009.A6 33663094009	-
490 - PIN FEI-40253005009.A7 40253005009	£1.60	£1.92
500 - CIRCLIP FEI-42615075002.A3 42615075002	£1.60	£1.92
510 - CIRCLIP FEI-42616037008.A9 42616037008	£1.60	£1.92
520 - FLAT HEADED SCREW FEI-43003042041.A53 43003042041	£1.60	£1.92
530 - FLAT HEADED SCREW FEI-43003040049.A3 43003040049	£1.60	£1.92
540 - SPRING WASHER FEI-42445001044.A22 42445001044	£1.60	£1.92
570 - CYLINDER HEAD SCREW FEI-43002041047.A13 43002041047	£1.60	£1.92
571 - CIRCLIP M4 FEI-42443003043.A313 42443003043	£1.60	£1.92
580 - FLAT HEADED SCREW FEI-43003029048.A109 43003029048	-
5000 - JAW SPANNER SW13 FEI-62901007007.A11 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW19 FEI-62901009009.A14 62901009009	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A182 34130054061	-
