Fein MSf 843-1c (300Hz 200V) / 78208595260 Spare Parts

Fein MSf 843-1c 𨌀Hz 200V) / 78208595260 Spare Parts

Home Details Reviews Delivery

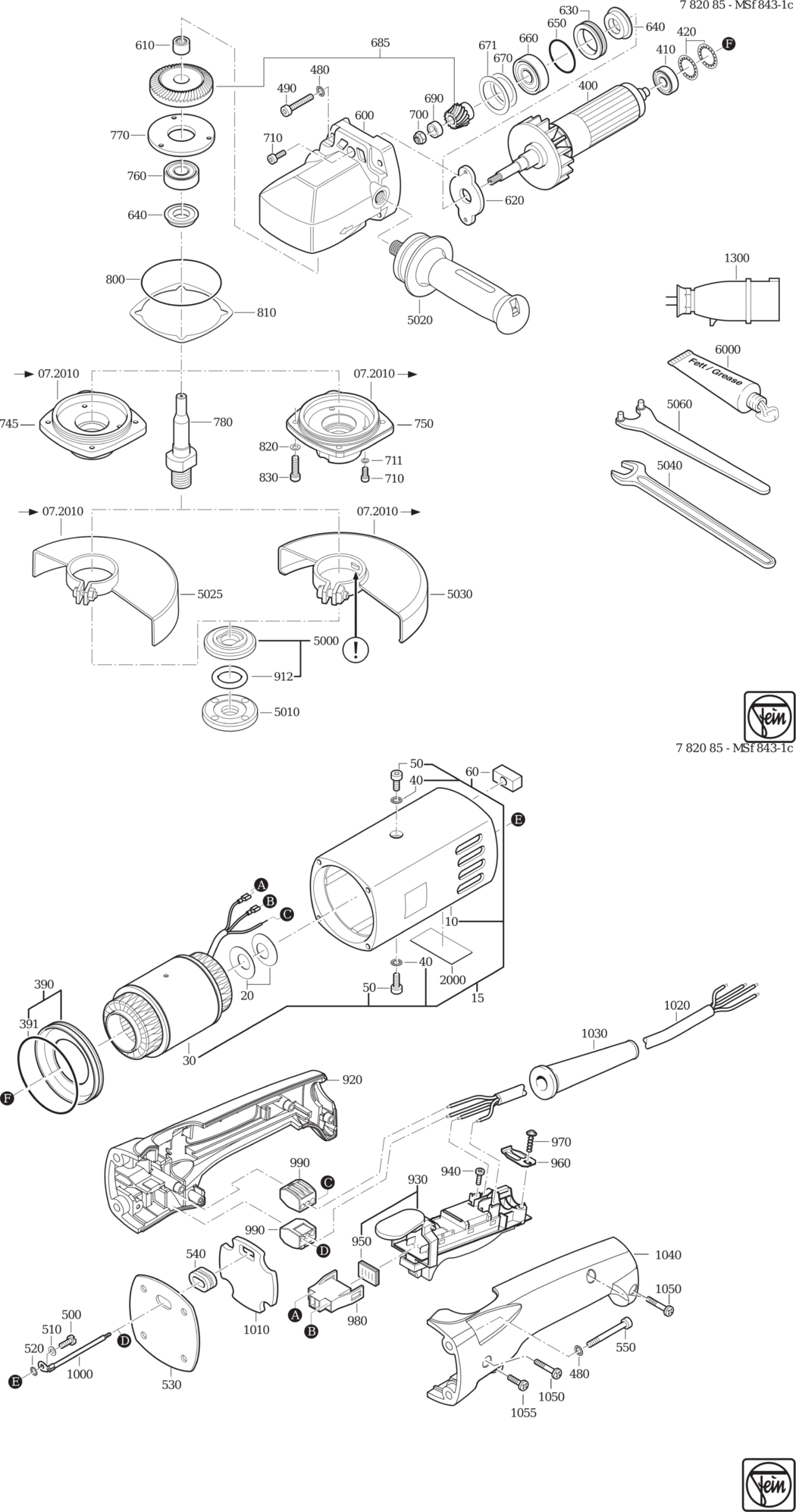

An exploded diagram and spare parts listing for the Fein MSf 843-1c (300Hz 200V) / 78208595260

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903178003.A8 31903178003	£181.17	£217.40
15 - MOTOR HOUSING WITH STAT FEI-52831004160.A4 52831004160	-
20 - SEALING RING FEI-30605076004.A11 30605076004	£3.58	£4.30
30 - STATOR FEI-51831004160.A0 51831004160	£491.08	£589.29
40 - CIRCLIP M4 FEI-42443003043.A245 42443003043	£1.60	£1.92
50 - CYLINDER HEAD SCREW FEI-43035003043.A11 43035003043	£1.60	£1.92
60 - PLUG FEI-31415032009.A31 31415032009	£6.34	£7.61
390 - AIR GUIDE RING FEI-31428065017.A10 31428065017	£30.80	£36.96
391 - SEALING RING FEI-40612049000.A12 40612049000	£7.56	£9.07
400 - ROTOR FEI-33502050017.A0 33502050017	£344.96	£413.95
410 - GROOVED BALL BEARING FEI-41701204026.A23 41701204026	£7.20	£8.64
420 - CUP SPRING FEI-30905039001.A0 30905039001	£1.60	£1.92
480 - CIRCLIP M5 FEI-42443004057.A97 42443004057	£1.60	£1.92
490 - CYLINDER HEAD SCREW FEI-43035018055.A8 43035018055	-
500 - FLAT HEADED SCREW FEI-43003029048.A80 43003029048	-
510 - DISC FEI-42404005048.A32 42404005048	£1.60	£1.92
520 - LOCK WASHER FEI-42439013046.A159 42439013046	£1.60	£1.92
530 - INSULATION BOARD FEI-31408056000.A60 31408056000	£7.32	£8.79
540 - INSULATING RING FEI-31406033009.A6 31406033009	£2.86	£3.43
550 - CYLINDER HEAD SCREW FEI-43035020051.A20 43035020051	£1.60	£1.92
600 - GEARBOX HOUSING FEI-31206094003.A4 31206094003	£176.12	£211.35
610 - NEEDLE SLEEVE FEI-41705026004.A2 41705026004	£12.35	£14.82
620 - PLATE FEI-32416086004.A0 32416086004	£9.53	£11.44
630 - RING FEI-32602079006.A1 32602079006	£32.28	£38.74
640 - SEALING RING FEI-30602014004.A7 30602014004	£20.61	£24.73
650 - SEALING RING FEI-40612038007.A9 40612038007	£10.08	£12.10
660 - GROOVED BALL BEARING FEI-41701210224.A15 41701210224	£15.09	£18.11
670 - DISC FEI-32624085021.A2 32624085021	£2.41	£2.89
671 - DISC FEI-32408019006.A3 32408019006	£7.76	£9.31
685 - BEVEL GEAR Z=15/41 FEI-33809189010.A0 33809189010	£384.10	£460.92
690 - RING FEI-32601251001.A0 32601251001	£15.12	£18.14
700 - NUT FEI-42019002069.A2 42019002069	£4.84	£5.81
710 - CYLINDER HEAD SCREW FEI-43035004041.A7 43035004041	£1.60	£1.92
711 - SEALING RING FEI-40611007008.A5 40611007008	£4.05	£4.86
750 - BEARING PLATE FEI-32419146010.A1 32419146010	£95.57	£114.68
760 - GROOVED BALL BEARING FEI-41701010054.A262 41701010054	£8.25	£9.90
770 - PLATE FEI-32416087008.A6 32416087008	£27.65	£33.18
780 - SHAFT FEI-33406216003.A1 33406216003	£71.70	£86.04
800 - SEALING RING FEI-40612049000.A11 40612049000	£7.56	£9.07
810 - DISC FEI-32624110035.A2 32624110035	£10.67	£12.80
810 - DISC FEI-32624110029.A5 32624110029	£4.09	£4.91
820 - CIRCLIP M4 FEI-42443003043.A250 42443003043	£1.60	£1.92
830 - CYLINDER HEAD SCREW FEI-43035076041.A30 43035076041	£1.60	£1.92
912 - SEALING RING FEI-40612000007.A62 40612000007	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A17 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A67 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A69 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A80 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A100 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A115 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A97 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A23 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A63 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A45 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706338010.A15 30706338010	-
1030 - CABLE GROMMET FEI-31413094007.A19 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A85 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A15 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A119 43070038007	£1.60	£1.92
1300 - MALE CONNECTOR FEI-30728123007.A6 30728123007	£39.88	£47.85
5000 - INNER FLANGE FEI-63801182010.A202 63801182010	£14.88	£17.86
5010 - THREADED FLANGE FEI-63802052000.A195 63802052000	£14.88	£17.86
5020 - ANTI-VIBRATION HANDLE FEI-32119118013.A1 32119118013	£58.22	£69.87
5030 - SAFETY HOOD FEI-31810278020.A6 31810278020	£63.78	£76.53
5040 - JAW SPANNER SW17 FEI-62903002009.A93 62903002009	£11.61	£13.93
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A29 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A42 32160003135	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A127 34130054061	-
