Fein MSfo 852-1b (300Hz 200V) / 78206600260 Spare Parts

Fein MSfo 852-1b 𨌀Hz 200V) / 78206600260 Spare Parts

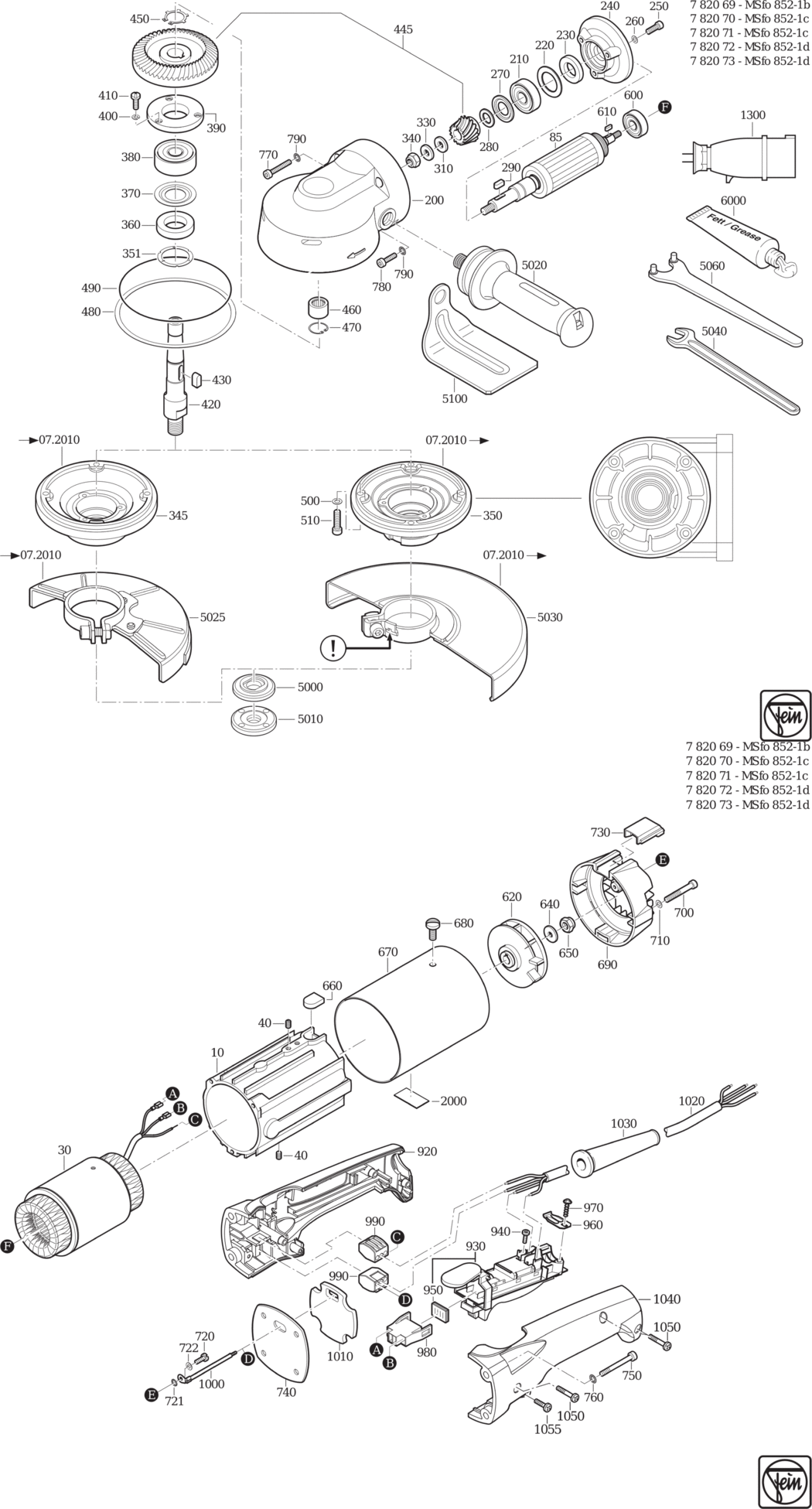

An exploded diagram and spare parts listing for the Fein MSfo 852-1b (300Hz 200V) / 78206600260

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903098002.A0 31903098002	£182.78	£219.33
30 - STATOR FEI-51810006160.A10 51810006160	£433.66	£520.39
40 - SET SCREW M5X10 FEI-43011005051.A30 43011005051	-
85 - ROTOR FEI-33502040018.A0 33502040018	£355.88	£427.06
200 - GEARBOX HOUSING FEI-31206056004.A0 31206056004	£217.88	£261.46
210 - GROOVED BALL BEARING FEI-41701304022.A1 41701304022	£23.43	£28.12
220 - DISC FEI-32411055006.A0 32411055006	£10.85	£13.02
230 - FELT RING FEI-30601058005.A0 30601058005	£2.25	£2.70
240 - CONNECTING PIECE FEI-32418023003.A1 32418023003	£54.02	£64.83
250 - CYLINDER HEAD SCREW FEI-43002037044.A0 43002037044	£1.60	£1.92
260 - CIRCLIP M4 FEI-42443003043.A127 42443003043	£1.60	£1.92
270 - SEALING RING FEI-42640017008.A0 42640017008	-
280 - DISC FEI-32624058029.A1 32624058029	£2.25	£2.70
280 - DISC FEI-32624058035.A0 32624058035	£1.60	£1.92
290 - FEATHER KEY FEI-40221008003.A4 40221008003	£4.63	£5.56
330 - DISC FEI-42401018069.A49 42401018069	£1.60	£1.92
340 - NUT FEI-42019002069.A8 42019002069	£4.84	£5.81
350 - BEARING PLATE FEI-32419049003.A0 32419049003	£117.08	£140.49
360 - SEALING RING FEI-40608019006.A0 40608019006	-
370 - SEALING RING FEI-42639009009.A1 42639009009	-
380 - GROOVED BALL BEARING FEI-41701224024.A47 41701224024	£12.19	£14.63
390 - PLATE FEI-32416058009.A35 32416058009	£19.56	£23.47
400 - CIRCLIP M4 FEI-42443003043.A128 42443003043	£1.60	£1.92
410 - CYLINDER HEAD SCREW M4X10 FEI-43002033045.A29 43002033045	£1.60	£1.92
420 - SHAFT FEI-33406149000.A0 33406149000	£114.36	£137.23
430 - FEATHER KEY FEI-40223026004.A1 40223026004	£2.34	£2.81
445 - BEVEL GEAR Z=15/64 FEI-33809111019.A0 33809111019	-
450 - CIRCLIP FEI-42641001002.A0 42641001002	£1.60	£1.92
460 - NEEDLE BEARING FEI-41706002002.A25 41706002002	£40.91	£49.09
470 - CIRCLIP FEI-42616020004.A7 42616020004	£1.60	£1.92
480 - DISC FEI-32624059039.A0 32624059039	£19.98	£23.97
480 - DISC FEI-32624059023.A1 32624059023	£12.84	£15.41
490 - SEALING RING FEI-40612006008.A0 40612006008	-
500 - SEALING RING FEI-40611001002.A44 40611001002	£1.60	£1.92
510 - CYLINDER HEAD SCREW M5X20 FEI-43033012056.A9 43033012056	£1.60	£1.92
550 - SEALING RING FEI-40612005005.A1 40612005005	£1.60	£1.92
580 - CIRCLIP M4 FEI-42443003043.A129 42443003043	£1.60	£1.92
590 - CYLINDER HEAD SCREW FEI-43002035047.A7 43002035047	-
600 - GROOVED BALL BEARING FEI-41701007038.A114 41701007038	£10.17	£12.20
610 - FEATHER KEY FEI-40221003006.A46 40221003006	£1.60	£1.92
620 - FAN WHEEL FEI-31001085002.A25 31001085002	£147.12	£176.54
640 - DISC FEI-42402003067.A11 42402003067	£1.60	£1.92
650 - NUT FEI-42019008060.A38 42019008060	£1.60	£1.92
660 - SEAL FEI-30605014003.A22 30605014003	£5.40	£6.48
670 - SLEEVE FEI-30502058000.A0 30502058000	£82.43	£98.92
680 - FLAT HEADED SCREW M5X8 FEI-43003048058.A30 43003048058	£1.60	£1.92
690 - HOUSING FEI-31207047000.A11 31207047000	£50.70	£60.84
700 - CYLINDER HEAD SCREW FEI-43033016055.A70 43033016055	£1.60	£1.92
710 - CIRCLIP M5 FEI-42443004057.A308 42443004057	£1.60	£1.92
720 - FLAT HEADED SCREW FEI-43003032042.A30 43003032042	-
721 - LOCK WASHER FEI-42439013046.A20 42439013046	£1.60	£1.92
722 - DISC FEI-42404005048.A89 42404005048	£1.60	£1.92
730 - COVER FEI-32427036003.A3 32427036003	£4.38	£5.26
740 - INSULATION BOARD FEI-31408056000.A38 31408056000	£7.32	£8.79
750 - CYLINDER HEAD SCREW FEI-43033016055.A69 43033016055	£1.60	£1.92
760 - CIRCLIP M5 FEI-42443004057.A309 42443004057	£1.60	£1.92
770 - CYLINDER HEAD SCREW FEI-43033015052.A0 43033015052	£1.60	£1.92
780 - CYLINDER HEAD SCREW FEI-43033062051.A20 43033062051	£1.60	£1.92
790 - CIRCLIP M5 FEI-42443004057.A310 42443004057	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A72 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A12 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A15 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A13 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A40 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A30 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A18 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A121 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A14 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A15 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706338010.A34 30706338010	-
1030 - CABLE GROMMET FEI-31413094007.A123 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A16 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A119 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A18 43070038007	£1.60	£1.92
5020 - ANTI-VIBRATION HANDLE FEI-32119117015.A10 32119117015	£58.22	£69.87
5040 - JAW SPANNER SW17 FEI-62903011005.A6 62903011005	£7.22	£8.67
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A250 62910022002	£7.22	£8.67
5100 - SAFETY GUARD FEI-30229216005.A7 30229216005	£10.81	£12.97
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A61 32160003135	-
9000 - OPERATING INSTRUCTIONS FEI-34101066060.A14 34101066060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A663 34130054061	-

Attribute Name	Value
Brand	Fein
