Elu MBH26L Type 1 Rotary Hammer Spare Parts

Home Details Reviews Delivery

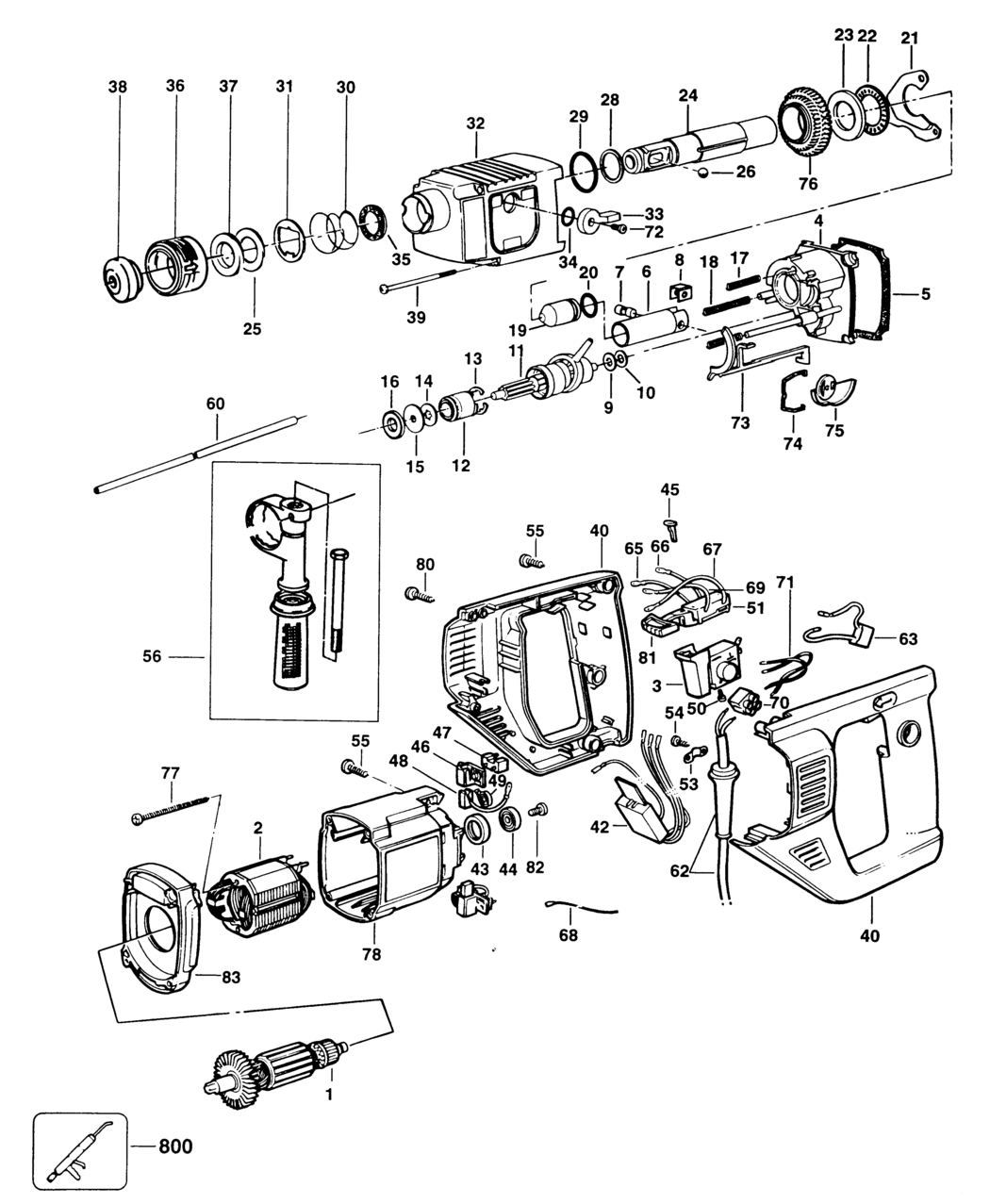

An exploded drawing and spare parts listing for the Elu MBH26L Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE 115v BDE-000000-00.A49358 000000-00	-
1 - ARMATURE 240V 240v BDE-377762-05.A5 377762-05	-
2 - FIELD 230V 240v BDE-373874-08.A20 373874-08	£24.39	£29.27
2 - FIELD 115V 115v BDE-373874-09.A5 373874-09	£19.90	£23.88
3 - NO LONGER AVAILABLE BDE-000000-00.A49351 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A49352 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A49353 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A49354 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A49355 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A49356 000000-00	-
9 - BEARING AXIAL BDE-324430-03.A90 324430-03	-
10 - WASHER 7 BDE-324431-03.A32 324431-03	-
11 - GEAR BDE-324155-00.A2 324155-00	-
12 - SLEEVE BDE-325232-01.A21 325232-01	£18.42	£22.10
13 - NO LONGER AVAILABLE BDE-000000-00.A81367 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A81368 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A81369 000000-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A81370 000000-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A81371 000000-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A81372 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A81373 000000-00	-
20 - O RING BDE-323711-25.A23 323711-25	£1.82	£2.19
21 - NO LONGER AVAILABLE BDE-000000-00.A81374 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A81375 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A81376 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A81377 000000-00	-
25 - WASHER BDE-323492-00.A48 323492-00	-
26 - BALL 7MM BDE-583890-00.A43 583890-00	£1.66	£1.99
28 - NO LONGER AVAILABLE BDE-000000-00.A81378 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A81379 000000-00	-
30 - SPRING BDE-871690.A235 871690	£1.66	£1.99
31 - WASHER BDE-578387-00.A268 578387-00	£1.66	£1.99
32 - NO LONGER AVAILABLE BDE-000000-00.A81380 000000-00	-
33 - NO LONGER AVAILABLE BDE-000000-00.A81381 000000-00	-
34 - O RING BDE-323711-07.A57 323711-07	£1.82	£2.19
35 - SEAL SA BDE-324432-00.A46 324432-00	£5.88	£7.06
36 - COLLAR BDE-576756-00.A74 576756-00	-
37 - SPACER BDE-323480-00.A56 323480-00	£1.82	£2.19
38 - CAP BDE-323489-00.A133 323489-00	£1.66	£1.99
39 - NO LONGER AVAILABLE BDE-000000-00.A81382 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A81383 000000-00	-
42 - NO LONGER AVAILABLE 240v BDE-000000-00.A81384 000000-00	-
42 - NO LONGER AVAILABLE 115v BDE-000000-00.A81385 000000-00	-
43 - SLEEVE BDE-870052.A101 870052	£1.50	£1.80
44 - BEARING BDE-330003-19.A86 330003-19	£2.78	£3.34
45 - NO LONGER AVAILABLE BDE-000000-00.A81386 000000-00	-
46 - BRUSH HOLDER BDE-323496-01.A21 323496-01	-
47 - NO LONGER AVAILABLE BDE-000000-00.A81387 000000-00	-
48 - BRUSH 230V 240v BDE-323660-01.A34 323660-01	£7.18	£8.62
48 - NO LONGER AVAILABLE 115v BDE-000000-00.A81388 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A81389 000000-00	-
50 - SCREW BDE-911026.A263 911026	£1.50	£1.80
51 - SWITCH REVERSE BDE-324400-00.A33 324400-00	-
53 - CORD CLAMP BDE-821070.A353 821070	£1.50	£1.80
54 - SCREW BDE-323924-08.A13 323924-08	£1.50	£1.80
55 - NO LONGER AVAILABLE BDE-000000-00.A81390 000000-00	-
56 - HANDLE SIDE SA BDE-939794-02.A113 939794-02	£14.57	£17.48
60 - DEPTH STOP BDE-580787-00.A186 580787-00	£1.50	£1.80
62 - CORDSET 240v BDE-324438-73.A33 324438-73	-
62 - NO LONGER AVAILABLE 115v BDE-000000-00.A81394 000000-00	-
63 - CAPACITOR BDE-320842-03.A18 320842-03	-
65 - NO LONGER AVAILABLE BDE-000000-00.A81391 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A81392 000000-00	-
67 - NO LONGER AVAILABLE BDE-000000-00.A81393 000000-00	-
68 - LEAD 360MM BDE-878846.A100 878846	£1.50	£1.80
69 - NO LONGER AVAILABLE BDE-000000-00.A81395 000000-00	-
70 - CONNECTOR BDE-323534-00.A78 323534-00	£1.50	£1.80
71 - NO LONGER AVAILABLE BDE-000000-00.A81403 000000-00	-
72 - SCREW BDE-324007-10.A18 324007-10	£1.50	£1.80
73 - NO LONGER AVAILABLE BDE-000000-00.A81396 000000-00	-
74 - NO LONGER AVAILABLE BDE-000000-00.A81397 000000-00	-
75 - NO LONGER AVAILABLE BDE-000000-00.A81398 000000-00	-
76 - NO LONGER AVAILABLE BDE-000000-00.A81399 000000-00	-
77 - NO LONGER AVAILABLE BDE-000000-00.A81400 000000-00	-
78 - NO LONGER AVAILABLE BDE-000000-00.A81401 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A81402 000000-00	-
81 - LEVER BDE-323490-08.A30 323490-08	-
82 - SCREW BDE-329794-00.A51 329794-00	£1.50	£1.80
83 - NO LONGER AVAILABLE BDE-000000-00.A81404 000000-00	-
800 - GREASE 90 GMS BDE-870889-02.A423 870889-02	£7.85	£9.42

Attribute Name	Value
Brand	Elu
