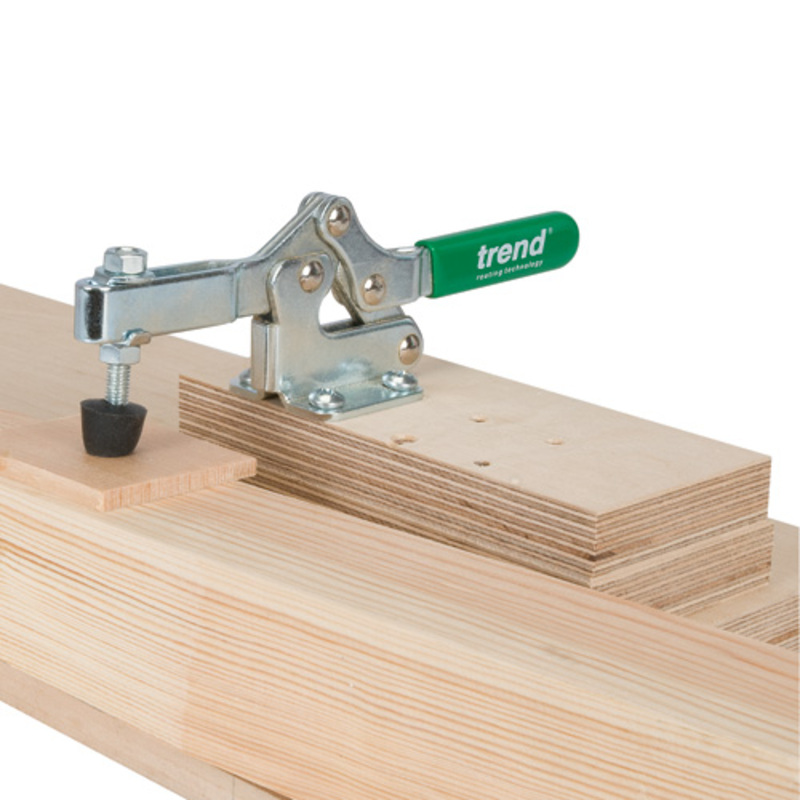

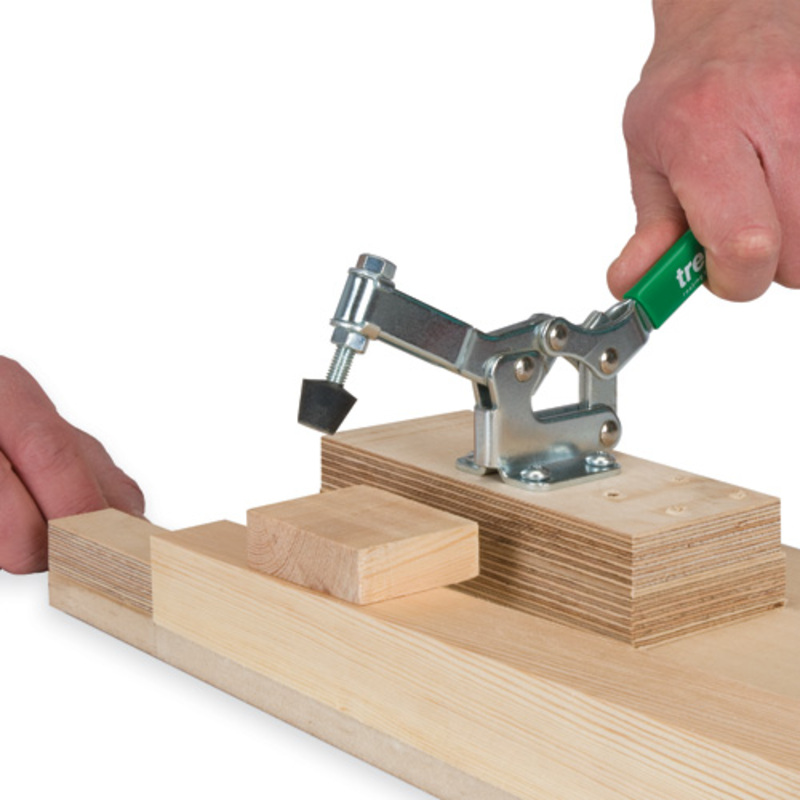

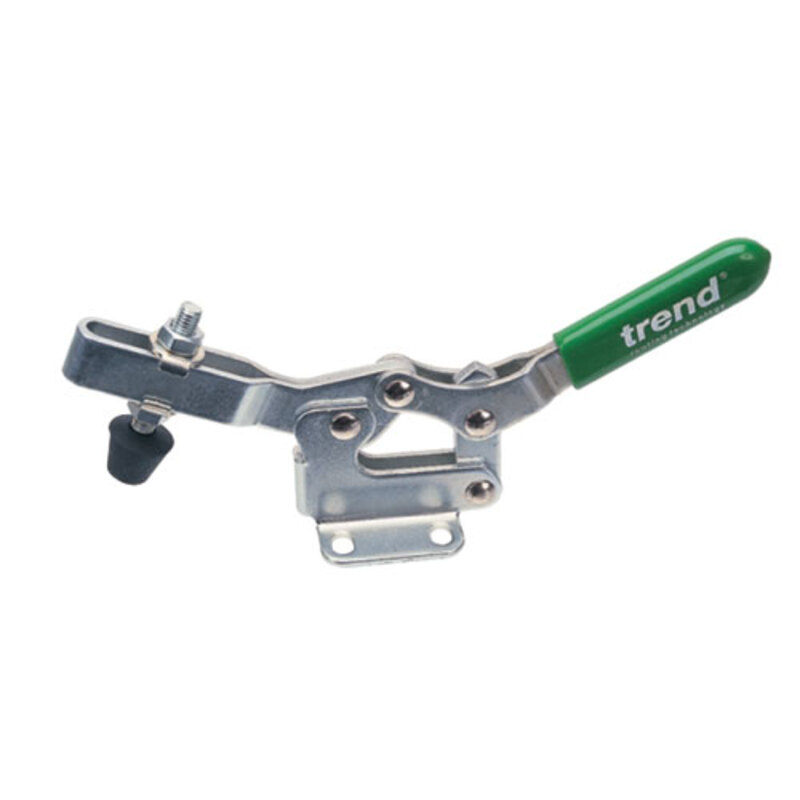

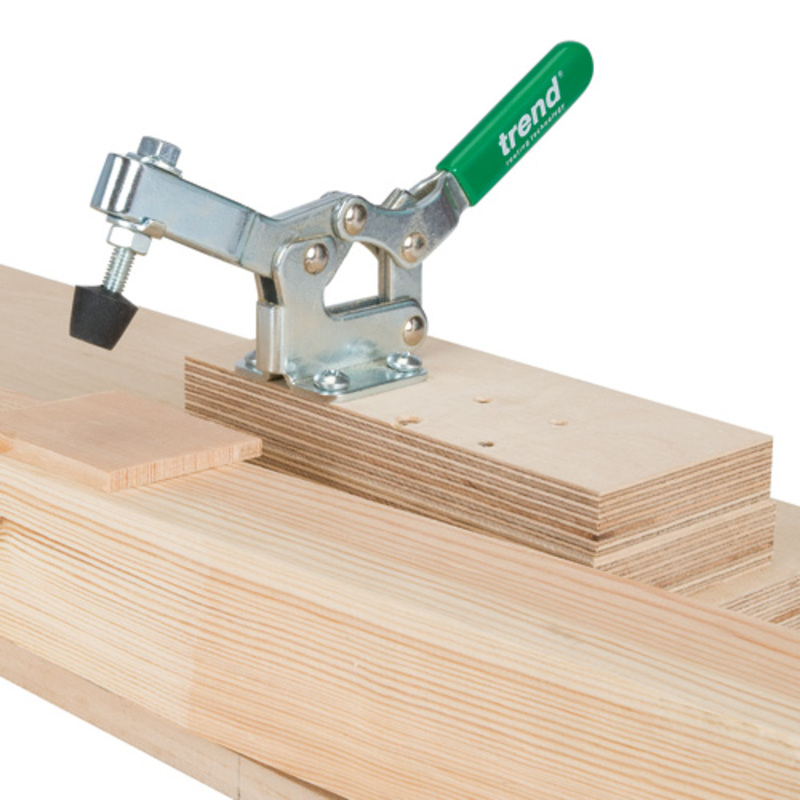

Trend CR/H150 Toggle Clamp 150 Kg Force

Economy range clamp ideal for securing workpiece either onto jigs or to the surface of the machine.

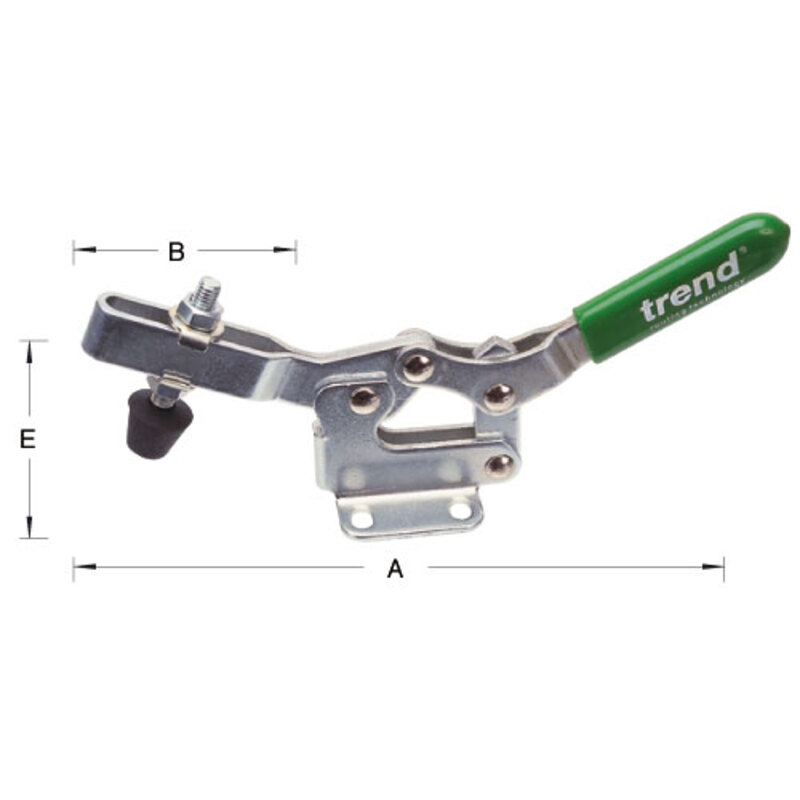

Specification:
Clamping force=150 kg
E=50 mm
A=160 mm
B=53 mm
Fixing hole spacing (length)=26.5 mm centre to centre
Fixing hole spacing (width)=25 mm centre to centre
Fixing hole width=8.5 mm
Bar throat height=23 mm
Max. thickness to pad=3 mm
Spindle thread height adjustment=10 mm
Pad subflush height adjustment=Minus 5 mm

	Ex VAT	Inc VAT
Trend CR/H150 Toggle Clamp 150 Kg Force CR/H150	£15.44	£18.53

Attribute Name	Value
Brand	Trend
