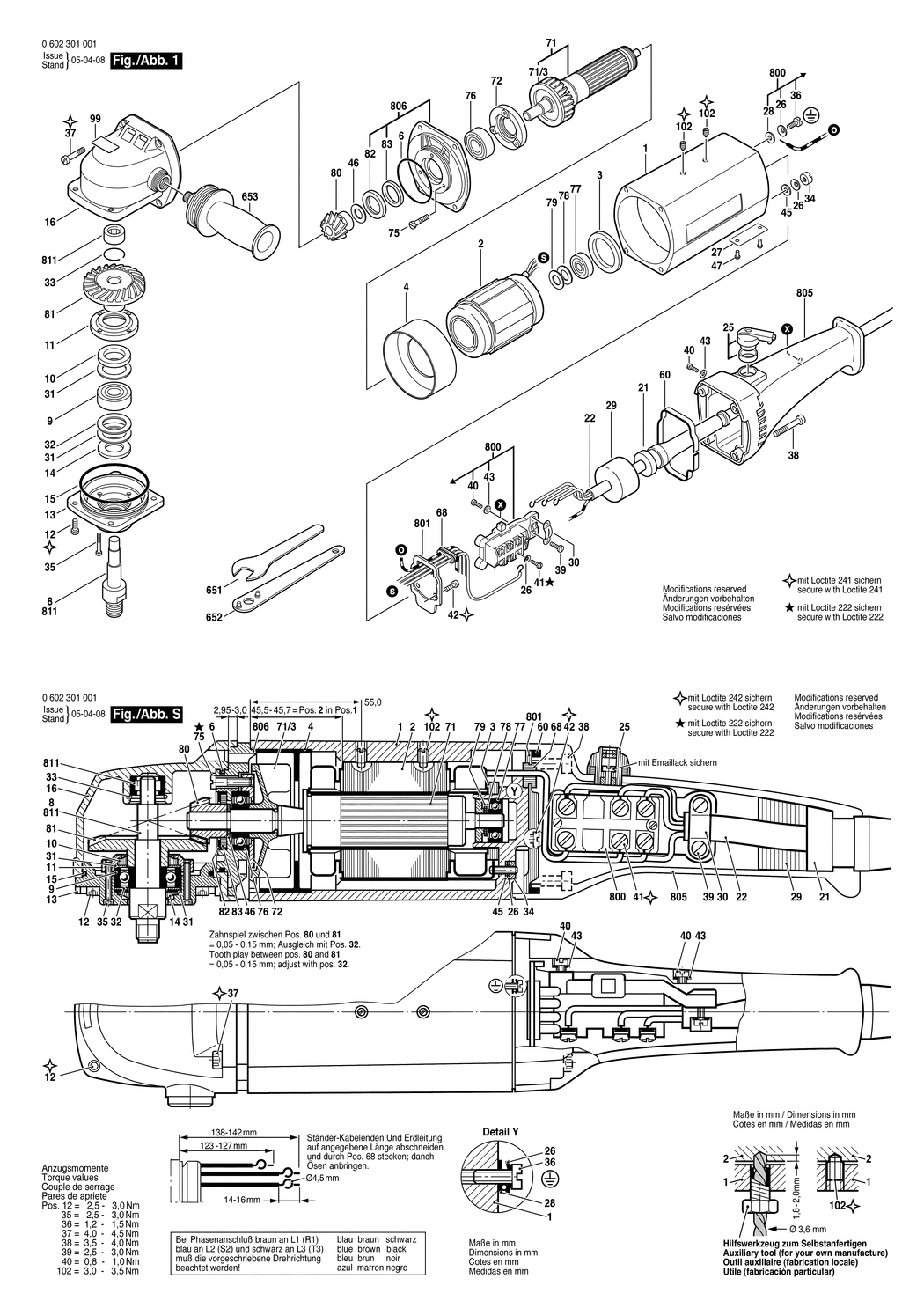

An exploded drawing and listing for the Bosch ---- / 0602301001 / --- 265 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102040.A86 3605102040 £218.41 £262.09
2 - STATOR 265V/200HZ BSD-1604229088.A10 1604229088 £357.27 £428.72
3 - SEAL RING BSD-1600209006.A50 1600209006 £2.80 £3.36
4 - AIR-DEFLECTOR RING BSD-1600209003.A78 1600209003 £8.13 £9.76
6 - O-RING 45x3MM BSD-1900210146.A104 1900210146 £4.26 £5.11
8 - DRILLING SPINDLE BSD-1603523028.A0 1603523028 -
9 - GROOVE BALL BEARING 12x32x10 BSD-1900905231.A37 1900905231 -
10 - FELT WASHER BSD-3600205002.A43 3600205002 £2.61 £3.13
11 - CONICAL SPRING WASHER BSD-1600521012.A0 1600521012 -
12 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8 BSD-2910141122.A97 2910141122 £2.16 £2.59
13 - BEARING FLANGE BSD-1605805036.A0 1605805036 -
14 - SEALING DISK BSD-1600108034.A4 1600108034 -
15 - O-RING 54.0x3.0 MM BSD-1600210004.A0 1600210004 £2.80 £3.36
16 - GEAR HOUSING BSD-1605806165.A4 1605806165 -
21 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A639 1600703009 £5.58 £6.70
22 - ELEC. CABLE W/CONNECTION BSD-3607030236.A78 3607030236 £61.98 £74.38
25 - CONTROL LEVER BSD-1602026030.A106 1602026030 £10.10 £12.12
26 - SPRING WASHER DIN 137-A4 BSD-1600150006.A254 1600150006 -
27 - NAMEPLATE BSD-3601106053.A509 3601106053 £5.30 £6.36
28 - PLAIN WASHER A 4.3 DIN 125-ST BSD-2916010410.A3 2916010410 -
29 - SEALING PLATE BSD-1600113003.A174 1600113003 £2.80 £3.36
30 - FASTENING CLAMP BSD-1601302013.A4 1601302013 £1.75 £2.10
31 - SHIM 0.3 MM BSD-1600102627.A9 1600102627 -
32 - SHIM 0.15 MM BSD-1600102625.A4 1600102625 -
32 - SHIM 0.1 MM BSD-1600102626.A40 1600102626 £2.16 £2.59
32 - SHIM 0.3 MM BSD-1600102627.A8 1600102627 -
33 - RETAINING RING BSD-1604601008.A4 1604601008 -
34 - SLOTTED ROUND NUT DIN 546-M4x3.5 BSD-2915161006.A2 2915161006 -
35 - HEX SOCKET HEAD CAP SCREW DIN 912-M3X20-8.8 BSD-2910141062.A4 2910141062 -
36 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A100 2910110120 £1.75 £2.10
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8 BSD-2910141162.A18 2910141162 £2.16 £2.59
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8 BSD-2910141166.A175 2910141166 £1.75 £2.10
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A667 2910021122 £2.16 £2.59
40 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A599 2910211006 £1.75 £2.10
41 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A413 2910091118 £1.75 £2.10
42 - SOCKET HEAD CAP SCREW BSD-3603450008.A47 3603450008 £2.16 £2.59
43 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A368 2916011005 £1.75 £2.10
45 - PLAIN WASHER 4.3 DIN 433-ST BSD-2916011009.A25 2916011009 -
46 - SHIM 0.1 MM BSD-1600100004.A4 1600100004 -
47 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A473 3603133001 £2.61 £3.13
60 - SEALING CORD BSD-1601014000.A54 1601014000 £2.80 £3.36
68 - GROMMET BSD-1600306001.A328 1600306001 £2.61 £3.13
71 - ROTOR WITHOUT WINDING BSD-1604080053.A99 1604080053 £134.16 £160.99
71/3 - FAN BSD-1606610108.A0 1606610108 £13.12 £15.75
72 - CONICAL SPRING WASHER BSD-1600501025.A76 1600501025 £33.74 £40.49
75 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A360 2910011128 £1.75 £2.10
76 - GROOVE BALL BEARING 12x28x8 BSD-2600905013.A26 2600905013 -
77 - BALL BEARING 7x22x7 BSD-1900905018.A621 1900905018 £18.96 £22.75
78 - SHIM 0.2 MM BSD-1600100632.A71 1600100632 £1.75 £2.10
79 - SHIM 0.10 MM BSD-1420100023.A32 1420100023 -
80 - BEVEL GEAR Z=15 BSD-1606333091.A0 1606333091 -
81 - BEVEL GEAR Z=44 BSD-1606333092.A4 1606333092 -
82 - RETAINING SNAP RING BSD-1610500004.A7 1610500004 -
83 - FELT DISC BSD-1600108003.A0 1600108003 £1.32 £1.58
99 - REFERENCE PLATE BSD-3601119236.A1164 3601119236 £3.72 £4.47
102 - SET SCREW BSD-1603402002.A155 1603402002 £1.75 £2.10
651 - SINGLE-HEAD ENG. WRENCH SW 14 BSD-1907950508.A93 1907950508 £14.91 £17.89
652 - PIN-TYPE FACE-WRENCH SW6-HL8-N6 BSD-1607950007.A5 1607950007 -
653 - AUXILIARY HANDLE M14 BSD-1602025022.A77 1602025022 £13.41 £16.09
653 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A581 1602025030 £18.96 £22.75
800 - SWITCH KIT BSD-1607000036.A80 1607000036 -
801 - SEALING PLATE BSD-1602388007.A167 1602388007 £12.04 £14.45
805 - HANDLE BSD-3605132048.A37 3605132048 £63.50 £76.20
806 - GRINDING SPINDLE BSD-3607031154.A0 3607031154 -
811 - GRINDING SPINDLE BSD-3607031158.A4 3607031158 -
