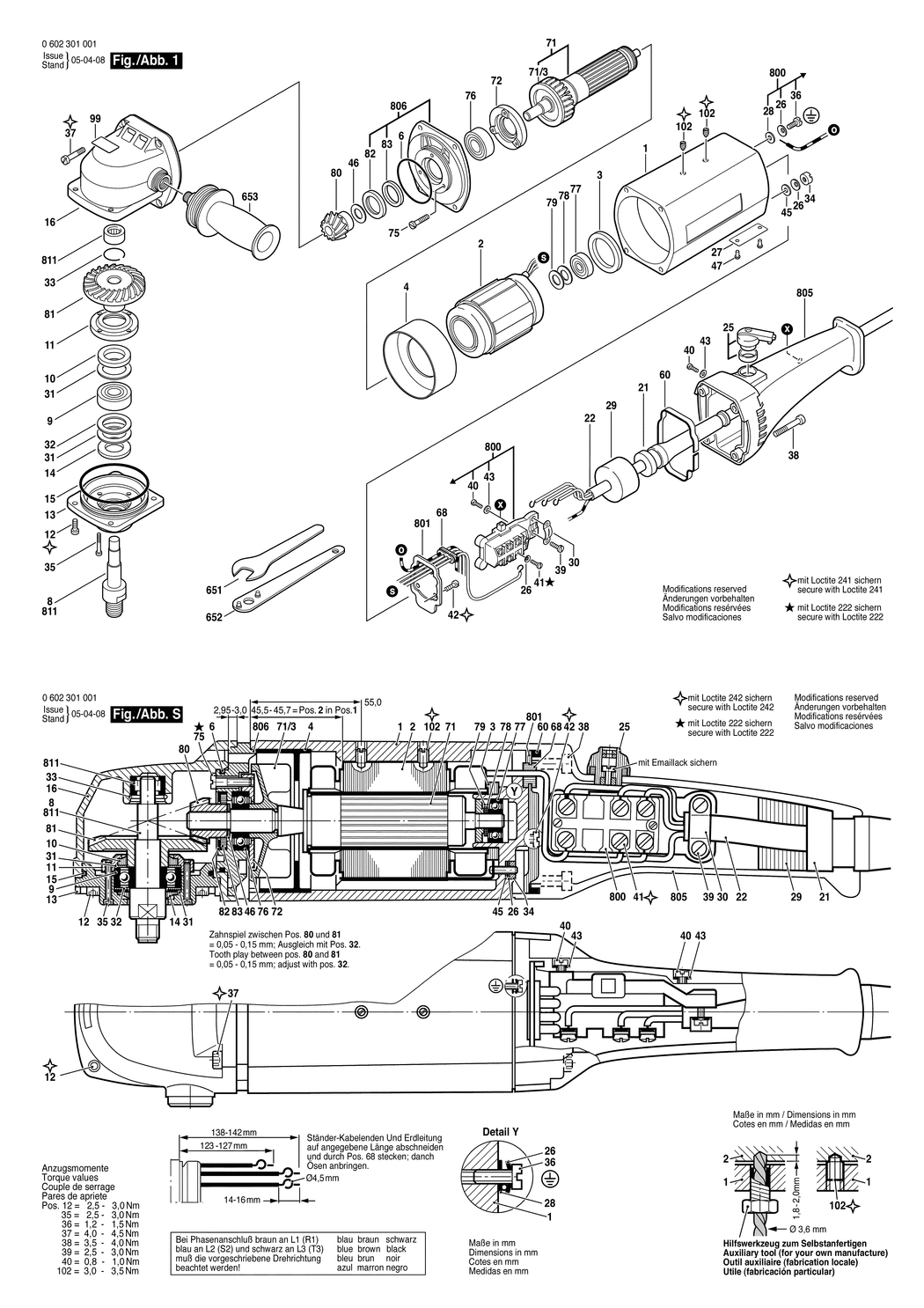

1 - MOTOR HOUSING
BSD-3605102040.A88
3605102040
|
£218.41
|
£262.09
|
|
2 - STATOR 72V/200HZ.110V/300HZ
BSD-1604229090.A5
1604229090
|
£306.65
|
£367.98
|
|
3 - SEAL RING
BSD-1600209006.A47
1600209006
|
£2.80
|
£3.36
|
|
4 - AIR-DEFLECTOR RING
BSD-1600209003.A81
1600209003
|
£8.13
|
£9.76
|
|
6 - O-RING 45x3MM
BSD-1900210146.A102
1900210146
|
£4.26
|
£5.11
|
|
8 - DRILLING SPINDLE
BSD-1603523028.A3
1603523028
|
-
|
|
|
9 - GROOVE BALL BEARING 12x32x10
BSD-1900905231.A35
1900905231
|
-
|
|
|
10 - FELT WASHER
BSD-3600205002.A46
3600205002
|
£2.61
|
£3.13
|
|
11 - CONICAL SPRING WASHER
BSD-1600521012.A2
1600521012
|
-
|
|
|
12 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8
BSD-2910141122.A95
2910141122
|
£2.16
|
£2.59
|
|
13 - BEARING FLANGE
BSD-1605805036.A3
1605805036
|
-
|
|
|
14 - SEALING DISK
BSD-1600108034.A1
1600108034
|
-
|
|
|
15 - O-RING 54.0x3.0 MM
BSD-1600210004.A3
1600210004
|
£2.80
|
£3.36
|
|
16 - GEAR HOUSING
BSD-1605806165.A1
1605806165
|
-
|
|
|
21 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A632
1600703009
|
£5.58
|
£6.70
|
|
22 - ELEC. CABLE W/CONNECTION
BSD-3607030236.A82
3607030236
|
£61.98
|
£74.38
|
|
25 - CONTROL LEVER
BSD-1602026030.A103
1602026030
|
£10.10
|
£12.12
|
|
26 - SPRING WASHER DIN 137-A4
BSD-1600150006.A252
1600150006
|
-
|
|
|
27 - NAMEPLATE
BSD-3601106053.A506
3601106053
|
£5.30
|
£6.36
|
|
28 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A1
2916010410
|
-
|
|
|
29 - SEALING PLATE
BSD-1600113003.A177
1600113003
|
£2.80
|
£3.36
|
|
30 - FASTENING CLAMP
BSD-1601302013.A7
1601302013
|
£1.75
|
£2.10
|
|
31 - SHIM 0.3 MM
BSD-1600102627.A3
1600102627
|
-
|
|
|
32 - SHIM 0.15 MM
BSD-1600102625.A1
1600102625
|
-
|
|
|
32 - SHIM 0.1 MM
BSD-1600102626.A43
1600102626
|
£2.16
|
£2.59
|
|
32 - SHIM 0.3 MM
BSD-1600102627.A2
1600102627
|
-
|
|
|
33 - RETAINING RING
BSD-1604601008.A1
1604601008
|
-
|
|
|
34 - SLOTTED ROUND NUT DIN 546-M4x3.5
BSD-2915161006.A5
2915161006
|
-
|
|
|
35 - HEX SOCKET HEAD CAP SCREW DIN 912-M3X20-8.8
BSD-2910141062.A1
2910141062
|
-
|
|
|
36 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A103
2910110120
|
£1.75
|
£2.10
|
|
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8
BSD-2910141162.A15
2910141162
|
£2.16
|
£2.59
|
|
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8
BSD-2910141166.A178
2910141166
|
£1.75
|
£2.10
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A670
2910021122
|
£2.16
|
£2.59
|
|
40 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A596
2910211006
|
£1.75
|
£2.10
|
|
41 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A410
2910091118
|
£1.75
|
£2.10
|
|
42 - SOCKET HEAD CAP SCREW
BSD-3603450008.A50
3603450008
|
£2.16
|
£2.59
|
|
43 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A372
2916011005
|
£1.75
|
£2.10
|
|
45 - PLAIN WASHER 4.3 DIN 433-ST
BSD-2916011009.A21
2916011009
|
-
|
|
|
46 - SHIM 0.1 MM
BSD-1600100004.A1
1600100004
|
-
|
|
|
47 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A470
3603133001
|
£2.61
|
£3.13
|
|
60 - SEALING CORD
BSD-1601014000.A51
1601014000
|
£2.80
|
£3.36
|
|
68 - GROMMET
BSD-1600306001.A325
1600306001
|
£2.61
|
£3.13
|
|
71 - ROTOR WITHOUT WINDING
BSD-1604080053.A96
1604080053
|
£134.16
|
£160.99
|
|
71/3 - FAN
BSD-1606610108.A3
1606610108
|
£13.12
|
£15.75
|
|
72 - CONICAL SPRING WASHER
BSD-1600501025.A79
1600501025
|
£33.74
|
£40.49
|
|
75 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8
BSD-2910011128.A357
2910011128
|
£1.75
|
£2.10
|
|
76 - GROOVE BALL BEARING 12x28x8
BSD-2600905013.A29
2600905013
|
-
|
|
|
77 - BALL BEARING 7x22x7
BSD-1900905018.A618
1900905018
|
£18.96
|
£22.75
|
|
78 - SHIM 0.2 MM
BSD-1600100632.A74
1600100632
|
£1.75
|
£2.10
|
|
79 - SHIM 0.10 MM
BSD-1420100023.A35
1420100023
|
-
|
|
|
80 - BEVEL GEAR Z=15
BSD-1606333091.A3
1606333091
|
-
|
|
|
81 - BEVEL GEAR Z=44
BSD-1606333092.A1
1606333092
|
-
|
|
|
82 - RETAINING SNAP RING
BSD-1610500004.A4
1610500004
|
-
|
|
|
83 - FELT DISC
BSD-1600108003.A3
1600108003
|
£1.32
|
£1.58
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1167
3601119236
|
£3.72
|
£4.47
|
|
102 - SET SCREW
BSD-1603402002.A152
1603402002
|
£1.75
|
£2.10
|
|
651 - SINGLE-HEAD ENG. WRENCH SW 14
BSD-1907950508.A90
1907950508
|
£14.91
|
£17.89
|
|
652 - PIN-TYPE FACE-WRENCH SW6-HL8-N6
BSD-1607950007.A8
1607950007
|
-
|
|
|
653 - AUXILIARY HANDLE M14
BSD-1602025022.A74
1602025022
|
£13.41
|
£16.09
|
|
653 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A584
1602025030
|
£18.96
|
£22.75
|
|
800 - SWITCH KIT
BSD-1607000036.A77
1607000036
|
-
|
|
|
801 - SEALING PLATE
BSD-1602388007.A170
1602388007
|
£12.04
|
£14.45
|
|
805 - HANDLE
BSD-3605132048.A40
3605132048
|
£63.50
|
£76.20
|
|
806 - GRINDING SPINDLE
BSD-3607031154.A3
3607031154
|
-
|
|
|
811 - GRINDING SPINDLE
BSD-3607031158.A1
3607031158
|
-
|
|
|
