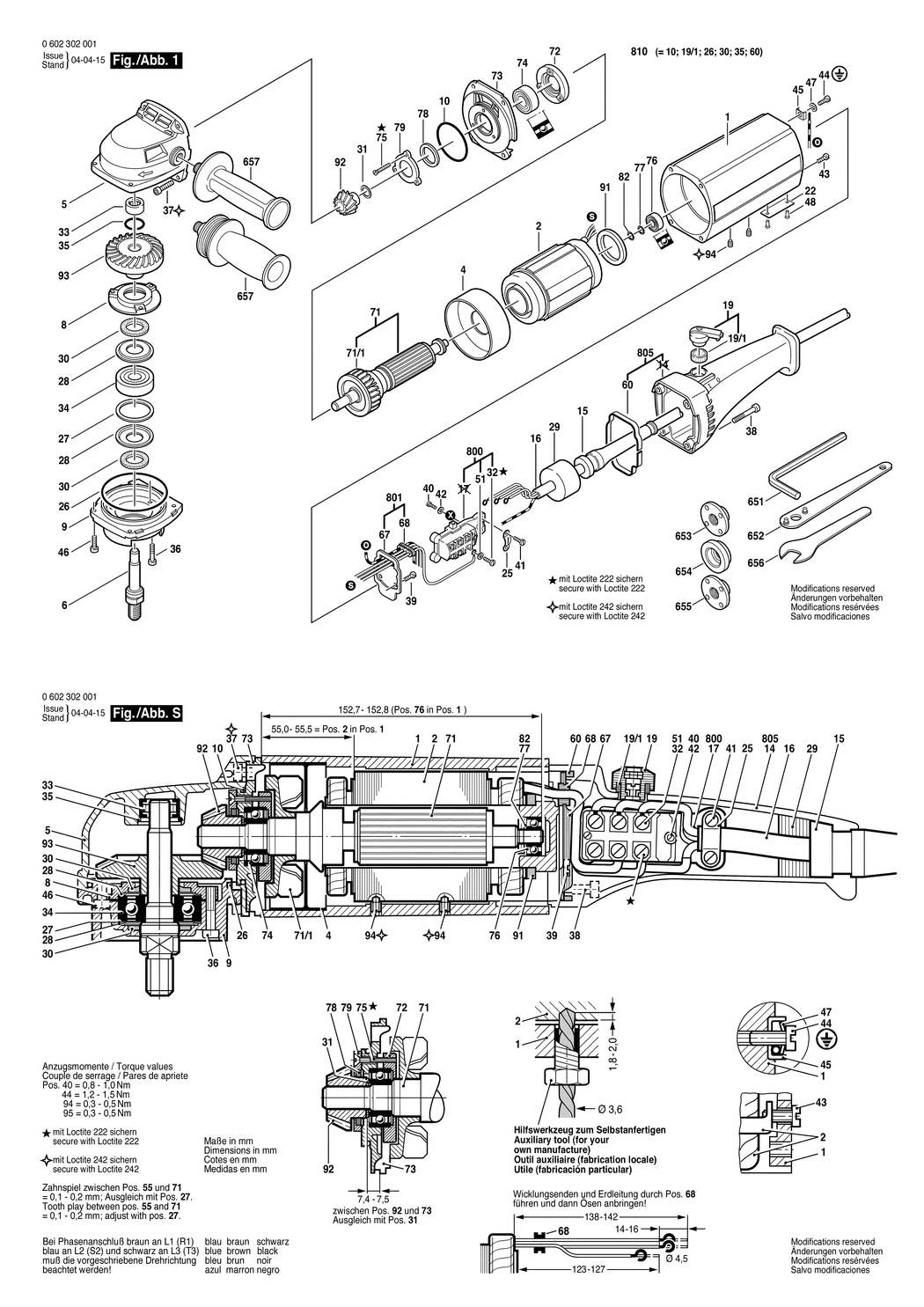

1 - MOTOR HOUSING
BSD-3605102081.A11
3605102081
|
£156.22
|
£187.46
|
|
|
2 - STATOR 200V/300HZ.135V/200HZ
BSD-1604229099.A18
1604229099
|
£410.78
|
£492.94
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600209002.A50
1600209002
|
£5.30
|
£6.36
|
|
|
5 - GEAR HOUSING
BSD-3605806104.A17
3605806104
|
-
|
|
|
|
6 - GRINDING SPINDLE M14x1.5 MM
BSD-1603523032.A203
1603523032
|
£37.27
|
£44.72
|
|
|
8 - CONICAL SPRING WASHER
BSD-1600521013.A0
1600521013
|
-
|
|
|
|
9 - BEARING FLANGE
BSD-3607030375.A55
3607030375
|
£195.26
|
£234.31
|
|
|
10 - O-RING 45x3MM
BSD-1900210146.A88
1900210146
|
£4.26
|
£5.11
|
|
|
15 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A627
1600703009
|
£5.58
|
£6.70
|
|
|
16 - ELEC. CABLE W/CONNECTION
BSD-3607030236.A89
3607030236
|
£61.98
|
£74.38
|
|
|
19 - CONTROL LEVER
BSD-1602026030.A96
1602026030
|
£10.10
|
£12.12
|
|
|
19/1 - FELT WASHER
BSD-1600205008.A193
1600205008
|
£1.75
|
£2.10
|
|
|
22 - NAMEPLATE
BSD-3601106053.A486
3601106053
|
£5.30
|
£6.36
|
|
|
25 - FASTENING CLAMP
BSD-1601303003.A405
1601303003
|
£2.16
|
£2.59
|
|
|
26 - O-RING 66.0x3.0 MM
BSD-1600210005.A256
1600210005
|
£2.80
|
£3.36
|
|
|
27 - SHIM 0.05 MM
BSD-1600102638.A190
1600102638
|
£3.34
|
£4.01
|
|
|
27 - SHIM 0.1 MM
BSD-1600102639.A44
1600102639
|
-
|
|
|
|
27 - SHIM 0.15 MM
BSD-1600102640.A190
1600102640
|
-
|
|
|
|
28 - PLAIN WASHER
BSD-2100551000.A9
2100551000
|
-
|
|
|
|
29 - SEALING PLATE
BSD-1600113003.A169
1600113003
|
£2.80
|
£3.36
|
|
|
30 - SEALING DISK
BSD-1600108048.A80
1600108048
|
£1.75
|
£2.10
|
|
|
31 - SHIM 0.1 MM
BSD-1600101616.A125
1600101616
|
£2.61
|
£3.13
|
|
|
31 - SHIM 0.2 MM
BSD-1600101617.A73
1600101617
|
£1.75
|
£2.10
|
|
|
31 - SHIM 0.3 MM
BSD-1600101618.A181
1600101618
|
£2.61
|
£3.13
|
|
|
31 - SHIM 0.05 MM
BSD-1600101619.A71
1600101619
|
£2.16
|
£2.59
|
|
|
32 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A415
2910091118
|
£1.75
|
£2.10
|
|
|
33 - NEEDLE BEARING dia22x11.3 MM
BSD-1600910010.A197
1600910010
|
£45.67
|
£54.80
|
|
|
34 - GROOVE BALL BEARING 17x47x14
BSD-1900900352.A214
1900900352
|
£27.23
|
£32.68
|
|
|
35 - RETAINING RING dia22 MM
BSD-2916620011.A290
2916620011
|
£1.75
|
£2.10
|
|
|
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8
BSD-2910141164.A33
2910141164
|
£2.16
|
£2.59
|
|
|
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8
BSD-2910141162.A1
2910141162
|
£2.16
|
£2.59
|
|
|
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8
BSD-2910141166.A165
2910141166
|
£1.75
|
£2.10
|
|
|
39 - SOCKET HEAD CAP SCREW
BSD-3603450008.A40
3603450008
|
£2.16
|
£2.59
|
|
|
40 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A609
2910211006
|
£1.75
|
£2.10
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1307
2910021118
|
£1.75
|
£2.10
|
|
|
42 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A382
2916011005
|
£1.75
|
£2.10
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8
BSD-2910021120.A40
2910021120
|
£1.75
|
£2.10
|
|
|
44 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A115
2910110120
|
£1.75
|
£2.10
|
|
|
45 - CLAMPING SADDLE
BSD-3601321001.A482
3601321001
|
£3.72
|
£4.47
|
|
|
46 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8
BSD-2910141158.A16
2910141158
|
£1.75
|
£2.10
|
|
|
47 - SPRING WASHER dia4.2 MM
BSD-3600150006.A883
3600150006
|
£2.61
|
£3.13
|
|
|
48 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A483
3603133001
|
£2.61
|
£3.13
|
|
|
51 - SPRING WASHER DIN 137-A4
BSD-1600150006.A258
1600150006
|
-
|
|
|
|
60 - SEALING CORD
BSD-1601014000.A41
1601014000
|
£2.80
|
£3.36
|
|
|
67 - SEALING PLATE
BSD-1602388006.A95
1602388006
|
£5.58
|
£6.70
|
|
|
68 - GROMMET
BSD-1600306001.A317
1600306001
|
£2.61
|
£3.13
|
|
|
71 - ROTOR WITHOUT WINDING
BSD-1604080032.A60
1604080032
|
£195.26
|
£234.31
|
|
|
72 - BEARING COVER
BSD-1600501019.A522
1600501019
|
£23.86
|
£28.63
|
|
|
73 - BEARING FLANGE
BSD-3605820064.A75
3605820064
|
£68.42
|
£82.10
|
|
|
74 - GROOVE BALL BEARING 15x35x11
BSD-1900905234.A125
1900905234
|
£31.64
|
£37.97
|
|
|
75 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x20-8.8
BSD-2910511130.A111
2910511130
|
-
|
|
|
|
76 - BALL BEARING 7x22x7
BSD-1900905018.A631
1900905018
|
£18.96
|
£22.75
|
|
|
77 - SHIM 0.2 MM
BSD-1600100632.A84
1600100632
|
£1.75
|
£2.10
|
|
|
78 - FELT DISC
BSD-1600108018.A151
1600108018
|
£2.61
|
£3.13
|
|
|
79 - COVER DISC
BSD-1600501024.A9
1600501024
|
£16.41
|
£19.69
|
|
|
82 - SHIM 0.10 MM
BSD-1420100023.A39
1420100023
|
-
|
|
|
|
91 - SEAL RING
BSD-1600209004.A62
1600209004
|
£2.80
|
£3.36
|
|
|
92 - BEVEL GEAR Z=30
BSD-1606333084.A0
1606333084
|
-
|
|
|
|
93 - BEVEL GEAR Z=33
BSD-1606333083.A5
1606333083
|
-
|
|
|
|
94 - SET SCREW
BSD-1603402002.A137
1603402002
|
£1.75
|
£2.10
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1188
3601119236
|
£3.72
|
£4.47
|
|
|
651 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A469
1907950007
|
£5.30
|
£6.36
|
|
|
652 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A79
1607950061
|
£5.42
|
£6.50
|
|
|
654 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A271
2600501006
|
£16.43
|
£19.72
|
|
|
655 - ROUND NUT M14
BSD-2603345004.A290
2603345004
|
£6.52
|
£7.83
|
|
|
656 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A687
2607950511
|
£4.26
|
£5.11
|
|
|
657 - AUXILIARY HANDLE M14
BSD-1602025022.A68
1602025022
|
£13.41
|
£16.09
|
|
|
657 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A591
1602025030
|
£18.96
|
£22.75
|
|
|
800 - SWITCH KIT
BSD-1607000036.A91
1607000036
|
-
|
|
|
|
801 - SEALING PLATE
BSD-1602388007.A160
1602388007
|
£12.04
|
£14.45
|
|
|
805 - HANDLE
BSD-3605132048.A45
3605132048
|
£63.50
|
£76.20
|
|
|
810 - SEAL KIT
BSD-1607000039.A17
1607000039
|
£13.12
|
£15.75
|
|
