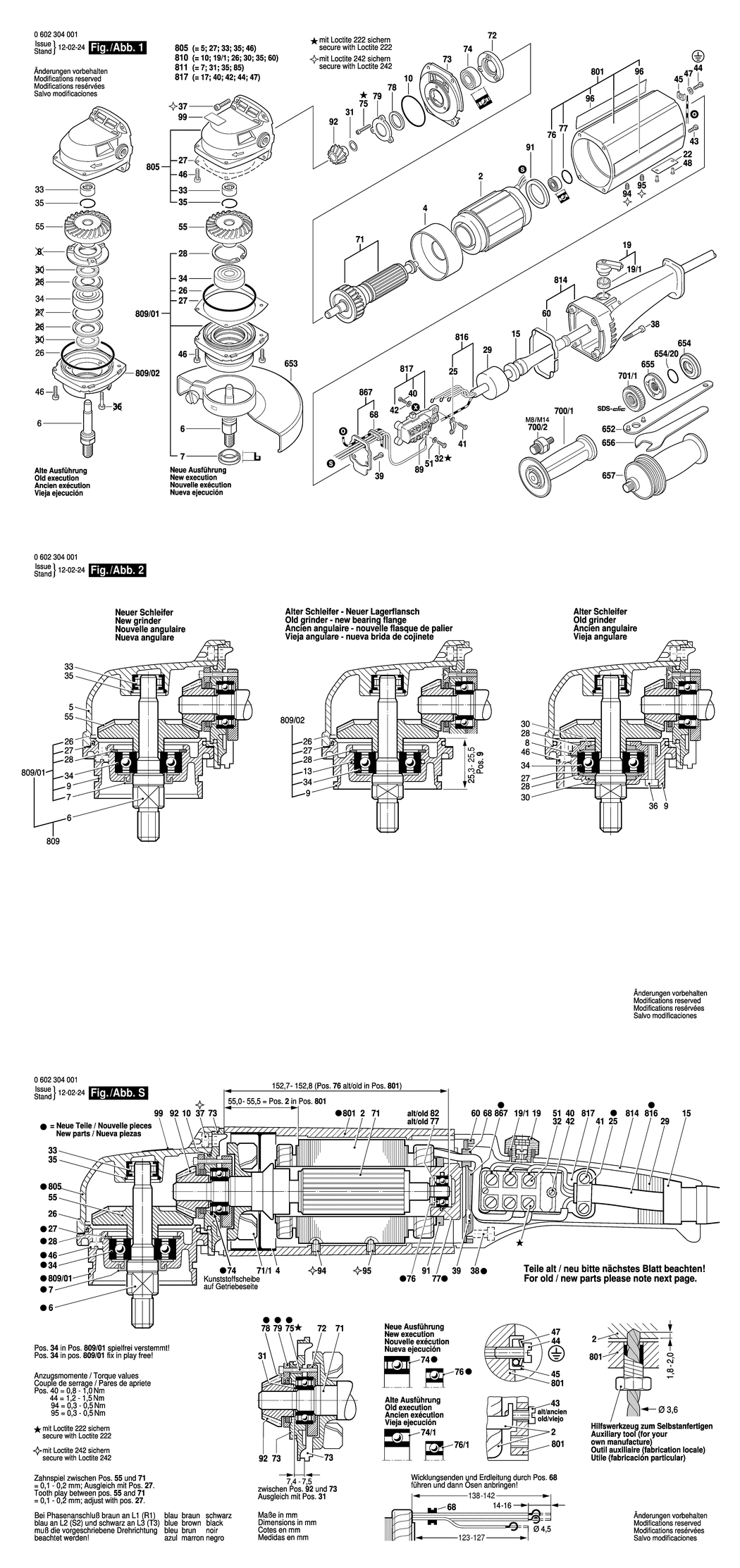

An exploded drawing and listing for the Bosch ---- / 0602304034 / ---
Ex VAT Inc VAT
2 - STATOR 200V/300HZ.135V/200HZ BSD-1604229099.A3 1604229099 £410.78 £492.94
4 - AIR-DEFLECTOR RING BSD-1600209002.A21 1600209002 £5.30 £6.36
6 - GRINDING SPINDLE BSD-3603523032.A10 3603523032 £54.42 £65.30
7 - SEAL RING BSD-1600290020.A191 1600290020 £1.75 £2.10
10 - O-RING 45x3MM BSD-1900210146.A77 1900210146 £4.26 £5.11
15 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A565 1600703009 £5.58 £6.70
19 - CONTROL LEVER BSD-1602026030.A72 1602026030 £10.10 £12.12
19/1 - FELT WASHER BSD-1600205008.A173 1600205008 £1.75 £2.10
22 - NAMEPLATE BSD-3601106053.A478 3601106053 £5.30 £6.36
25 - FASTENING CLAMP BSD-1601303003.A300 1601303003 £2.16 £2.59
26 - O-RING 66.0x3.0 MM BSD-1600210005.A280 1600210005 £2.80 £3.36
27 - SHIM BSD-3600100075.A37 3600100075 £11.30 £13.56
27 - SHIM BSD-3600100076.A11 3600100076 £11.30 £13.56
27 - SHIM BSD-3600100077.A37 3600100077 £12.04 £14.45
28 - SPRING RETAINING RING BSD-3603435038.A42 3603435038 £2.61 £3.13
29 - SEALING PLATE BSD-1600113003.A148 1600113003 £2.80 £3.36
30 - SEALING DISK BSD-1600108055.A146 1600108055 £1.75 £2.10
31 - SHIM 0.1 MM BSD-1600101616.A117 1600101616 £2.61 £3.13
31 - SHIM 0.2 MM BSD-1600101617.A81 1600101617 £1.75 £2.10
31 - SHIM 0.3 MM BSD-1600101618.A173 1600101618 £2.61 £3.13
31 - SHIM 0.05 MM BSD-1600101619.A79 1600101619 £2.16 £2.59
32 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A9 2910110120 £1.75 £2.10
33 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A222 1600910010 £45.67 £54.80
34 - GROOVE BALL BEARING 6303-2RS1 BSD-3608870382.A3 3608870382 £31.64 £37.97
35 - RETAINING RING dia22 MM BSD-2916620011.A306 2916620011 £1.75 £2.10
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910141164.A43 2910141164 £2.16 £2.59
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8 BSD-2910141162.A33 2910141162 £2.16 £2.59
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8 BSD-2910141166.A150 2910141166 £1.75 £2.10
39 - SOCKET HEAD CAP SCREW BSD-3603450008.A11 3603450008 £2.16 £2.59
40 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A633 2910211006 £1.75 £2.10
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1414 2910021118 £1.75 £2.10
42 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A440 2916011005 £1.75 £2.10
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910021120.A37 2910021120 £1.75 £2.10
44 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A8 2910110120 £1.75 £2.10
45 - CLAMPING SADDLE BSD-3601321001.A361 3601321001 £3.72 £4.47
46 - THREAD-FORMING TAP. SCREW BSD-3603435004.A20 3603435004 £2.80 £3.36
47 - SPRING WASHER dia4.2 MM BSD-3600150006.A698 3600150006 £2.61 £3.13
48 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A425 3603133001 £2.61 £3.13
51 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A439 2916011005 £1.75 £2.10
55 - BEVEL GEAR Z=46 BSD-1606333051.A27 1606333051 £93.88 £112.65
60 - SEALING CORD BSD-1601014000.A11 1601014000 £2.80 £3.36
68 - GROMMET BSD-1600306001.A256 1600306001 £2.61 £3.13
71 - ROTOR WITHOUT WINDING BSD-1604080032.A45 1604080032 £195.26 £234.31
72 - BEARING COVER BSD-1600501019.A505 1600501019 £23.86 £28.63
73 - BEARING FLANGE BSD-3605820064.A85 3605820064 £68.42 £82.10
74 - GROOVE BALL BEARING BSD-3600905095.A37 3600905095 £21.52 £25.83
75 - TORX FLAT-HEAD SCREW M4x20 BSD-3603435051.A6 3603435051 £1.75 £2.10
76 - GROOVE BALL BEARING 7x22x7 BSD-3600905147.A66 3600905147 £13.12 £15.75
77 - O-RING 22x2 MM BSD-1900210321.A100 1900210321 £5.30 £6.36
78 - FELT DISC BSD-1600108018.A165 1600108018 £2.61 £3.13
79 - COVER DISC BSD-1600501024.A26 1600501024 £16.41 £19.69
89 - END SPLICE BSD-3604477008.A62 3604477008 £1.75 £2.10
91 - SEAL RING BSD-1600209004.A29 1600209004 £2.80 £3.36
92 - BEVEL GEAR Z=22 BSD-1606333050.A23 1606333050 £410.78 £492.94
94 - SET SCREW BSD-1603402002.A114 1603402002 £1.75 £2.10
95 - SET SCREW BSD-1603402004.A131 1603402004 £2.61 £3.13
96 - MANUFACTURER'S NAMEPLATE BSD-3601110047.A246 3601110047 £2.80 £3.36
99 - REFERENCE PLATE BSD-3601119236.A1144 3601119236 £3.72 £4.47
652 - PIN-TYPE FACE-WRENCH BSD-1607950061.A98 1607950061 £5.42 £6.50
653 - PROTECTIVE COVER dia180 MM BSD-1600A00XL9.A50 1600A00XL9 £21.52 £25.83
654 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A707 2605703014 £7.36 £8.83
655 - ROUND NUT M14 BSD-1603345043.A485 1603345043 £8.67 £10.41
656 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A656 2607950511 £4.26 £5.11
657 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A653 1602025030 £18.96 £22.75
700/1 - AUXILIARY HANDLE BSD-160202507H.A524 160202507H £11.30 £13.56
700/2 - ADAPTER M8/M14 BSD-3603523013.A112 3603523013 £16.41 £19.69
701/1 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A390 1603340027 £46.82 £56.18
801 - MOTOR HOUSING BSD-3605102079.A53 3605102079 £179.37 £215.24
805 - GEAR HOUSING BSD-3607030321.A2 3607030321 £283.50 £340.20
809/01 - BEARING FLANGE BSD-3607030376.A30 3607030376 £120.11 £144.13
809/02 - BEARING FLANGE BSD-3607030375.A43 3607030375 £195.26 £234.31
810 - SEAL KIT BSD-1607000039.A7 1607000039 £13.12 £15.75
811 - SEAL KIT BSD-1607000044.A22 1607000044 £9.49 £11.39
814 - HANDLE BSD-3605132048.A30 3605132048 £63.50 £76.20
816 - ELEC. CABLE W/CONNECTION BSD-3607030236.A46 3607030236 £61.98 £74.38
817 - SWITCH KIT BSD-1607000036.A146 1607000036 -
867 - SEALING PLATE BSD-1602388007.A232 1602388007 £12.04 £14.45
