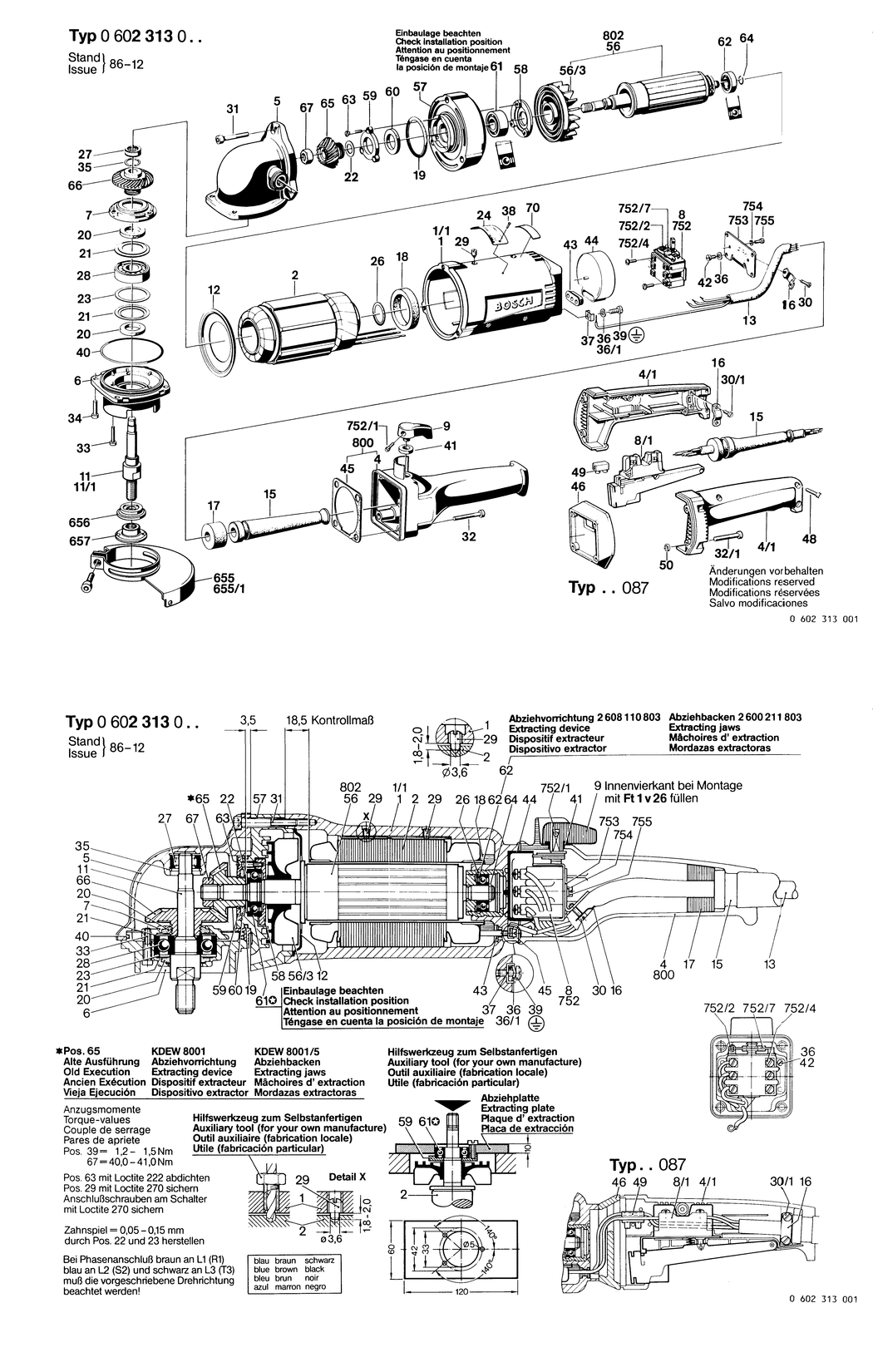

An exploded drawing and listing for the Bosch ---- / 0602313014 / --- 120 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605102106.A93 1605102106 -
2 - STATOR 220V/360HZ BSD-1604229164.A8 1604229164 -
4 - HANDLE BSD-3605132035.A85 3605132035 £40.80 £48.96
5 - GEAR HOUSING BSD-1605806159.A17 1605806159 -
6 - BEARING FLANGE BSD-1605805022.A31 1605805022 -
7 - CONICAL SPRING WASHER BSD-1600521013.A160 1600521013 -
8 - ON-OFF SWITCH BSD-1607200017.A69 1607200017 £102.57 £123.08
8 - FIXING PLATE BSD-3601023015.A20 3601023015 £21.68 £26.01
9 - CONTROL LEVER BSD-1602026038.A44 1602026038 £5.30 £6.36
11 - GRINDING SPINDLE M14 BSD-1603523029.A40 1603523029 -
12 - GUIDE PULLEY BSD-1600500014.A25 1600500014 -
13 - ELEC. CABLE W/CONNECTION BSD-3607030236.A126 3607030236 £61.98 £74.38
15 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A162 1600703009 £5.58 £6.70
16 - FASTENING CLAMP BSD-1601303003.A134 1601303003 £2.16 £2.59
17 - SEALING PLATE BSD-1600113003.A279 1600113003 £2.80 £3.36
18 - SEAL RING BSD-1600209009.A32 1600209009 £6.52 £7.83
19 - O-RING 45x3MM BSD-1900210146.A184 1900210146 £4.26 £5.11
20 - SEALING DISK BSD-1600108048.A129 1600108048 £1.75 £2.10
21 - PLAIN WASHER BSD-2100551000.A163 2100551000 -
22 - SHIM 0.1 MM BSD-1600101616.A26 1600101616 £2.61 £3.13
22 - SHIM 0.2 MM BSD-1600101617.A170 1600101617 £1.75 £2.10
22 - SHIM 0.3 MM BSD-1600101618.A26 1600101618 £2.61 £3.13
22 - SHIM 0.05 MM BSD-1600101619.A167 1600101619 £2.16 £2.59
23 - SHIM 0.05 MM BSD-1600102638.A12 1600102638 £3.34 £4.01
23 - SHIM 0.1 MM BSD-1600102639.A222 1600102639 -
23 - SHIM 0.15 MM BSD-1600102640.A12 1600102640 -
24 - NAMEPLATE BSD-3601106053.A1125 3601106053 £5.30 £6.36
26 - O-RING BSD-1120210000.A79 1120210000 -
27 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A386 1600910010 £45.67 £54.80
28 - GROOVE BALL BEARING 17x47x14 BSD-1900900352.A126 1900900352 £27.23 £32.68
29 - SET SCREW BSD-1603402004.A198 1603402004 £2.61 £3.13
30 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A605 2910021118 £1.75 £2.10
31 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x50-8.8 BSD-2910141213.A29 2910141213 £2.61 £3.13
32 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x40-8.8 BSD-2910141209.A142 2910141209 £2.61 £3.13
33 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910141164.A215 2910141164 £2.16 £2.59
34 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A169 2910141158 £1.75 £2.10
35 - RETAINING RING dia22 MM BSD-2916620011.A43 2916620011 £1.75 £2.10
36 - SPRING WASHER DIN 137-A4 BSD-1600150006.A463 1600150006 -
37 - CLAMPING SADDLE BSD-3601321001.A84 3601321001 £3.72 £4.47
38 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A254 3603133001 £2.61 £3.13
39 - PAN HEAD SCREW DIN 85-MS-M 4x12 BSD-2910110122.A28 2910110122 £1.75 £2.10
40 - O-RING 74.0x3.0 MM BSD-1600210006.A235 1600210006 £1.75 £2.10
41 - FELT WASHER BSD-1600205027.A11 1600205027 £1.75 £2.10
42 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A604 2910021118 £1.75 £2.10
43 - GROMMET BSD-1600306000.A135 1600306000 £1.95 £2.34
44 - PROTECTIVE COVER BSD-1600502004.A118 1600502004 £4.26 £5.11
45 - SEAL BSD-1601015011.A147 1601015011 £3.80 £4.56
56 - ROTOR WITHOUT WINDING BSD-3604080004.A8 3604080004 -
57 - BEARING HOUSING BSD-1605820145.A21 1605820145 -
58 - BEARING COVER BSD-1600501019.A9 1600501019 £23.86 £28.63
59 - COVER DISC BSD-1600501024.A374 1600501024 £16.41 £19.69
60 - FELT DISC BSD-1600108018.A281 1600108018 £2.61 £3.13
61 - GROOVE BALL BEARING BSD-3600900022.A38 3600900022 £21.68 £26.01
62 - GROOVE BALL BEARING 12x28x8 BSD-1900905121.A148 1900905121 £18.96 £22.75
63 - TORX FLAT-HEAD SCREW M4x20 BSD-3603435051.A138 3603435051 £1.75 £2.10
64 - RETAINING RING 12 DIN 9045 BSD-2916600007.A29 2916600007 £2.80 £3.36
65 - BEVEL GEAR Z=21 BSD-1606333119.A4 1606333119 -
66 - BEVEL GEAR Z=39 BSD-3606333033.A2 3606333033 -
67 - HEX NUT M12x1.5 MM BSD-1603300009.A103 1603300009 £1.75 £2.10
651 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A137 1907950007 £5.30 £6.36
652 - PIN-TYPE FACE-WRENCH BSD-1607950061.A709 1607950061 £5.42 £6.50
653 - AUXILIARY HANDLE M14 BSD-1602025022.A1034 1602025022 £13.41 £16.09
653 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A995 1602025030 £18.96 £22.75
654 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A159 2607950511 £4.26 £5.11
655 - PROTECTIVE COVER dia230 MM BSD-1605510198.A41 1605510198 -
656 - CLAMPING-FLANGE dia45 MM BSD-2600501006.A47 2600501006 £16.43 £19.72
657 - ROUND NUT M14 BSD-2603345004.A74 2603345004 £6.52 £7.83
752 - ON-OFF SWITCH BSD-1607200006.A31 1607200006 £81.81 £98.17
752/1 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8 BSD-2910001052.A176 2910001052 £2.16 £2.59
752/2 - EXTENSION SPRING BSD-1604650009.A101 1604650009 £1.75 £2.10
752/3 - COMPRESSION SPRING BSD-1604617001.A55 1604617001 £2.80 £3.36
752/4 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A220 2910091118 £1.75 £2.10
752/5 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A71 2916080005 -
752/7 - DETENT ROLLER BSD-1603200007.A81 1603200007 -
753 - FIXING PLATE BSD-3601023015.A21 3601023015 £21.68 £26.01
754 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A1210 2916690003 £1.75 £2.10
755 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A606 2910021118 £1.75 £2.10
800 - HANDLE BSD-1605132067.A60 1605132067 -
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031146.A19 3607031146 -
