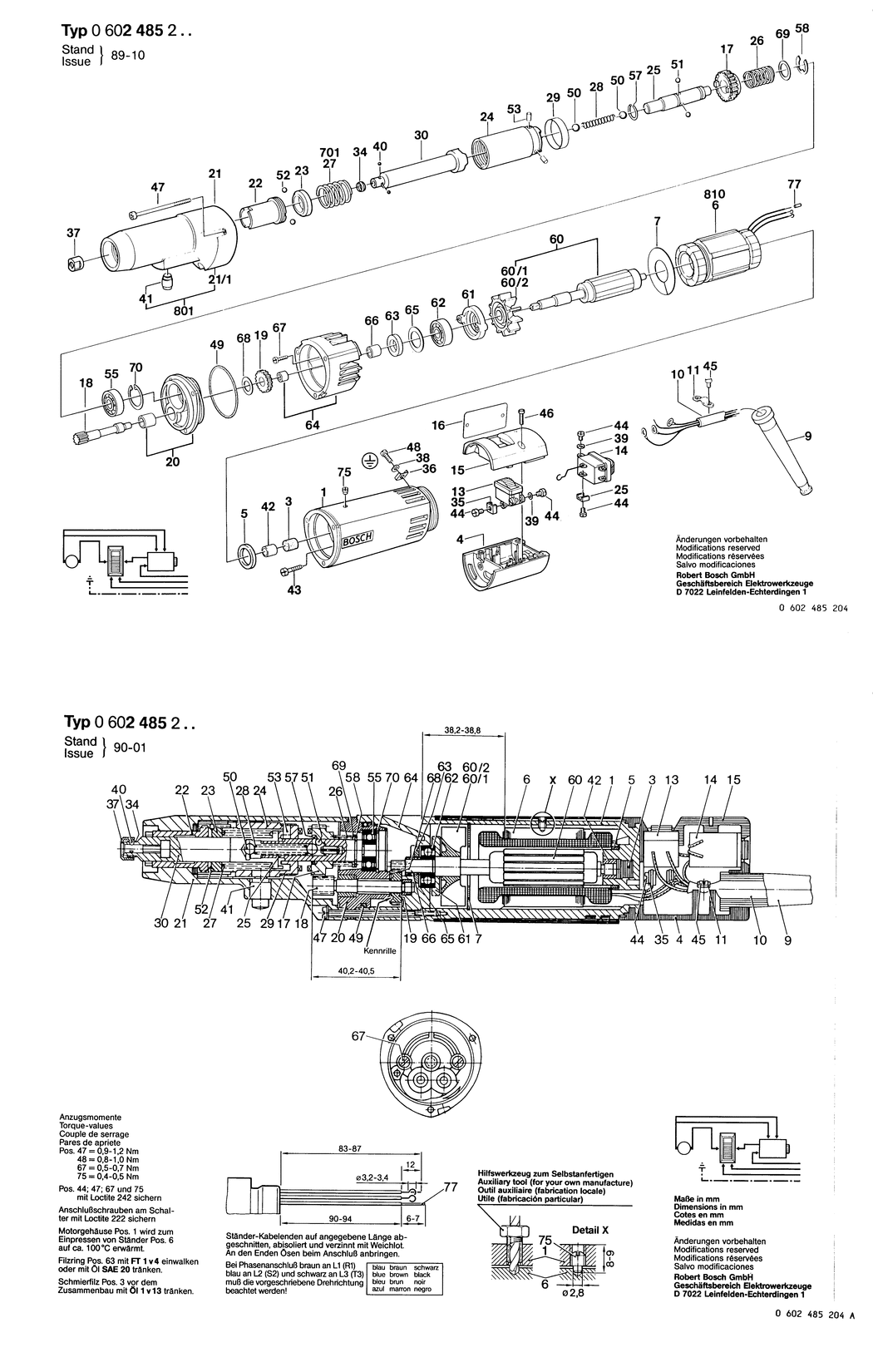

1 - MOTOR HOUSING
BSD-3605102062.A14
3605102062
|
-
|
|
|
3 - LUBRICATING FELT
BSD-1603212000.A16
1603212000
|
-
|
|
|
4 - SWITCH HOUSING
BSD-3605130031.A33
3605130031
|
£13.41
|
£16.09
|
|
5 - FELT WASHER
BSD-1600205026.A46
1600205026
|
£2.61
|
£3.13
|
|
7 - AIR-DEFLECTOR RING
BSD-1600117001.A123
1600117001
|
£2.16
|
£2.59
|
|
9 - GROMMET dia5.5-dia8.3x75 MM
BSD-1600703012.A19
1600703012
|
£2.52
|
£3.02
|
|
10 - POWER SUPPLY CORD
BSD-3604462025.A0
3604462025
|
-
|
|
|
11 - FASTENING CLAMP
BSD-1601302001.A49
1601302001
|
£1.75
|
£2.10
|
|
13 - SWITCH
BSD-1607200036.A15
1607200036
|
-
|
|
|
14 - REVERSING SWITCH
BSD-1607200066.A67
1607200066
|
£63.50
|
£76.20
|
|
15 - HOUSING COVER
BSD-3605130035.A1
3605130035
|
-
|
|
|
16 - NAMEPLATE
BSD-3601106054.A82
3601106054
|
£5.30
|
£6.36
|
|
17 - CYLINDRICAL GEAR Z=34
BSD-1606325012.A27
1606325012
|
-
|
|
|
18 - SPINDLE WITH GEAR Z=10
BSD-1603160029.A22
1603160029
|
-
|
|
|
19 - CYLINDRICAL GEAR Z=25
BSD-1606319009.A8
1606319009
|
-
|
|
|
20 - BEARING HOUSING
BSD-3605820053.A1
3605820053
|
-
|
|
|
21 - SPINDLE BEARING
BSD-1605806302.A18
1605806302
|
-
|
|
|
22 - THREADED BUSHING
BSD-1600364005.A16
1600364005
|
-
|
|
|
23 - THRUST RING
BSD-1600201012.A23
1600201012
|
-
|
|
|
24 - CARRIER
BSD-1606445006.A18
1606445006
|
-
|
|
|
25 - CONTROL SHAFT
BSD-1603124092.A10
1603124092
|
-
|
|
|
26 - COMPRESSION SPRING
BSD-1604616017.A22
1604616017
|
£2.80
|
£3.36
|
|
27 - COMPRESSION SPRING
BSD-1604619012.A24
1604619012
|
-
|
|
|
28 - COMPRESSION SPRING
BSD-1604611021.A18
1604611021
|
-
|
|
|
29 - RETAINING SNAP RING
BSD-1600209013.A6
1600209013
|
-
|
|
|
30 - COUPLING HALF
BSD-3606455035.A1
3606455035
|
-
|
|
|
34 - SPRING LOCK WASHER
BSD-1600224002.A6
1600224002
|
£5.30
|
£6.36
|
|
35 - CLAMPING SADDLE
BSD-3601321004.A91
3601321004
|
£2.16
|
£2.59
|
|
37 - ROUND NUT
BSD-3603340012.A0
3603340012
|
£6.52
|
£7.83
|
|
39 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A271
2916060003
|
£1.32
|
£1.58
|
|
40 - BALL 2 MM III DIN 5401 ST
BSD-1903230002.A1
1903230002
|
£2.16
|
£2.59
|
|
41 - PRESSURE SPINDLE
BSD-1603203024.A23
1603203024
|
-
|
|
|
42 - SINTERED-METAL BUSHING J4G7x8R6x6DIN1850
BSD-1900301003.A90
1900301003
|
-
|
|
|
43 - TAPPING SCREW DIN 7971-BZ4.2x13
BSD-2910211025.A178
2910211025
|
£1.75
|
£2.10
|
|
44 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8
BSD-2910091046.A111
2910091046
|
£1.75
|
£2.10
|
|
45 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8
BSD-2910011048.A197
2910011048
|
£1.75
|
£2.10
|
|
46 - SOCKET HEAD CAP SCREW DIN 7971-ST6.3x13-F
BSD-2910211054.A0
2910211054
|
-
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-BM3x55-8.8
BSD-2910021076.A54
2910021076
|
-
|
|
|
49 - O-RING 35.0x1.5 MM
BSD-1600210010.A127
1600210010
|
£2.80
|
£3.36
|
|
50 - BALL DIN 5401-6 G28
BSD-1903230011.A72
1903230011
|
£2.61
|
£3.13
|
|
51 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A485
1903230006
|
£2.16
|
£2.59
|
|
52 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A66
1903230004
|
£2.16
|
£2.59
|
|
53 - CYLINDRICAL ROLLER
BSD-1603200011.A67
1603200011
|
-
|
|
|
55 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A25
1900905019
|
£14.91
|
£17.89
|
|
57 - RETAINING RING 10 DIN 9045
BSD-2916600006.A49
2916600006
|
£1.75
|
£2.10
|
|
58 - LOCKING WASHER 8 DIN 6799
BSD-2916080011.A0
2916080011
|
-
|
|
|
60 - ROTOR WITHOUT WINDING
BSD-1604080053.A87
1604080053
|
£134.16
|
£160.99
|
|
61 - CONICAL SPRING WASHER
BSD-1600501030.A25
1600501030
|
-
|
|
|
62 - GROOVE BALL BEARING 6x19x6
BSD-1900900428.A0
1900900428
|
£16.74
|
£20.09
|
|
63 - FELT WASHER
BSD-1600205025.A127
1600205025
|
-
|
|
|
64 - GEAR HOUSING
BSD-3605806105.A92
3605806105
|
£103.14
|
£123.77
|
|
65 - SHIM 0.60 MM
BSD-3600101016.A111
3600101016
|
-
|
|
|
66 - INTERMEDIATE RING
BSD-1600300044.A91
1600300044
|
-
|
|
|
67 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8
BSD-2910001052.A77
2910001052
|
£2.16
|
£2.59
|
|
68 - SHIM
BSD-1420100649.A19
1420100649
|
-
|
|
|
69 - SHIM
BSD-2200101601.A18
2200101601
|
-
|
|
|
70 - SPRING RETAINING RING DIN 472-19x1MM
BSD-2916660005.A33
2916660005
|
£1.75
|
£2.10
|
|
75 - SET SCREW DIN 915-M4x6-45H
BSD-2912081116.A21
2912081116
|
£2.61
|
£3.13
|
|
77 - END SPLICE A 0.5-6 DIN 46 228
BSD-1900452000.A23
1900452000
|
-
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1588
3601119236
|
£3.72
|
£4.47
|
|
701 - COMPRESSION SPRING
BSD-1604618005.A9
1604618005
|
-
|
|
|
702 - SUSPENSION LOOP
BSD-3604682001.A82
3604682001
|
-
|
|
|
703 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1923
2910021118
|
£1.75
|
£2.10
|
|
705 - ROUND NUT
BSD-1603340005.A1
1603340005
|
-
|
|
|
801 - SPINDLE BEARING
BSD-3605806018.A1
3605806018
|
-
|
|
|
810 - STATOR 42V/300HZ.42V.200HZ
BSD-1604229185.A3
1604229185
|
-
|
|
|
