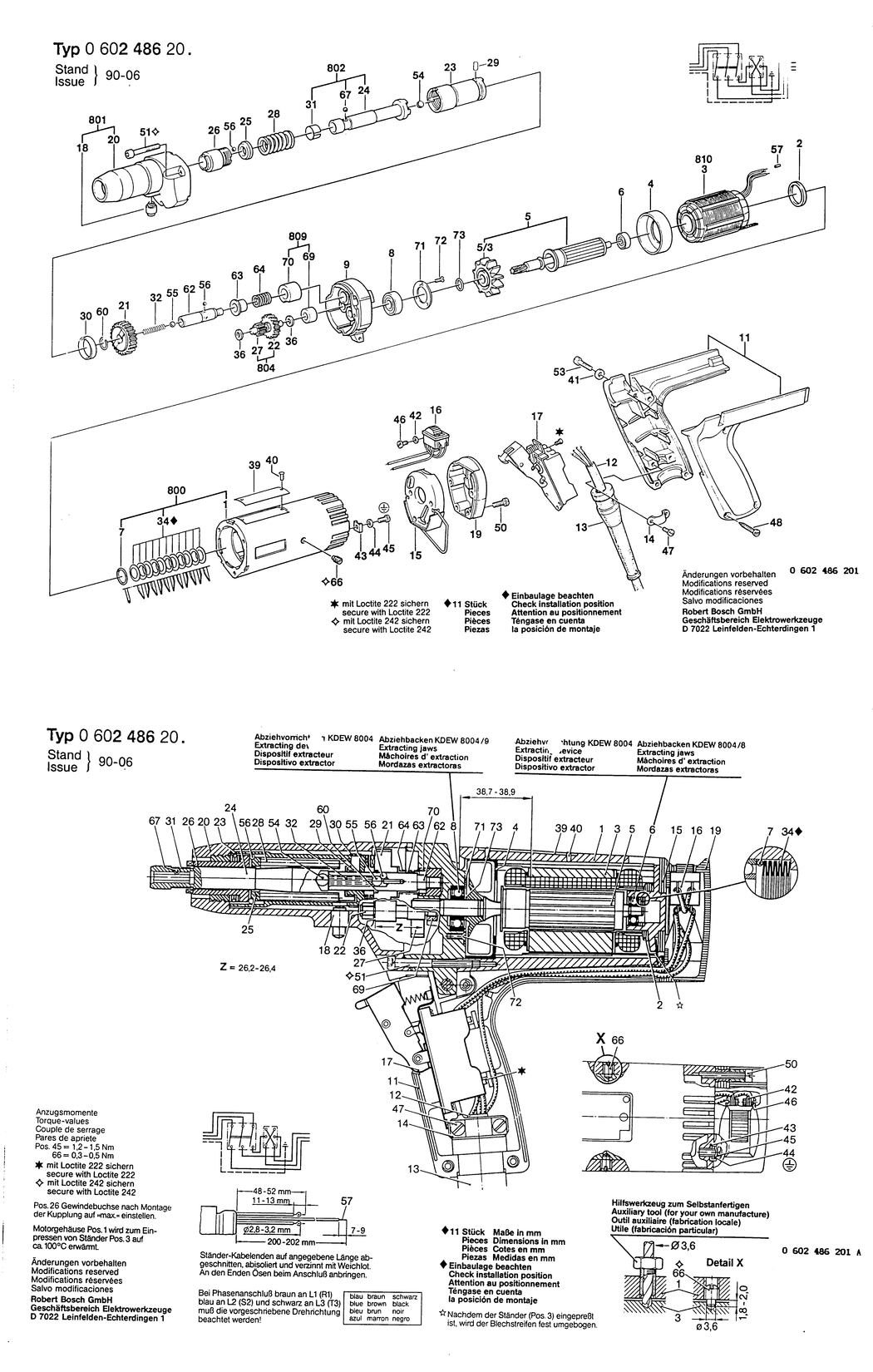

1 - MOTOR HOUSING
BSD-3605102058.A35
3605102058
|
£120.11
|
£144.13
|
|
|
2 - SEAL RING
BSD-1600209011.A128
1600209011
|
£2.80
|
£3.36
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A276
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR WITHOUT WINDING
BSD-3604080023.A5
3604080023
|
-
|
|
|
|
5/3 - FAN
BSD-1606610105.A46
1606610105
|
£14.91
|
£17.89
|
|
|
6 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A276
1900905015
|
£30.42
|
£36.51
|
|
|
7 - O-RING 12.0x2.25 MM
BSD-3600210039.A106
3600210039
|
£7.36
|
£8.83
|
|
|
8 - GROOVE BALL BEARING 9x24x7
BSD-1610905011.A12
1610905011
|
£14.91
|
£17.89
|
|
|
9 - BEARING HOUSING
BSD-3605820039.A2
3605820039
|
-
|
|
|
|
11 - HANDLE
BSD-3605132044.A23
3605132044
|
-
|
|
|
|
12 - ELEC. CABLE W/CONNECTION
BSD-3604462049.A15
3604462049
|
-
|
|
|
|
13 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1272
3600703011
|
£2.80
|
£3.36
|
|
|
14 - FASTENING CLAMP
BSD-1601302014.A698
1601302014
|
£2.61
|
£3.13
|
|
|
15 - CONNECTION HOUSING
BSD-3600099005.A7
3600099005
|
£16.41
|
£19.69
|
|
|
16 - REVERSING SWITCH
BSD-1607200043.A49
1607200043
|
-
|
|
|
|
17 - SWITCH
BSD-1607200038.A141
1607200038
|
£54.42
|
£65.30
|
|
|
18 - PRESSURE SPINDLE
BSD-1603203024.A42
1603203024
|
-
|
|
|
|
19 - SEALING CAP
BSD-3605500071.A47
3605500071
|
£16.41
|
£19.69
|
|
|
20 - GEAR HOUSING
BSD-3605806106.A7
3605806106
|
-
|
|
|
|
21 - CYLINDRICAL GEAR Z=43
BSD-1606325021.A6
1606325021
|
-
|
|
|
|
22 - SPINDLE WITH GEAR Z=11
BSD-1606308017.A29
1606308017
|
-
|
|
|
|
23 - CARRIER
BSD-3606445022.A10
3606445022
|
-
|
|
|
|
24 - COUPLING HALF
BSD-1606455069.A11
1606455069
|
-
|
|
|
|
25 - TAPER RING
BSD-1600250000.A4
1600250000
|
-
|
|
|
|
26 - THREADED BUSHING
BSD-3600364010.A15
3600364010
|
-
|
|
|
|
27 - CYLINDRICAL GEAR Z=31
BSD-3606319014.A3
3606319014
|
-
|
|
|
|
28 - COMPRESSION SPRING
BSD-1604619015.A18
1604619015
|
£5.01
|
£6.01
|
|
|
29 - ROLLER
BSD-1603200019.A18
1603200019
|
-
|
|
|
|
30 - RETAINING SNAP RING
BSD-2600209018.A3
2600209018
|
-
|
|
|
|
31 - HOLDING SPRING
BSD-3604682003.A55
3604682003
|
-
|
|
|
|
32 - COMPRESSION SPRING
BSD-1604612005.A14
1604612005
|
-
|
|
|
|
34 - DISC SPRING
BSD-3600150013.A29
3600150013
|
£3.72
|
£4.47
|
|
|
36 - SHIM 0.50 MM
BSD-2600100613.A211
2600100613
|
£1.75
|
£2.10
|
|
|
39 - NAMEPLATE
BSD-3601106053.A19
3601106053
|
£5.30
|
£6.36
|
|
|
40 - GROOVED NAIL
BSD-3603133000.A169
3603133000
|
£2.61
|
£3.13
|
|
|
41 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A109
2916060006
|
£1.32
|
£1.58
|
|
|
42 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A292
2916060003
|
£1.32
|
£1.58
|
|
|
43 - CLAMPING SADDLE
BSD-3601321001.A785
3601321001
|
£3.72
|
£4.47
|
|
|
44 - SPRING WASHER dia4.2 MM
BSD-3600150006.A396
3600150006
|
£2.61
|
£3.13
|
|
|
45 - PAN HEAD SCREW DIN 85-AM4x8-MS
BSD-2910110118.A217
2910110118
|
£1.75
|
£2.10
|
|
|
46 - PAN HEAD SCREW DIN 85-AM3x5-4.8
BSD-2910091047.A8
2910091047
|
£1.75
|
£2.10
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A163
2910021116
|
£2.16
|
£2.59
|
|
|
48 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A799
2910021122
|
£2.16
|
£2.59
|
|
|
50 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8
BSD-2910141131.A0
2910141131
|
£2.16
|
£2.59
|
|
|
51 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A96
2910141140
|
£1.75
|
£2.10
|
|
|
53 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A105
2910011162
|
£1.75
|
£2.10
|
|
|
54 - BALL DIN 5401-8 MM III-ST
BSD-1903230014.A125
1903230014
|
£1.75
|
£2.10
|
|
|
55 - BALL DIN 5401-6 G28
BSD-1903230011.A15
1903230011
|
£2.61
|
£3.13
|
|
|
56 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A433
1903230006
|
£2.16
|
£2.59
|
|
|
57 - END SPLICE
BSD-3604477008.A115
3604477008
|
£1.75
|
£2.10
|
|
|
60 - RETAINING RING 10 DIN 9045
BSD-2916600006.A61
2916600006
|
£1.75
|
£2.10
|
|
|
62 - CONTROL SHAFT
BSD-1603124099.A13
1603124099
|
-
|
|
|
|
63 - GUIDE BUSHING
BSD-1600521018.A26
1600521018
|
-
|
|
|
|
64 - COMPRESSION SPRING
BSD-1604616019.A6
1604616019
|
-
|
|
|
|
66 - SET SCREW
BSD-3603402000.A128
3603402000
|
£1.75
|
£2.10
|
|
|
67 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A432
1903230006
|
£2.16
|
£2.59
|
|
|
69 - BUSHING
BSD-2600300058.A138
2600300058
|
-
|
|
|
|
70 - CLAMP BUSHING
BSD-1600300081.A26
1600300081
|
-
|
|
|
|
71 - RETAINING WASHER
BSD-3600190012.A44
3600190012
|
-
|
|
|
|
72 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8
BSD-2910780050.A133
2910780050
|
-
|
|
|
|
73 - O-RING 8.0x1.0 MM
BSD-1600210045.A200
1600210045
|
£1.75
|
£2.10
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1794
3601119236
|
£3.72
|
£4.47
|
|
|
650 - SLOTTED SCREWDRIVER
BSD-1607950037.A15
1607950037
|
£51.22
|
£61.47
|
|
|
800 - GEAR HOUSING
BSD-3605806013.A20
3605806013
|
-
|
|
|
|
801 - MOTOR HOUSING
BSD-3605102028.A5
3605102028
|
£156.22
|
£187.46
|
|
|
802 - CARRIER
BSD-3606445017.A0
3606445017
|
-
|
|
|
|
804 - SPINDLE WITH GEAR Z=31/11
BSD-3606328014.A2
3606328014
|
-
|
|
|
|
809 - BEARING HOUSING
BSD-3605820034.A2
3605820034
|
-
|
|
|
|
810 - STATOR 72V/200HZ.110V/300HZ
BSD-1604229202.A34
1604229202
|
£306.65
|
£367.98
|
|
