Bosch ---- / 0602489004 / --- 135 Volt Spare Parts

Bosch ---- / 0602489004 / --- 135 Volt Spare Parts

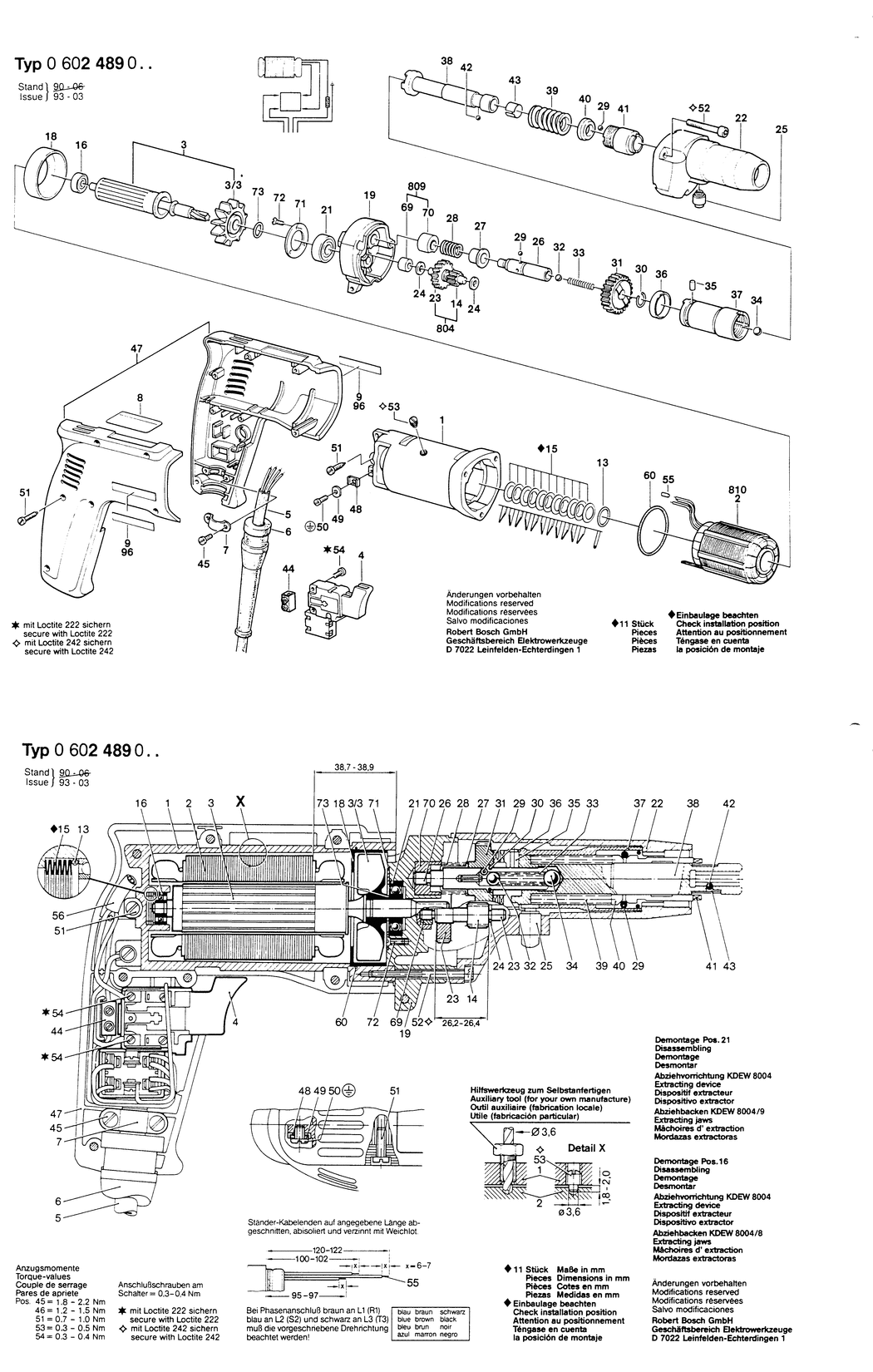

An exploded drawing and listing for the Bosch ---- / 0602489004 / --- 135 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102034.A60 3605102034 £218.41 £262.09
3 - ROTOR BSD-3604080021.A21 3604080021 £218.41 £262.09
3/3 - FAN BSD-1606610105.A139 1606610105 £14.91 £17.89
4 - SWITCH BSD-3607200004.A7 3607200004 £61.98 £74.38
5 - ELEC. CABLE W/CONNECTION BSD-3604462050.A63 3604462050 £27.23 £32.68
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A253 3600703011 £2.80 £3.36
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A394 2600703012 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302014.A470 1601302014 £2.61 £3.13
8 - NAMEPLATE BSD-3601106053.A960 3601106053 £5.30 £6.36
9 - MANUFACTURER'S NAMEPLATE BSD-1601110483.A55 1601110483 £2.61 £3.13
13 - O-RING 12.0x2.25 MM BSD-3600210039.A47 3600210039 £7.36 £8.83
15 - DISC SPRING BSD-3600150013.A118 3600150013 £3.72 £4.47
16 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A19 1900905015 £30.42 £36.51
18 - AIR-DEFLECTOR RING BSD-1600502005.A63 1600502005 £2.61 £3.13
19 - BEARING HOUSING BSD-1605820196.A7 1605820196 £154.03 £184.84
21 - BALL BEARING 7x22x7 BSD-1900905018.A16 1900905018 £18.96 £22.75
22 - GEAR HOUSING BSD-3605806106.A18 3605806106 -
23 - SPINDLE WITH GEAR Z=11 BSD-1606308017.A0 1606308017 -
24 - SHIM 0.50 MM BSD-2600100613.A3 2600100613 £1.75 £2.10
25 - PRESSURE SPINDLE BSD-1603203024.A2 1603203024 -
26 - CONTROL SHAFT BSD-1603124099.A31 1603124099 -
27 - GUIDE BUSHING BSD-1600521018.A0 1600521018 -
28 - COMPRESSION SPRING BSD-1604616019.A3 1604616019 -
29 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A50 1903230006 £2.16 £2.59
30 - RETAINING RING 10 DIN 9045 BSD-2916600006.A126 2916600006 £1.75 £2.10
31 - CYLINDRICAL GEAR Z=43 BSD-1606325021.A3 1606325021 -
32 - BALL DIN 5401-6 G28 BSD-1903230011.A396 1903230011 £2.61 £3.13
33 - COMPRESSION SPRING BSD-1604612005.A29 1604612005 -
34 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A18 1903230014 £1.75 £2.10
35 - ROLLER BSD-1603200019.A1 1603200019 -
36 - RETAINING SNAP RING BSD-2600209018.A29 2600209018 -
37 - CARRIER BSD-3606445022.A24 3606445022 -
38 - COUPLING HALF 6.3 MM BSD-3606455029.A4 3606455029 £134.16 £160.99
39 - COMPRESSION SPRING BSD-1604619015.A1 1604619015 £5.01 £6.01
40 - TAPER RING BSD-1600250000.A31 1600250000 -
41 - THREADED BUSHING BSD-3600364010.A30 3600364010 -
42 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A49 1903230006 £2.16 £2.59
43 - HOLDING SPRING BSD-3604682003.A50 3604682003 -
44 - SOCKET-TERMINAL STRIP 1x1.5 MM/2 BSD-1901091012.A94 1901091012 £5.30 £6.36
45 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A534 2910021116 £2.16 £2.59
47 - HANDLE BSD-3605132036.A10 3605132036 £21.68 £26.01
48 - CLAMPING SADDLE BSD-3601321001.A21 3601321001 £3.72 £4.47
49 - SPRING WASHER dia4.2 MM BSD-3600150006.A185 3600150006 £2.61 £3.13
50 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A427 2910110120 £1.75 £2.10
51 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A623 2603490023 £1.75 £2.10
52 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8 BSD-2910141140.A5 2910141140 £1.75 £2.10
53 - SET SCREW BSD-3603402000.A241 3603402000 £1.75 £2.10
54 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1591 2603410001 £1.75 £2.10
55 - END SPLICE BSD-3604477008.A324 3604477008 £1.75 £2.10
56 - SHRINKABLE TUBE BSD-3600707032.A34 3600707032 £2.52 £3.02
60 - O-RING 53.0x2.0 MM BSD-3600210017.A32 3600210017 £3.72 £4.47
69 - CLAMP BUSHING BSD-1600300081.A0 1600300081 -
70 - BUSHING BSD-2600300058.A1 2600300058 -
71 - RETAINING WASHER BSD-3600190012.A63 3600190012 -
72 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8 BSD-2910780050.A3 2910780050 -
73 - O-RING 8.0x1.0 MM BSD-1600210045.A67 1600210045 £1.75 £2.10
96 - MANUFACTURER'S NAMEPLATE BSD-1601110483.A53 1601110483 £2.61 £3.13
99 - REFERENCE PLATE BSD-3601119236.A22 3601119236 £3.72 £4.47
651 - SLOTTED SCREWDRIVER BSD-1607950037.A6 1607950037 £51.22 £61.47
700 - AUXILIARY HANDLE M14 BSD-1602025022.A1129 1602025022 £13.41 £16.09
700 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A888 1602025030 £18.96 £22.75
701 - SUPPORT CLAMP BSD-3608040000.A73 3608040000 -
804 - SPINDLE WITH GEAR Z=11/34 BSD-1606328102.A1 1606328102 -
809 - BEARING HOUSING BSD-1605820196.A5 1605820196 £154.03 £184.84
810 - STATOR 135V/200HZ.200V/300HZ BSD-3604229006.A24 3604229006 £410.78 £492.94
