Bosch ---- / 0602118011 / --- Spare Parts

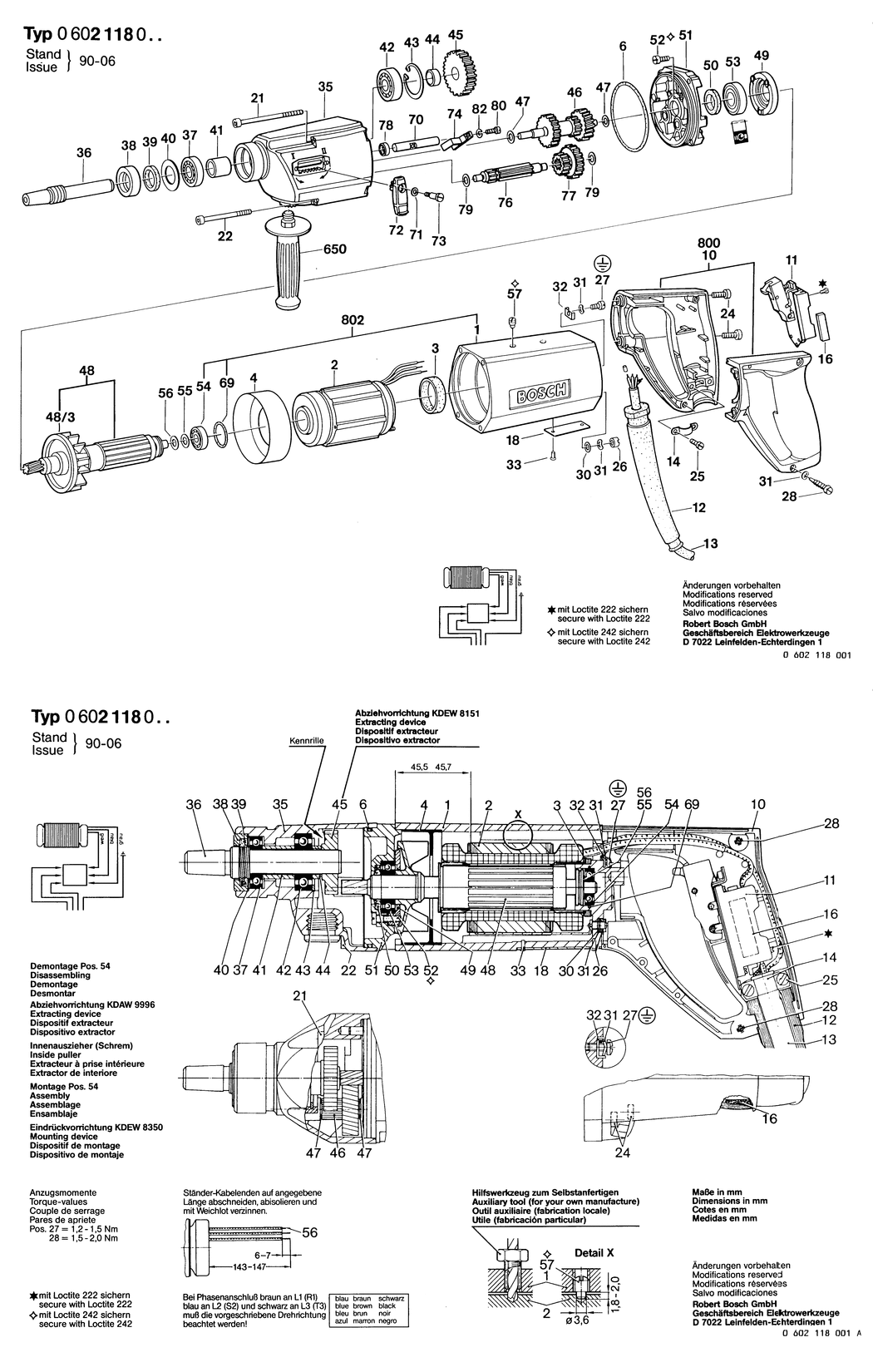

An exploded drawing and listing for the Bosch ---- / 0602118011 / ---

	Ex VAT	Inc VAT
2 - STATOR 42V/300HZ BSD-1604229095.A1 1604229095	-
3 - SEAL RING BSD-1600209006.A29 1600209006	£2.80	£3.36
4 - AIR-DEFLECTOR RING BSD-1600209003.A42 1600209003	£8.13	£9.76
6 - O-RING 66.0x3.0 MM BSD-1600210005.A141 1600210005	£2.80	£3.36
11 - SWITCH BSD-1607200038.A113 1607200038	£54.42	£65.30
12 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A330 1600703009	£5.58	£6.70
14 - FASTENING CLAMP BSD-1601303003.A201 1601303003	£2.16	£2.59
16 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A475 1602381001	-
18 - NAMEPLATE BSD-3601106053.A341 3601106053	£5.30	£6.36
21 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x55-8.8 BSD-2910141176.A29 2910141176	£1.75	£2.10
22 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x45-8.8 BSD-2910141172.A29 2910141172	£1.75	£2.10
24 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A106 2910141158	£1.75	£2.10
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A120 2910021116	£2.16	£2.59
26 - SLOTTED ROUND NUT DIN 546-M4x3.5 BSD-2915161006.A13 2915161006	-
27 - PAN HEAD SCREW DIN 85-MS-M 4x12 BSD-2910110122.A67 2910110122	£1.75	£2.10
28 - TAPPING SCREW DIN 7971-B 3.9x19 BSD-2910211220.A151 2910211220	-
30 - PLAIN WASHER 4.3 DIN 433-ST BSD-2916011009.A37 2916011009	-
31 - SPRING WASHER dia4.2 MM BSD-3600150006.A461 3600150006	£2.61	£3.13
32 - CLAMPING SADDLE BSD-3601321001.A571 3601321001	£3.72	£4.47
33 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A730 3603133001	£2.61	£3.13
35 - SPINDLE BEARING BSD-1605806253.A5 1605806253	-
36 - DRILLING SPINDLE BSD-1603124039.A46 1603124039	-
37 - GROOVE BALL BEARING 15x32x8 BSD-1900900201.A10 1900900201	-
38 - RETAINING SNAP RING BSD-3607030355.A5 3607030355	£18.96	£22.75
39 - SEALING DISK BSD-1600108000.A52 1600108000	-
40 - SHIM 0.5 MM BSD-1600102003.A43 1600102003	£1.75	£2.10
41 - SPACER BUSHING BSD-1600300026.A30 1600300026	-
42 - GROOVE BALL BEARING 15x35x11 BSD-1900900303.A98 1900900303	-
43 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A543 2916660014	£1.75	£2.10
44 - SPACER BUSHING BSD-1600200018.A9 1600200018	-
45 - CYLINDRICAL GEAR Z=39 BSD-1606317046.A0 1606317046	-
46 - SPINDLE WITH GEAR Z=29/20/29 BSD-1606100027.A5 1606100027	-
47 - SHIM 0.5 MM BSD-1600100631.A156 1600100631	£1.75	£2.10
48 - ROTOR WITHOUT WINDING BSD-3604080057.A12 3604080057	£283.50	£340.20
48/3 - FAN BSD-3606610010.A98 3606610010	£4.26	£5.11
49 - CONICAL SPRING WASHER BSD-1600501025.A34 1600501025	£33.74	£40.49
50 - SEALING DISK BSD-1600108030.A28 1600108030	£3.72	£4.47
51 - BEARING FLANGE BSD-1605820135.A9 1605820135	-
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A174 2910021125	£1.75	£2.10
53 - GROOVE BALL BEARING 12x28x8 BSD-2600905013.A41 2600905013	-
54 - GROOVE BALL BEARING 7x22x7 BSD-1610900025.A73 1610900025	£16.41	£19.69
54 - BALL BEARING 7x22x7 BSD-1900905018.A1023 1900905018	£18.96	£22.75
55 - SHIM 0.10 MM BSD-1420100023.A71 1420100023	-
56 - SHIM 0.2 MM BSD-1600100632.A169 1600100632	£1.75	£2.10
57 - SET SCREW BSD-1603402002.A33 1603402002	£1.75	£2.10
57 - SHIM BSD-1710100040.A22 1710100040	-
69 - O-RING 22.0x1.5 MM BSD-3600210016.A0 3600210016	£1.75	£2.10
70 - ADJUSTING BOLT BSD-1603104005.A46 1603104005	-
71 - SHIM 0.2 MM BSD-1420100620.A74 1420100620	£1.32	£1.58
72 - CONTROL LEVER BSD-1602026026.A18 1602026026	-
73 - SOCKET HEAD CAP SCREW M3.5x5.5 MM BSD-1603413005.A42 1603413005	£2.52	£3.02
74 - FORK LEVER BSD-1601336002.A5 1601336002	-
76 - SPINDLE WITH GEAR Z=12 BSD-1606309036.A12 1606309036	-
77 - SPINDLE WITH GEAR Z=22/31 BSD-1606328064.A1 1606328064	-
78 - ROTARY SHAFT LIP SEAL BSD-1600283003.A57 1600283003	£4.26	£5.11
79 - SHIM 0.5 MM BSD-1600100631.A157 1600100631	£1.75	£2.10
80 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A173 2910021125	£1.75	£2.10
82 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A543 2916690003	£1.75	£2.10
650 - AUXILIARY HANDLE M14 BSD-1602025022.A780 1602025022	£13.41	£16.09
650 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A199 1602025030	£18.96	£22.75
800 - HANDLE BSD-3605133011.A1 3605133011	-
802 - MOTOR HOUSING BSD-3605102040.A35 3605102040	£218.41	£262.09
