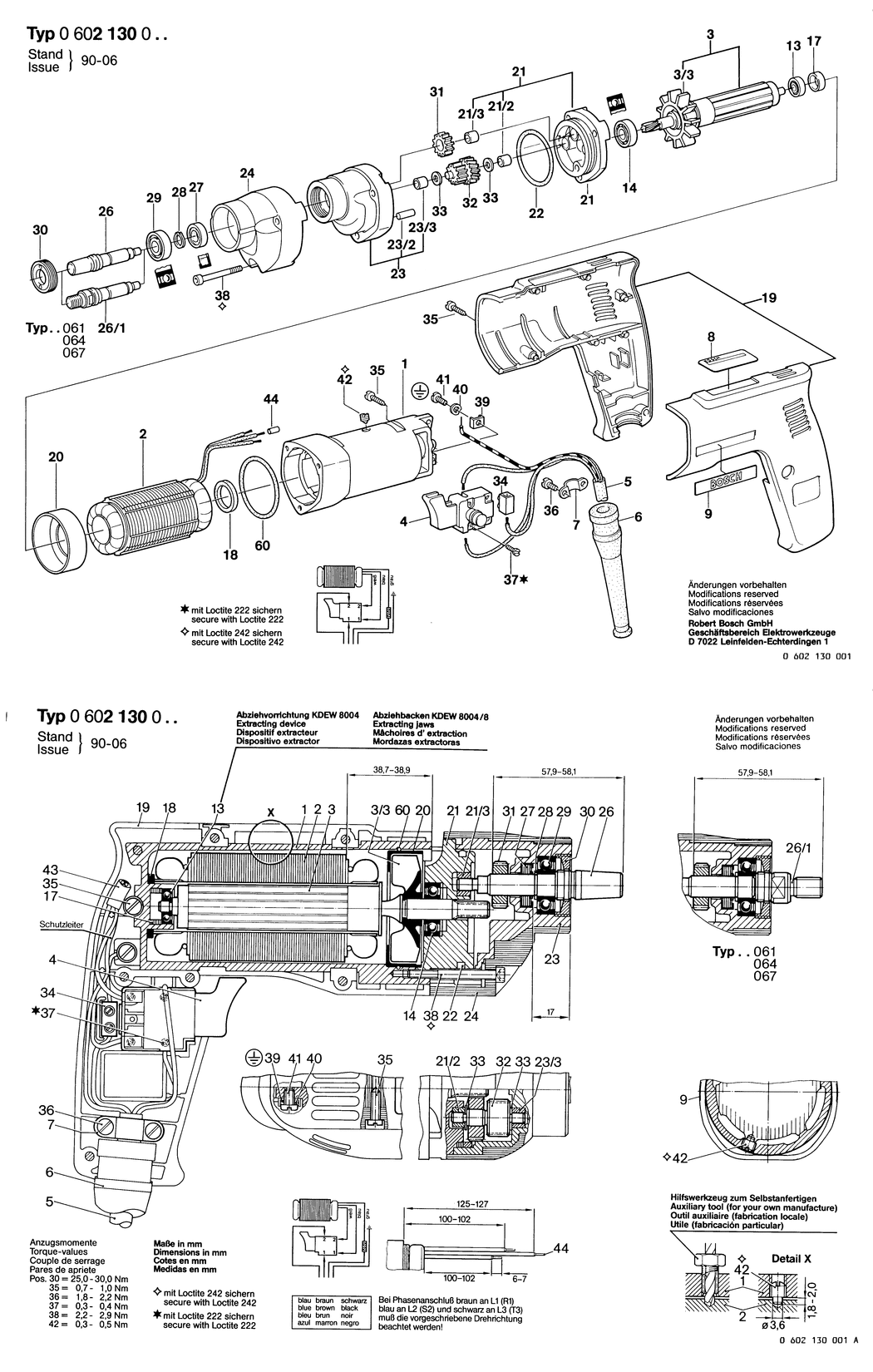

An exploded drawing and listing for the Bosch GR.57 / 0602130061 / --- 265 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102034.A79 3605102034 £218.41 £262.09
2 - STATOR 265V/200HZ BSD-3604229005.A1 3604229005 £306.65 £367.98
3 - ROTOR BSD-3604080021.A16 3604080021 £218.41 £262.09
3/3 - FAN BSD-1606610105.A94 1606610105 £14.91 £17.89
4 - SWITCH BSD-3607200003.A35 3607200003 £27.23 £32.68
5 - ELEC. CABLE W/CONNECTION BSD-3604462050.A85 3604462050 £27.23 £32.68
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A246 3600703011 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302014.A444 1601302014 £2.61 £3.13
8 - NAMEPLATE BSD-3601106053.A993 3601106053 £5.30 £6.36
9 - MANUFACTURER'S NAMEPLATE BSD-1601110130.A20 1601110130 -
13 - GROOVE BALL BEARING 5x16x5 BSD-1900900232.A90 1900900232 £16.74 £20.09
14 - GROOVE BALL BEARING 609 RSY/C3 DIN 625 BSD-1900905036.A18 1900905036 -
17 - RUBBER RING 6MM.dia12xdia16.4x3MM BSD-3600206002.A112 3600206002 -
18 - SEAL RING BSD-1600209011.A310 1600209011 £2.80 £3.36
19 - HANDLE BSD-3605132038.A9 3605132038 £21.68 £26.01
20 - AIR-DEFLECTOR RING BSD-1600502005.A31 1600502005 £2.61 £3.13
21 - BEARING HOUSING BSD-3605820043.A13 3605820043 £135.25 £162.30
21/2 - BUSHING BSD-3600300008.A97 3600300008 -
21/3 - BUSHING BSD-3600300002.A6 3600300002 -
22 - O-RING 45x3MM BSD-1900210146.A249 1900210146 £4.26 £5.11
23 - ASSEMBLY OF SERVICE PARTS BSD-3607031325.A24 3607031325 -
23/2 - STRAIGHT PIN 4H 8x20 DIN 7 BSD-2917500122.A36 2917500122 £1.75 £2.10
23/3 - BUSHING BSD-3600300008.A96 3600300008 -
24 - INSULATING HOUSING BSD-3605108096.A50 3605108096 £11.78 £14.13
26/1 - DRILLING SPINDLE 3/8-24 UNF-2 BSD-3603124002.A0 3603124002 -
27 - ROTARY SHAFT LIP SEAL BSD-3600290006.A20 3600290006 -
28 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A82 2916650001 £2.61 £3.13
29 - GROOVE BALL BEARING 6000 Z DIN 625 BSD-1900905100.A31 1900905100 -
30 - THREADED RING M 28x1 MM BSD-3603344013.A56 3603344013 £11.78 £14.13
31 - CYLINDRICAL GEAR Z=27 BSD-1606319017.A12 1606319017 -
32 - SPINDLE WITH GEAR Z=21/27 BSD-1606328094.A3 1606328094 -
33 - SHIM 0.50 MM BSD-2600100613.A7 2600100613 £1.75 £2.10
34 - SOCKET-TERMINAL STRIP 1x1.5 MM/2 BSD-1901091012.A113 1901091012 £5.30 £6.36
35 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A706 2603490023 £1.75 £2.10
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A570 2910021116 £2.16 £2.59
37 - SOCKET HEAD CAP SCREW M3x10 MM BSD-2603410023.A211 2603410023 -
38 - HEX SOCKET HEAD CAP SCREW M 4x40 DIN 912-8.8 BSD-2910141138.A46 2910141138 £1.75 £2.10
39 - CLAMPING SADDLE BSD-3601321001.A142 3601321001 £3.72 £4.47
40 - SPRING WASHER dia4.2 MM BSD-3600150006.A146 3600150006 £2.61 £3.13
41 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A515 2910110120 £1.75 £2.10
42 - SET SCREW BSD-3603402000.A293 3603402000 £1.75 £2.10
44 - END SPLICE BSD-3604477008.A256 3604477008 £1.75 £2.10
60 - O-RING 53.0x2.0 MM BSD-3600210017.A50 3600210017 £3.72 £4.47
650 - KEY CHUCK dia1-10 MM. 3/8 BSD-1608571020.A72 1608571020 -
650/800 - CHUCK WRENCH SG2 BSD-2607950007.A227 2607950007 £6.52 £7.83
