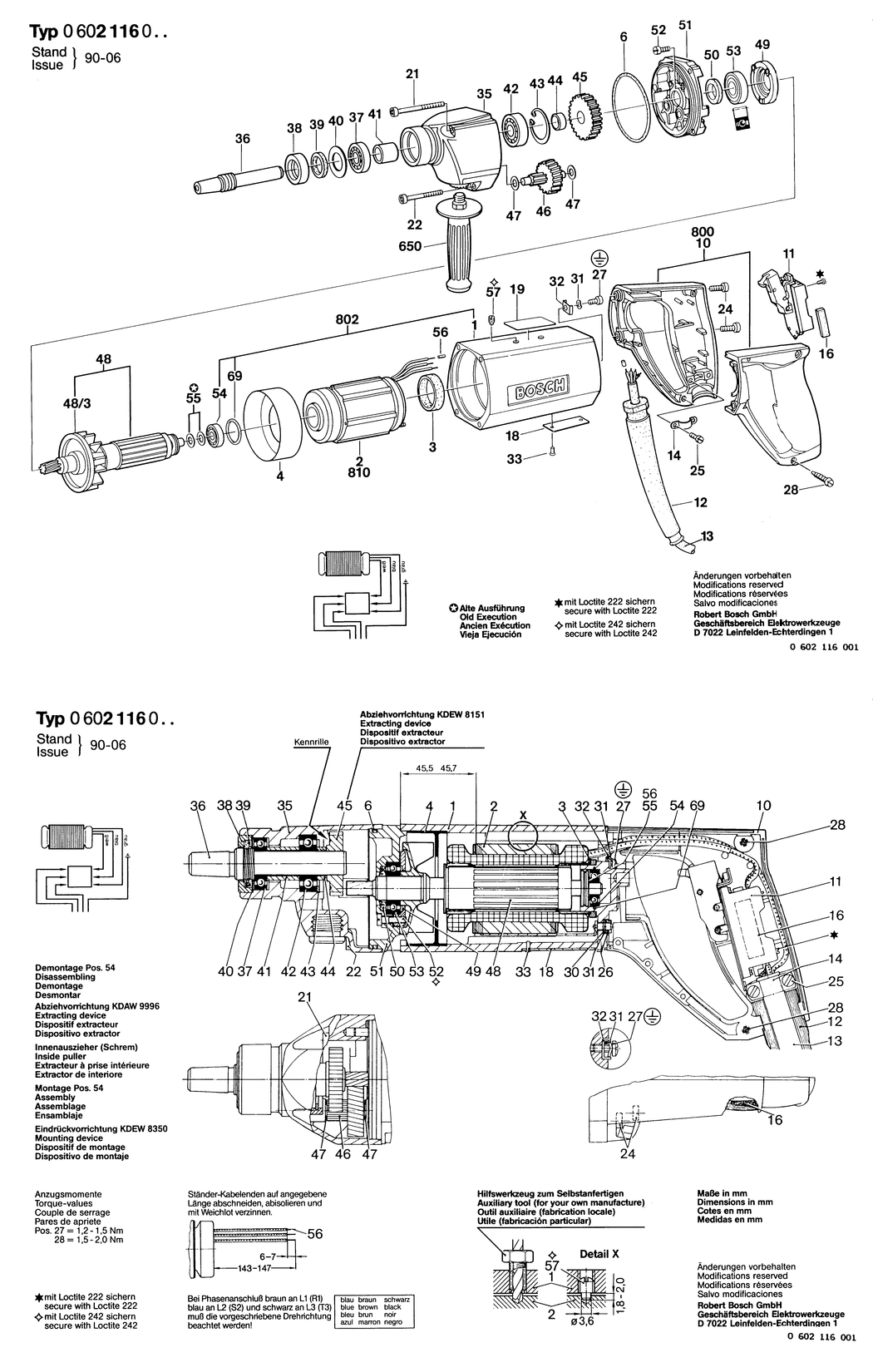

3 - SEAL RING
BSD-1600209006.A0
1600209006
|
£2.80
|
£3.36
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600209003.A71
1600209003
|
£8.13
|
£9.76
|
|
|
6 - O-RING 66.0x3.0 MM
BSD-1600210005.A170
1600210005
|
£2.80
|
£3.36
|
|
|
11 - SWITCH
BSD-1607200038.A87
1607200038
|
£54.42
|
£65.30
|
|
|
12 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A300
1600703009
|
£5.58
|
£6.70
|
|
|
13 - ELEC. CABLE W/CONNECTION
BSD-3604462034.A6
3604462034
|
-
|
|
|
|
14 - FASTENING CLAMP
BSD-3601303012.A6
3601303012
|
-
|
|
|
|
16 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A466
1602381001
|
-
|
|
|
|
18 - NAMEPLATE
BSD-3601106053.A379
3601106053
|
£5.30
|
£6.36
|
|
|
21 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x55-8.8
BSD-2910141176.A2
2910141176
|
£1.75
|
£2.10
|
|
|
22 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x45-8.8
BSD-2910141172.A56
2910141172
|
£1.75
|
£2.10
|
|
|
24 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8
BSD-2910141158.A109
2910141158
|
£1.75
|
£2.10
|
|
|
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A110
2910021116
|
£2.16
|
£2.59
|
|
|
27 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A248
2910110120
|
£1.75
|
£2.10
|
|
|
28 - TAPPING SCREW DIN 7971-B 3.9x19
BSD-2910211220.A159
2910211220
|
-
|
|
|
|
31 - SPRING WASHER dia4.2 MM
BSD-3600150006.A420
3600150006
|
£2.61
|
£3.13
|
|
|
32 - CLAMPING SADDLE
BSD-3601321001.A577
3601321001
|
£3.72
|
£4.47
|
|
|
33 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A725
3603133001
|
£2.61
|
£3.13
|
|
|
35 - SPINDLE BEARING
BSD-3605806116.A20
3605806116
|
-
|
|
|
|
36 - DRILLING SPINDLE
BSD-1603124039.A43
1603124039
|
-
|
|
|
|
37 - GROOVE BALL BEARING 15x32x8
BSD-1900900201.A8
1900900201
|
-
|
|
|
|
38 - RETAINING SNAP RING
BSD-3607030355.A38
3607030355
|
£18.96
|
£22.75
|
|
|
39 - SEALING DISK
BSD-1600108000.A84
1600108000
|
-
|
|
|
|
40 - SHIM 0.5 MM
BSD-1600102003.A40
1600102003
|
£1.75
|
£2.10
|
|
|
41 - SPACER BUSHING
BSD-1600300026.A31
1600300026
|
-
|
|
|
|
42 - GROOVE BALL BEARING 15x35x11
BSD-1900900303.A100
1900900303
|
-
|
|
|
|
43 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A541
2916660014
|
£1.75
|
£2.10
|
|
|
44 - SPACER BUSHING
BSD-1600300027.A76
1600300027
|
-
|
|
|
|
45 - CYLINDRICAL GEAR Z=39
BSD-1606317046.A21
1606317046
|
-
|
|
|
|
46 - SPINDLE WITH GEAR Z=14/29
BSD-1606328050.A9
1606328050
|
-
|
|
|
|
47 - SHIM 0.5 MM
BSD-1600100631.A151
1600100631
|
£1.75
|
£2.10
|
|
|
48 - ROTOR WITHOUT WINDING
BSD-3604080057.A43
3604080057
|
£283.50
|
£340.20
|
|
|
48/3 - FAN
BSD-3606610010.A129
3606610010
|
£4.26
|
£5.11
|
|
|
49 - CONICAL SPRING WASHER
BSD-1600501025.A67
1600501025
|
£33.74
|
£40.49
|
|
|
50 - SEALING DISK
BSD-1600108030.A25
1600108030
|
£3.72
|
£4.47
|
|
|
51 - BEARING FLANGE
BSD-3605820056.A21
3605820056
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A225
2910021125
|
£1.75
|
£2.10
|
|
|
53 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A262
1900905121
|
£18.96
|
£22.75
|
|
|
54 - GROOVE BALL BEARING 7x22x7
BSD-1610900025.A46
1610900025
|
£16.41
|
£19.69
|
|
|
55 - SHIM 0.10 MM
BSD-1420100023.A52
1420100023
|
-
|
|
|
|
56 - END SPLICE
BSD-3604477008.A239
3604477008
|
£1.75
|
£2.10
|
|
|
57 - SET SCREW
BSD-1603402002.A2
1603402002
|
£1.75
|
£2.10
|
|
|
69 - O-RING 22.0x1.5 MM
BSD-3600210016.A31
3600210016
|
£1.75
|
£2.10
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A753
1602025022
|
£13.41
|
£16.09
|
|
|
651 - KEY CHUCK dia1.5-13 MM. B16
BSD-1608571027.A61
1608571027
|
-
|
|
|
|
651/7 - CHUCK WRENCH
BSD-1607950027.A20
1607950027
|
-
|
|
|
|
800 - HANDLE
BSD-3605133011.A34
3605133011
|
-
|
|
|
|
802 - MOTOR HOUSING
BSD-3605102040.A31
3605102040
|
£218.41
|
£262.09
|
|
|
810 - STATOR 200V/300HZ
BSD-1604229089.A23
1604229089
|
£410.78
|
£492.94
|
|
