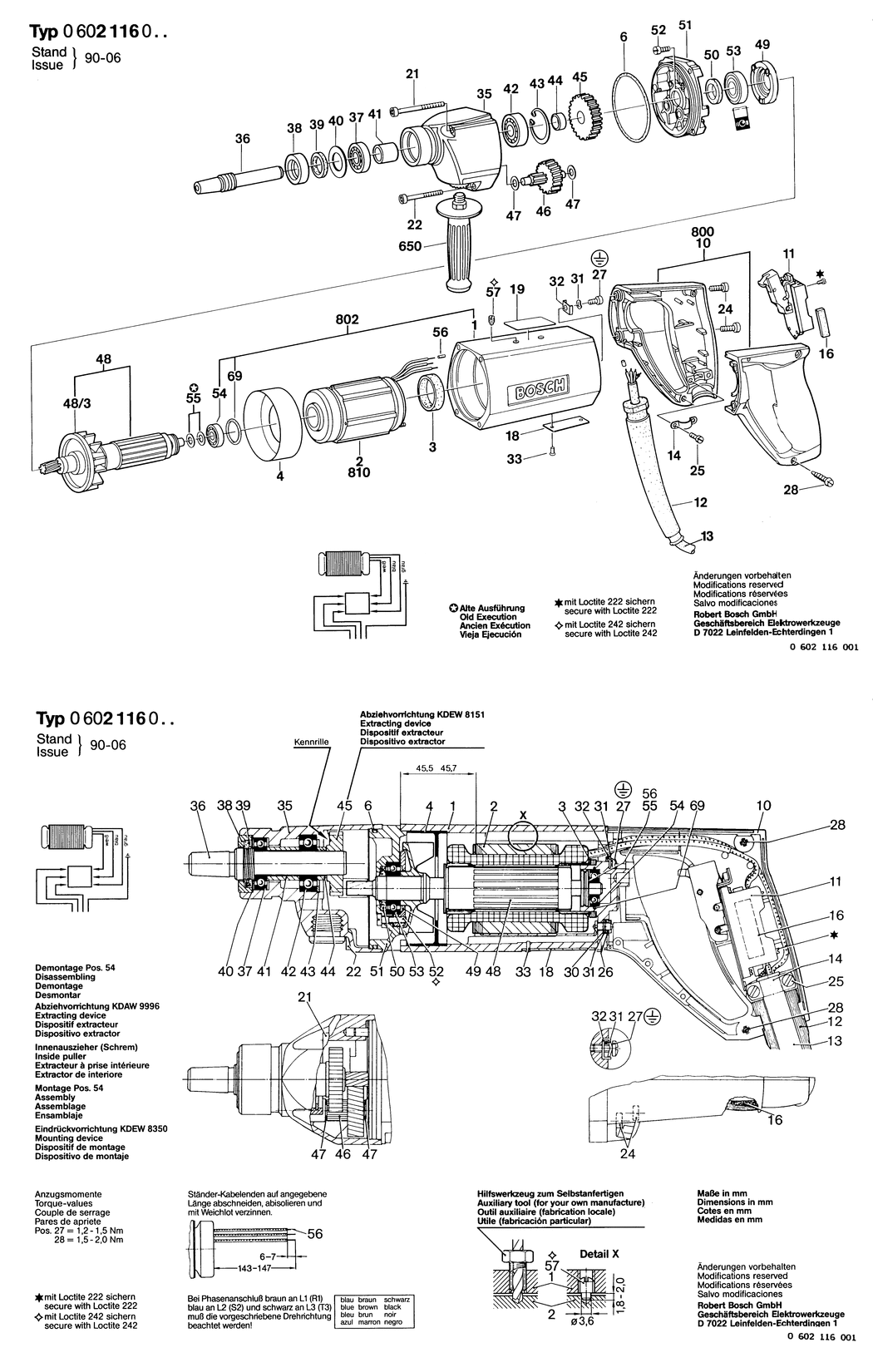

An exploded drawing and listing for the Bosch GR.65 / 0602116005 / --- 135 Volt
Ex VAT Inc VAT
3 - SEAL RING BSD-1600209006.A2 1600209006 £2.80 £3.36
4 - AIR-DEFLECTOR RING BSD-1600209003.A69 1600209003 £8.13 £9.76
6 - O-RING 66.0x3.0 MM BSD-1600210005.A168 1600210005 £2.80 £3.36
11 - SWITCH BSD-1607200038.A86 1607200038 £54.42 £65.30
12 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A298 1600703009 £5.58 £6.70
13 - ASSEMBLY OF SERVICE PARTS BSD-3607030231.A18 3607030231 -
14 - FASTENING CLAMP BSD-3601303012.A4 3601303012 -
16 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A465 1602381001 -
18 - NAMEPLATE BSD-3601106053.A381 3601106053 £5.30 £6.36
21 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x55-8.8 BSD-2910141176.A1 2910141176 £1.75 £2.10
22 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x45-8.8 BSD-2910141172.A57 2910141172 £1.75 £2.10
24 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A108 2910141158 £1.75 £2.10
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A111 2910021116 £2.16 £2.59
27 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A249 2910110120 £1.75 £2.10
28 - TAPPING SCREW DIN 7971-B 3.9x19 BSD-2910211220.A160 2910211220 -
31 - SPRING WASHER dia4.2 MM BSD-3600150006.A421 3600150006 £2.61 £3.13
32 - CLAMPING SADDLE BSD-3601321001.A579 3601321001 £3.72 £4.47
33 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A723 3603133001 £2.61 £3.13
35 - SPINDLE BEARING BSD-3605806116.A19 3605806116 -
36 - DRILLING SPINDLE BSD-1603124039.A44 1603124039 -
37 - GROOVE BALL BEARING 15x32x8 BSD-1900900201.A7 1900900201 -
38 - RETAINING SNAP RING BSD-3607030355.A36 3607030355 £18.96 £22.75
39 - SEALING DISK BSD-1600108000.A83 1600108000 -
40 - SHIM 0.5 MM BSD-1600102003.A41 1600102003 £1.75 £2.10
41 - SPACER BUSHING BSD-1600300026.A33 1600300026 -
42 - GROOVE BALL BEARING 15x35x11 BSD-1900900303.A101 1900900303 -
43 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A540 2916660014 £1.75 £2.10
44 - SPACER BUSHING BSD-1600300027.A74 1600300027 -
45 - CYLINDRICAL GEAR Z=39 BSD-1606317046.A20 1606317046 -
46 - SPINDLE WITH GEAR Z=14/29 BSD-1606328050.A10 1606328050 -
47 - SHIM 0.5 MM BSD-1600100631.A150 1600100631 £1.75 £2.10
48 - ROTOR WITHOUT WINDING BSD-3604080057.A44 3604080057 £283.50 £340.20
48/3 - FAN BSD-3606610010.A128 3606610010 £4.26 £5.11
49 - CONICAL SPRING WASHER BSD-1600501025.A66 1600501025 £33.74 £40.49
50 - SEALING DISK BSD-1600108030.A26 1600108030 £3.72 £4.47
51 - BEARING FLANGE BSD-3605820056.A22 3605820056 -
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A226 2910021125 £1.75 £2.10
53 - GROOVE BALL BEARING 12x28x8 BSD-1900905121.A261 1900905121 £18.96 £22.75
54 - GROOVE BALL BEARING 7x22x7 BSD-1610900025.A47 1610900025 £16.41 £19.69
55 - SHIM 0.10 MM BSD-1420100023.A53 1420100023 -
56 - END SPLICE BSD-3604477008.A238 3604477008 £1.75 £2.10
57 - SET SCREW BSD-1603402002.A1 1603402002 £1.75 £2.10
69 - O-RING 22.0x1.5 MM BSD-3600210016.A32 3600210016 £1.75 £2.10
650 - AUXILIARY HANDLE M14 BSD-1602025022.A754 1602025022 £13.41 £16.09
651 - KEY CHUCK dia1.5-13 MM. B16 BSD-1608571027.A60 1608571027 -
651/7 - CHUCK WRENCH BSD-1607950027.A21 1607950027 -
800 - HANDLE BSD-3605133011.A33 3605133011 -
802 - MOTOR HOUSING BSD-3605102040.A32 3605102040 £218.41 £262.09
810 - STATOR 200V/300HZ BSD-1604229089.A24 1604229089 £410.78 £492.94
