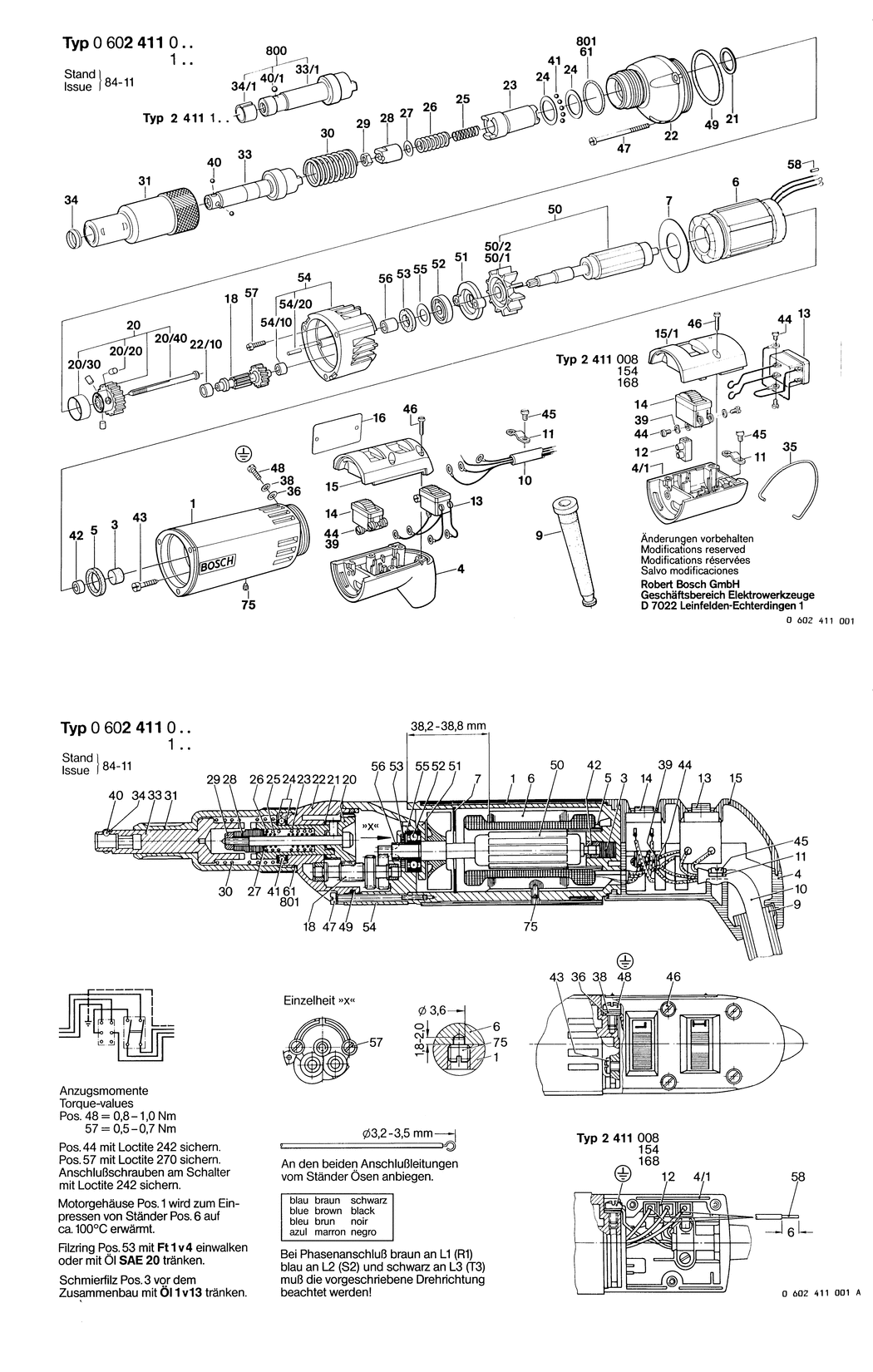

An exploded drawing and listing for the Bosch ---- / 0602411002 / --- 135 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102048.A44 3605102048 £103.14 £123.77
3 - LUBRICATING FELT BSD-1603212000.A64 1603212000 -
5 - FELT WASHER BSD-1600205026.A89 1600205026 £2.61 £3.13
6 - STATOR 200V/300HZ.135V/200HZ BSD-1604229182.A27 1604229182 £357.27 £428.72
7 - AIR-DEFLECTOR RING BSD-1600117001.A69 1600117001 £2.16 £2.59
9 - GROMMET dia5.5-dia8.3x75 MM BSD-1600703012.A161 1600703012 £2.52 £3.02
11 - FASTENING CLAMP BSD-1601302001.A67 1601302001 £1.75 £2.10
13 - SWITCH BSD-1607200067.A110 1607200067 -
14 - REVERSING SWITCH BSD-1607200066.A7 1607200066 £63.50 £76.20
16 - NAMEPLATE BSD-3601106053.A705 3601106053 £5.30 £6.36
18 - SPINDLE WITH GEAR Z=9/25 BSD-1603160015.A8 1603160015 -
20 - SPINDLE WITH GEAR Z=32 BSD-1606100021.A27 1606100021 -
20/20 - CYLINDRICAL ROLLER BSD-1603200011.A35 1603200011 -
20/30 - RETAINING SNAP RING BSD-1600209001.A4 1600209001 -
20/40 - SEMIFINISHED PART BSD-1603520005.A12 1603520005 -
21 - PLAIN WASHER 0.5 MM BSD-1600101603.A21 1600101603 £1.95 £2.34
22 - SPINDLE BEARING BSD-1605806240.A17 1605806240 -
22/10 - BUSHING BSD-1600300080.A21 1600300080 -
23 - COUPLING HALF BSD-1606432011.A15 1606432011 -
24 - PLAIN WASHER BSD-1600101007.A27 1600101007 -
25 - COMPRESSION SPRING BSD-1604612001.A3 1604612001 -
26 - COMPRESSION SPRING BSD-1604617001.A17 1604617001 £2.80 £3.36
27 - PLAIN WASHER BSD-1600100629.A41 1600100629 £1.75 £2.10
28 - BUSHING BSD-1600321004.A11 1600321004 -
29 - HEX NUT BSD-1603301000.A43 1603301000 -
30 - COMPRESSION SPRING BSD-1604615003.A48 1604615003 -
33/1 - COUPLING HALF BSD-3606455009.A13 3606455009 -
41 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A213 1903230004 £2.16 £2.59
42 - SINTERED-METAL BUSHING J4G7x8R6x6DIN1850 BSD-1900301003.A10 1900301003 -
43 - TAPPING SCREW DIN 7971-BZ4.2x13 BSD-2910211025.A22 2910211025 £1.75 £2.10
44 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8 BSD-2910091046.A23 2910091046 £1.75 £2.10
45 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8 BSD-2910011048.A53 2910011048 £1.75 £2.10
47 - SOCKET HEAD CAP SCREW DIN 84-BM3x45-8.8 BSD-2910021072.A23 2910021072 -
48 - PAN HEAD SCREW DIN 85-AM3x8-MS BSD-2910110050.A86 2910110050 £1.75 £2.10
49 - O-RING 35.0x1.5 MM BSD-1600210010.A10 1600210010 £2.80 £3.36
50 - ROTOR WITHOUT WINDING BSD-1604080053.A73 1604080053 £134.16 £160.99
51 - CONICAL SPRING WASHER BSD-1600501030.A54 1600501030 -
52 - GROOVE BALL BEARING 6x19x6 BSD-1900900428.A113 1900900428 £16.74 £20.09
53 - FELT WASHER BSD-1600205025.A93 1600205025 -
54 - GEAR HOUSING BSD-3605806105.A58 3605806105 £103.14 £123.77
54/10 - SINTERED-METAL BUSHING BSD-1600301000.A41 1600301000 -
54/20 - STRAIGHT PIN 2 H 8x12 DIN 7 BSD-2917500037.A17 2917500037 £1.32 £1.58
55 - SHIM 0.60 MM BSD-3600101016.A45 3600101016 -
56 - INTERMEDIATE RING BSD-1600300044.A31 1600300044 -
57 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8 BSD-2910001052.A139 2910001052 £2.16 £2.59
75 - SET SCREW DIN 915-M4x6-45H BSD-2912081116.A226 2912081116 £2.61 £3.13
77 - END SPLICE A 0.5-6 DIN 46 228 BSD-1900452000.A99 1900452000 -
99 - REFERENCE PLATE BSD-3601119236.A523 3601119236 £3.72 £4.47
650 - SINGLE-HEAD ENG. WRENCH DIN 894 SW7 BSD-1907950501.A11 1907950501 -
651 - DOUBLE HEAD ENGIN WRENCH BSD-1907950532.A42 1907950532 -
700 - QUICK-CHANGE COLLET CHUCK 1/4 BSD-3608120000.A8 3608120000 -
702 - SUSPENSION LOOP BSD-3604682001.A10 3604682001 -
703 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A493 2910021118 £1.75 £2.10
801 - PARTS SET BSD-3607010025.A1 3607010025 -
