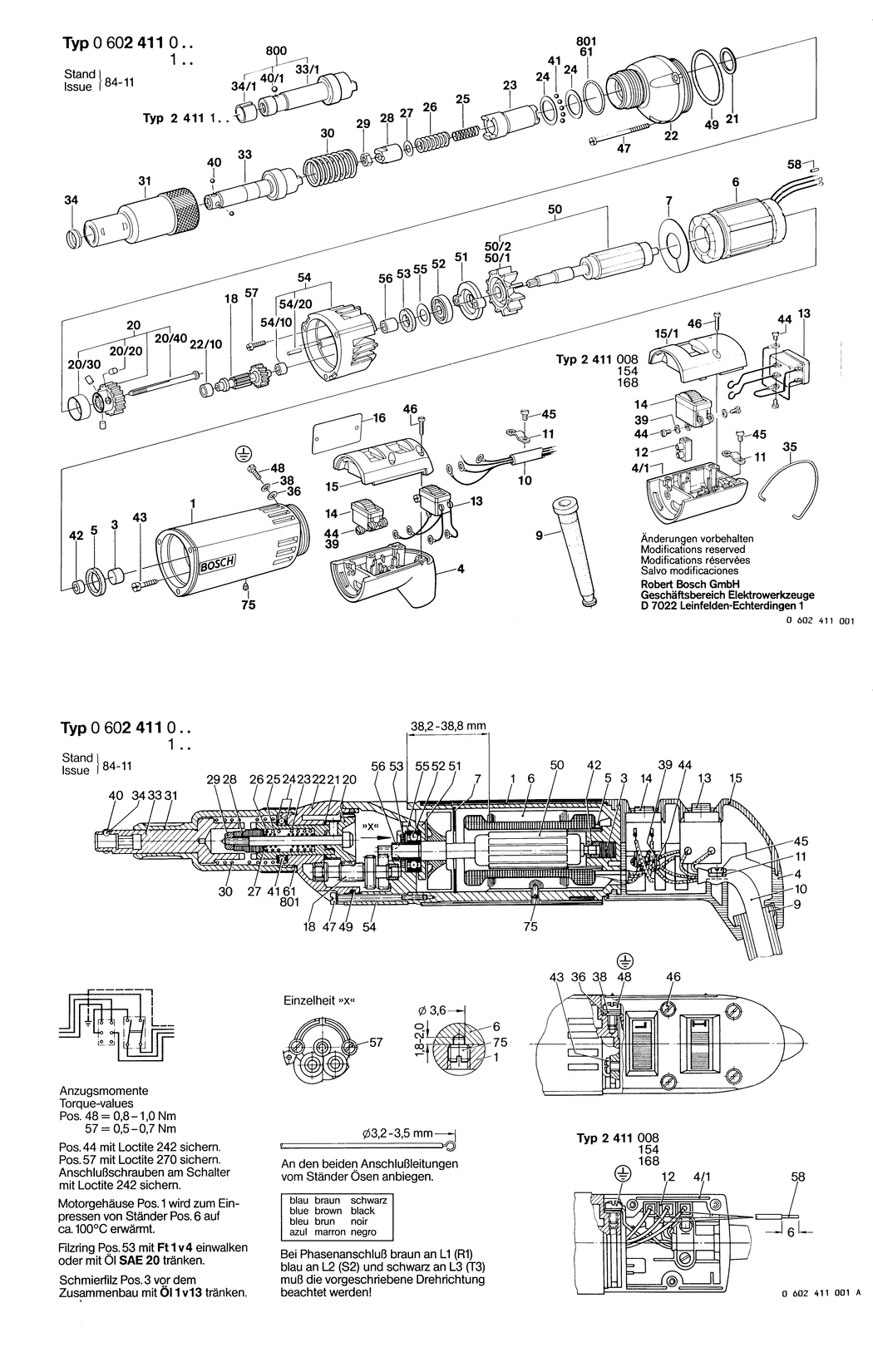

1 - MOTOR HOUSING
BSD-3605102048.A45
3605102048
|
£103.14
|
£123.77
|
|
|
3 - LUBRICATING FELT
BSD-1603212000.A63
1603212000
|
-
|
|
|
|
5 - FELT WASHER
BSD-1600205026.A88
1600205026
|
£2.61
|
£3.13
|
|
|
6 - STATOR 72V/200HZ.110V/300HZ
BSD-1604229183.A6
1604229183
|
£306.65
|
£367.98
|
|
|
7 - AIR-DEFLECTOR RING
BSD-1600117001.A67
1600117001
|
£2.16
|
£2.59
|
|
|
9 - GROMMET dia5.5-dia8.3x75 MM
BSD-1600703012.A160
1600703012
|
£2.52
|
£3.02
|
|
|
11 - FASTENING CLAMP
BSD-1601302001.A68
1601302001
|
£1.75
|
£2.10
|
|
|
13 - SWITCH
BSD-1607200067.A112
1607200067
|
-
|
|
|
|
14 - REVERSING SWITCH
BSD-1607200066.A5
1607200066
|
£63.50
|
£76.20
|
|
|
16 - NAMEPLATE
BSD-3601106053.A704
3601106053
|
£5.30
|
£6.36
|
|
|
18 - SPINDLE WITH GEAR Z=9/25
BSD-1603160015.A7
1603160015
|
-
|
|
|
|
20 - SPINDLE WITH GEAR Z=32
BSD-1606100021.A25
1606100021
|
-
|
|
|
|
20/20 - CYLINDRICAL ROLLER
BSD-1603200011.A36
1603200011
|
-
|
|
|
|
20/30 - RETAINING SNAP RING
BSD-1600209001.A5
1600209001
|
-
|
|
|
|
20/40 - SEMIFINISHED PART
BSD-1603520005.A10
1603520005
|
-
|
|
|
|
21 - PLAIN WASHER 0.5 MM
BSD-1600101603.A22
1600101603
|
£1.95
|
£2.34
|
|
|
22 - SPINDLE BEARING
BSD-1605806240.A18
1605806240
|
-
|
|
|
|
22/10 - BUSHING
BSD-1600300080.A20
1600300080
|
-
|
|
|
|
23 - COUPLING HALF
BSD-1606432011.A16
1606432011
|
-
|
|
|
|
24 - PLAIN WASHER
BSD-1600101007.A26
1600101007
|
-
|
|
|
|
25 - COMPRESSION SPRING
BSD-1604612001.A2
1604612001
|
-
|
|
|
|
26 - COMPRESSION SPRING
BSD-1604617001.A16
1604617001
|
£2.80
|
£3.36
|
|
|
27 - PLAIN WASHER
BSD-1600100629.A42
1600100629
|
£1.75
|
£2.10
|
|
|
28 - BUSHING
BSD-1600321004.A10
1600321004
|
-
|
|
|
|
29 - HEX NUT
BSD-1603301000.A44
1603301000
|
-
|
|
|
|
30 - COMPRESSION SPRING
BSD-1604615003.A49
1604615003
|
-
|
|
|
|
33/1 - COUPLING HALF
BSD-3606455009.A14
3606455009
|
-
|
|
|
|
41 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A214
1903230004
|
£2.16
|
£2.59
|
|
|
42 - SINTERED-METAL BUSHING J4G7x8R6x6DIN1850
BSD-1900301003.A9
1900301003
|
-
|
|
|
|
43 - TAPPING SCREW DIN 7971-BZ4.2x13
BSD-2910211025.A21
2910211025
|
£1.75
|
£2.10
|
|
|
44 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8
BSD-2910091046.A22
2910091046
|
£1.75
|
£2.10
|
|
|
45 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8
BSD-2910011048.A54
2910011048
|
£1.75
|
£2.10
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-BM3x45-8.8
BSD-2910021072.A22
2910021072
|
-
|
|
|
|
48 - PAN HEAD SCREW DIN 85-AM3x8-MS
BSD-2910110050.A87
2910110050
|
£1.75
|
£2.10
|
|
|
49 - O-RING 35.0x1.5 MM
BSD-1600210010.A8
1600210010
|
£2.80
|
£3.36
|
|
|
50 - ROTOR WITHOUT WINDING
BSD-1604080053.A74
1604080053
|
£134.16
|
£160.99
|
|
|
51 - CONICAL SPRING WASHER
BSD-1600501030.A56
1600501030
|
-
|
|
|
|
52 - GROOVE BALL BEARING 6x19x6
BSD-1900900428.A111
1900900428
|
£16.74
|
£20.09
|
|
|
53 - FELT WASHER
BSD-1600205025.A94
1600205025
|
-
|
|
|
|
54 - GEAR HOUSING
BSD-3605806105.A56
3605806105
|
£103.14
|
£123.77
|
|
|
54/10 - SINTERED-METAL BUSHING
BSD-1600301000.A43
1600301000
|
-
|
|
|
|
54/20 - STRAIGHT PIN 2 H 8x12 DIN 7
BSD-2917500037.A15
2917500037
|
£1.32
|
£1.58
|
|
|
55 - SHIM 0.60 MM
BSD-3600101016.A47
3600101016
|
-
|
|
|
|
56 - INTERMEDIATE RING
BSD-1600300044.A33
1600300044
|
-
|
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8
BSD-2910001052.A138
2910001052
|
£2.16
|
£2.59
|
|
|
75 - SET SCREW DIN 915-M4x6-45H
BSD-2912081116.A228
2912081116
|
£2.61
|
£3.13
|
|
|
77 - END SPLICE A 0.5-6 DIN 46 228
BSD-1900452000.A101
1900452000
|
-
|
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A524
3601119236
|
£3.72
|
£4.47
|
|
|
650 - SINGLE-HEAD ENG. WRENCH DIN 894 SW7
BSD-1907950501.A10
1907950501
|
-
|
|
|
|
651 - DOUBLE HEAD ENGIN WRENCH
BSD-1907950532.A43
1907950532
|
-
|
|
|
|
700 - QUICK-CHANGE COLLET CHUCK 1/4
BSD-3608120000.A9
3608120000
|
-
|
|
|
|
702 - SUSPENSION LOOP
BSD-3604682001.A9
3604682001
|
-
|
|
|
|
703 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A495
2910021118
|
£1.75
|
£2.10
|
|
|
801 - PARTS SET
BSD-3607010025.A0
3607010025
|
-
|
|
|
