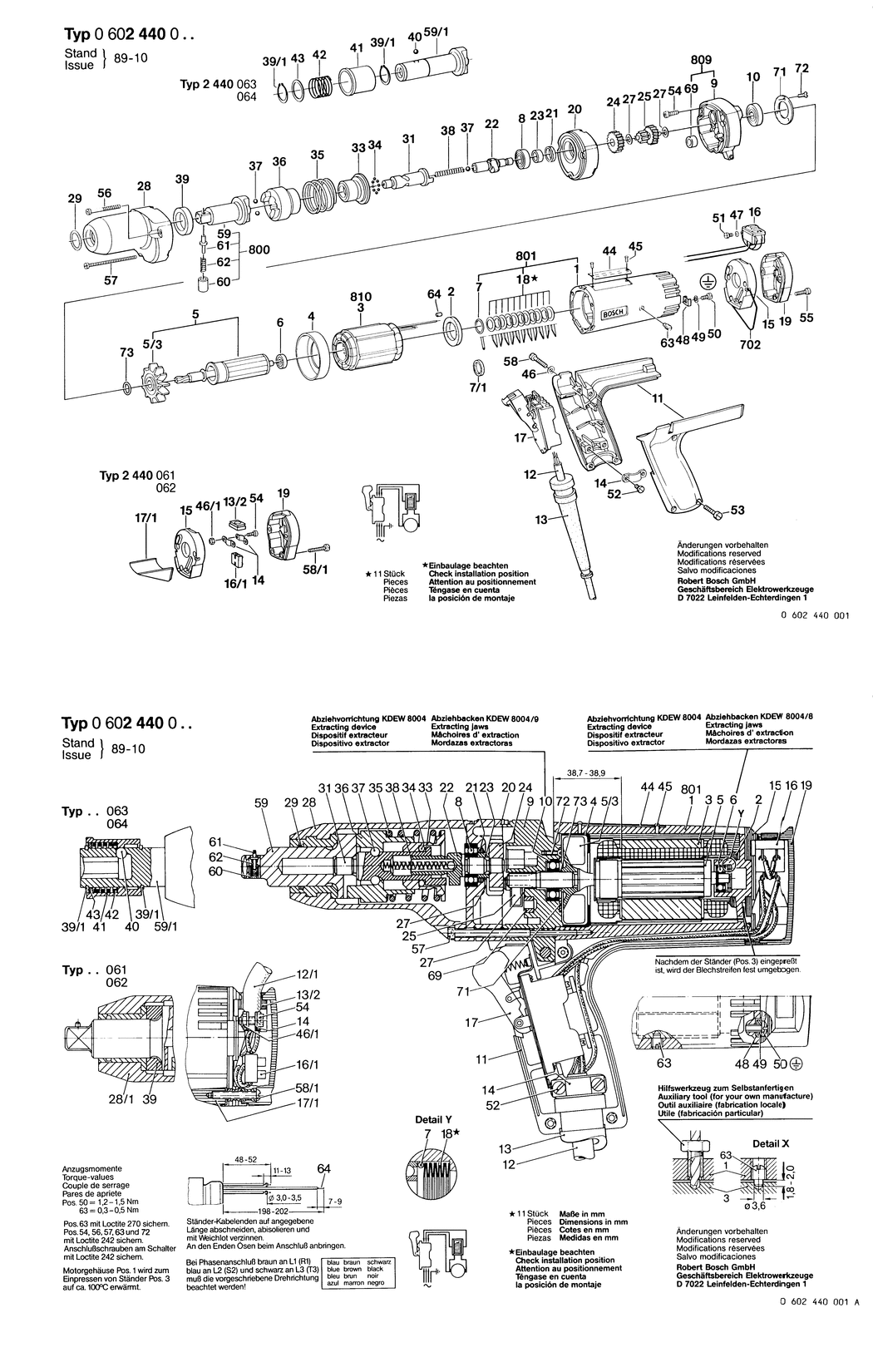

An exploded drawing and listing for the Bosch ---- / 0602440014 / --- 120 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102058.A57 3605102058 £120.11 £144.13
2 - SEAL RING BSD-1600209011.A292 1600209011 £2.80 £3.36
4 - AIR-DEFLECTOR RING BSD-1600502005.A154 1600502005 £2.61 £3.13
5 - ROTOR BSD-3604080020.A124 3604080020 -
5/3 - FAN BSD-1606610105.A144 1606610105 £14.91 £17.89
6 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A155 1900905015 £30.42 £36.51
7/1 - RUBBER RING 6MM.dia12xdia16.4x3MM BSD-3600206002.A163 3600206002 -
8 - GROOVE BALL BEARING 9x24x7 BSD-1900905017.A175 1900905017 £23.86 £28.63
9 - BEARING HOUSING BSD-3605820046.A53 3605820046 -
10 - GROOVE BALL BEARING 9x24x7 BSD-1610905011.A63 1610905011 £14.91 £17.89
11 - HANDLE BSD-3605132044.A36 3605132044 -
12 - ELEC. CABLE W/CONNECTION BSD-3604462049.A2 3604462049 -
13 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A398 3600703011 £2.80 £3.36
14 - FASTENING CLAMP BSD-1601302014.A147 1601302014 £2.61 £3.13
15 - CONNECTION HOUSING BSD-3600099005.A42 3600099005 £16.41 £19.69
16 - REVERSING SWITCH BSD-1607200043.A17 1607200043 -
17 - SWITCH BSD-3607200041.A24 3607200041 -
19 - SEALING CAP BSD-3605500071.A16 3605500071 £16.41 £19.69
20 - INTERMEDIATE BEARING BSD-3605820061.A14 3605820061 -
21 - SEALING DISK BSD-1600108033.A5 1600108033 £2.16 £2.59
22 - COUPLING HALF BSD-1606455050.A11 1606455050 -
23 - SPACER RING BSD-1600201010.A13 1600201010 -
24 - CYLINDRICAL GEAR Z=23 BSD-1606317066.A6 1606317066 -
25 - SPINDLE WITH GEAR Z=13/34 BSD-1606328090.A5 1606328090 -
27 - SHIM 0.50 MM BSD-2600100613.A149 2600100613 £1.75 £2.10
28 - SPINDLE BEARING BSD-3605806118.A11 3605806118 -
29 - O-RING 22x2 MM BSD-1900210321.A8 1900210321 £5.30 £6.36
31 - DRIVE SHAFT BSD-1603123024.A10 1603123024 -
33 - BUSHING BSD-1600521005.A22 1600521005 -
34 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A181 1903230004 £2.16 £2.59
35 - COMPRESSION SPRING BSD-1604619011.A27 1604619011 -
36 - STRIKER BSD-1608710025.A8 1608710025 -
37 - BALL DIN 5401-5 G28 BSD-1903230009.A427 1903230009 £1.75 £2.10
38 - COMPRESSION SPRING BSD-1604611018.A2 1604611018 -
44 - NAMEPLATE BSD-3601106053.A901 3601106053 £5.30 £6.36
45 - GROOVED NAIL BSD-3603133000.A672 3603133000 £2.61 £3.13
46 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A201 2916060006 £1.32 £1.58
47 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A107 2916060003 £1.32 £1.58
48 - CLAMPING SADDLE BSD-3601321001.A193 3601321001 £3.72 £4.47
49 - SPRING WASHER dia4.2 MM BSD-3600150006.A386 3600150006 £2.61 £3.13
50 - PAN HEAD SCREW DIN 85-AM4x8-MS BSD-2910110118.A87 2910110118 £1.75 £2.10
51 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8 BSD-2910091046.A55 2910091046 £1.75 £2.10
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A700 2910021116 £2.16 £2.59
53 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A302 2910021122 £2.16 £2.59
54 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8 BSD-2910141122.A217 2910141122 £2.16 £2.59
55 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8 BSD-2910141131.A61 2910141131 £2.16 £2.59
56 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8 BSD-2910141140.A60 2910141140 £1.75 £2.10
57 - SOCKET HEAD CAP SCREW BSD-1603410005.A3 1603410005 -
58 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A407 2910011162 £1.75 £2.10
59 - COUPLING HALF BSD-1606455051.A3 1606455051 -
60 - GUIDE SLEEVE BSD-1600506009.A1 1600506009 £7.36 £8.83
61 - DETENT PIN BSD-1603124085.A10 1603124085 £3.72 £4.47
62 - COMPRESSION SPRING BSD-1604611019.A10 1604611019 £2.80 £3.36
63 - SET SCREW BSD-3603402000.A317 3603402000 £1.75 £2.10
64 - END SPLICE BSD-3604477008.A362 3604477008 £1.75 £2.10
69 - BUSHING BSD-2600300058.A37 2600300058 -
71 - RETAINING WASHER BSD-3600190012.A112 3600190012 -
72 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8 BSD-2910780050.A70 2910780050 -
73 - O-RING 8.0x1.0 MM BSD-1600210045.A98 1600210045 £1.75 £2.10
99 - REFERENCE PLATE BSD-3601119236.A806 3601119236 £3.72 £4.47
700 - COMPRESSION SPRING BSD-1604619011.A26 1604619011 -
702 - SUSPENSION LOOP BSD-3604682000.A27 3604682000 £14.72 £17.67
703 - HEX SOCKET HEAD CAP SCREW BSD-2910131193.A26 2910131193 £1.75 £2.10
800 - COUPLING HALF BSD-1606455052.A8 1606455052 -
801 - MOTOR HOUSING BSD-3605102028.A104 3605102028 £156.22 £187.46
809 - BEARING HOUSING BSD-1605820162.A28 1605820162 -
810 - STATOR 220V/360HZ BSD-1604229204.A11 1604229204 -
