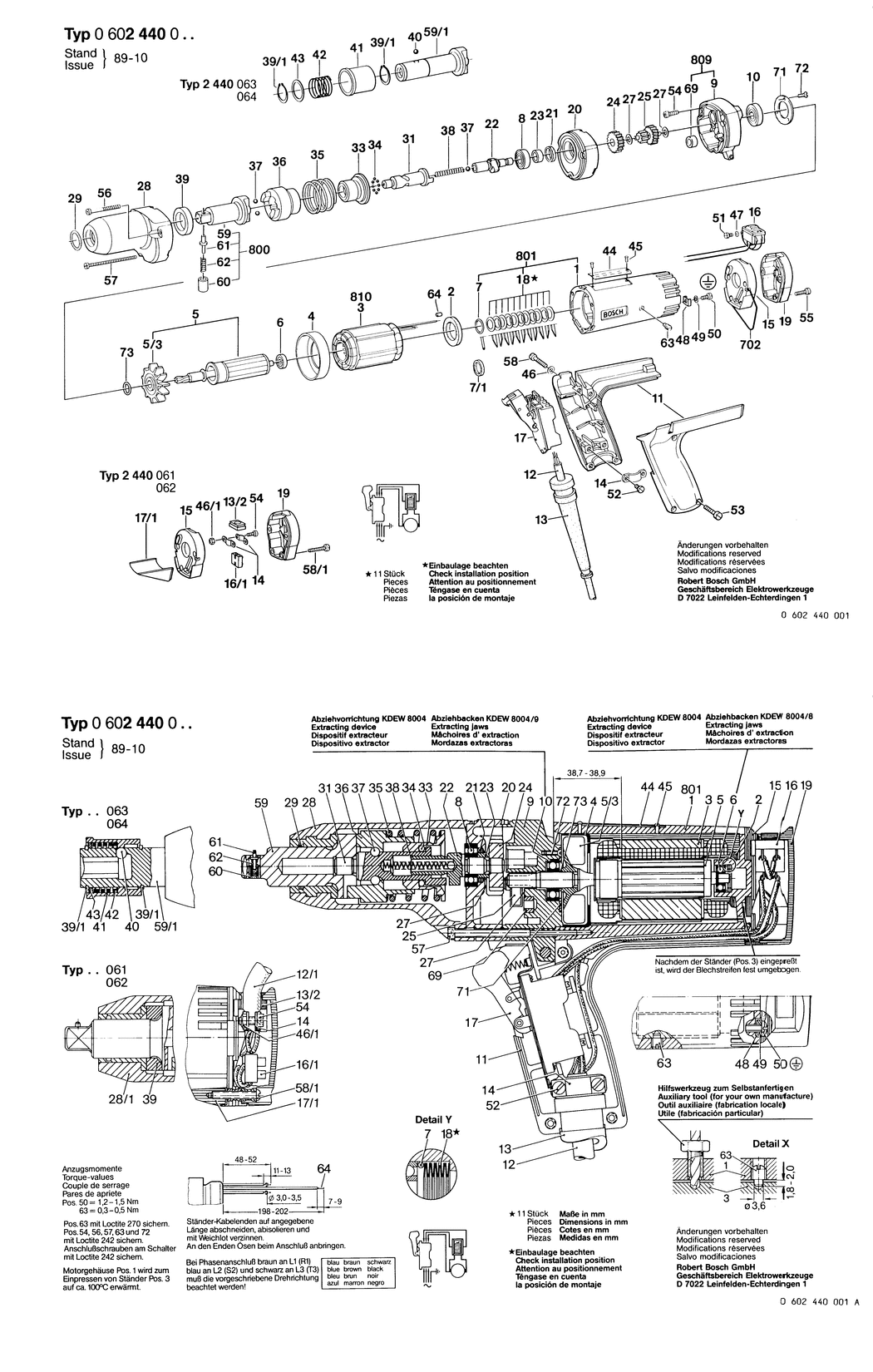

An exploded drawing and listing for the Bosch ---- / 0602440062 / --- 135 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102058.A54 3605102058 £120.11 £144.13
2 - SEAL RING BSD-1600209011.A290 1600209011 £2.80 £3.36
4 - AIR-DEFLECTOR RING BSD-1600502005.A151 1600502005 £2.61 £3.13
5 - ROTOR BSD-3604080020.A120 3604080020 -
5/3 - FAN BSD-1606610105.A140 1606610105 £14.91 £17.89
6 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A153 1900905015 £30.42 £36.51
7/1 - RUBBER RING 6MM.dia12xdia16.4x3MM BSD-3600206002.A161 3600206002 -
8 - GROOVE BALL BEARING 9x24x7 BSD-1900905017.A177 1900905017 £23.86 £28.63
9 - BEARING HOUSING BSD-3605820046.A57 3605820046 -
10 - GROOVE BALL BEARING 9x24x7 BSD-1610905011.A61 1610905011 £14.91 £17.89
11 - HANDLE BSD-3605132044.A38 3605132044 -
12 - POWER SUPPLY CORD BSD-1604422018.A1 1604422018 -
13/2 - GROMMET BSD-1602388012.A1 1602388012 -
14 - FASTENING CLAMP BSD-1601302014.A150 1601302014 £2.61 £3.13
15 - CONNECTION HOUSING BSD-3600099005.A44 3600099005 £16.41 £19.69
16/1 - STRIP TERMINAL BSD-1901091014.A2 1901091014 -
17/1 - COVER PLATE BSD-1602386001.A1 1602386001 -
19 - SEALING CAP BSD-3605500071.A15 3605500071 £16.41 £19.69
20 - INTERMEDIATE BEARING BSD-3605820061.A12 3605820061 -
21 - SEALING DISK BSD-1600108033.A7 1600108033 £2.16 £2.59
22 - COUPLING HALF BSD-1606455050.A13 1606455050 -
23 - SPACER RING BSD-1600201010.A11 1600201010 -
24 - CYLINDRICAL GEAR Z=23 BSD-1606317066.A8 1606317066 -
25 - SPINDLE WITH GEAR Z=13/34 BSD-1606328090.A3 1606328090 -
27 - SHIM 0.50 MM BSD-2600100613.A147 2600100613 £1.75 £2.10
28 - SPINDLE HOUSING BSD-1605806282.A1 1605806282 -
29 - O-RING 22x2 MM BSD-1900210321.A9 1900210321 £5.30 £6.36
31 - DRIVE SHAFT BSD-1603123024.A7 1603123024 -
33 - BUSHING BSD-1600521005.A19 1600521005 -
34 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A179 1903230004 £2.16 £2.59
35 - COMPRESSION SPRING BSD-1604619011.A25 1604619011 -
36 - STRIKER BSD-1608710025.A9 1608710025 -
37 - BALL DIN 5401-5 G28 BSD-1903230009.A429 1903230009 £1.75 £2.10
38 - COMPRESSION SPRING BSD-1604611018.A1 1604611018 -
39 - SPACER RING BSD-1600202030.A1 1600202030 -
44 - NAMEPLATE BSD-3601106053.A903 3601106053 £5.30 £6.36
45 - GROOVED NAIL BSD-3603133000.A670 3603133000 £2.61 £3.13
46/1 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A140 2915011005 £1.75 £2.10
47 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A106 2916060003 £1.32 £1.58
48 - CLAMPING SADDLE BSD-3601321001.A195 3601321001 £3.72 £4.47
49 - SPRING WASHER dia4.2 MM BSD-3600150006.A384 3600150006 £2.61 £3.13
50 - PAN HEAD SCREW DIN 85-AM4x8-MS BSD-2910110118.A86 2910110118 £1.75 £2.10
51 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8 BSD-2910091046.A56 2910091046 £1.75 £2.10
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A701 2910021116 £2.16 £2.59
53 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A301 2910021122 £2.16 £2.59
54 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8 BSD-2910141122.A216 2910141122 £2.16 £2.59
55 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8 BSD-2910141131.A62 2910141131 £2.16 £2.59
56 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8 BSD-2910141140.A59 2910141140 £1.75 £2.10
57 - SOCKET HEAD CAP SCREW BSD-1603410005.A0 1603410005 -
58/1 - TAPPING SCREW DIN 7971-BZ3.9x25 BSD-2910211022.A105 2910211022 £1.75 £2.10
59 - COUPLING HALF BSD-1606455051.A1 1606455051 -
60 - GUIDE SLEEVE BSD-1600506009.A4 1600506009 £7.36 £8.83
61 - DETENT PIN BSD-1603124085.A13 1603124085 £3.72 £4.47
62 - COMPRESSION SPRING BSD-1604611019.A11 1604611019 £2.80 £3.36
63 - SET SCREW BSD-3603402000.A319 3603402000 £1.75 £2.10
64 - END SPLICE BSD-3604477008.A363 3604477008 £1.75 £2.10
69 - BUSHING BSD-2600300058.A39 2600300058 -
71 - RETAINING WASHER BSD-3600190012.A113 3600190012 -
72 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8 BSD-2910780050.A67 2910780050 -
73 - O-RING 8.0x1.0 MM BSD-1600210045.A101 1600210045 £1.75 £2.10
99 - REFERENCE PLATE BSD-3601119236.A804 3601119236 £3.72 £4.47
700 - COMPRESSION SPRING BSD-1604619011.A24 1604619011 -
702 - SUSPENSION LOOP BSD-3604682000.A26 3604682000 £14.72 £17.67
703 - HEX SOCKET HEAD CAP SCREW BSD-2910131193.A27 2910131193 £1.75 £2.10
800 - COUPLING HALF BSD-1606455052.A11 1606455052 -
801 - MOTOR HOUSING BSD-3605102028.A105 3605102028 £156.22 £187.46
809 - BEARING HOUSING BSD-1605820162.A30 1605820162 -
810 - STATOR 200V/300HZ.135V/200HZ BSD-1604229201.A47 1604229201 £410.78 £492.94
